RACF648R10K5%R: DescriptionArray/Network Resistor, Bussed, Metal Glaze/thick Film, 0.063W, 10000ohm, 50V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 1225, CHIP, ROHS COMPLIANT; CategoryPassive components The resistor; File Size202KB，2 Pages; ManufacturerSEI(Stackpole Electronics Inc.); Websitehttps://www.seielect.com/; Environmental Compliance

Download Datasheet Parametric View All

RACF648R10K5%R Overview

Array/Network Resistor, Bussed, Metal Glaze/thick Film, 0.063W, 10000ohm, 50V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 1225, CHIP, ROHS COMPLIANT

RACF648R10K5%R Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	SMT, 1225
Reach Compliance Code	unknown
ECCN code	EAR99
structure	Chip
Component power consumption	0.063 W
The first element resistor	10000 Ω
JESD-609 code	e3
Manufacturer's serial number	RAC
Installation features	SURFACE MOUNT
Network Type	BUSSED
Number of components	8
Number of functions	1
Number of terminals	10
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	0.6 mm
Package length	6.4 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	3.1 mm
method of packing	TAPE, EMBOSSED
Rated power dissipation(P)	0.063 W
Rated temperature	70 °C
resistance	10000 Ω
Resistor type	ARRAY/NETWORK RESISTOR
series	RAC648R(5%)
size code	1225
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	200 ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Tolerance	5%
Operating Voltage	50 V
Base Number Matches	1

Preview

Download Datasheet

View All

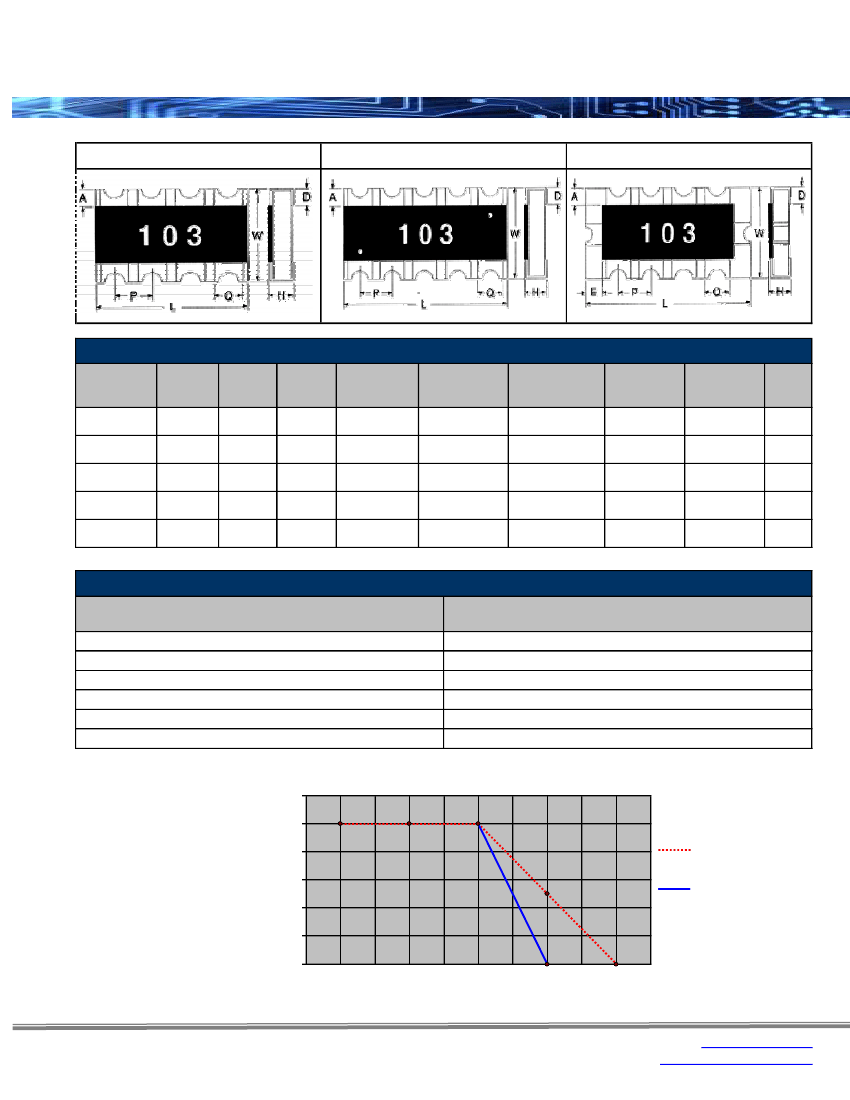

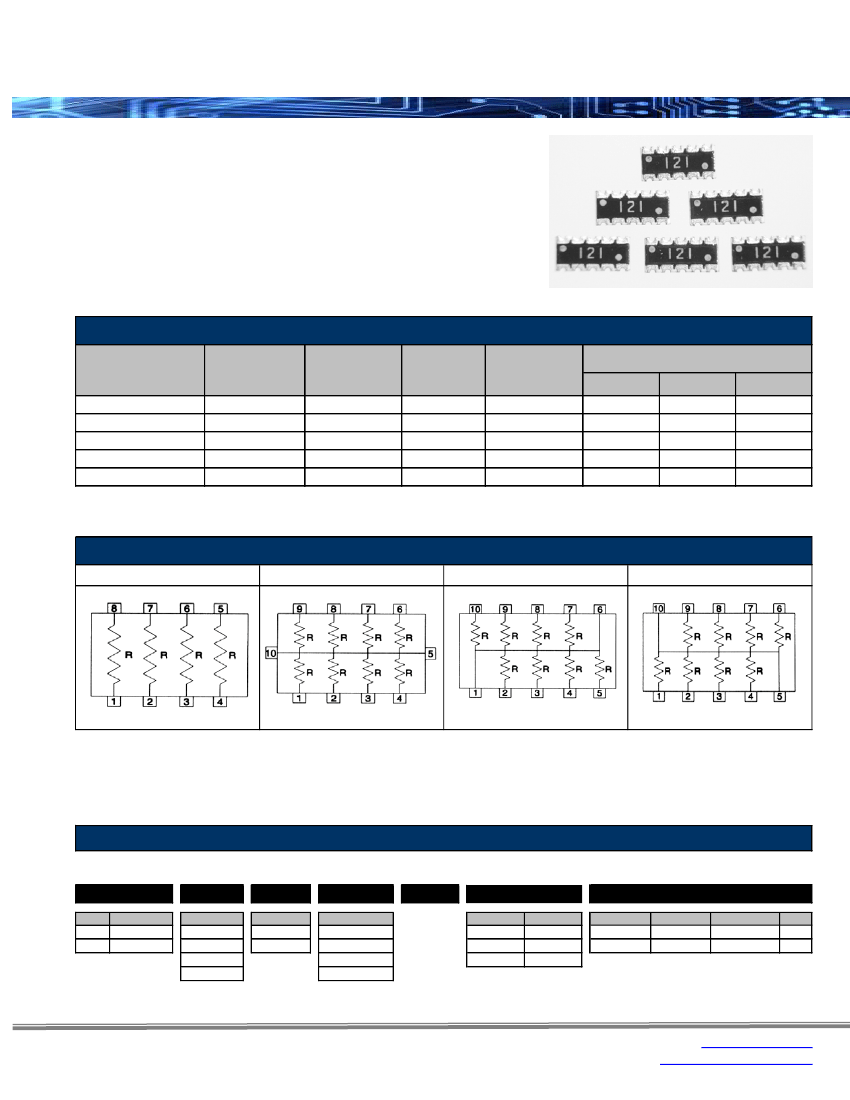

RAC Series

Concave Termination Chip Resistor Array

Stackpole Electronics, Inc.

Resistive Product Solutions

Features:

•

Thick film resistor element

Zero ohm available

Auto-placement capability

Multiple circuit types available

Ideal SMD substitute for leaded networks

RoHS compliant / lead-free available (RACF)

Electrical Specifications

Type / Code /

# of Elements /

Circuit Type

RAC 16-4D

RAC 32-4D

RAC 40-8M

RAC 64-8N

RAC 64-8R

Power Rating

(per element)

@ 70ºC

0.063W

0.125W

0.063W

Maximum

1

Working Voltage

50V

200V

25V

50V

Maximum

Overload

Voltage

100V

400V

50V

100V

Resistance

Temperature

Coefficient

±200 ppm/ºC

Ohmic Range and Tolerance

1%

1Ω - 1MΩ

22Ω - 1MΩ

-

2%

1Ω - 10MΩ

-

5%

1Ω - 10MΩ

10Ω - 1MΩ

22Ω - 1MΩ

1

Lesser of

√PR

or maximum working voltage.

Schematics

Isolated Circuit - D

Bussed Circuit - M

Bussed Circuit - N

Bussed Circuit - R

How to Order

SEI Type

Code

Number of

Elements

Circuit Type

Nominal

Resistance

Tolerance

Packaging

RAC

Type Description

RAC

Standard

RACF

RoHS

16

Code

16

32

40

64

4

Elements

4

8

D

Circuit Type

D = Isolated

M = Bussed

N = Bussed

R = Bussed

10K

5%

Tolerance

1%

2%

5%

Values

E24

SEI Types

16

32, 40, 64

R

Pkg Qty

5,000

4,000

Description Code

Paper

R

Emboss

R

Rev Date: 10/21/2009

This specification may be changed at any time without prior notice

Please confirm technical specifications before you order and/or use.

31

www.seielect.com
