MCSOFHW/TCE225.0MHZ: DescriptionCMOS Output Clock Oscillator, 20MHz Min, 225MHz Max, 225MHz Nom; CategoryPassive components oscillator; File Size153KB，1 Pages; ManufacturerGolledge Electronics; Websitehttp://www.golledge.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

MCSOFHW/TCE225.0MHZ Overview

CMOS Output Clock Oscillator, 20MHz Min, 225MHz Max, 225MHz Nom

MCSOFHW/TCE225.0MHZ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	DILCC4,.38,200
Reach Compliance Code	compliant
Manufacturer's serial number	MCSOF
Installation features	SURFACE MOUNT
Number of terminals	4
Maximum operating frequency	225 MHz
Minimum operating frequency	20 MHz
Nominal operating frequency	225 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Oscillator type	CMOS
Package body material	CERAMIC
Encapsulate equivalent code	DILCC4,.38,200
power supply	2.5 V
Certification status	Not Qualified
Nominal supply voltage	2.5 V
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

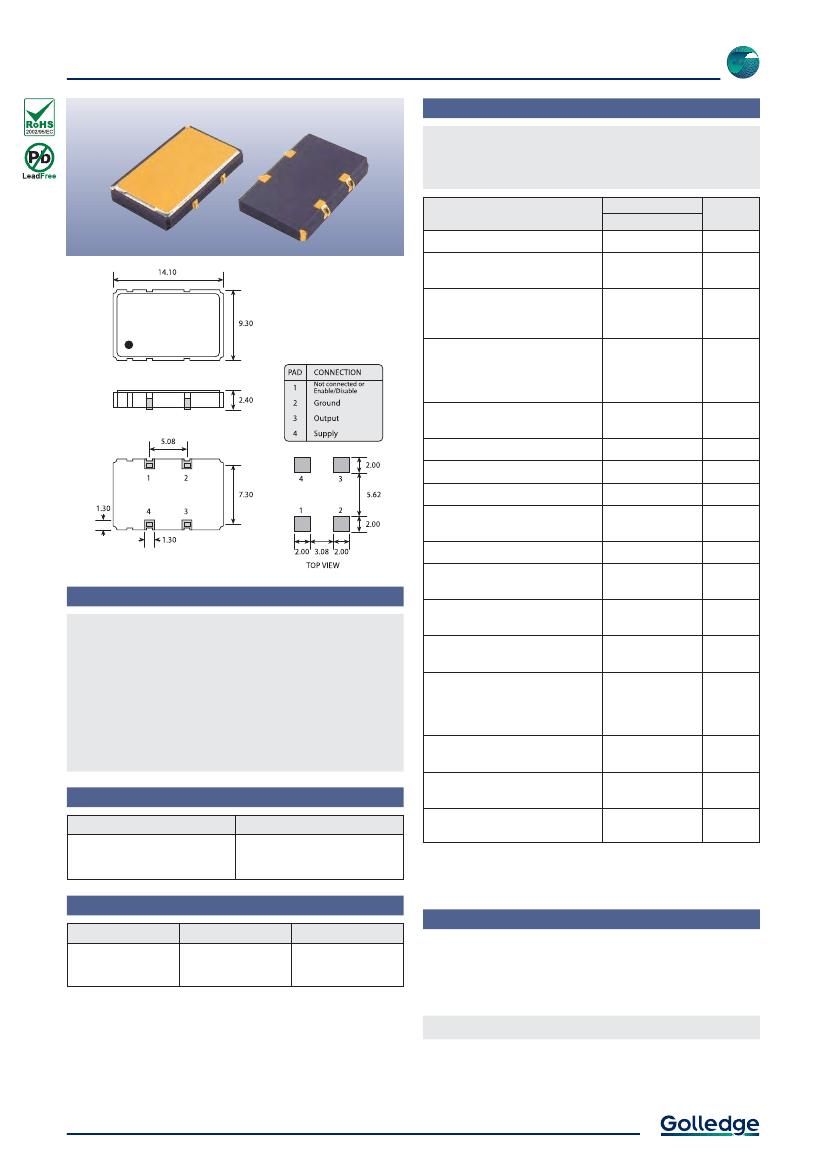

CMOS Oscillator -55+125°C Low Jitter

Specifications

MCSOF: 10.0kHz ~ 20.0MHz

MCSOFH:

20.0

~ 225MHz

MCSOF

Parameters

Frequency range:

10.0kHz ~ 225MHz

Supply voltage (V

Frequency stability*:

+3.3V (±5%)

+2.5V (±5%)

Product

MCSOF











See table

CMOS





Option

Codes

specify

±100ppm

±50ppm

tighter stabilities on request

Operating temperature range:

0 to +70°C

-40 to +85°C

-55 to +125°C

Storage temperature range:

-55 to +125°C

Supply current:

Driving ability:

Load:

Logic levels:

3pF min, 47pF max

‘0’ level = +0.4V max

‘1’ level = V

-0.5V min

1ms typ, 5ms max

Start up time:

Features

Waveform symmetry:

40:60 max @ 50%V

Jitter RMS (1):

< 2ps (≤20.0MHz)

< 10ps (>20.0MHz)

7ns max

≤20MHz

3ns max >20MHz



Low jitter

Military temperature range -55+125°C option

Excellent shock & vibration resistance

Enable / disable tristate option (>500kHz)

Wide frequency range available

Rise / fall times:

Enable / disable function:

None (pad 1 NC)

Tristate* (control via pad 1)

* not available under 500kHz

Shock resistance:

5,000G, 0.3ms, ½ sine

Vibration resistance:

20G rms 10.0 ~ 2,000Hz



Enable / Disable Function

Input (pad 1)

Open

‘1’ level

‘0’ level

Output (pad 3)

Enabled

High Impedance

Soldering condition:

260°C, 10 sec max



Standard.



Optional - Please specify required code(s) when ordering

* Frequency stability is inclusive of calibration @ 25°C, operating temperature range, sup-

ply voltage change, load change and ageing over 10 years.

Supply current

Freq / Supply

≤

10MHz

10 ~ 20MHz

20 ~ 160MHz

2.5V

2mA

3mA

25mA

3.3V

4mA

5mA

30mA

Ordering Information

Product name + option codes + frequency

eg:

MCSOFV/CE 10.0MHz

3.3V ±100ppm -55 to +125°C Enable / disable

For frequencies

20.0MHz

add an 'H' to the product name

eg:

MCSOFHW/TB 32.0MHz

2.5V ±50ppm -40 to +85°C no E/D

Option code X (eg MCSOF/X) denotes a custom specification.



Packed in trays (50pcs/tray) or T&R 250 ~ 500pcs/reel

Maximum values, no load.

Tel:

+44 1460 256 100

28 Nov 2013

Fax:

+44 1460 256 101

E-mail:

sales@golledge.com

Web:

www.golledge.com

MCSOFHW/TCE225.0MHZ Related Products

	MCSOFHW/TCE225.0MHZ	MCSOFHT/BE32.0MHZ	MCSOFT/AE20.0MHZ	MCSOFW/AE0.01MHZ	MCSOFHT/A225.0MHZ	MCSOFV/TC20.0MHZ	MCSOFHV/A32.0MHZ	MCSOFT/TB0.01MHZ	MCSOF/TCE10.0MHZ
Description	CMOS Output Clock Oscillator, 20MHz Min, 225MHz Max, 225MHz Nom	CMOS Output Clock Oscillator	CMOS Output Clock Oscillator	CMOS Output Clock Oscillator	CMOS Output Clock Oscillator	CMOS Output Clock Oscillator, 0.01MHz Min, 20MHz Max, 20MHz Nom	CMOS Output Clock Oscillator	CMOS Output Clock Oscillator	CRYSTAL OSCILLATOR, CLOCK, CMOS OUTPUT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Oscillator type	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Manufacturer's serial number	MCSOF	MCSOF	MCSOF	MCSOF	MCSOF	MCSOF	-	MCSOF	MCSOF
Base Number Matches	1	1	1	1	1	1	-	-	-
