M256QANFREQ1

Description
HCMOS/TTL Output Clock Oscillator, 1.5MHz Min, 135MHz Max, ROHS COMPLIANT, LEADLESS, CERAMIC PACKAGE-4
CategoryPassive components    oscillator
File Size454KB,2 Pages
ManufacturerMtronPTI
Websitehttp://www.mtronpti.com
Environmental Compliance
Download Datasheet Parametric View All

M256QANFREQ1 Overview

HCMOS/TTL Output Clock Oscillator, 1.5MHz Min, 135MHz Max, ROHS COMPLIANT, LEADLESS, CERAMIC PACKAGE-4

M256QANFREQ1 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codeunknown
Other featuresSTANDBY FUNCTION
maximum descent time6 ns
Frequency Adjustment - MechanicalNO
frequency stability25%
JESD-609 codee4
Installation featuresSURFACE MOUNT
Maximum operating frequency135 MHz
Minimum operating frequency1.5 MHz
Maximum operating temperature85 °C
Minimum operating temperature-10 °C
Oscillator typeHCMOS/TTL
Output load2 TTL, 15 pF
physical size7.0mm x 5.0mm x 1.9mm
longest rise time6 ns
Maximum supply voltage3.6 V
Minimum supply voltage3 V
Nominal supply voltage3.3 V
surface mountYES
maximum symmetry40/60 %
Terminal surfaceNickel/Gold (Ni/Au)
Base Number Matches1

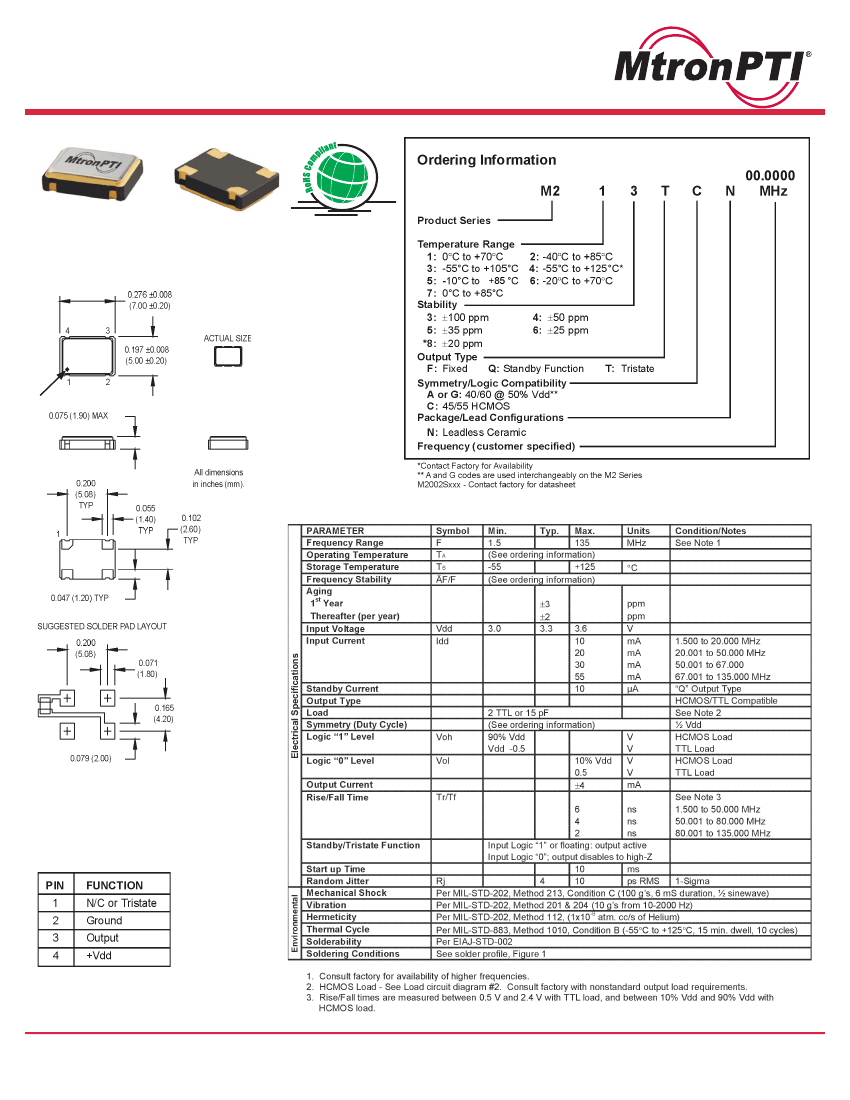

M2 Series
5x7 mm, 3.3 Volt, HCMOS/TTL Compatible Output, Clock Oscillator
DENOTES PIN 1
NOTE:
A capacitor of value 0.01
µF or greater between Vdd and
Ground is recommended.
Pin Connections
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see
www.mtronpti.com
for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI
1-800-762-8800.
Revision:11-2-09
