C2358 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> C2358

C2358: Description2 ELEMENT, 6500uH, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components inductor; File Size36KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

C2358 Overview

2 ELEMENT, 6500uH, GENERAL PURPOSE INDUCTOR, SMD

C2358 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1988480371
Reach Compliance Code	unknown
ECCN code	EAR99
DC Resistance	5.9 Ω
Nominal inductance(L)	6500 µH
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	C2358
Number of functions	2
Number of terminals	10
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL IN-LINE
Terminal shape	GULL WING
Test frequency	0.01 MHz
Tolerance	5%

Preview

Download Datasheet

View All

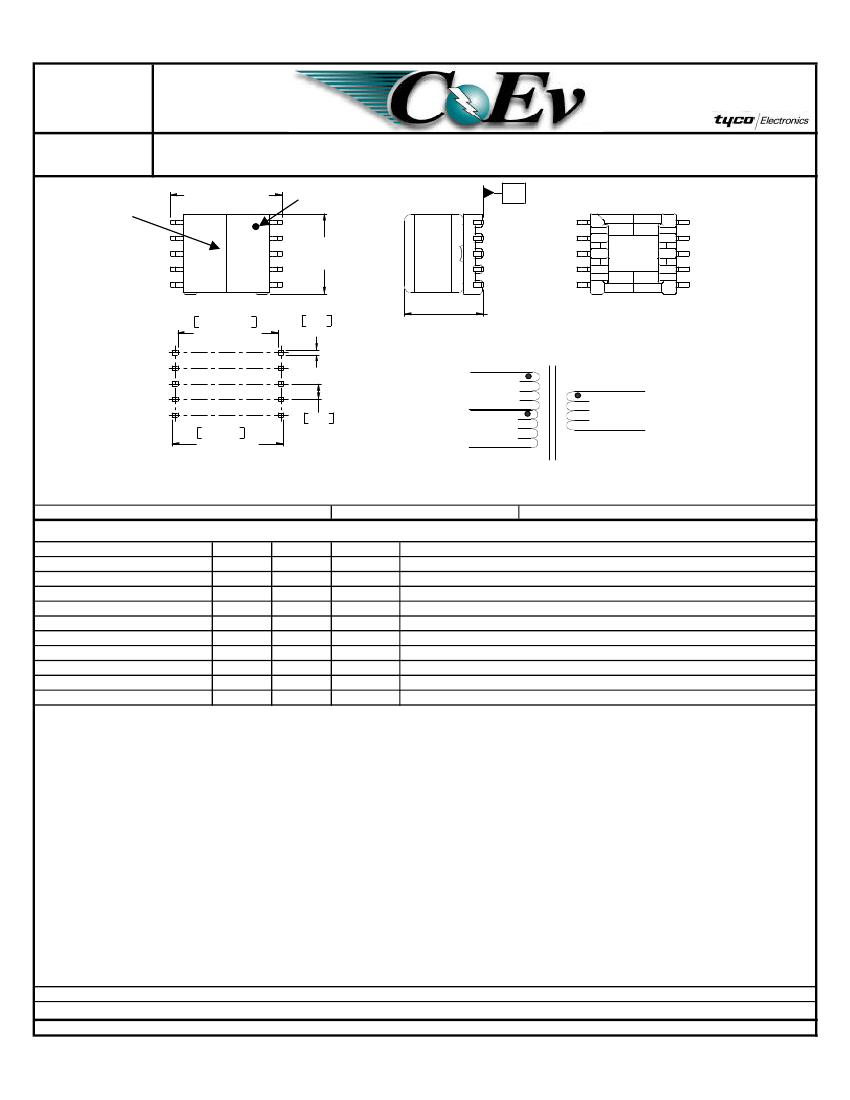

C2358

Product

Description

EIA date code and

lot code

REV

6.5 mH @ 160mADC POTS Splitter Inductor

1:1 with Split Primary

0.700 MAX

[17.78 MAX]

COEV

C2358

XXXXX

15.40±0.15

.606±.006

17±0.15

.669±.006

Customer Terminal

#1 Indicator

Coplanar with surface A

+0.006"/-0.000"

0.530 MAX

[13.46 MAX]

0.70

.028

0.480 MAX

[12.19 MAX]

[50 Ohms]

10 [50 Ohms]

2.50

.098

Terminal Dimensions

Customer to determine PCB pad dimensions.

Primary units are in inches.

Millimeters are in brackets.

Electrical Specifications at +20°C unless noted otherwise

Test Description

Inductance

Leakage Inductance

DC Resistance

Turns Ratio

Dielectric

Interwinding Capacitance

Longitudinal Balance (ITU)

Limit

6.5

5.9

1.00

1,000

Units

µH

Ω

---

VAC

Tol

± 5%

± 10%

Max.

± 8%

± 1%

500µA

Max.

Min.

Notes

1-5, 10kHz, 100mVAC, 0DC, Ls.

1-5, 10kHz, 100mVAC, 160mADC, Ls.

1-5 tie( 6+10 ), 100kHz, 100mVAC, Ls.

1-5

6-10

( 1-5 ) : ( 6-10 ), 10KHz, 100mVAC.

1-10, 1 second test, 500µA maximum leakage current.

1-6 tie( 1+5,6+10 ), 100kHz, 100mVAC, Cs.

30kHz.

1.1MHz.

The information contained in this drawing is the sole property of CoEv, Inc. Any reproduction or use without the written permission of CoEv, Inc. is prohibited.

TEL 888-978-2638 - FAX 605-886-8995 - www.coev.net
