5051480408

Description
Assembly Item,
CategoryThe connector    Connector bracket
File Size179KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

5051480408 Overview

Assembly Item,

5051480408 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codecompli
Base Number Matches1
9
8
7
6
5
4
3
2
1

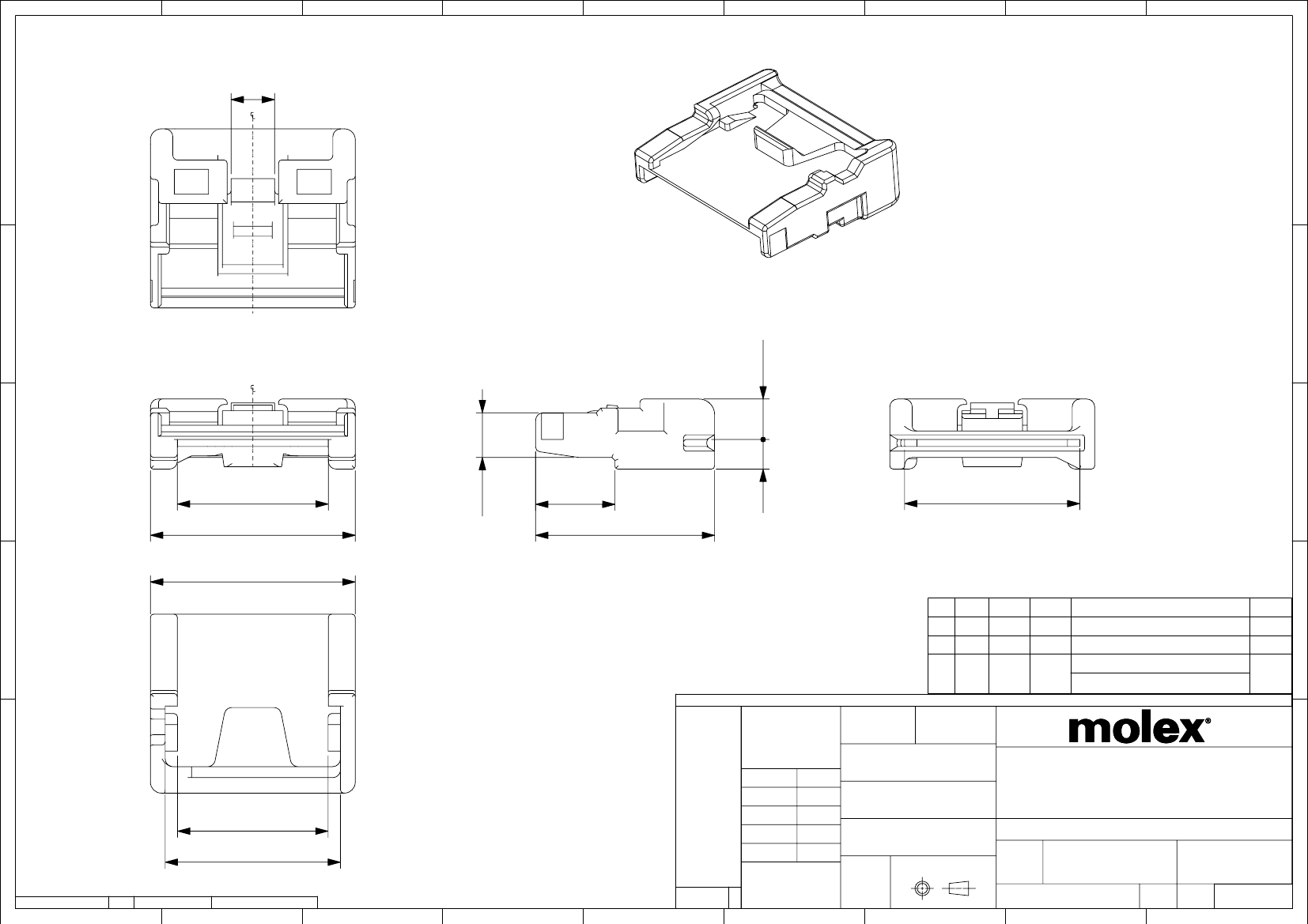

注記 NOTES
2.8
E
1.材質 MATERIAL
  PBT、ガラス充填、UL94V-0、色:黒色
  PBT, GLASS FILLED, UL94V-0, COLOR : BLACK
2.ELV及びRoHS適合品
ELV AND RoHS COMPLIANT.
3.適合コネクタ:505147**90
APPLICABLE CONNECTOR : 505147**90
E
D
2.6
D
C
2.87
1.9
C
D
(
A
)
5.1
(B)
11.5
A
9.7
9.67 11.26 13.16
7.7
7.67 9.26 11.16
5.7
5.67 7.26 9.16
B
D
2016/05/10
2016/05/13
2016/05/13
GENERAL
TOLERANCES
(UNLESS SPECIFIED)
ANGULAR TOL ±
3.0
°
DIMENSION UNITS
C
B
A
5051480408
5051480308
5051480208
PLASTIC BAG
4
3
2
B
ORDER NO. オーダー番号
CKT.
THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
SCALE
MM
DRWN BY
DATE
5:1
2015/10/21
DATE
4 PLACES
±
±
±
±
±
0.2
0.2
0.2
0.2
0.2
AISHII
CHK'D BY
104966
AISHII
KTAKAHASHI
TKUSUHARA01
2.0 FPC TO BOARD PLUG JACKET
2015/12/16
3 PLACES
2 PLACES
1 PLACE
0 PLACES
A
KTAKAHASHI
APPR BY
DATE
C
B
A
PRODUCT CUSTOMER DRAWING
SERIES
MATERIAL NUMBER
CUSTOMER
YNOGAWA
DRAWING SIZE
2015/12/21
EC NO:
DRWN:
CHK'D:
APPR:
THIRD ANGLE PROJECTION
RELEASE STATUS
FORMAT: master-tb-prod-A3
REVISION: G
DATE: 2015/12/14
P1
RELEASE DATE
13.05.2016
05:58:44
B
7
6
5
REV
DRAFT WHERE APPLICABLE
MUST REMAIN
WITHIN DIMENSIONS
505148
DOCUMENT NUMBER
SEE CHART
GENERAL
DOC TYPE
DOC PART
SHEET NUMBER
A3
3
5051480000
PSD
000
1 OF 1
9
8
4
2
1
