TNL9052: Description5 MHz - 500 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, SM3, 4 PIN; CategoryWireless rf/communication Radio frequency and microwave; File Size247KB，1 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

TNL9052 Overview

5 MHz - 500 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, SM3, 4 PIN

Parameter Name	Attribute value
Reach Compliance Code	unknown
structure	COMPONENT
Gain	7 dB
Maximum input power (CW)	15 dBm
Maximum operating frequency	500 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2
Base Number Matches	1

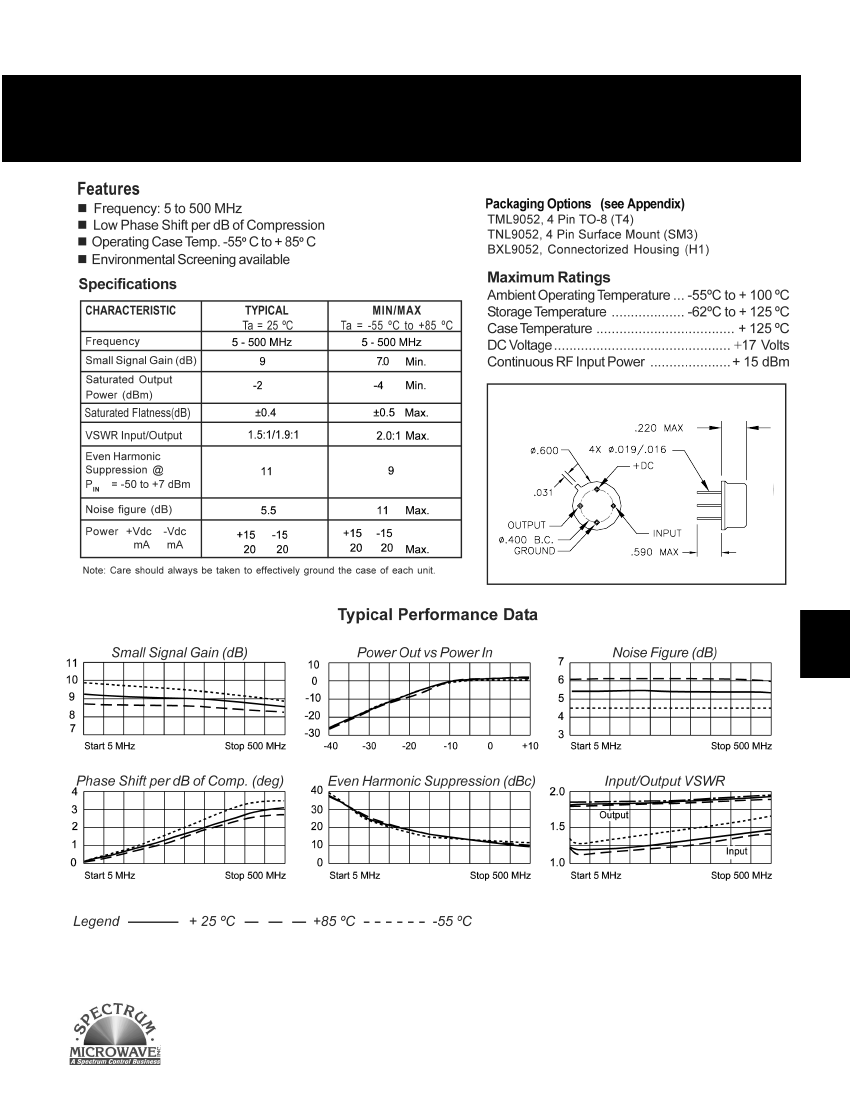

RF Limiting Amplifier

Low Phase Shift per dB of Compression

Model TML9052

5 to 500 MHz

www.specwave.com

SPECTRUM CONTROL GmbH • Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58

SPECTRUM MICROWAVE • 2144 Franklin Drive N.E. • Palm Bay, Florida 32905 • Phone: (888) 553-7531 • Fax: (888) 553-7532

801

Limiting Amplifiers, Limiters and AGCs

	TNL9052	TML9052
Description	5 MHz - 500 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, SM3, 4 PIN	5 MHz - 500 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, TO-8, 4 PIN
Reach Compliance Code	unknown	unknown
structure	COMPONENT	COMPONENT
Gain	7 dB	7 dB
Maximum input power (CW)	15 dBm	15 dBm
Maximum operating frequency	500 MHz	500 MHz
Minimum operating frequency	5 MHz	5 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2
