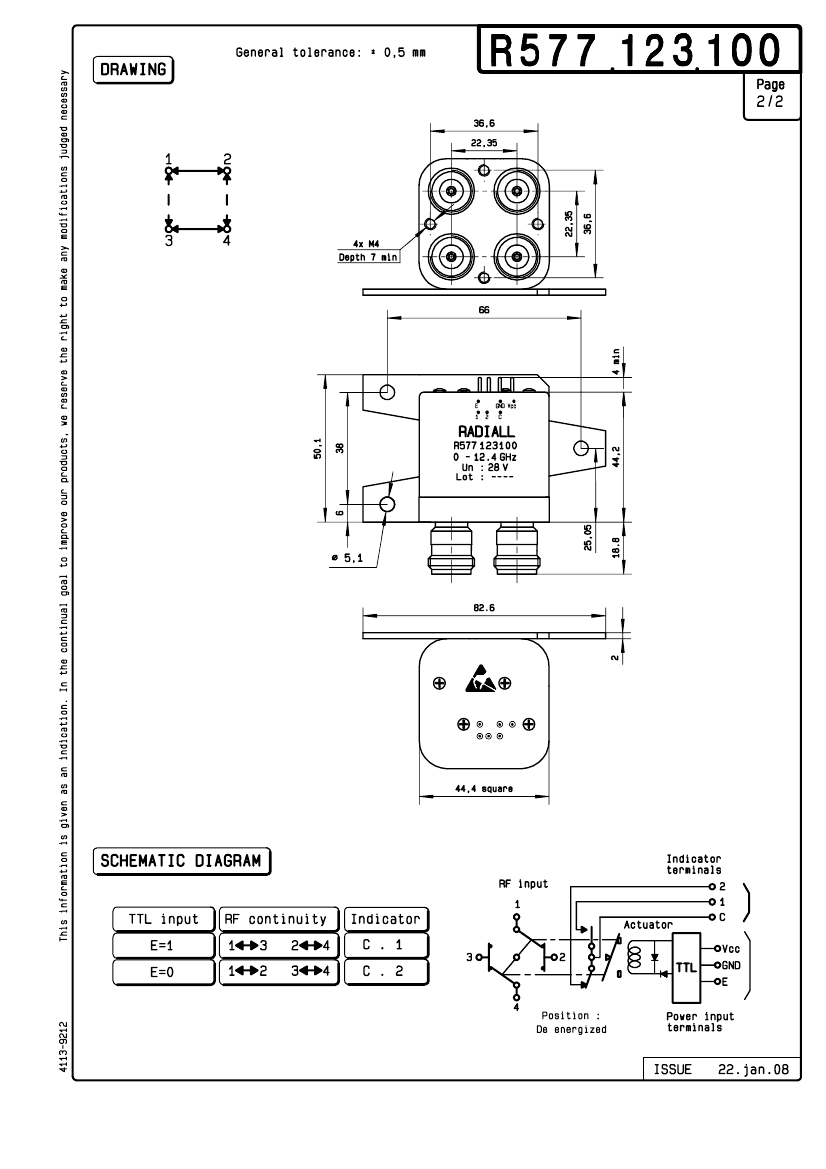

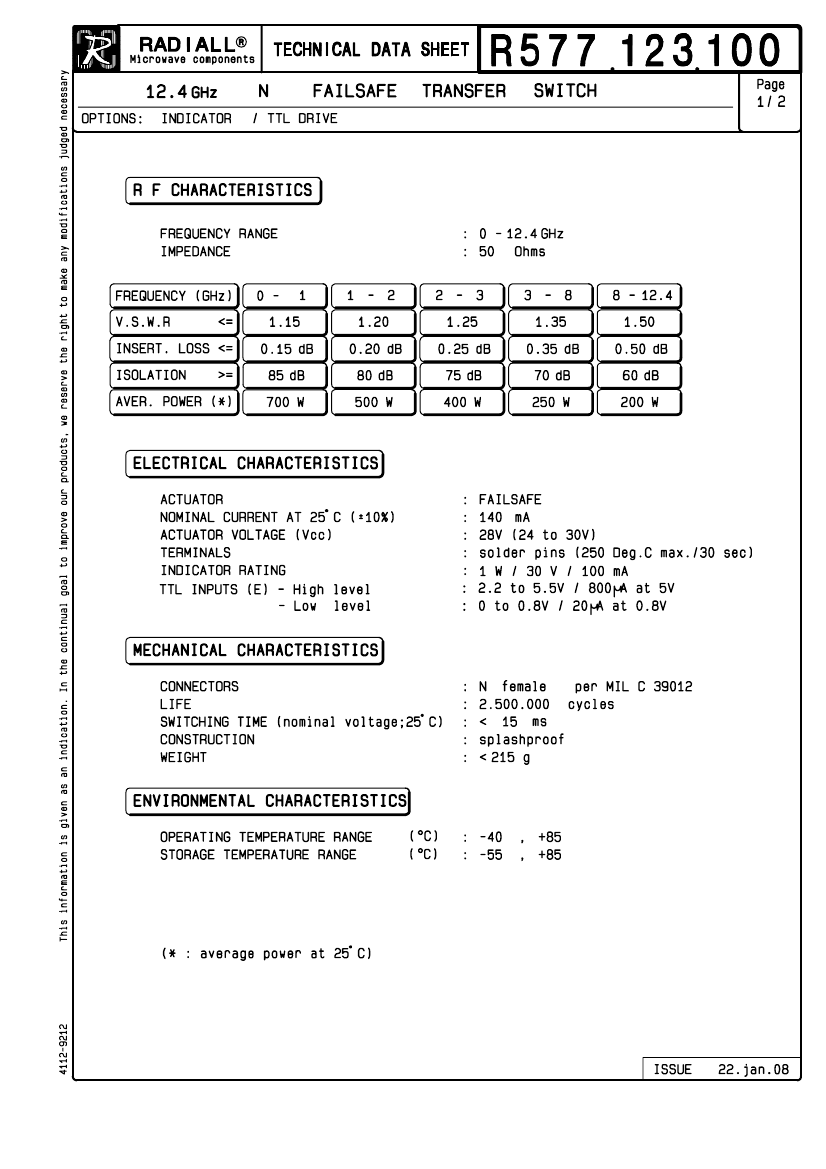

R577.123.100 datasheet, PDF - EEWORLD Datasheet

R577.123.100: DescriptionRF Coaxial Relay, SPDT, Failsafe, 0.14A (Coil), 28VDC (Coil), 3920mW (Coil), 12400MHz, 200W (RF Input), DC Input, DC Output, Panel Mount; CategoryMechanical and electronic products relay; File Size131KB，2 Pages; ManufacturerRadiall; Websitehttps://www.radiall.com/

Download Datasheet Parametric View All

R577.123.100 Overview

RF Coaxial Relay, SPDT, Failsafe, 0.14A (Coil), 28VDC (Coil), 3920mW (Coil), 12400MHz, 200W (RF Input), DC Input, DC Output, Panel Mount

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
body width	44.4 mm
body height	44.2 mm
Body length or diameter	44.4 mm
Characteristic impedance	50 Ω
Maximum coil current (DC)	0.14 A
Coil power	3920 mW
Coil resistance	200 Ω
Maximum coil voltage (DC)	28 V
Coil/Input Power Type	DC
Contact/Output Power Type	DC
Maximum input power	200 W
Maximum insertion loss	0.5 dB
Maximum isolation	60 dB
Manufacturer's serial number	R577.123.100
Installation features	PANEL MOUNT
Maximum operating frequency	12400 MHz
Minimum operating frequency
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	44.4mm X 44.4mm X 44.2mm
Relay action	FAILSAFE
Relay function	SPDT
Relay type	RF COAXIAL RELAY
seal	SPLASH PROOF
surface mount	NO
switching time	15 ms
Termination type	SOLDER/CONNECTOR
voltage standing wave ratio	1.5
Base Number Matches	1
