REVISION V
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
IN MILLIMETERS[INCHES]
2. BURR ALLOWANCE: .038[.0015] MAX.
3. MINIMUM PUSHOUT FORCE , CONTACTS, AND WELD TABS: .5 LB.
4. MAXIMUM ALLOWABLE BOW: .05[.002] INCH/INCH AFTER ASSEMBLY.
5. PARTS TO BE PACKAGED IN TUBES.
6. INCLUDES CONTACTS AND WELD TABS.
7. DIMENSION APPLIES FROM LINE FORMED BY BODY TO BOTH THE WELD
TAB AND THE SOLDER TAIL. WELD TAB AND SOLDER TAIL MAY BE ABOVE
FIG 1
V
OR BELOW LINE FORMED BY BODY.

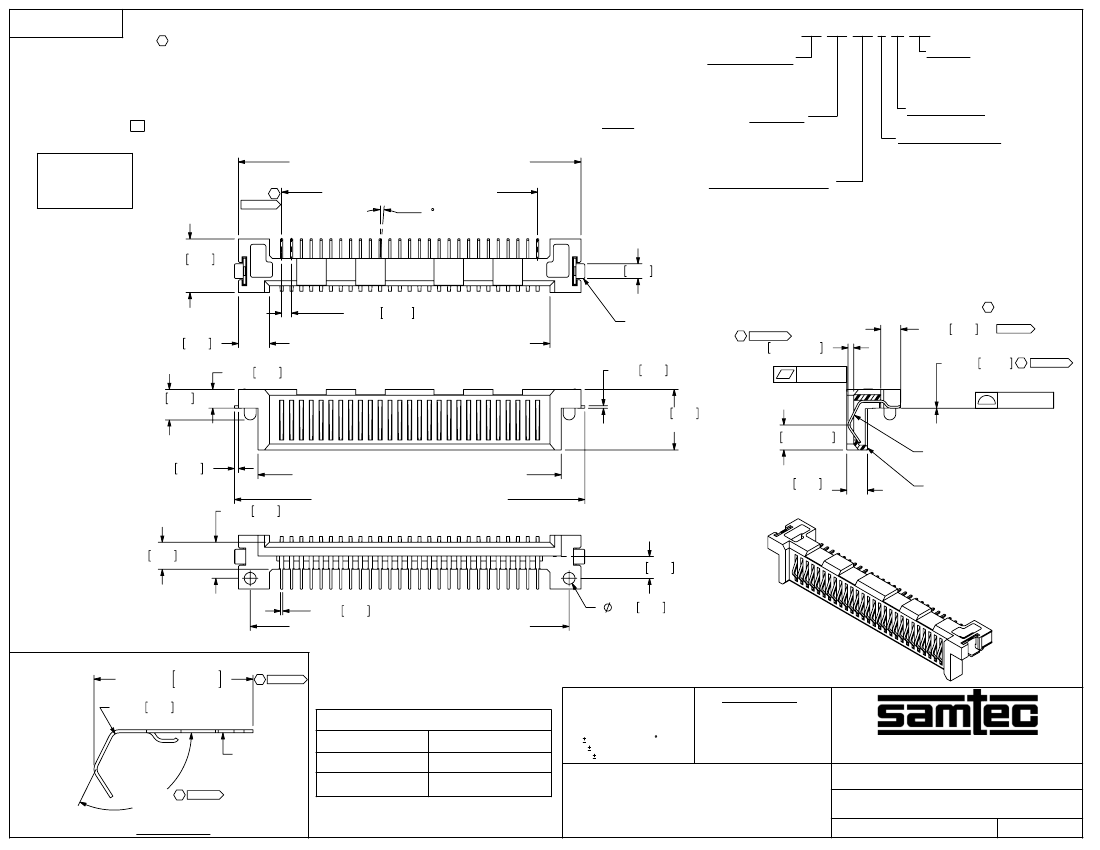

SAL1-127-01-XX-S-A SHOWN
DO NOT
SCALE FROM
THIS PRINT
(No OF POS x 1.000[.0394] + 7.800[.3071] REF
C
C1-A-MV
DESIGNED & DIMENSIONED
SAL1-1XX-XX-XX-S-A-XX
No OF POSITIONS
-20, -27, -30, & -40
OPTIONS
-TR: TAPE & REEL (SEE FIG. 3)
-K: KAPTON PAD
(SEE FIG 2)
ALIGNMENT PIN
ROW SPECIFICATION
-S: SINGLE (USE SAL1-XX-S-A)
LEAD STYLE
-01:
(USE C-192-03-XX)
(No OF POS -1) x 1.0000[.03937]
2 MAX SWAY
(TYP)
PLATING SPECIFICATION
-S: SELECTIVE (USE C-192-03-S & WT-20-01-T)
-H: HEAVY GOLD (USE C-192-03-H & WT-20-01-T)
-SM: SELECTIVE GOLD, MATTE TIN
(USE C-192-03-S & WT-20-01-TM)
5.45 .215
REF
1.000 .0394
3.15 .124
REF
(No OF POS x 1.000[.0394] + 1.500[.0591] REF
1.90 .075 REF
3.10 .122
REF
1.50 .059 REF
C
WT-20-01-XX
0.58±0.08 .023±.003
0.25 .010 REF
.08[.003]
C C2-B,I-MV
2.02 .080
C6-B-MV
(SEE NOTE 7)
0.010 .0004
C C3-B,I-MV
6.15 .242
REF
0.10[.004]
(SEE NOTE 6)
2.54±0.25 .100±.010
C-192-03-XX
SAL1-XX-S-A
0.40 .016
(No OF POS x 1.000[.0394] + 3.80[.1496] REF
3.67 .145 REF
(No OF POS x 1.00[.039] + 8.60[.339]
2.10 .083
REF
2.75 .108 REF
2.20 .087
1.20 .047 REF
0.23 .009 REF
(No OF POS x 1.000[.0394] + 5.400[.2126] REF
10.09
+0.10
0.00
.397
- .000
+.004
C C5-B,I-CP
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN MILLIMETERS.
TOLERANCES ARE:
DECIMALS
ANGLES
R0.51 .020
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
CARRIER
CRITICAL DIMENSION INSPECTION
INSTRUCTION TABLE
ASSEMBLY
IN-PROCESS
OPERATION
INSPECTION
FILL WT-20-01-X
C7
FILL C-192-03-X
C1, C2, C3, C4, C5,
C6, C7
.X: .3 [.01
2
.XX: .13 [.005]
.XXX: .051 [.0020]
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
+3°
116°
- 0°
C C4-B-CP
INSULATOR: LCP, COLOR: BLACK
CONTACT: BeCu
DO NOT SCALE DRAWING
SHEET SCALE: 2.5:1
1MM SERIAL ATA LINK CONNECTOR
SAL1-1XX-XX-XX-S-A-XX
09-23-2010
SHEET
1
OF
2
IN-PROCESS
F:\DWG\MISC\MKTG\SAL1-1XX-XX-XX-S-A-XX-MKT.SLDDRW
BY:
DEAN P
REVISION V

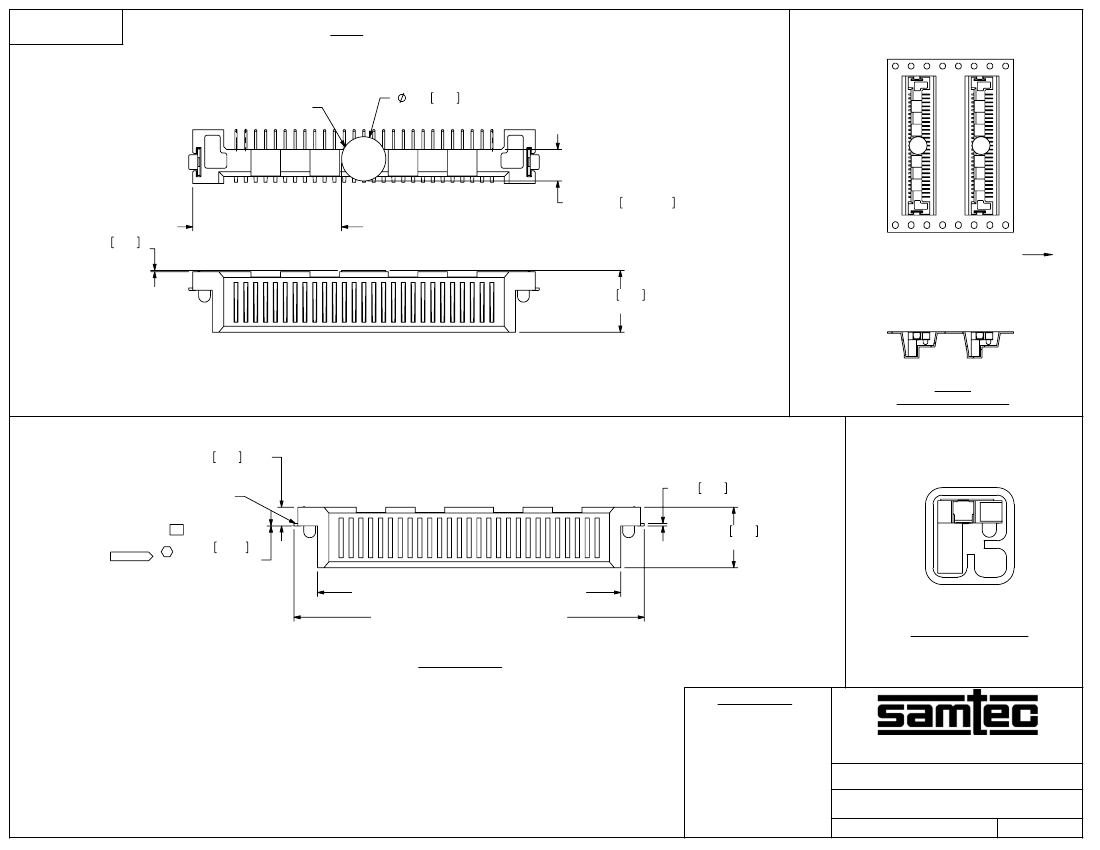

SAL1-127-01-XX-S-A-K SHOWN
SAME AS FIG 1 EXCEPT AS SHOWN
FIG 2
K-500-300
4.50 .177
3.20±0.25 .126±.010
((NO POS x .4999 [.01968]) + 1.65 [.065]) ± .51 [.020]
0.13 .005
REF
6.28 .247
REF
USER DIRECTION OF UN-REELING
POCKET NOT DETAILED
FIG. 3
T&R PACKAGING
1.90 .075 REF
WT-20-01-XX
V
0.010 .0004
(SEE NOTE 7)
(INSULATOR TO WT-20-01-XX)
C7-B,I-MV
C
0.25 .010 REF
6.15 .242
REF
(No OF POS x 1.000[.0394] + 3.80[.1496] REF
(No OF POS x 1.00[.039] + 8.60[.339]
TUBE PACKAGING
TUBE: PT-1-24-01-144
PLUG: TP-24-02
SUB ASSEMBLY
SUB-SAL1-127-01-XX-XX-S-A SHOWN
(FILL WT-20-01-XX)
(PARTS TO BE BULK PACKAGED)
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2.5:1
1MM SERIAL ATA LINK CONNECTOR
SAL1-1XX-XX-XX-S-A-XX
09-23-2010
SHEET
2
OF
2
F:\DWG\MISC\MKTG\SAL1-1XX-XX-XX-S-A-XX-MKT.SLDDRW
BY:
DEAN P
