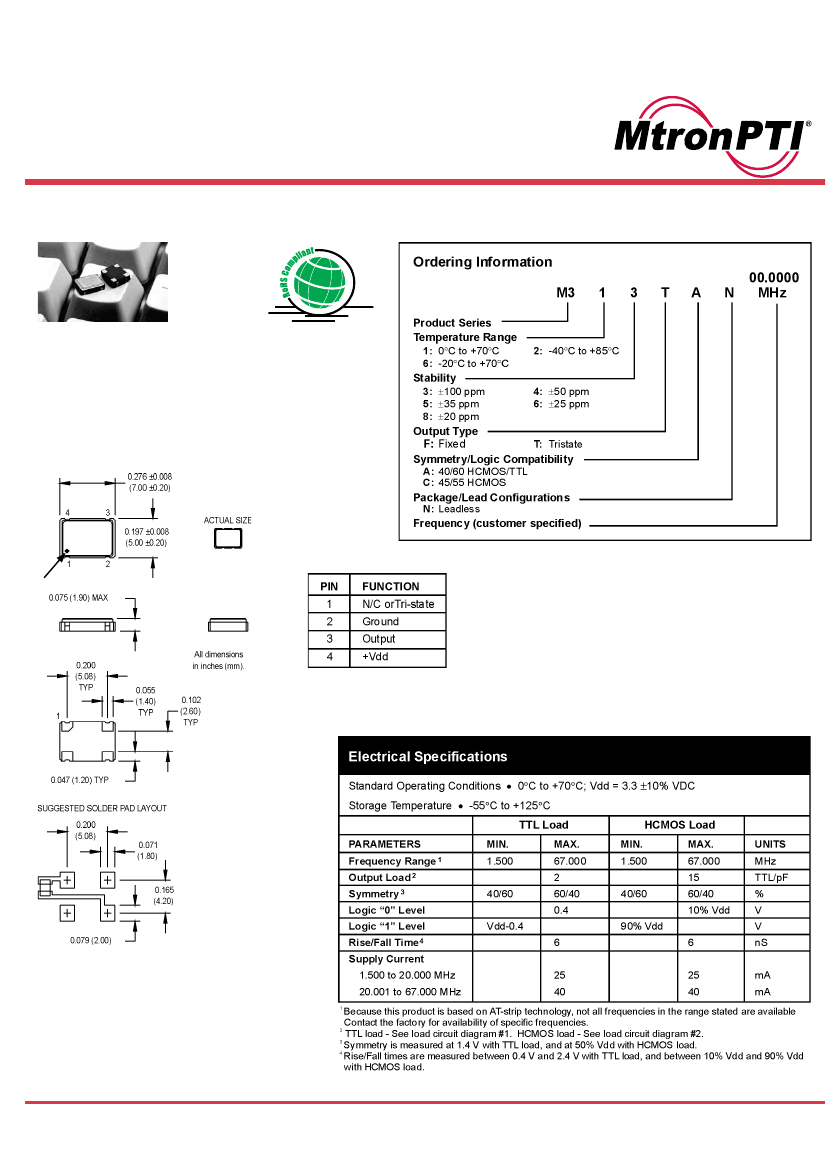

M3 Series
5x7 mm, 3.3 Volt, HCMOS/TTL, Surface Mount Oscillator
THIS PRODUCT IS NOT RECOMMENDED FOR NEW DESIGNS.
PLEASE REFER TO THE M2 PRODUCT SERIES.
•
•
•
AT-strip crystal in a miniature ceramic
surface mount package
TTL and HCMOS compatible
Tri-state output is optional
DENOTES PIN 1
Tri-state Control Logic
Pin 1 high or floating: clock signal output.
Pin 1 low: output disabled to high impedance.
NOTE:
A capacitor of value 0.01
µF or greater between Vdd and
Ground is recommended.
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see
www.mtronpti.com
for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI
1-800-762-8800.
Revision: 03-02-07
MtronPTI Lead Free Solder Profile
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see
www.mtronpti.com
for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI
1-800-762-8800.
