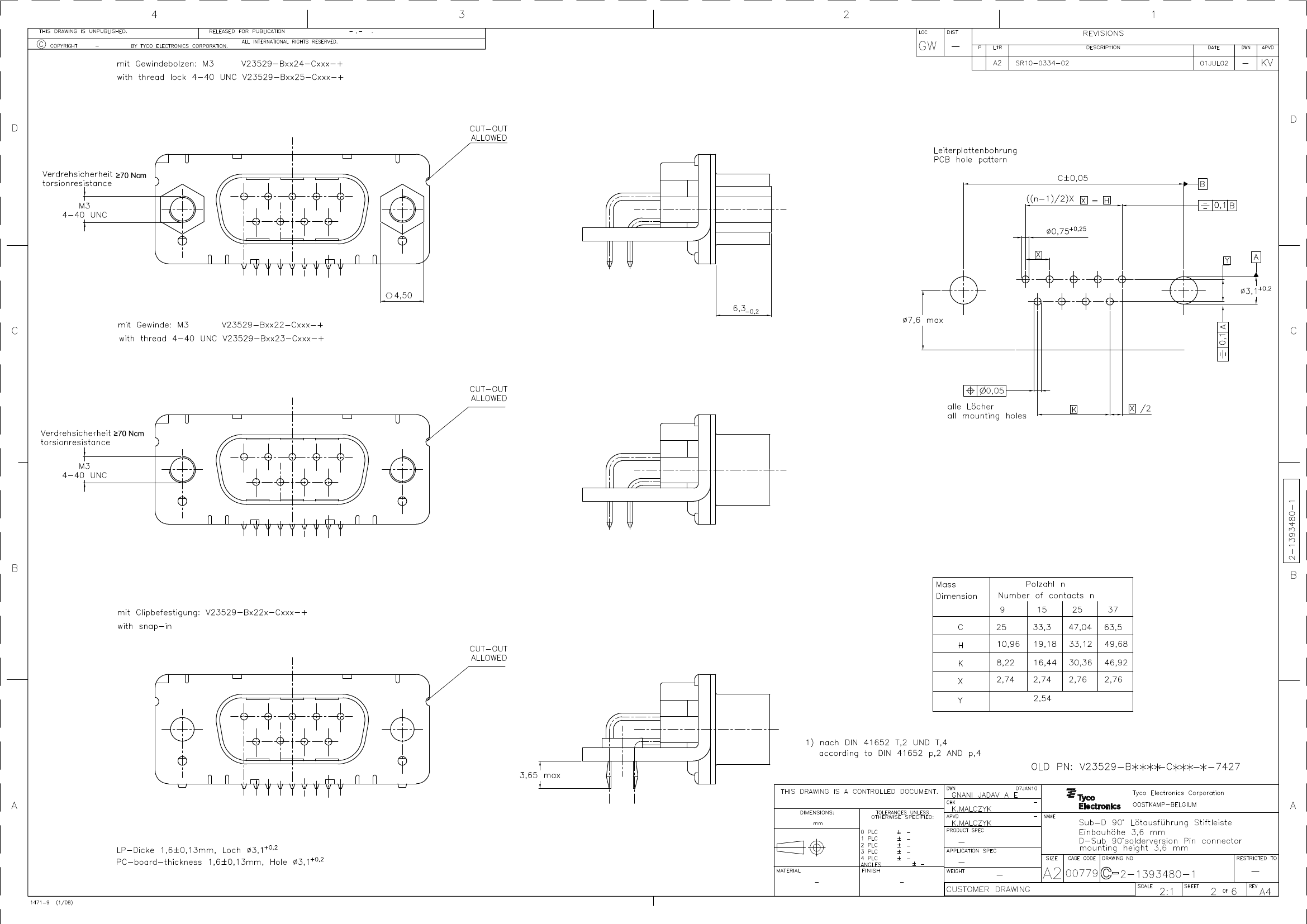

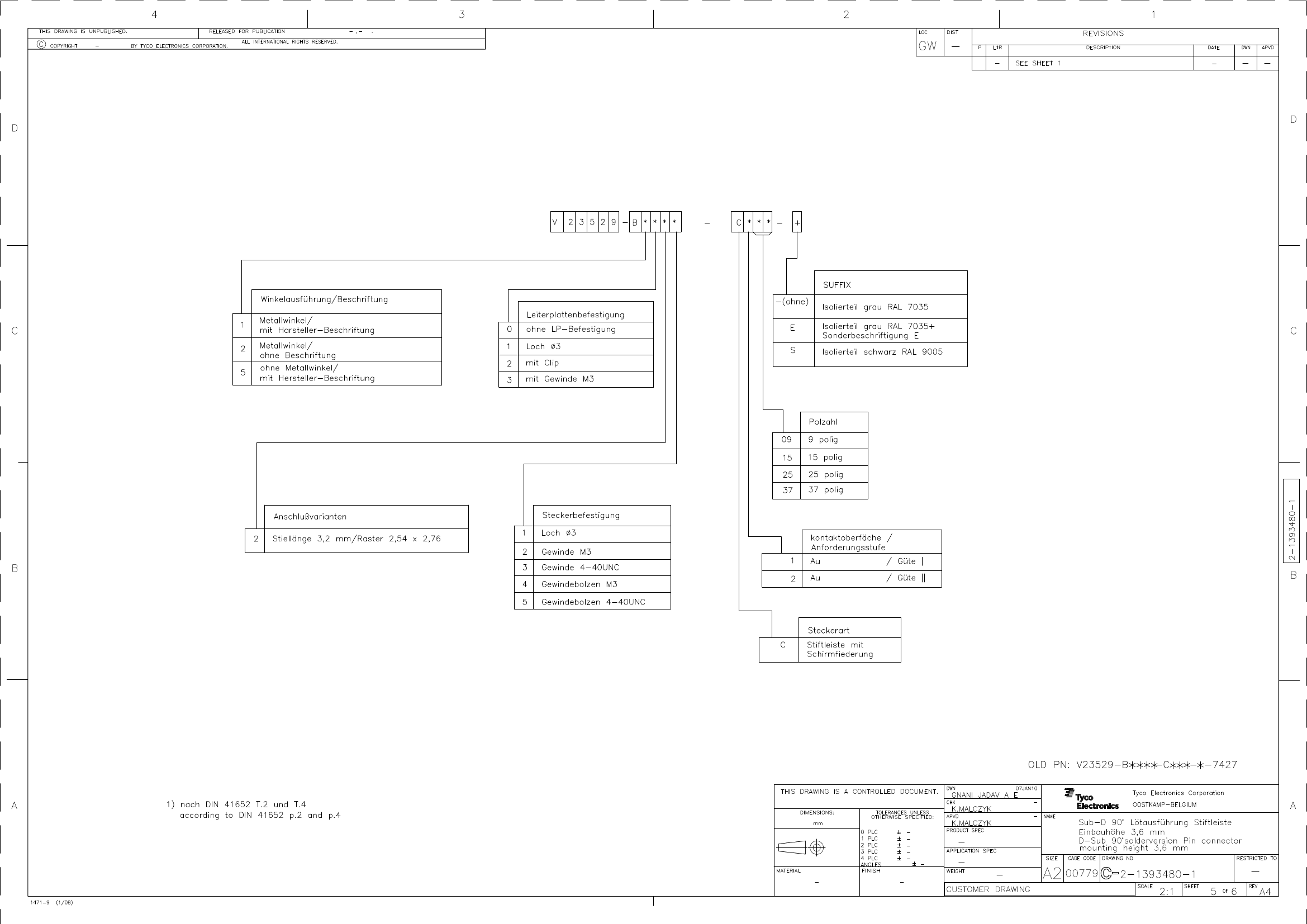

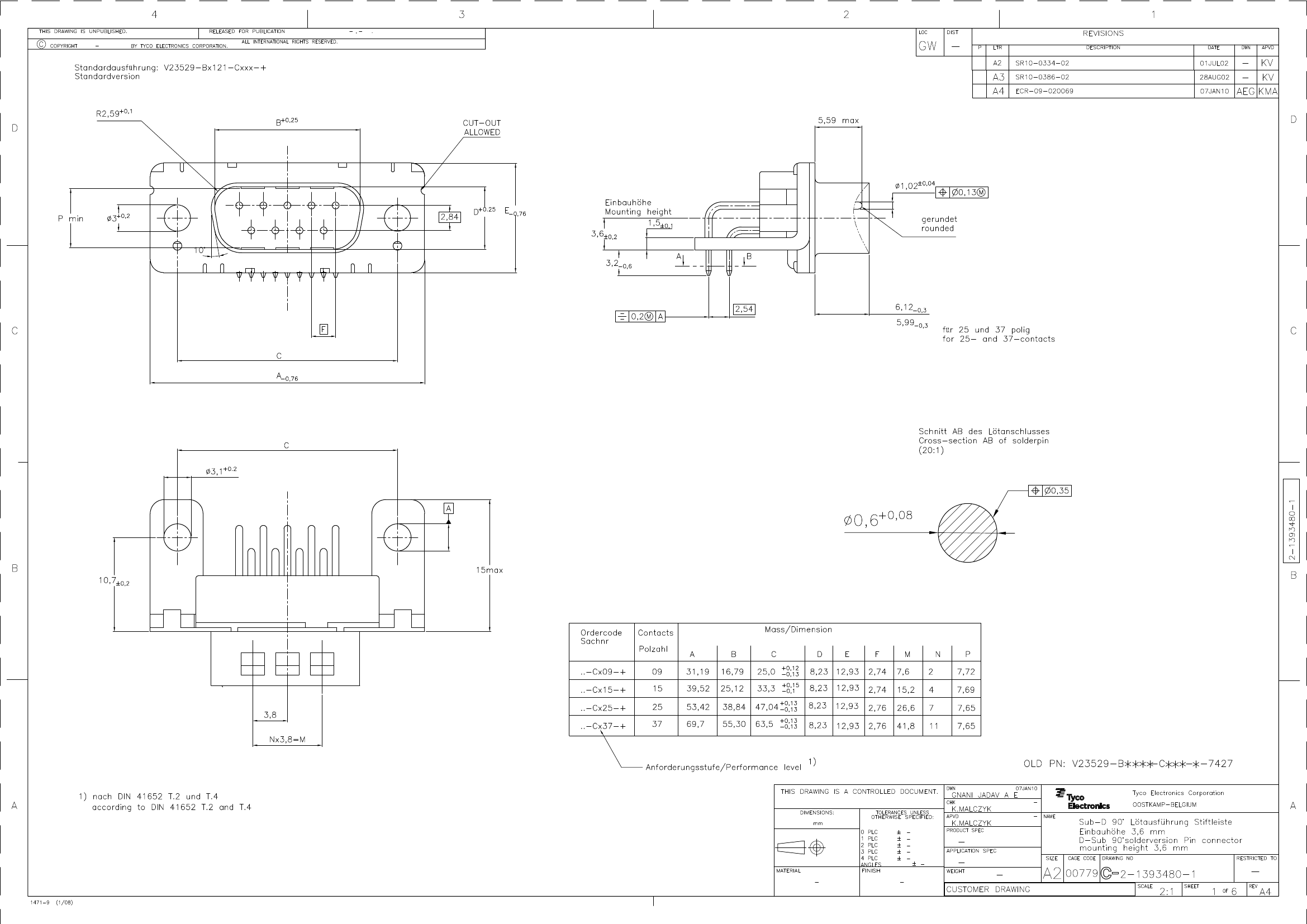

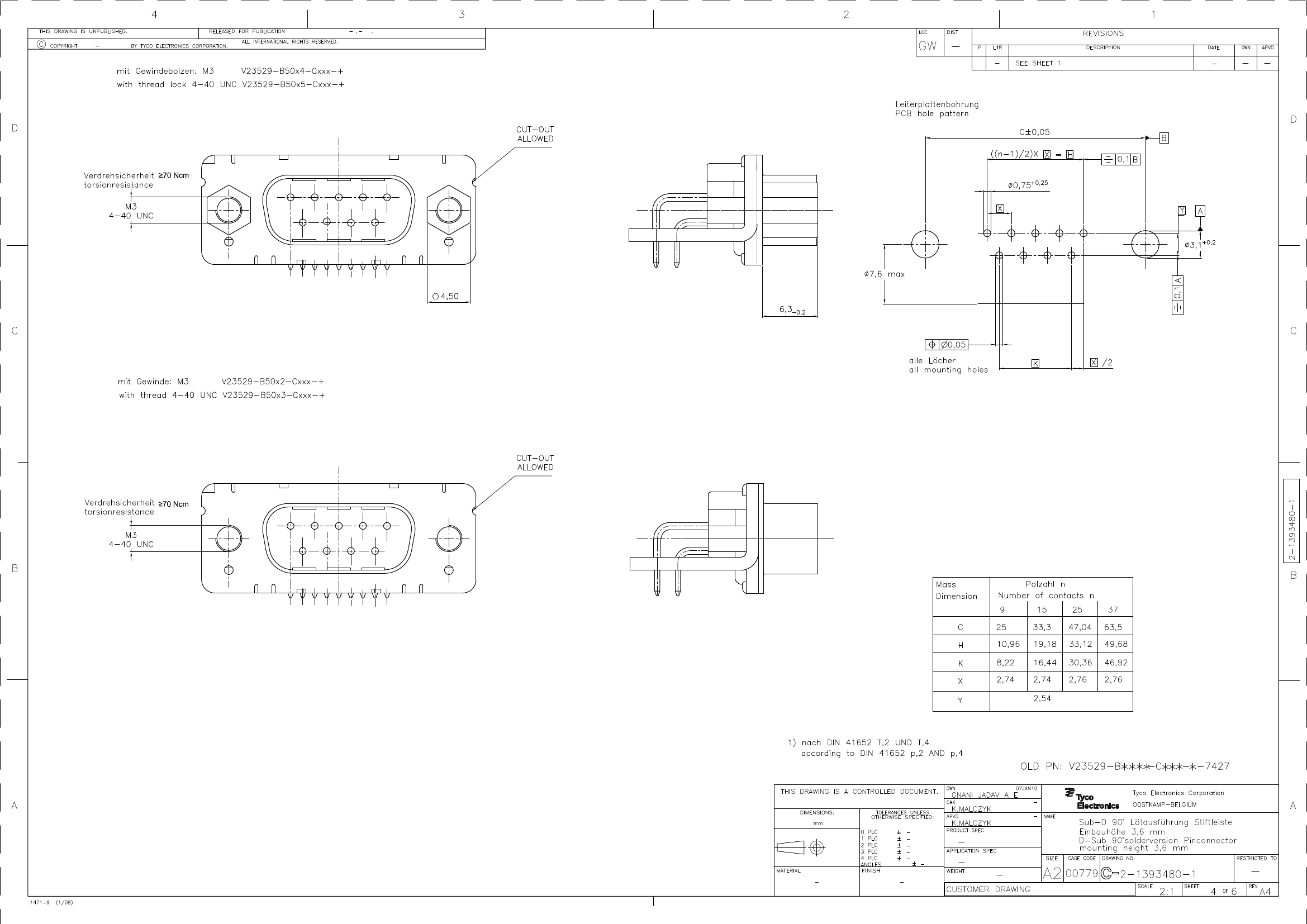

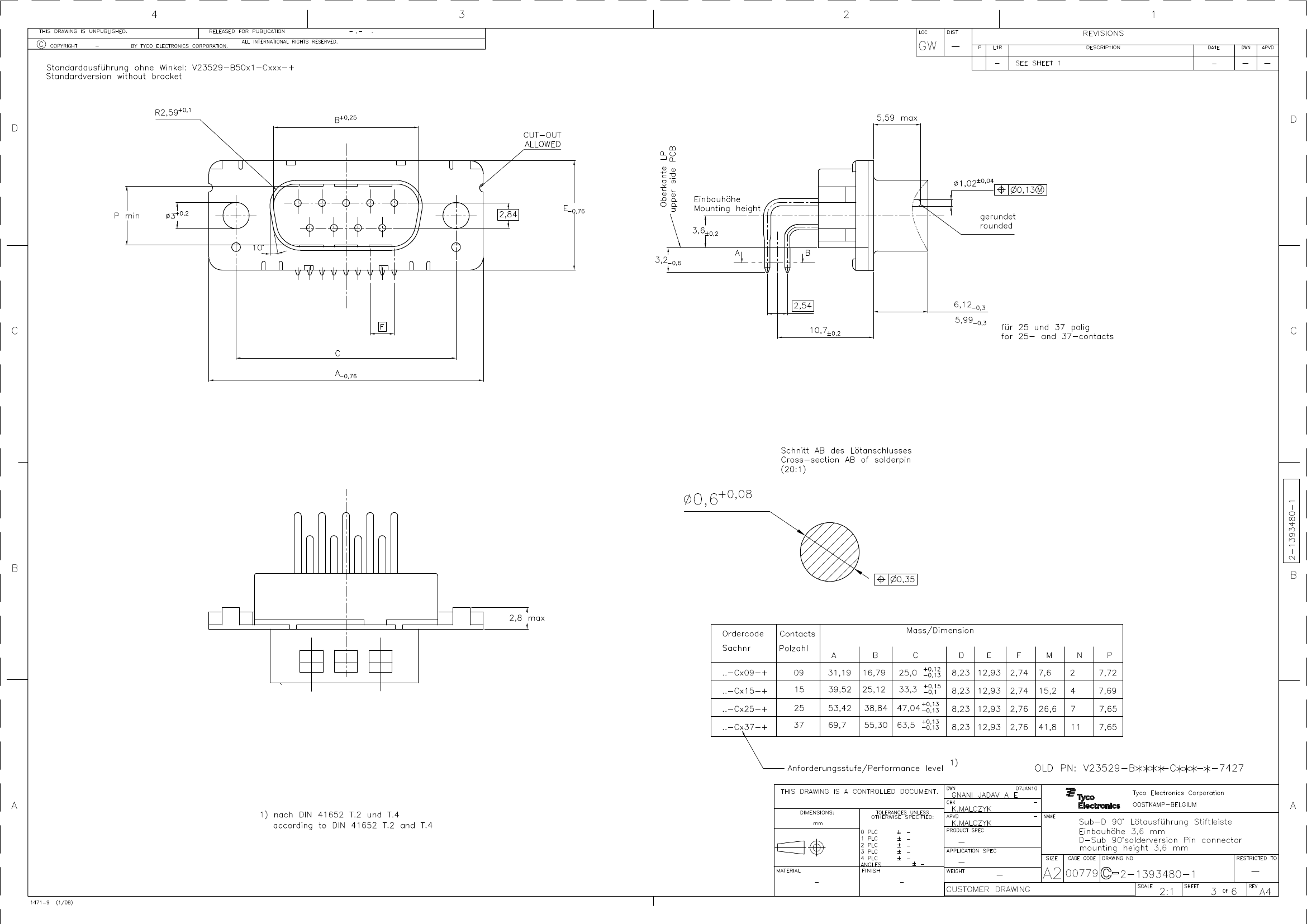

15 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, SOLDER, PLUG
| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Reach Compliance Code | compli |
| ECCN code | EAR99 |
| Other features | AMPLIMITE |
| body width | 0.509 inch |
| subject depth | 0.236 inch |
| body length | 1.556 inch |
| Body/casing type | PLUG |
| Connector type | D SUBMINIATURE CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact completed and terminated | Tin (Sn) |
| Contact point gender | MALE |
| Contact material | NOT SPECIFIED |
| contact mode | STAGGERED |
| Contact resistance | 10 mΩ |
| Contact style | RND PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 1000VAC V |
| empty shell | NO |
| Filter function | NO |
| IEC compliance | NO |
| Insulation resistance | 5000000000 Ω |
| Insulator color | GRAY |
| insulator material | POLYETHYLENE PBT-POLYESTER |
| JESD-609 code | e3 |
| MIL compliance | NO |
| Plug contact pitch | 0.109 inch |
| Match contact row spacing | 0.112 inch |
| Mixed contacts | NO |
| Installation option 1 | #4-40 |
| Installation option 2 | ROUND STANDOFF |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | STAGGERED |
| PCB contact row spacing | 2.54 mm |
| Plating thickness | 30u inch |
| Rated current (signal) | 2.2 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Shell surface | TIN |
| Shell material | STEEL |
| Housing size | 2/A |
| Terminal length | 0.228 inch |
| Terminal pitch | 2.7432 mm |
| Termination type | SOLDER |
| Total number of contacts | 15 |
| UL Flammability Code | 94V-0 |
| Base Number Matches | 1 |
| 5-1393480-3 | 5-1393480-4 | 8-1393480-8 | 2-1392010-8 | 3-1392010-3 | |
|---|---|---|---|---|---|
| Description | 15 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, SOLDER, PLUG | 25 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, SOLDER, PLUG | 37 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, SOLDER, PLUG | 25 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, SOLDER, PLUG | 15 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, SOLDER, PLUG |
| Is it lead-free? | Lead free | Lead free | Lead free | Lead free | Lead free |
| Is it Rohs certified? | conform to | conform to | conform to | conform to | conform to |
| Reach Compliance Code | compli | unknown | compli | compli | compliant |
| Other features | AMPLIMITE | AMPLIMITE | AMPLIMITE | AMPLIMITE | AMPLIMITE |
| Body/casing type | PLUG | PLUG | PLUG | PLUG | PLUG |
| Connector type | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Contact completed and terminated | Tin (Sn) | TIN | Tin (Sn) | Tin (Sn) | Tin (Sn) |
| Contact point gender | MALE | MALE | MALE | MALE | MALE |
| Contact material | NOT SPECIFIED | COPPER ALLOY | NOT SPECIFIED | COPPER ALLOY | NOT SPECIFIED |
| DIN compliance | NO | NO | NO | NO | NO |
| empty shell | NO | NO | NO | NO | NO |
| Filter function | NO | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO | NO |
| insulator material | POLYETHYLENE PBT-POLYESTER | PBT-POLYESTER/POLYETHYLENE | POLYETHYLENE PBT-POLYESTER | POLYETHYLENE PBT-POLYESTER | POLYETHYLENE PBT-POLYESTER |
| JESD-609 code | e3 | e3 | e3 | e3 | e3 |
| MIL compliance | NO | NO | NO | NO | NO |
| Mixed contacts | NO | NO | NO | NO | NO |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Shell surface | TIN | TIN | TIN | TIN | TIN |
| Shell material | STEEL | STEEL | STEEL | STEEL | STEEL |
| Housing size | 2/A | 3/B | 4/C | 3/B | 2/A |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 15 | 25 | 37 | 25 | 15 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
| ECCN code | EAR99 | - | EAR99 | EAR99 | EAR99 |
| body width | 0.509 inch | 0.509 inch | 0.509 inch | - | - |
| subject depth | 0.236 inch | 0.59 inch | 0.591 inch | - | - |
| body length | 1.556 inch | 2.1 inch | 2.744 inch | - | - |
| contact mode | STAGGERED | STAGGERED | STAGGERED | - | - |
| Contact style | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT | - | - |
| Plug contact pitch | 0.109 inch | 0.109 inch | 0.109 inch | - | - |
| Match contact row spacing | 0.112 inch | 0.112 inch | 0.112 inch | - | - |
| Number of rows loaded | 2 | 2 | 2 | - | - |
| PCB contact row spacing | 2.54 mm | 2.84 mm | 2.54 mm | - | - |
| Base Number Matches | 1 | - | 1 | 1 | 1 |
