CT0805LS-222J datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> CT0805LS-222J

CT0805LS-222J: DescriptionGeneral Purpose Inductor, 2.2uH, 5%, 1 Element, SMD, CHIP, 0805; CategoryPassive components inductor; File Size86KB，1 Pages; ManufacturerCT [ Central Technologies ]

Download Datasheet Parametric View All

CT0805LS-222J Overview

General Purpose Inductor, 2.2uH, 5%, 1 Element, SMD, CHIP, 0805

CT0805LS-222J Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
Base Number Matches	1

Preview

Download Datasheet

View All

ctparts.com

Wire-wound Chip Inductors - Open

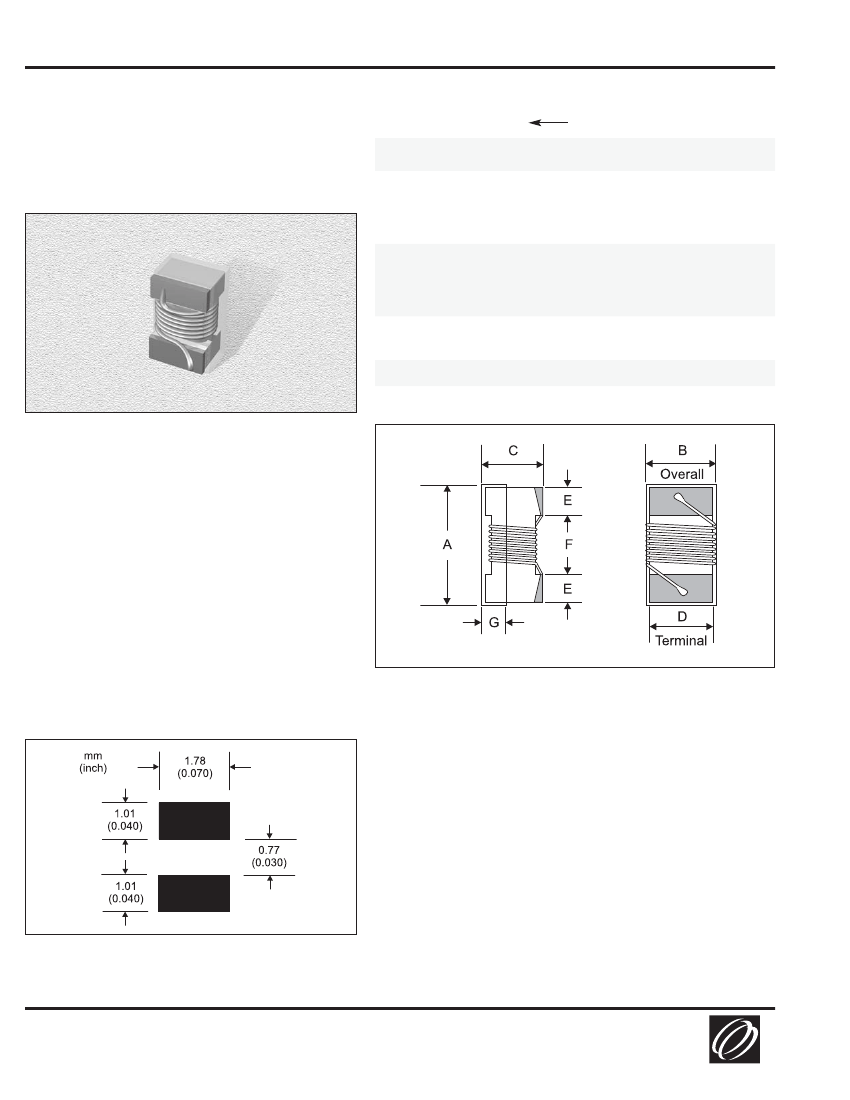

SPECIFICATIONS

Please specify tolerance code when ordering.

CT0805LS-331_

J = ±5%, K = ±10%, M = ±20%

L Test

Freq.

(MHz)

100

7.9

Fact.

Min.

Q Test

Freq.

(MHz)

100

7.9

SRF

Typ.

(MHz)

630

580

530

520

360

300

280

260

210

200

160

150

220

190

Ver. 8.3

CT0805LS Series

From 330 nH to 3,300 µH

Part

Number

CT0805LS-331_

CT0805LS-391_

CT0805LS-471_

CT0805LS-561_

CT0805LS-681_

CT0805LS-821_

CT0805LS-911_

CT0805LS-102_

CT0805LS-122_

CT0805LS-152_

CT0805LS-182_

CT0805LS-222_

CT0805LS-272_

CT0805LS-332_

Inductance

(nH)

330

390

470

560

680

820

910

1000

1200

1500

1800

2200

2700

3300

DCR

Max.

Ω

(Ω)

0.60

0.66

0.72

0.81

0.86

0.92

0.98

1.08

1.13

1.73

2.15

2.40

2.75

2.95

Rated

(mA)

400

350

300

280

250

240

250

220

200

180

130

120

100

Not shown at actual size.

PHYSICAL DIMENSIONS

Size

inches

Max.

2.29

0.090

Max.

1.73

0.068

Max.

1.52

0.060

1.27

0.050

0.51

0.020

1.02

0.040

0.51

0.020

CHARACTERISTICS

Description:

SMD shielded wire-wound chip inductor

Applications:

LC resonant circuits such as oscillator and signal

generators, impedance matching, circuit isolation, RF filters, disk

drives and computer peripherals, audio and video equipment, TV,

radio and telecommunication equipment

Operating Temperature:

-40°C to +85°C

Inductance Tolerance:

±5%, ±10% & ±20%

Testing:

Inductance and Q tested on an HP4287A at specified

frequency.

Packaging:

Tape & Reel

Marking:

Parts are marked with inductance code and tolerance

Miscellaneous:

Additional values available

Additional Information:

Additional electrical & physical

information available upon request

Samples available. See website for ordering information.

PAD LAYOUT

09.23.02

Manufacturer of Inductors, Chokes, Coils, Beads, Transformers & Toroids

800-684-5322

Inside US

949-453-1811

Outside US

116

CT Magnetics reserves the right to make improvements or change specifications without notice

CENTRAL

Technologies
