PCF8583T/F4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> PCF8583T/F4

PCF8583T/F4: DescriptionIC 0 TIMER(S), REAL TIME CLOCK, PDSO8, 7.50 MM, PLASTIC, SO-8, Timer or RTC; CategoryThe embedded processor and controller Microcontrollers and processors; File Size162KB，5 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

PCF8583T/F4 Overview

IC 0 TIMER(S), REAL TIME CLOCK, PDSO8, 7.50 MM, PLASTIC, SO-8, Timer or RTC

PCF8583T/F4 Parametric

Parameter Name	Attribute value
Parts packaging code	SOIC
package instruction	SOP,
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
maximum clock frequency	0.032 MHz
Information access methods	I2C
JESD-30 code	R-PDSO-G8
length	7.55 mm
Number of terminals	8
Number of timers
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum seat height	2.65 mm
Maximum supply voltage	6 V
Minimum supply voltage	2.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	7.5 mm
uPs/uCs/peripheral integrated circuit type	TIMER, REAL TIME CLOCK
Base Number Matches	1

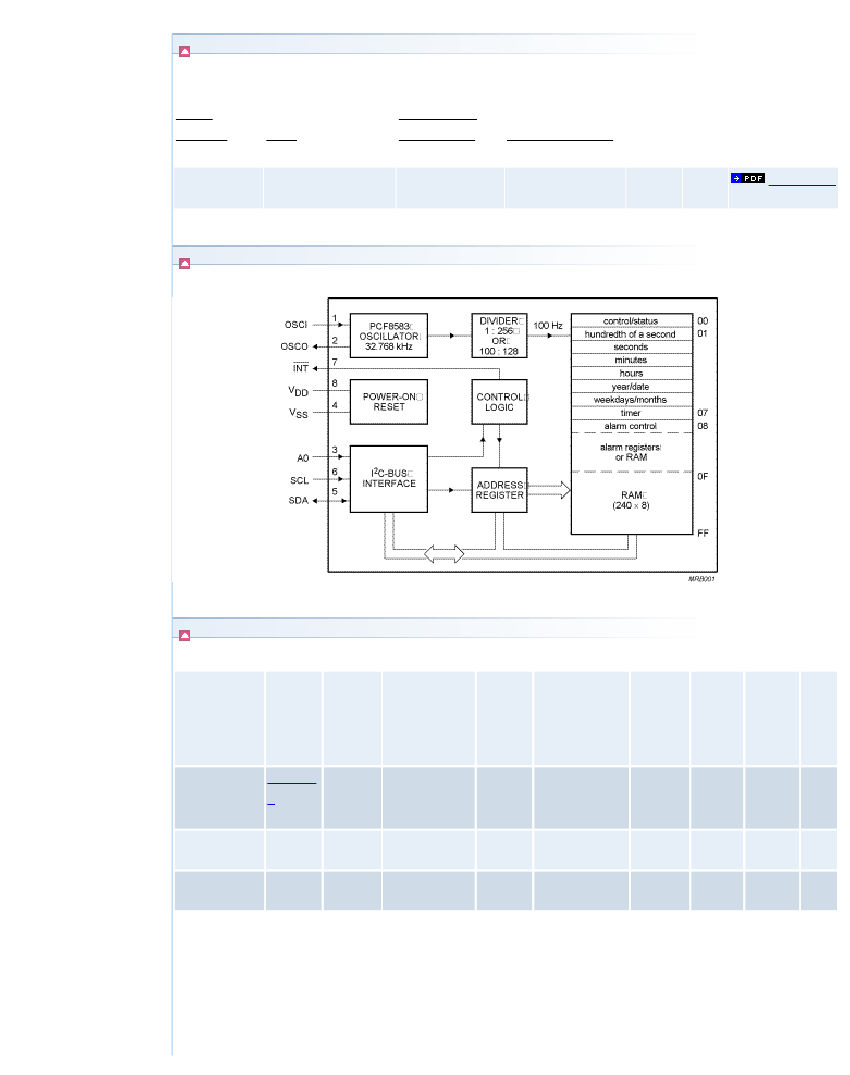

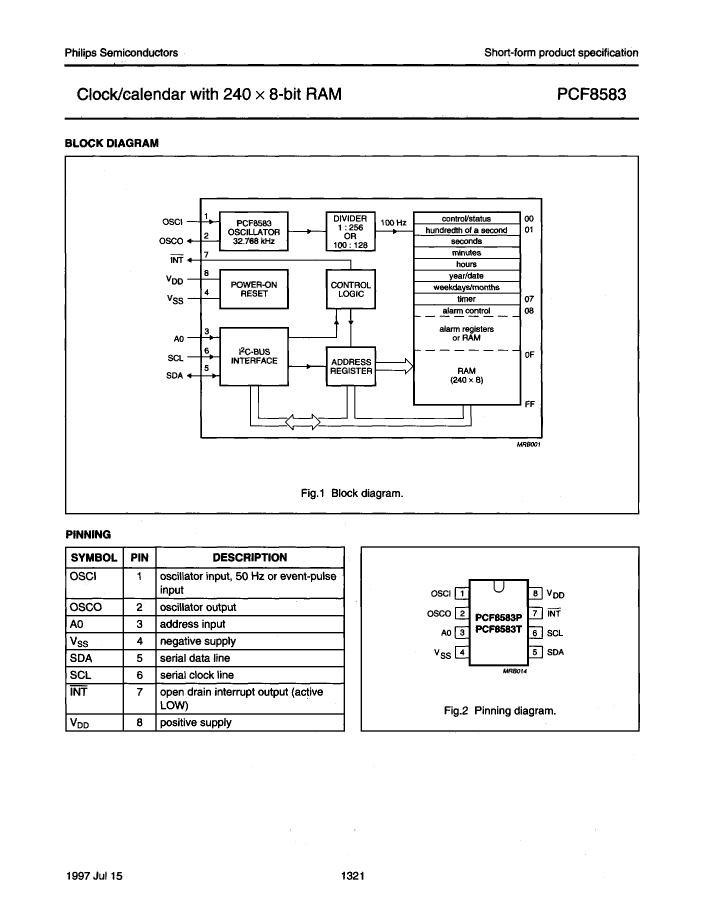

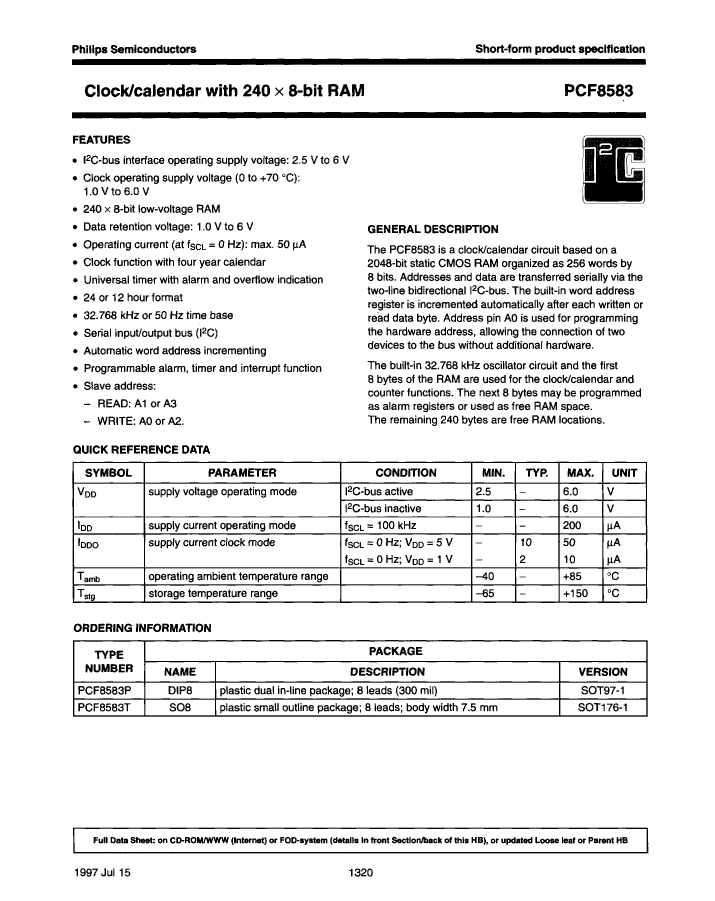

Preview

Download Datasheet

View All

PCF8583T/F4 Related Products

	PCF8583T/F4	PCF8583U/5/F5	PCF8583T/F5	PCF8583P/F5
Description	IC 0 TIMER(S), REAL TIME CLOCK, PDSO8, 7.50 MM, PLASTIC, SO-8, Timer or RTC	IC 0 TIMER(S), REAL TIME CLOCK, UUC, DIE, Timer or RTC	IC 0 TIMER(S), REAL TIME CLOCK, PDSO8, 7.50 MM, PLASTIC, SO-8, Timer or RTC	0 TIMER(S), REAL TIME CLOCK, PDIP8, 0.300 INCH, PLASTIC, DIP-8
Parts packaging code	SOIC	DIE	SOIC	DIP
package instruction	SOP,	,	SOP,	DIP,
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
maximum clock frequency	0.032 MHz	0.032 MHz	0.032 MHz	0.032 MHz
Information access methods	I2C	I2C	I2C	I2C
JESD-30 code	R-PDSO-G8	X-XUUC-N	R-PDSO-G8	R-PDIP-T8
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	UNSPECIFIED	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	UNSPECIFIED	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	UNCASED CHIP	SMALL OUTLINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage	6 V	6 V	6 V	6 V
Minimum supply voltage	2.5 V	2.5 V	2.5 V	2.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	NO LEAD	GULL WING	THROUGH-HOLE
Terminal location	DUAL	UPPER	DUAL	DUAL
uPs/uCs/peripheral integrated circuit type	TIMER, REAL TIME CLOCK	TIMER, REAL TIME CLOCK	TIMER, REAL TIME CLOCK	TIMER, REAL TIME CLOCK
Contacts	8	-	8	8
length	7.55 mm	-	7.55 mm	9.5 mm
Number of terminals	8	-	8	8
encapsulated code	SOP	-	SOP	DIP
Maximum seat height	2.65 mm	-	2.65 mm	4.2 mm
Terminal pitch	1.27 mm	-	1.27 mm	2.54 mm
width	7.5 mm	-	7.5 mm	7.62 mm
Maker	-	NXP	NXP	NXP
