BAS216WS
PRV : 85 Volts
Io : 250 mA
FEATURES :
* Ultra small plastic SMD package
* High switching speed: max. 4 ns
* Reverse voltage: max. 75 V
* Repetitive peak reverse voltage: max. 85 V
* Pb / RoHS Free

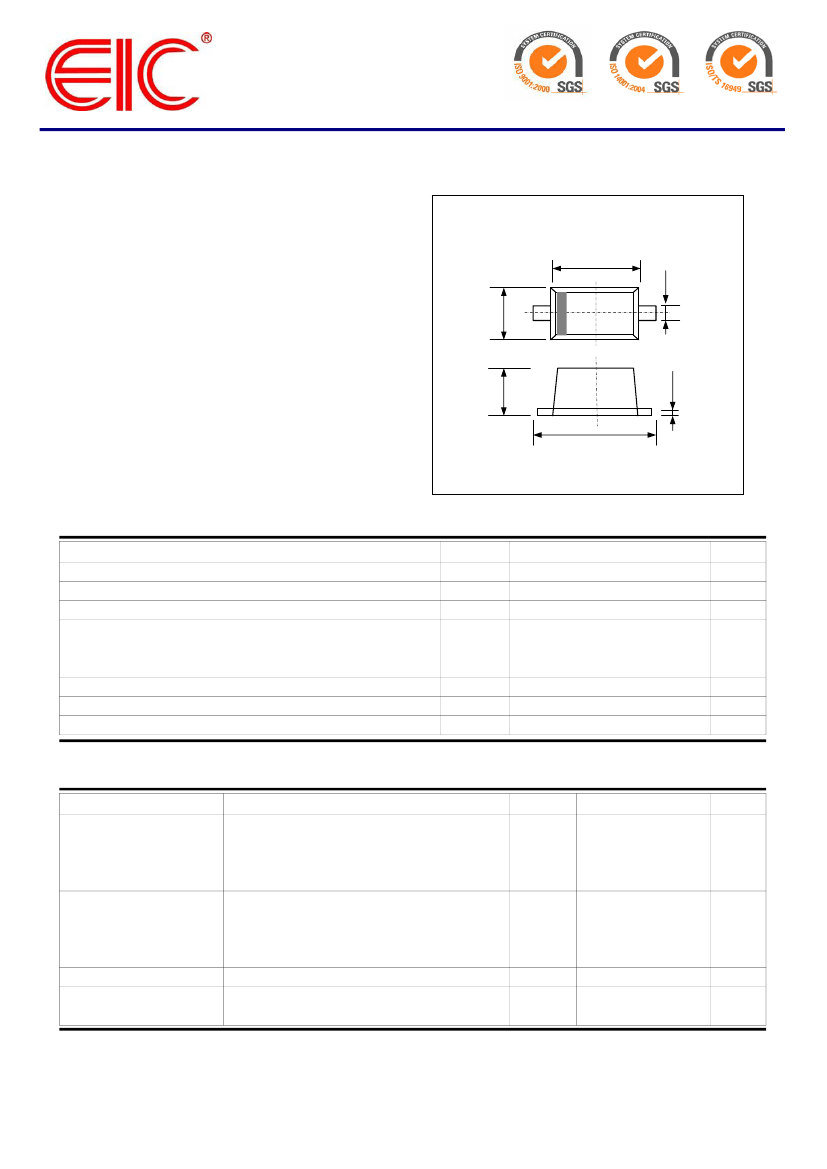

HIGH SPEED SWITCHING DIODE
SOD-323
0.40
0.25
0.15(max)
2.80
2.30
1.80
1.60
MECHANICAL DATA :
* Case : SOD-323 plastic Case
* Weight : approx. 0.004 g
ABSOLUTE MAXIMUM RATINGS
Parameter
Maximum Repetitive Peak Reverse Voltage
Maximum Reverse Voltage
Maximum Continuous Forward Current
Maximum Non-repetitive Peak Forward Current
( Ta = 25 °C unless otherwise specified)
1.10
0.80
1.35
1.15
Dimensions in millimeters
Symbol
V
RRM
V
R
I
F
t = 1 µs
t = 1 ms
t =1s
I
FSM
P
tot
T
J
T
STG
Value
85
75
250
4.0
1.0
0.5
400
150
-65 to +150
Unit
V
V
mA
A
mW
°C
°C
Power Dissipation
Junction Temperature
Storage Temperature Range
ELECTRICAL CHARACTERISTICS
Parameter
Forward Voltage
I
F
= 1 mA
I
F
= 10 mA
I
F
= 50 mA
I
F
= 150 mA
Reverse Current
V
R
= 25 V
V
R
= 75 V
( Ta = 25 °C unless otherwise specified)
Test Condition
Symbol
V
F
Max.
715
855
1.00
1.25
30
1.0
30
50
1.5
4
Unit
mV
mV
V
V
nA
µA
µA
µA
pF
ns
V
R
= 25 V , Tj = 150 °C
V
R
= 75 V , Tj = 150 °C
Diode Capacitance
Reverse Recovery Time
V
R
= 0 V, f = 1 MHz
when switched from I
F
= 10 mA to I
R
= 10mA;
R
L
=100
Ω;
measure at I
R
= 1 mA
I
R
C
tot
Trr
Page 1 of 2
Rev. 01 : March 20, 2008
TH97/10561QM
TW00/17276EM
IATF 0060636
SGS TH07/1033

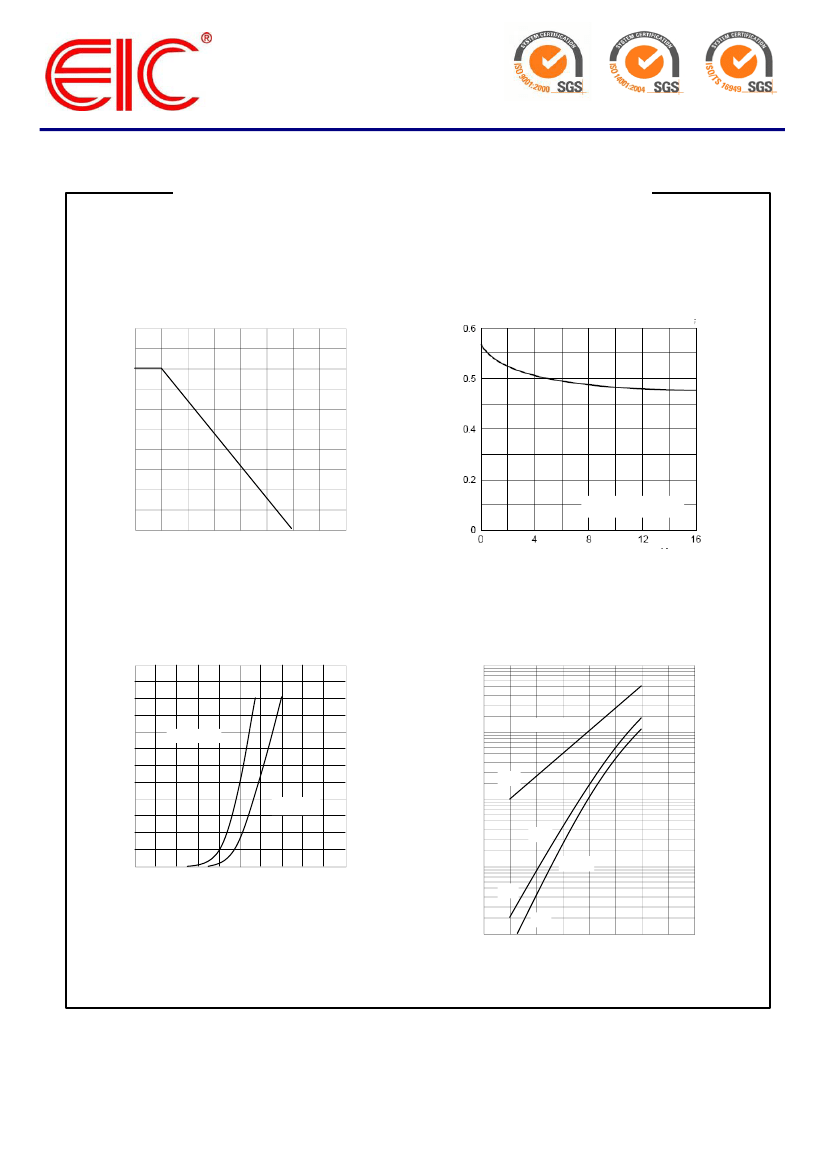

RATINGS AND CHARACTERISTIC CURVES ( BAS216WS )
FIG.1 - MAXIMUM PERMISSIBLE TOTAL POWER
DISSIPATION AS A FUNCTION OF AMBIENT TEMPERATURE
500
FIG.2 - DIODE CAPACITANCE VS. REVERSE
VOLTAGE; TYPICAL VALUES
FORWARD CURRENT, (mA)
400
300
200
100
CAPACITANCE, (pF)
f = 1MHz; Tj = 25 °C
0
0
50
100
150
200
SOLDERING POINT TEMPERATURE, (°C)
REVERSE VOLTAGE, (V)
FIG.3 - FORWARD CURRENT VS. FORWARD
VOLTAGE ; TYPICAL VALUES
300
FIG.4 - REVERSE CURRENT VS. JUNCTION
TEMPERATURE
10
5
FORWARD CURRENT, (mA)
200
REVERSE CURRENT, (nA)
T
J
= 150 °C
10
4
V
R
= 75 V
max
10
3
100
T
J
= 25 °C
75 V
25 V
typ
typ
10
0
50
100
150
200
0
0
1
2
10
2
FORWARD VOLTAGE, (V)
JUNCTION TEMPERATURE, (°C)
Page 2 of 2
Rev. 01 : March 20, 2008
