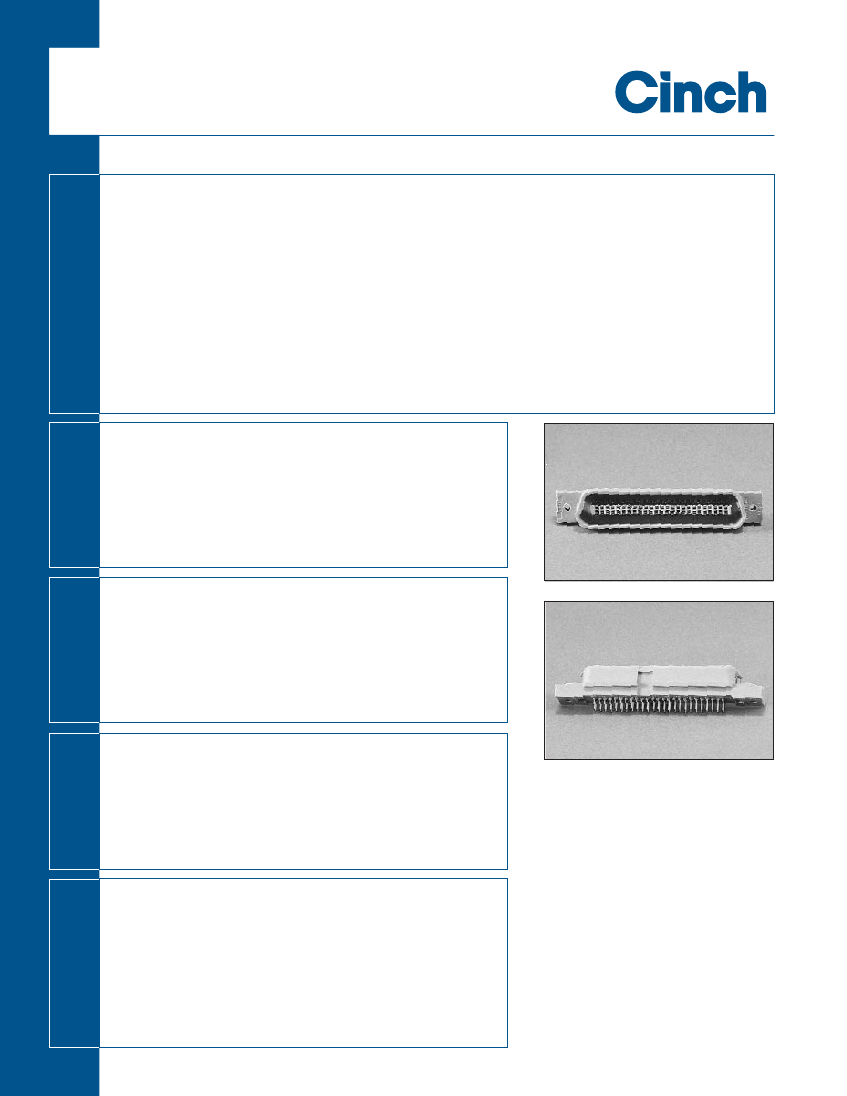

.085 in. (2.16mm)
Density
Miniature Ribbon
Vertical-Mount Solder Tail
All-Plastic
■
Straight Solder Tails for solder termination to printed circuit board.
■
Available with .145" or .190" tail lengths to suit applications with any thickness PC boar
d.
■
All-plastic design reduces cost.
F
EATURES
M
ATERIALS
■
Available in plug and socket styles in 14, 24, 36, 50, and 64 position sizes.
■
All plugs lock with InstaLatch passive latch feature for automatic latching.
Sockets available with InstaLatches, with Bail Latches in sizes indicated, or with no latches.
■
Available with through holes or with #4-40 holes for mounting/latching.
■
UL Recognized - Files E170218 (UL1977), E130965 (UL1863).
■
CSA Approved - File LR31996-7.
Insulator:
Gray UL94V-0 rated glass-filled polyester
Contact:
Copper Alloy
Contact Plating:
Select gold over 50µin. select nickel standard;
30µin. select gold over 50µin. select nickel
available where indicated. Gold flash on
solder tails
E
NVIRONMENTAL
Operating Temperature:
-40°C to +105°C
Shock:
50G Peak, per EIA Std. RS364, TP27, Condition A
Vibration:
3 cycles @ 10-55Hz in each of 3 axes per EIA
Std. 364, TP28, Condition A
Moisture Resistance:
Per EIA Std. RS364, TP31, Condition B,
with Step 7B excluded
E
LECTRICAL
Voltage Rating:
Withstanding Voltage:
Contact Rating:
Contact Resistance:
Insulation Resistance:
500 VAC @ sea level; 125 VAC @ 70,000 ft.
1200 VAC RMS @ sea level, per EIA
Std. RS364, TP20
5 Amps (4 Amps per CSA)
6 milliohms maximum, per EIA Std.
RS364, TP6
5000 Megohms minimum initial;
1000 Megohms minimum after moisture
Durability:
200 mating/unmating cycles
Mating / Unmating Forces:
Mating Force (max.)
with InstaLatches
Size
Lb.
Kg
14
12
5.44
24
17
7.71
36
23
10.43
50
32
14.52
64
37
16.78
M
ECHANICAL
Unmating Force (min.)
without InstaLatches
Lb.
Kg
2
0.91
4
1.81
6
2.72
7
3.18
8
3.63
Call Toll Free: 1 (800) 323-9612
6-38
.085 in. (2.16mm)
Density
Miniature Ribbon
Vertical-Mount Solder Tail
All-Plastic
Vertical-mount Miniature Ribbon connectors provide I/O directly from
printed circuit boards, where the mating face of the connector is in a
plane parallel to that of the board.
See page 6-51 for accessories such as dust covers, bent bail latches,
and mounting screws that make the use of Cinch Miniature Ribbon
connectors even more cost-effective in board-mount applications.

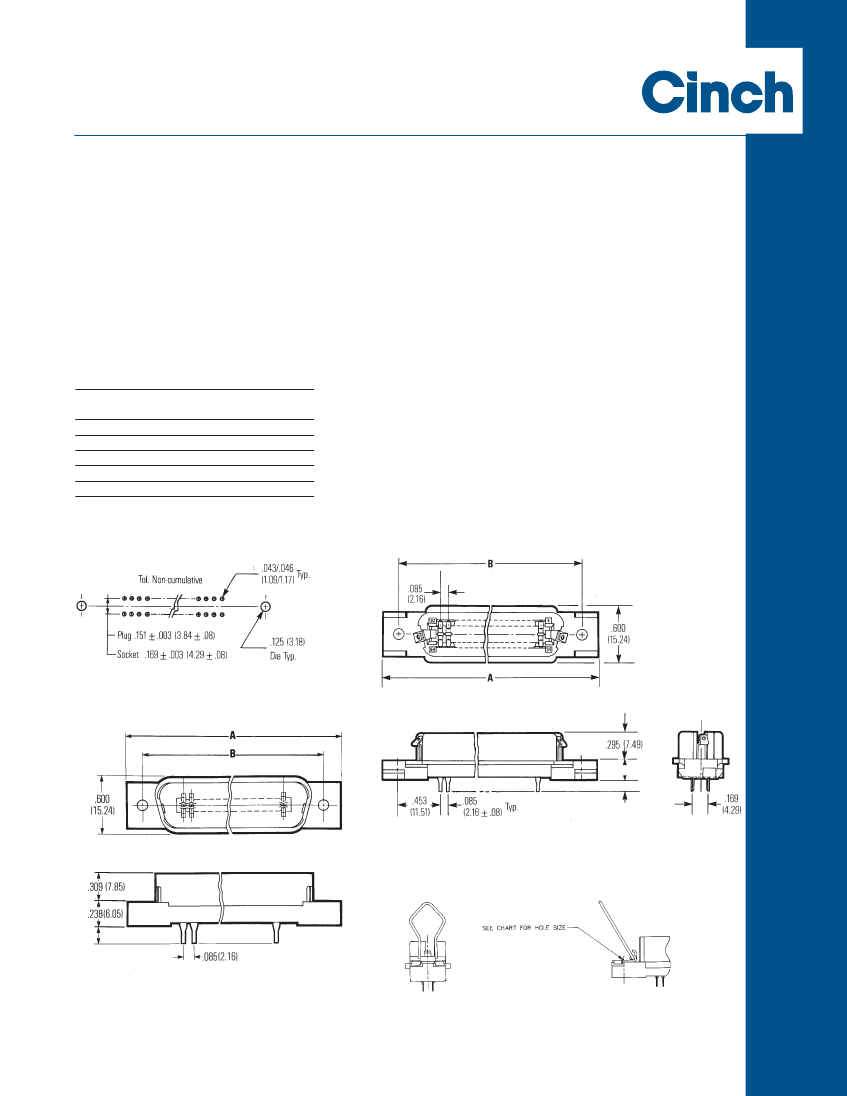

Dimensions
A
in
1.745
2.170
2.680
3.275
3.875
B
mm
44.32
55.12
68.07
83.19
98.43
in
1.417
1.842
2.352
2.947
3.542
mm
35.99
46.79
59.74
74.85
89.97
Size
14
24
36
50
64
Recommended PCB Hole Layout
Socket
Plug
With InstaLatches
.238 (6.05)
J
With Bail Latches
J
6-39
Call Toll Free: 1 (800) 323-9612
