SM5320-015-A-H: DescriptionPeizoresistive Sensor, Absolute, 0Psi Min, 15Psi Max, 0-145mV, Surface Mount; CategoryThe sensor Sensor/transducer; File Size159KB，2 Pages; ManufacturerExar

Download Datasheet Parametric Compare View All

SM5320-015-A-H Overview

Peizoresistive Sensor, Absolute, 0Psi Min, 15Psi Max, 0-145mV, Surface Mount

SM5320-015-A-H Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Linearity(%)	0.3 %
Installation features	SURFACE MOUNT
Nominal offset	0MV
Maximum working current	3 mA
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output range	0-145mV
Output type	ANALOG VOLTAGE
Maximum pressure range	15 Psi
Minimum pressure range
Pressure sensing mode	ABSOLUTE
Sensor/Transducer Type	PRESSURE SENSOR,PEIZORESISTIVE
Maximum supply voltage	10 V
Minimum supply voltage
surface mount	YES
Termination type	SOLDER
Base Number Matches	1

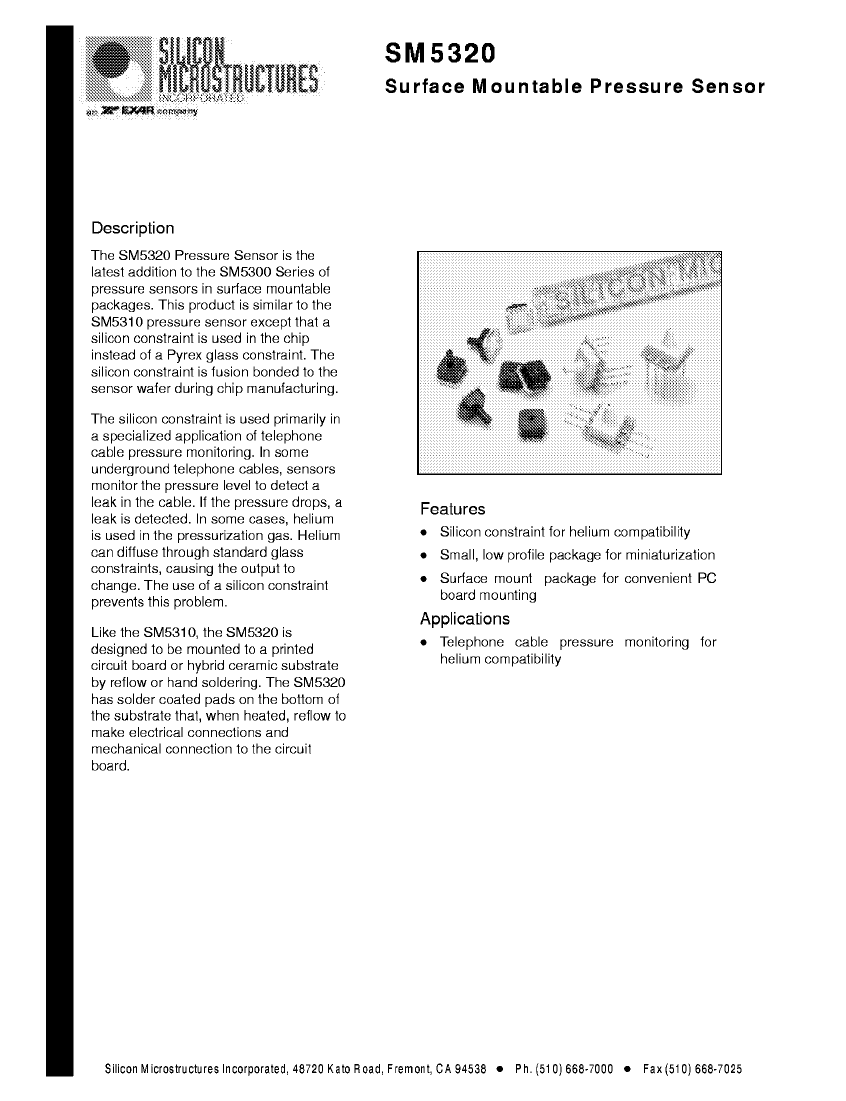

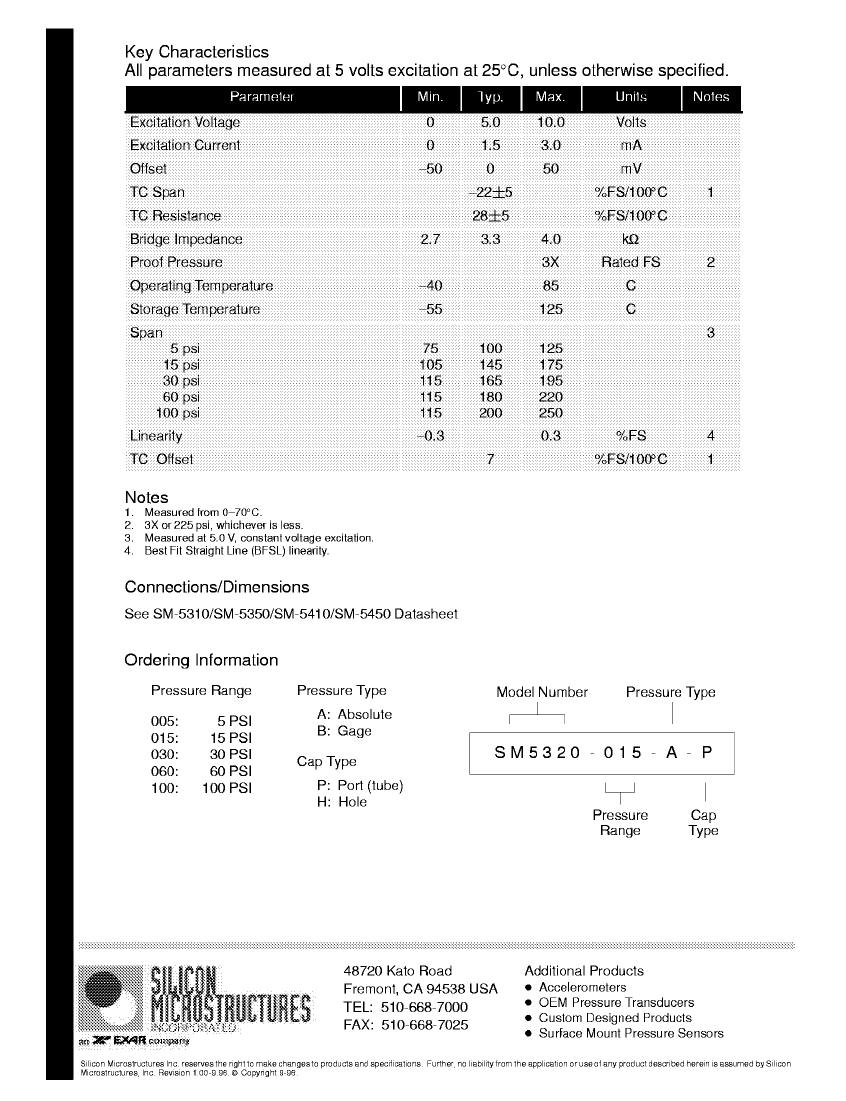

Preview

Download Datasheet

View All

SM5320-015-A-H Related Products

	SM5320-015-A-H	SM5320-030-A-P	SM5320-030-B-H	SM5320-005-B-P	SM5320-015-B-H	SM5320-060-A-P	SM5320-060-B-H	SM5320-015-A-P	SM5320-060-A-H	SM5320-100-B-H
Description	Peizoresistive Sensor, Absolute, 0Psi Min, 15Psi Max, 0-145mV, Surface Mount	Peizoresistive Sensor, Absolute, 0Psi Min, 30Psi Max, 0-165mV, Surface Mount	Peizoresistive Sensor, Gage, 0Psi Min, 30Psi Max, 0-165mV, Surface Mount	Peizoresistive Sensor, Gage, 0Psi Min, 5Psi Max, 0-100mV, Surface Mount	Peizoresistive Sensor, Gage, 0Psi Min, 15Psi Max, 0-145mV, Surface Mount	Peizoresistive Sensor, Absolute, 0Psi Min, 60Psi Max, 0-180mV, Surface Mount	Peizoresistive Sensor, Gage, 0Psi Min, 60Psi Max, 0-180mV, Surface Mount	Peizoresistive Sensor, Absolute, 0Psi Min, 15Psi Max, 0-145mV, Surface Mount	Peizoresistive Sensor, Absolute, 0Psi Min, 60Psi Max, 0-180mV, Surface Mount	Peizoresistive Sensor, Gage, 0Psi Min, 100Psi Max, 0-200mV, Surface Mount
Reach Compliance Code	compliant	compliant	unknown	unknown	unknown	compliant	unknown	compliant	compliant	unknown
Linearity(%)	0.3 %	0.3 %	0.3 %	0.3 %	0.3 %	0.3 %	0.3 %	0.3 %	0.3 %	0.3 %
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Nominal offset	0MV	0MV	0MV	0MV	0MV	0MV	0MV	0MV	0MV	0MV
Maximum working current	3 mA	3 mA	3 mA	3 mA	3 mA	3 mA	3 mA	3 mA	3 mA	3 mA
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output range	0-145mV	0-165mV	0-165mV	0-100mV	0-145mV	0-180mV	0-180mV	0-145mV	0-180mV	0-200mV
Output type	ANALOG VOLTAGE	ANALOG VOLTAGE	ANALOG VOLTAGE	ANALOG VOLTAGE	ANALOG VOLTAGE	ANALOG VOLTAGE	ANALOG VOLTAGE	ANALOG VOLTAGE	ANALOG VOLTAGE	ANALOG VOLTAGE
Maximum pressure range	15 Psi	30 Psi	30 Psi	5 Psi	15 Psi	60 Psi	60 Psi	15 Psi	60 Psi	100 Psi
Pressure sensing mode	ABSOLUTE	ABSOLUTE	GAGE	GAGE	GAGE	ABSOLUTE	GAGE	ABSOLUTE	ABSOLUTE	GAGE
Maximum supply voltage	10 V	10 V	10 V	10 V	10 V	10 V	10 V	10 V	10 V	10 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Sensor/Transducer Type	PRESSURE SENSOR,PEIZORESISTIVE	PRESSURE SENSOR,PEIZORESISTIVE	PRESSURE SENSOR,PEIZORESISTIVE	PRESSURE SENSOR,PIEZORESISTIVE	PRESSURE SENSOR,PIEZORESISTIVE	PRESSURE SENSOR,PIEZORESISTIVE	PRESSURE SENSOR,PIEZORESISTIVE	-	-	-
Maker	-	-	-	Exar	Exar	Exar	Exar	Exar	Exar	Exar
