43-9103-90166 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 43-9103-90166

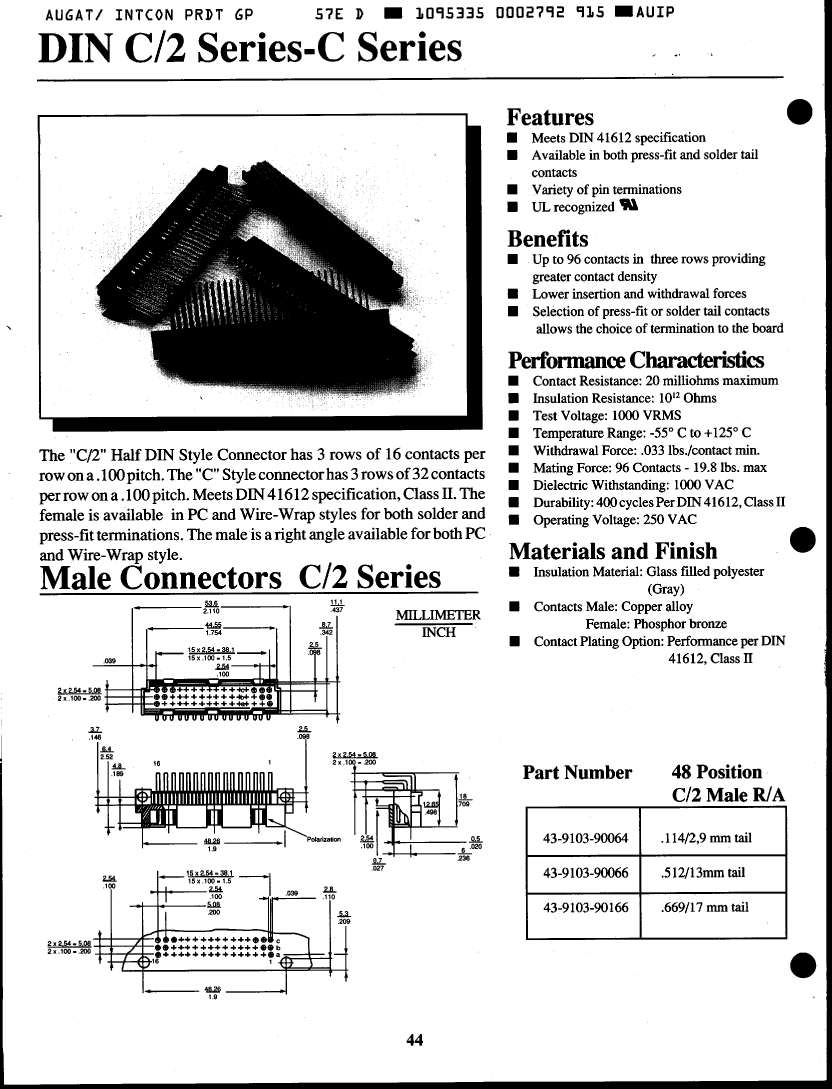

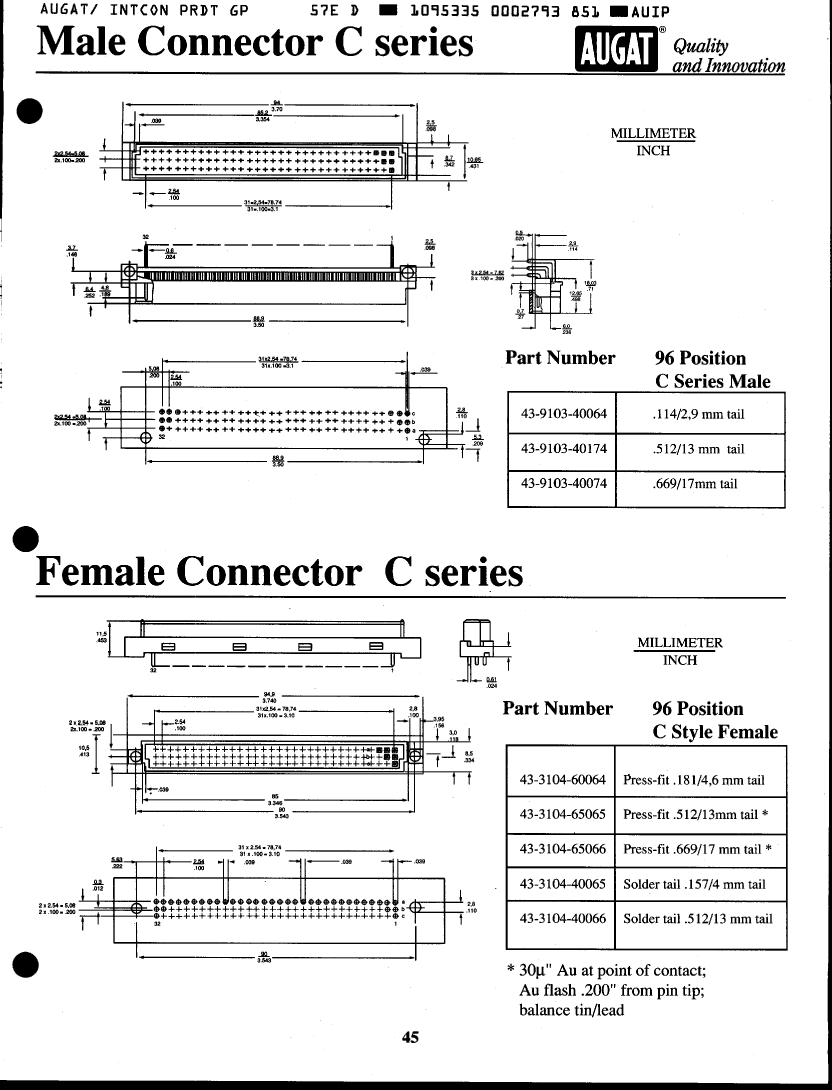

43-9103-90166: DescriptionCONNECTOR,DIN-41612,PCB MNT,RECEPT,48 CONTACTS,PIN,0.1 PITCH,WRAP POST TERMINAL; CategoryThe connector The connector; File Size180KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

43-9103-90166 Overview

CONNECTOR,DIN-41612,PCB MNT,RECEPT,48 CONTACTS,PIN,0.1 PITCH,WRAP POST TERMINAL

43-9103-90166 Parametric

Parameter Name	Attribute value
Objectid	300242238
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	7.7
body width	0.437 inch
subject depth	0.709 inch
body length	2.11 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact point gender	MALE
Contact material	COPPER ALLOY
Contact resistance	20 mΩ
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Durability	400 Cycles
maximum insertion force	.9174 N
Insulation resistance	10000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	DINC/2
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Loaded row name	A,B,C
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.669 inch
Terminal pitch	2.54 mm
Termination type	WIRE WRAP
Total number of contacts	48
Evacuation force-minimum value	.139 N

Preview

Download Datasheet

View All

43-9103-90166 Related Products

	43-9103-90166	43-9103-90064	43-9103-90066	43-9103-40064
Description	CONNECTOR,DIN-41612,PCB MNT,RECEPT,48 CONTACTS,PIN,0.1 PITCH,WRAP POST TERMINAL	CONNECTOR,DIN-41612,PCB MNT,RECEPT,48 CONTACTS,PIN,0.1 PITCH,R ANGLE PC TAIL TERMINAL	CONNECTOR,DIN-41612,PCB MNT,RECEPT,48 CONTACTS,PIN,0.1 PITCH,WRAP POST TERMINAL	CONNECTOR,DIN-41612,PCB MNT,RECEPT,96 CONTACTS,PIN,0.1 PITCH,R ANGLE PC TAIL TERMINAL
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Manufacturer's serial number	DINC/2	DINC/2	DINC/2	DINC
Objectid	300242238	300242236	300242237	-
YTEOL	7.7	7.9	7.7	-
body width	0.437 inch	0.437 inch	0.437 inch	-
subject depth	0.709 inch	0.709 inch	0.709 inch	-
body length	2.11 inch	2.11 inch	2.11 inch	-
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	-
Contact point gender	MALE	MALE	MALE	-
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	-
Contact resistance	20 mΩ	20 mΩ	20 mΩ	-
DIN compliance	YES	YES	YES	-
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	-
Durability	400 Cycles	400 Cycles	400 Cycles	-
maximum insertion force	.9174 N	.9174 N	.9174 N	-
Insulation resistance	10000000000 Ω	10000000000 Ω	10000000000 Ω	-
Insulator color	GRAY	GRAY	GRAY	-
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	-
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	-
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	-
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	-
Installation type	BOARD	BOARD	BOARD	-
Loaded row name	A,B,C	A,B,C	A,B,C	-
PCB row number	3	3	3	-
Number of rows loaded	3	3	3	-
Maximum operating temperature	125 °C	125 °C	125 °C	-
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
PCB contact row spacing	2.54 mm	2.54 mm	2.54 mm	-
Guideline	UL	UL	UL	-
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	-
Terminal length	0.669 inch	0.114 inch	0.512 inch	-
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	-
Termination type	WIRE WRAP	SOLDER	WIRE WRAP	-
Total number of contacts	48	48	48	-
Evacuation force-minimum value	.139 N	.139 N	.139 N	-
