Technical Data
2030
Effective
August
2017
Supersedes
June
2016
Rejection
time-delay
fuses and
in-line
fuse
holders
Catalog symbol:
GMQ (fuse) HLQ (fuse holder)
Ampere Rating:
1/2 -
6 1/4
A
Voltage Rating:
300 Volts AC or less
Interrupting Rating:
10,000 A
Agency information
Product features
•
Size of type GMQ fuses varies with
ampere ratings
•
Fuse and knob are an integral one-piece unit. There
are no replacement knobs (caps)
•
Units can be panel mounted with a separate steel
clip. For the knockout hole (see above), choose
#BK/A-104. For the keyhole punch type hole,
choose #6374 for panels 0.043” to 0.062” thick, or
#4909 for panels 0.030” to 0.042” thick
•
Do not put tension on line (rear) terminal
of fuse holder
•
GMQ fuse mounts in type HLQ size rejection (size
limiting) carrier (prevents overfusing)
•
HLQ carrier comes with 6” of #18 red insulated
solid copper wire attached to
the line side
•
Customer inserts a #18 insulated solid copper wire
into load side receptacle
Fuse
•
UL® Listed, Guide JDYX, File E19180
•
CSA® Certified, Class 1422-01, File 53787
•
CE
Fuse holder
•
UL Recognized, Guide IZLT2, File E14853
•
CSA Certified, Class 6225-01, File 47235
•
CE
GMQ
(fuse) HLQ (fuse holder)
Electrical ratings for type GMQ fuses and
rejection style holders
Fuse
GMQ-1/2
GMQ-6/10
GMQ-8/10
GMQ-1
GMQ-1 1/4
GMQ-2
Holder
HLQ-1/2
HLQ-1 6/10
HLQ-
HLQ-
HLQ-
HLQ-
0
0
0
HLQ-1 6/10
Fuse
GMQ-2 1/2
GMQ-3
GMQ-
GMQ-
GMQ-4
GMQ-5
GMQ-
GMQ-
—
Holder
HLQ-3 2/10
HLQ-3 2/10
0 HLQ-3 2/10
HLQ-5
HLQ-5
HLQ-8
—
GMQ-1 6/10 HLQ-
HLQ-
HLQ-3 2/10
Effective
August
2017
Technical Data
2030
GMQ (fuse) HLQ (fuse holder)
In-line rejection fuses and holders

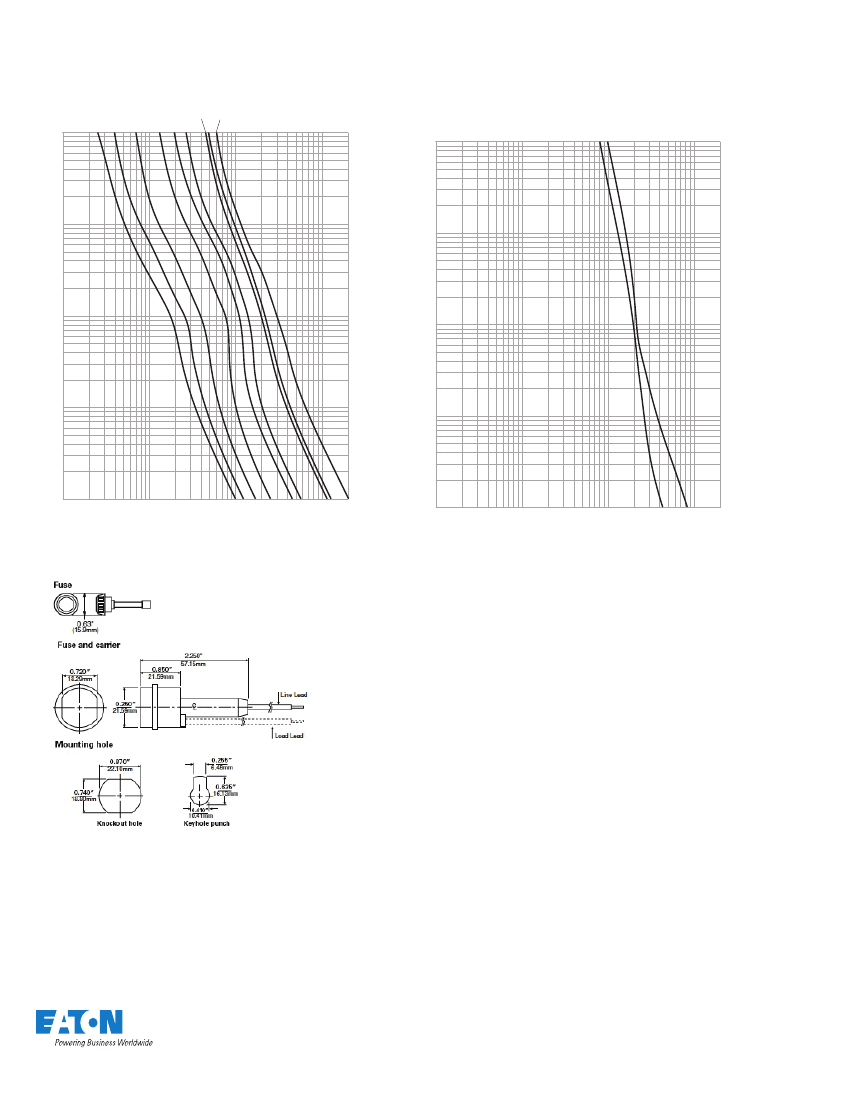

Time-current curves–average melt
Amp
rating
100
Time-current curves–average melt
3
1
1.6
2
3.2
4
.3
100
Amp
rating
.2
.5
10
10
TIME IN SECONDS
1
Time in seconds
1
0.1
0.1
0.1
1
10
100
200
0.01
0.1
1
Current in amps
Current in amps
Dimensions - in (mm):
Life Support Policy: Eaton does not authorize the use of any of its products for use in life support devices or systems without the express written
approval of an officer of the Company. Life support systems are devices which support or sustain life, and whose failure to perform, when properly
used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in significant injury to the user.
Eaton reserves the right, without notice, to change design or construction of any products and to discontinue or limit distribution of any products. Eaton also
reserves the right to change or update, without notice, any technical information contained in this bulletin.
Eaton
Electronics Division
1000 Eaton Boulevard
Cleveland, OH 44122
United States
www.eaton.com/electronics
© 2017 Eaton
All Rights Reserved
Printed in USA
Publication No.
2030
SB02233
August
2017
Eaton is a registered trademark.
All other trademarks are property
of their respective owners.
100
200
10
0.01
5
