5-104118-6 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5-104118-6

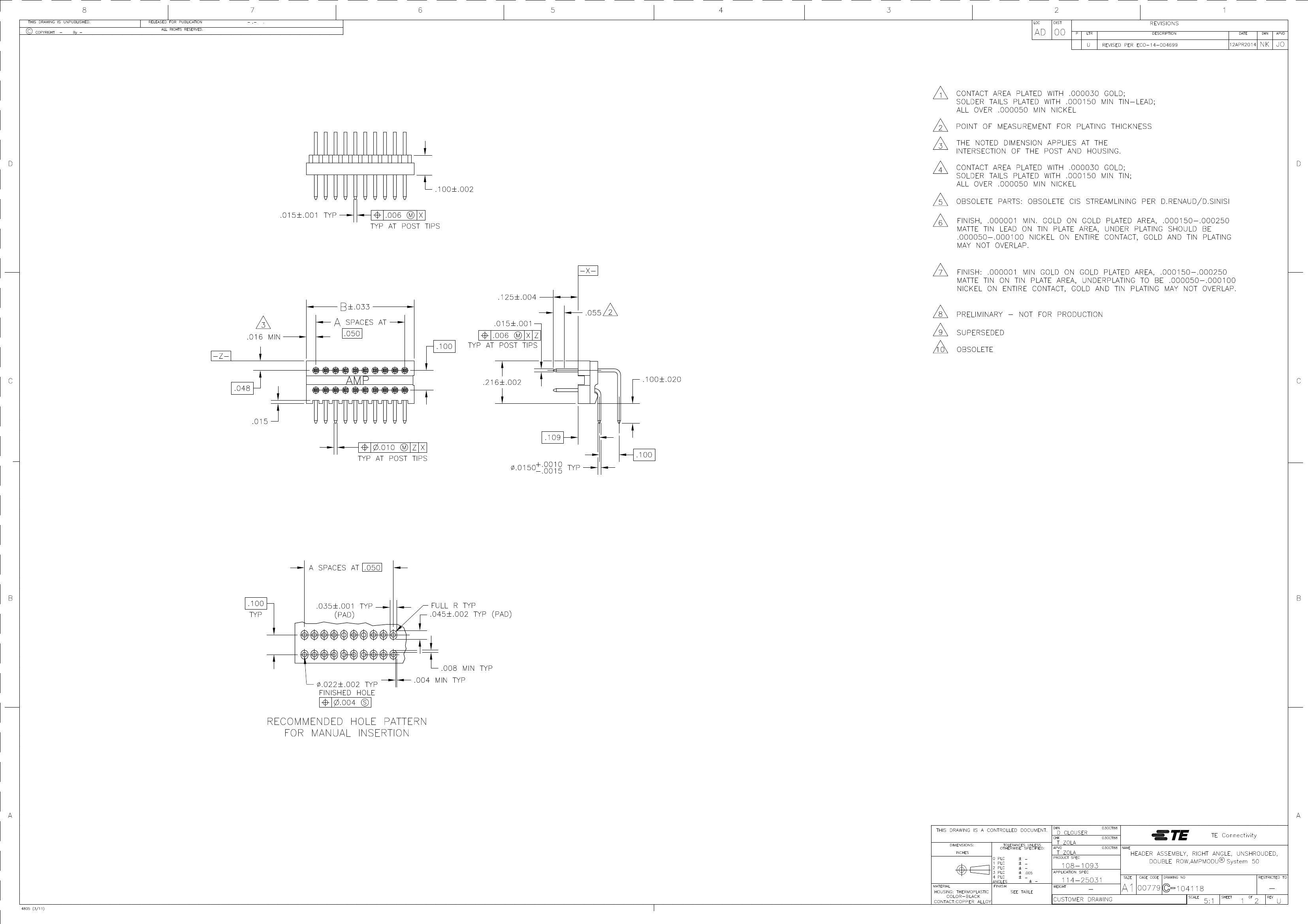

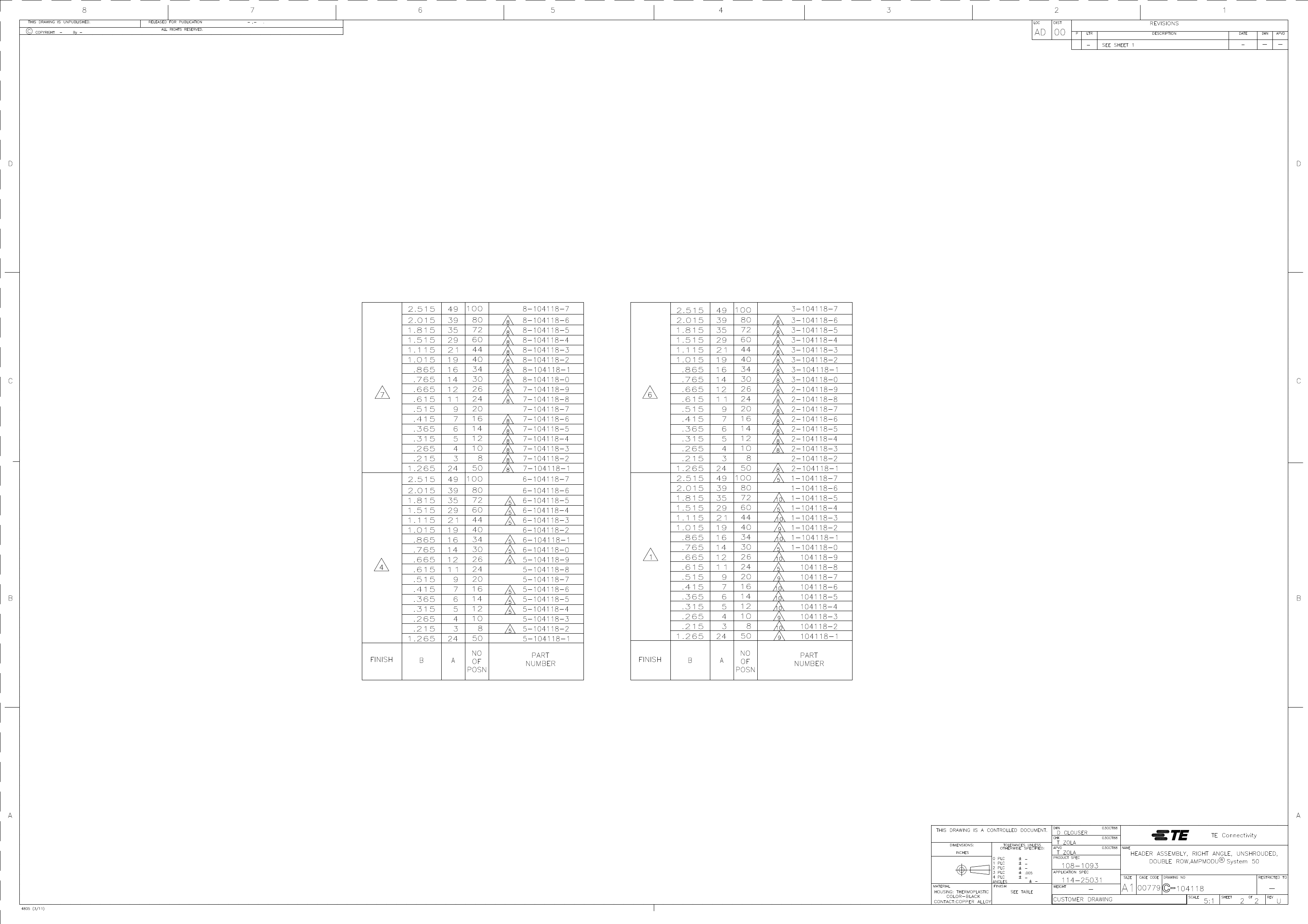

5-104118-6: DescriptionHEADER CONNECTOR,PCB MNT,PLUG,16 CONTACTS,PIN,0.05 PITCH,R ANGLE PC TAIL TERMINAL,BLACK; CategoryThe connector The connector; File Size204KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

5-104118-6 Overview

HEADER CONNECTOR,PCB MNT,PLUG,16 CONTACTS,PIN,0.05 PITCH,R ANGLE PC TAIL TERMINAL,BLACK

5-104118-6 Parametric

Parameter Name	Attribute value
Objectid	7142949253
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	9.15
body width	0.216 inch
subject depth	0.209 inch
body length	0.415 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT APPLICABLE
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	NOT APPLICABLE
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Durability	200 Cycles
Electromagnetic interference shielding	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
maximum insertion force	1.39 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER
JESD-609 code	e3
MIL compliance	NO
Power Connector Ratings	3.6A
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of ports	1
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Panel mounting	NO
Plating thickness	30u inch
Rated current (signal)	3.6 A
Guideline	UL
Terminal length	0.1 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	16
UL Flammability Code	94V-0
Evacuation force-minimum value	.2224 N

Preview

Download Datasheet

View All

5-104118-6 Related Products

	5-104118-6	5-104118-4	5-104118-5	6-104118-3	6-104118-6
Description	HEADER CONNECTOR,PCB MNT,PLUG,16 CONTACTS,PIN,0.05 PITCH,R ANGLE PC TAIL TERMINAL,BLACK	HEADER CONNECTOR,PCB MNT,PLUG,12 CONTACTS,PIN,0.05 PITCH,R ANGLE PC TAIL TERMINAL,BLACK	HEADER CONNECTOR,PCB MNT,PLUG,14 CONTACTS,PIN,0.05 PITCH,R ANGLE PC TAIL TERMINAL,BLACK	HEADER CONNECTOR,PCB MNT,PLUG,44 CONTACTS,PIN,0.05 PITCH,R ANGLE PC TAIL TERMINAL,BLACK	80 SYS 50 HDR DRRA UNSHRD SN
Objectid	7142949253	7142949282	7142949278	7142949256	2057397852
Reach Compliance Code	unknown	unknown	unknown	unknown	compliant
YTEOL	9.15	9.15	9.15	9.15	9.15
body width	0.216 inch	0.216 inch	0.216 inch	0.216 inch	0.216 inch
subject depth	0.209 inch	0.209 inch	0.209 inch	0.209 inch	0.209 inch
body length	0.415 inch	0.315 inch	0.365 inch	1.115 inch	2.015 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT APPLICABLE	NOT SPECIFIED	NOT APPLICABLE	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	NOT APPLICABLE
Contact point gender	MALE	MALE	MALE	MALE	MALE
Contact material	NOT APPLICABLE	NOT SPECIFIED	NOT APPLICABLE	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	15 mΩ	15 mΩ	15 mΩ	15 mΩ	15 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
DIN compliance	NO	NO	NO	NO	NO
Durability	200 Cycles	200 Cycles	200 Cycles	200 Cycles	200 Cycles
Electromagnetic interference shielding	NO	NO	NO	NO	NO
empty shell	YES	YES	YES	YES	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
maximum insertion force	1.39 N	1.39 N	1.39 N	1.39 N	1.39 N
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	5000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER
MIL compliance	NO	NO	NO	NO	NO
Power Connector Ratings	3.6A	3.6A	3.6A	3.6A	3.6A
Plug contact pitch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Mixed contacts	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2
Number of ports	1	1	1	1	1
Number of rows loaded	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Panel mounting	NO	NO	NO	NO	NO
Plating thickness	30u inch	30u inch	30u inch	30u inch	30u inch
Rated current (signal)	3.6 A	3.6 A	3.6 A	3.6 A	3.6 A
Guideline	UL	UL	UL	UL	CSA, LR, U
Terminal length	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	16	12	14	44	80
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
Evacuation force-minimum value	.2224 N	.2224 N	.2224 N	.2224 N	.2224 N
ECCN code	EAR99	EAR99	EAR99	EAR99	-
JESD-609 code	e3	e3	e3	e3	-
reliability	-	COMMERCIAL	-	COMMERCIAL	COMMERCIAL
