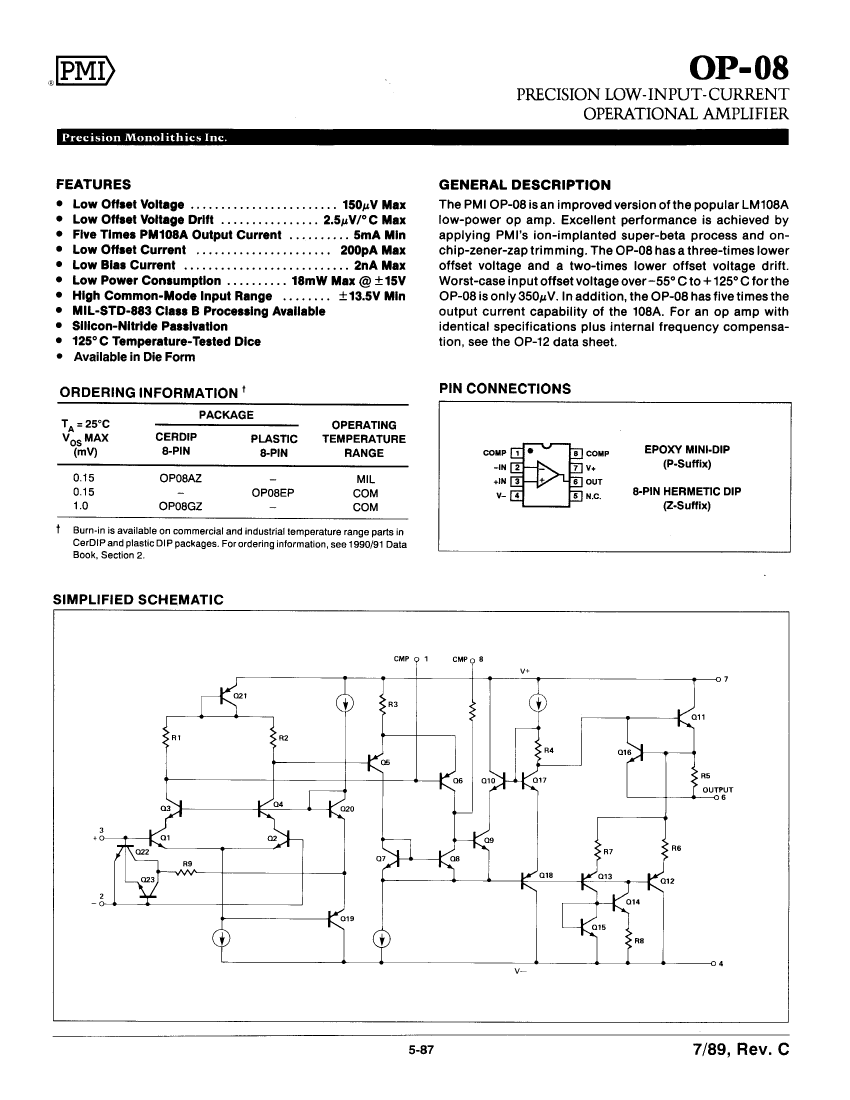

Basic information of OP08G amplifier:
OP08G is an OPERATIONAL AMPLIFIER. The commonly used packaging method is DIE,
OP08G amplifier core information:
Its peak reflow temperature is NOT SPECIFIED Its maximum average bias current is 0.002 µA
How to simply check the efficiency of an amplifier? Looking at its slew rate, the nominal slew rate of OP08G is 0.12 V/us. The maximum slew rate of OP08G given by the manufacturer is 0.6 mA. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the OP08G gain becomes 0.707 times the low-frequency gain. The frequency is 800 kHz.
The nominal supply voltage of OP08G is 20 V, and its corresponding nominal negative supply voltage is -20 V. The input offset voltage of OP08G is 300 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)

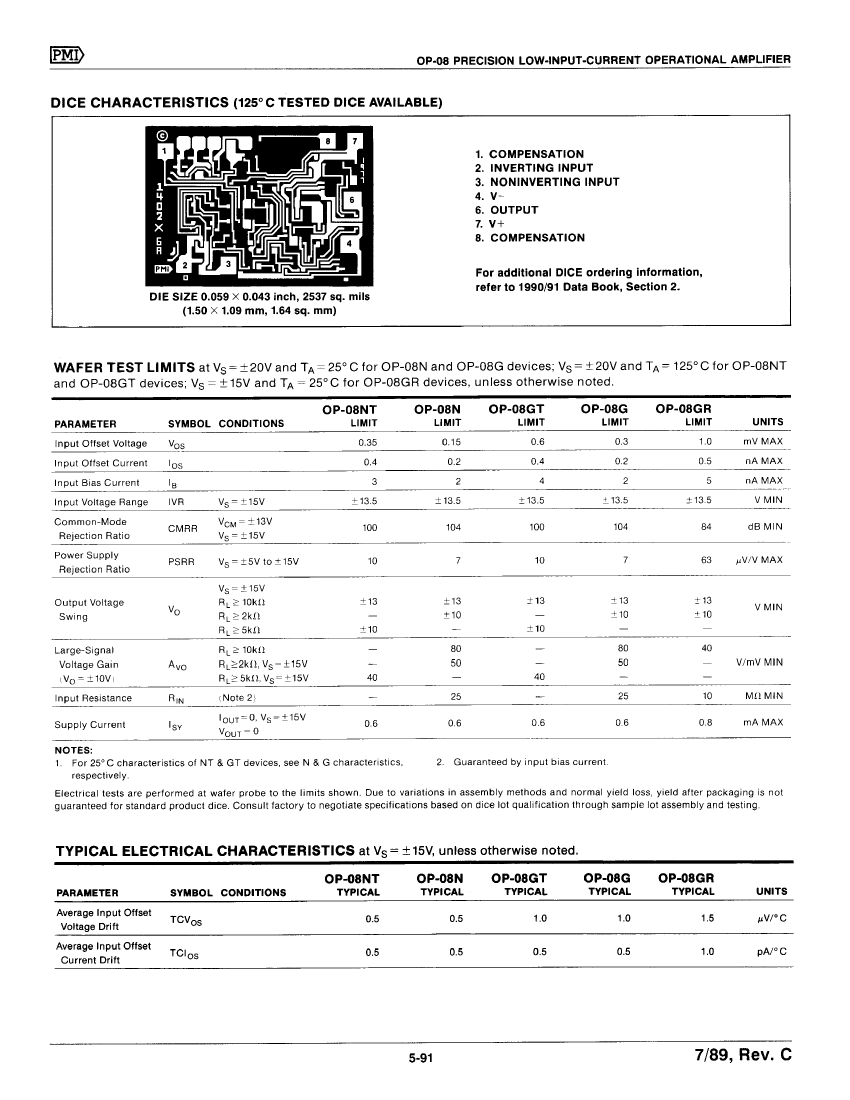

Related dimensions of OP08G:
OP08G has 8 terminals. Its terminal position type is: UPPER. Total pins: 8
OP08G amplifier additional information:
OP08G is not Rohs certified. The corresponding JESD-30 code is: R-XUUC-N8. The corresponding JESD-609 code is: e0. The packaging code of OP08G is: DIE. The OP08G package materials are mostly UNSPECIFIED.
The package shape is RECTANGULAR. OP08G package pin formats are: UNCASED CHIP. Its terminal forms are: NO LEAD.
Basic information of OP08G amplifier:
OP08G is an OPERATIONAL AMPLIFIER. The commonly used packaging method is DIE,
OP08G amplifier core information:
Its peak reflow temperature is NOT SPECIFIED Its maximum average bias current is 0.002 µA
How to simply check the efficiency of an amplifier? Looking at its slew rate, the nominal slew rate of OP08G is 0.12 V/us. The maximum slew rate of OP08G given by the manufacturer is 0.6 mA. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the OP08G gain becomes 0.707 times the low-frequency gain. The frequency is 800 kHz.
The nominal supply voltage of OP08G is 20 V, and its corresponding nominal negative supply voltage is -20 V. The input offset voltage of OP08G is 300 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of OP08G:
OP08G has 8 terminals. Its terminal position type is: UPPER. Total pins: 8
OP08G amplifier additional information:
OP08G is not Rohs certified. The corresponding JESD-30 code is: R-XUUC-N8. The corresponding JESD-609 code is: e0. The packaging code of OP08G is: DIE. The OP08G package materials are mostly UNSPECIFIED.
The package shape is RECTANGULAR. OP08G package pin formats are: UNCASED CHIP. Its terminal forms are: NO LEAD.

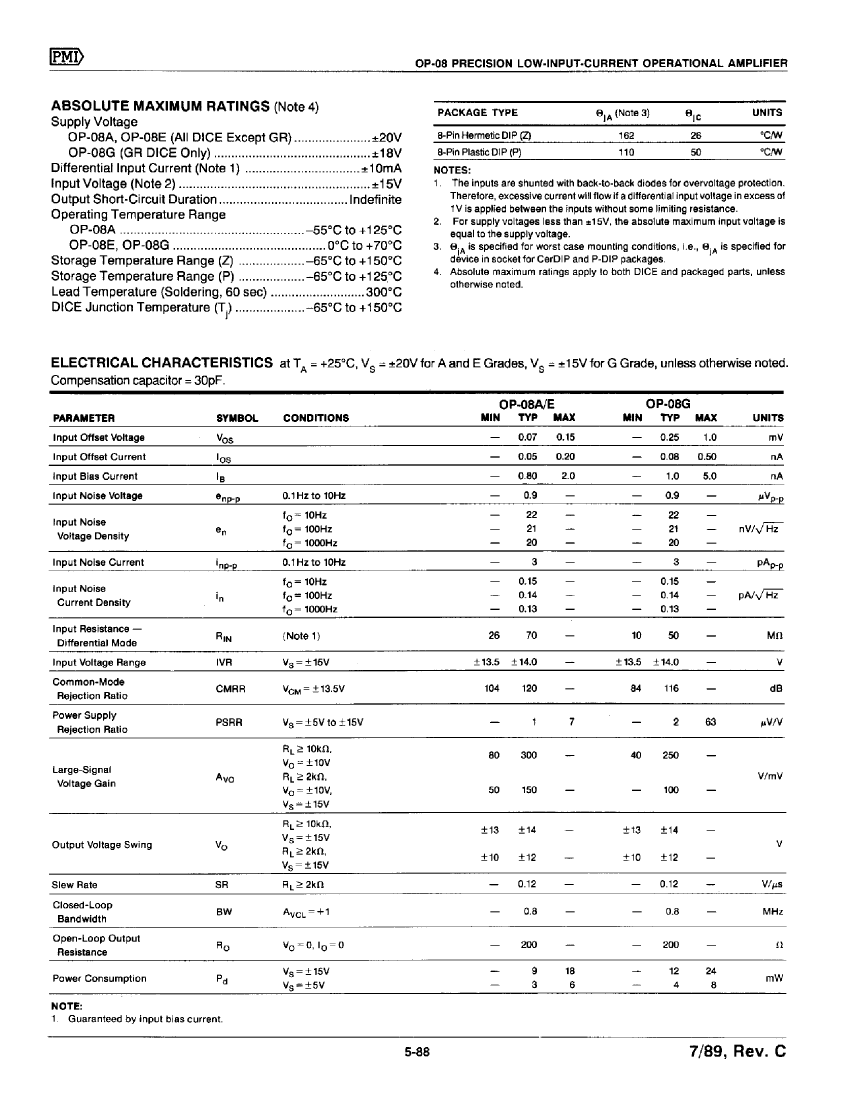

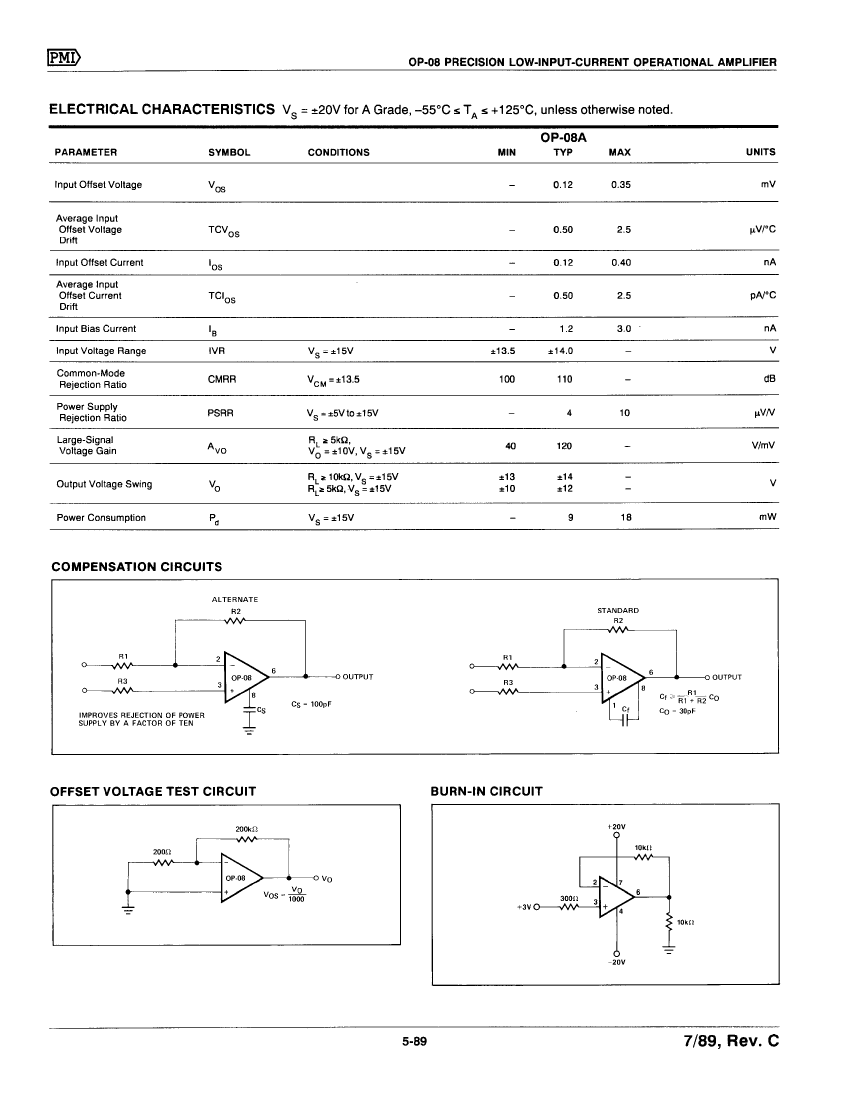

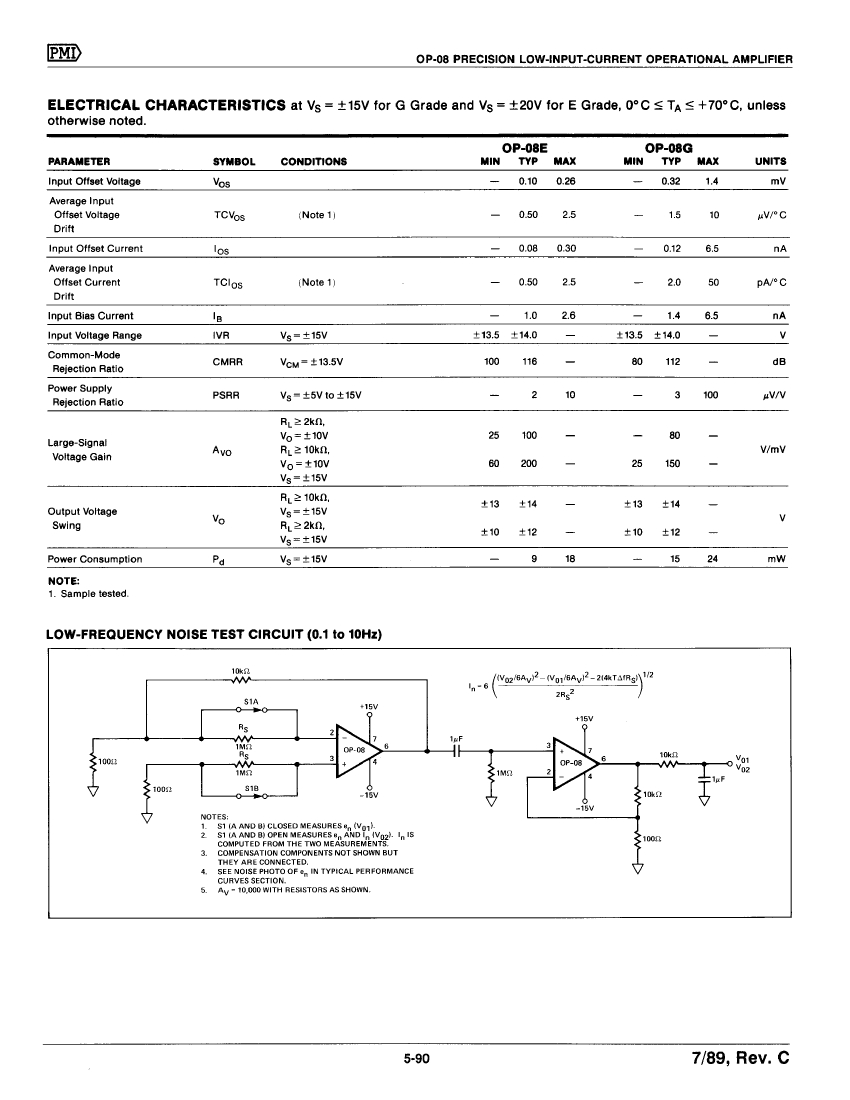

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Parts packaging code | DIE |
| package instruction | DIE, |
| Contacts | 8 |
| Reach Compliance Code | compliant |
| Amplifier type | OPERATIONAL AMPLIFIER |
| Maximum average bias current (IIB) | 0.002 µA |
| Nominal Common Mode Rejection Ratio | 104 dB |
| Maximum input offset voltage | 300 µV |
| JESD-30 code | R-XUUC-N8 |
| JESD-609 code | e0 |
| Negative supply voltage upper limit | -20 V |
| Nominal Negative Supply Voltage (Vsup) | -20 V |
| Number of functions | 1 |
| Number of terminals | 8 |
| Package body material | UNSPECIFIED |
| encapsulated code | DIE |
| Package shape | RECTANGULAR |
| Package form | UNCASED CHIP |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Certification status | Not Qualified |
| Nominal slew rate | 0.12 V/us |
| Maximum slew rate | 0.6 mA |
| Supply voltage upper limit | 20 V |
| Nominal supply voltage (Vsup) | 20 V |
| surface mount | YES |
| technology | BIPOLAR |
| Terminal surface | TIN LEAD |
| Terminal form | NO LEAD |
| Terminal location | UPPER |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Nominal Uniform Gain Bandwidth | 800 kHz |
| Base Number Matches | 1 |
| OP08G | OP08EP | OP08GR | OP08GT | OP08N | OP08NT | |
|---|---|---|---|---|---|---|
| Description | IC OP-AMP, 300 uV OFFSET-MAX, 0.8 MHz BAND WIDTH, UUC8, 1.50 X 1.09 MM, DIE-8, Operational Amplifier | IC OP-AMP, 260 uV OFFSET-MAX, 0.8 MHz BAND WIDTH, PDIP8, MINI, PLASTIC, DIP-8, Operational Amplifier | IC OP-AMP, 1000 uV OFFSET-MAX, 0.8 MHz BAND WIDTH, UUC8, 1.50 X 1.09 MM, DIE-8, Operational Amplifier | IC OP-AMP, 600 uV OFFSET-MAX, 0.8 MHz BAND WIDTH, UUC8, 1.50 X 1.09 MM, DIE-8, Operational Amplifier | IC OP-AMP, 150 uV OFFSET-MAX, 0.8 MHz BAND WIDTH, UUC8, 1.50 X 1.09 MM, DIE-8, Operational Amplifier | IC OP-AMP, 350 uV OFFSET-MAX, 0.8 MHz BAND WIDTH, UUC8, 1.50 X 1.09 MM, DIE-8, Operational Amplifier |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Parts packaging code | DIE | DIP | DIE | DIE | DIE | DIE |
| package instruction | DIE, | MINI, PLASTIC, DIP-8 | DIE, | DIE, | DIE, | DIE, |
| Contacts | 8 | 8 | 8 | 8 | 8 | 8 |
| Reach Compliance Code | compliant | not_compliant | compliant | compliant | compliant | compliant |
| Amplifier type | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER |
| Maximum average bias current (IIB) | 0.002 µA | 0.0026 µA | 0.005 µA | 0.004 µA | 0.002 µA | 0.003 µA |
| Nominal Common Mode Rejection Ratio | 104 dB | 116 dB | 84 dB | 100 dB | 104 dB | 100 dB |
| Maximum input offset voltage | 300 µV | 260 µV | 1000 µV | 600 µV | 150 µV | 350 µV |
| JESD-30 code | R-XUUC-N8 | R-PDIP-T8 | R-XUUC-N8 | R-XUUC-N8 | R-XUUC-N8 | R-XUUC-N8 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 |
| Negative supply voltage upper limit | -20 V | -20 V | -20 V | -20 V | -20 V | -20 V |
| Nominal Negative Supply Voltage (Vsup) | -20 V | -20 V | -15 V | -20 V | -20 V | -20 V |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 8 | 8 | 8 | 8 | 8 | 8 |
| Package body material | UNSPECIFIED | PLASTIC/EPOXY | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED |
| encapsulated code | DIE | DIP | DIE | DIE | DIE | DIE |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | UNCASED CHIP | IN-LINE | UNCASED CHIP | UNCASED CHIP | UNCASED CHIP | UNCASED CHIP |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | 220 |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Nominal slew rate | 0.12 V/us | 0.12 V/us | 0.12 V/us | 0.12 V/us | 0.12 V/us | 0.12 V/us |
| Supply voltage upper limit | 20 V | 20 V | 20 V | 20 V | 20 V | 20 V |
| Nominal supply voltage (Vsup) | 20 V | 20 V | 15 V | 20 V | 20 V | 20 V |
| surface mount | YES | NO | YES | YES | YES | YES |
| technology | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR |
| Terminal surface | TIN LEAD | Tin/Lead (Sn/Pb) | TIN LEAD | TIN LEAD | TIN LEAD | TIN LEAD |
| Terminal form | NO LEAD | THROUGH-HOLE | NO LEAD | NO LEAD | NO LEAD | NO LEAD |
| Terminal location | UPPER | DUAL | UPPER | UPPER | UPPER | UPPER |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | 30 |
| Nominal Uniform Gain Bandwidth | 800 kHz | 800 kHz | 800 kHz | 800 kHz | 800 kHz | 800 kHz |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 |
| Maximum slew rate | 0.6 mA | - | 0.8 mA | 0.6 mA | 0.6 mA | 0.6 mA |
