BK/GMC-300MA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> BK/GMC-300MA

BK/GMC-300MA: DescriptionElectric Fuse, Medium Time Delay Blow, 0.3A, 250VAC, 32VDC, 35A (IR), Inline/holder, 5x20mm,; CategoryCircuit protection Circuit protection; File Size266KB，2 Pages; ManufacturerEaton

Download Datasheet Parametric Compare View All

BK/GMC-300MA Overview

Electric Fuse, Medium Time Delay Blow, 0.3A, 250VAC, 32VDC, 35A (IR), Inline/holder, 5x20mm,

BK/GMC-300MA Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	RESPONSE TIME: 2 MIN MAX AT 200% RATED CURRENT
Fusing characteristics	MEDIUM TIME DELAY
body height	20.02 mm
Body length or diameter	5 mm
Circuit protection type	ELECTRIC FUSE
Fuse size	5x20mm
Installation features	INLINE/HOLDER
method of packing	BULK
physical size	5mm x 20.02mm
Rated breaking capacity	35 A
Rated current	0.3 A
Rated voltage	250 V
Rated voltage (AC)	250 V
Rated voltage (DC)	32 V
Guideline	CE
surface mount	NO
Terminal shape	END CAP
Base Number Matches	1

Preview

Download Datasheet

View All

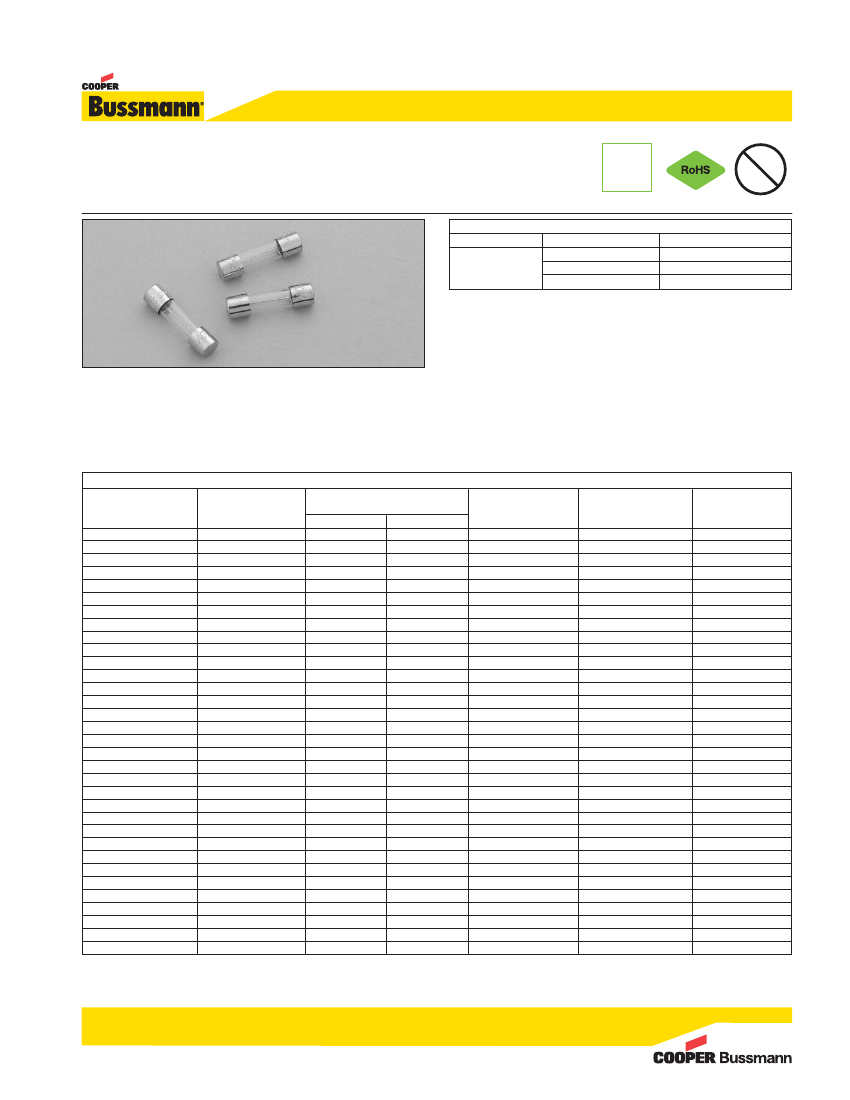

5 x 20mm Medium Time-Delay Glass Tube Fuses

GMC Series

Rated Current

63mA - 10A

FREE

HALOGEN

Electrical Characteristics

% of Amp Rating

Opening Time

100%

None

135%

60 minutes maximum

200%

2 minutes maximum

Agency Information

•

UL Listed, Guide JDYX, File E19180, 63mA-6.3A

UL Recognized Card: (7A-10A) Guide JDYX2, File E19180

CSA Certified, Class 1422-01, File E65063, 63mA-6.3A

MITI Approval, 1A-10A

KC-Mark: Certificate SU05011-4001 (63mA~250mA); SU05011-4002

(300mA~800mA); SU05011-4003 (1A~3.15A); SU05011-4004 (3.5A~6.3A)

Description

•

Medium time-delay, low breaking capacity

Available with optional axial leads

5 x 20mm physical size

Glass tube, nickel-plated brass endcap construction

Designed to UL/CSA 248-14

Voltage

Rating

Vac

250

125

Ordering

• Specify packaging code prefix, product number and option code suffix

• For RoHS compliant version (suffix “-R”), drop mA or A from product code

(e.g., GMC-2-R)

Specifications

Typical DC Cold

Resistance

(Ω)**

10.350

4.775

3.400

2.555

2.295

1.395

0.965

0.838

0.685

0.615

0.335

0.282

0.246

0.213

0.180

0.156

0.098

0.076

0.067

0.043

0.035

0.026

0.025

0.022

0.019

0.014

0.013

0.012

0.009

0.007

Typical

Pre-Arc I

†

0.0027

0.0050

0.0094

0.014

0.022

0.032

0.046

0.081

0.18

0.41

0.60

0.66

0.85

1.8

3.4

5.4

5.8

8.9

110

150

200

300

Maximum

Voltage

Drop (mV)

‡

1400

1200

1000

800

730

650

490

580

480

510

370

360

340

320

290

250

200

190

160

130

120

110

Product

Number

GMC-63mA

GMC-80mA

GMC-100mA

GMC-125mA

GMC-150mA

GMC-160mA

GMC-200mA

GMC-250mA

GMC-300mA

GMC-315mA

GMC-400mA

GMC-500mA

GMC-600mA

GMC-630mA

GMC-700mA

GMC-750mA

GMC-800mA

GMC-1A

GMC-1.25A

GMC-1.5A

GMC-1.6A

GMC-2A

GMC-2.5A

GMC-3A

GMC-3.15A

GMC-3.5A

GMC-4A

GMC-5A

GMC-6A

GMC-6.3A

GMC-7A

GMC-8A

GMC-10A

Interrupting Rating (Amps)*

250Vac

125Vac

10,000

100

10,000

100

10,000

100

10,000

100

10,000

100

10,000

100

10,000

100

10,000

200

* Interrupting ratings: Interrupting ratings for 63mA - 6.3A were measured at 70% - 80% power factor on AC. The interrupting ratings for 7A - 10A were measured at 100% power factor on AC.

** DC Cold Resistance (Measured at <10% of rated current)

†

Typical Pre-Arching I

t (I

t was measured at listed interrupting rating and rated voltage)

‡

Maximum Voltage drop (Voltage drop was measured at 20°C ambient temperature at rated current)

0711

BU-SB11757

Page 1 of 2

Data Sheet 4395
