FEATURES AND SPECIFICATIONS
Features and Benefits
s
Sizes 9, 15 and 25 circuits
s
Fork lock provides positive PCB retention
s
Indents in metal shell ensure reliable grounding
s
Metal shell provides EMI/RFI shielding
s
Intermateable with industry-standard receptacles
Reference Information
Product Specification: PS-87203
Packaging: Tray
UL File No.: E45587
Mates With:
87204
Designed In: Millimeters
Electrical
Voltage: 300V DC
Current: 1.0A min.
Contact Resistance: 20m
Ω
max.
Dielectric Withstanding Voltage: 750V AC RMS/1 min.
Insulation Resistance: 1000 M
Ω
min.
Mechanical
Contact Insertion Force: 7.84N (1.76 lb) max.
Contact Withdrawal Force: 0.98N (0.22 lb) max.
Terminal Retention: 22.25N (4.99 lb) min.
Mating Force: 9 circuits––44.94N (9.99 lb) max.
15 circuits––173.56N (38.96 lb) max.
25 circuits––124.56N (27.96 lb) max.
Unmating Force: 9.80N (2.20 lb) min.
Durability: 1000 cycles
Physical
Housing: Black polyester, UL 94V-0
Contact: Brass
Shell: Steel
Plating: See Ordering Table
Operating Temperature: -55 to +85
˚
C
D-Subminiature
Shielding I/O
Plug
87203
Through Hole

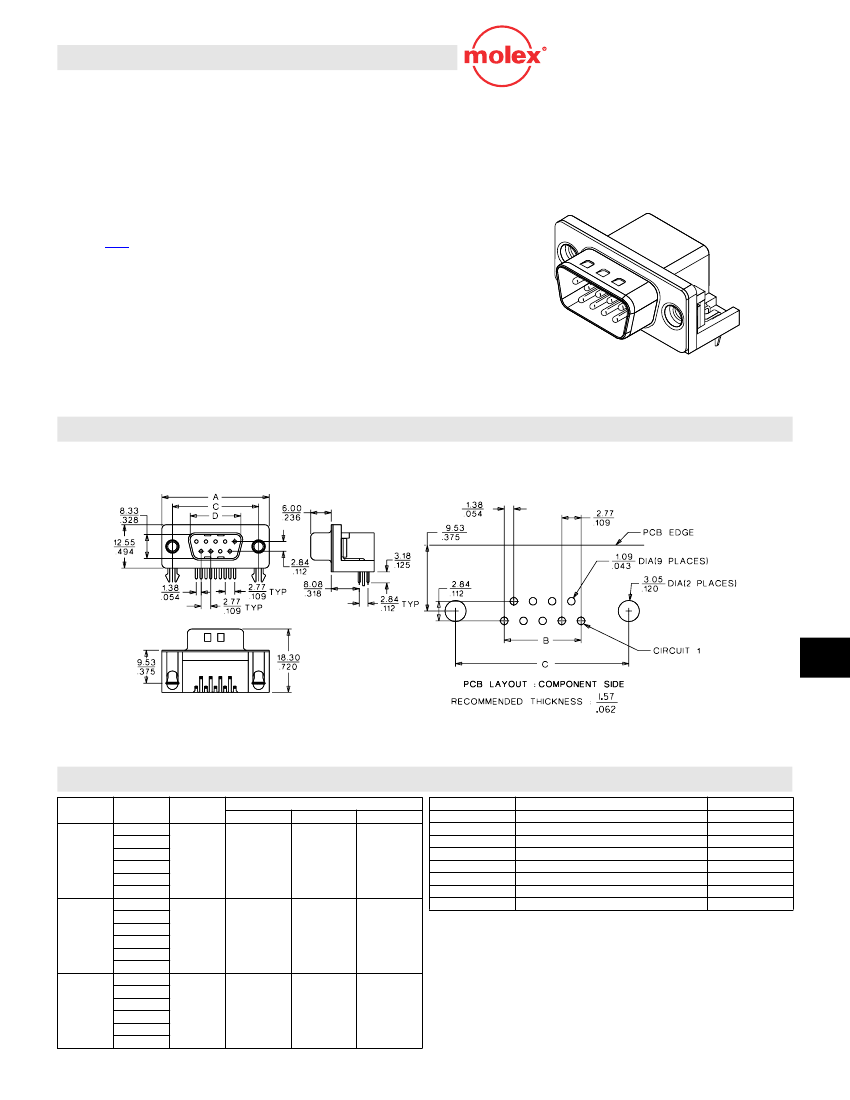

CATALOG DRAWING (FOR REFERENCE ONLY)
ORDERING INFORMATION AND DIMENSIONS
Circuits
Order No.
87203-004X
87203-104X
87203-204X
87203-604X
87203-704X
87203-804X
87203-015X
87203-115X
87203-215X
87203-615X
87203-715X
87203-815X
87203-036X
87203-136X
87203-236X
87203-636X
87203-736X
87203-836X
Plating
A
Dimension
C
D
Screw Option
1
2
3
4
5
6
7
8
Description
#4-40 round inner thread screw riveted
Flush insert only
#4-40 hex inner thread screw assembled
M2.6 inner thread screw assembled
M3 inner thread screw assembled
#4-40 hex inner thread screw attached
M2.6 inner thread screw attached
M3 inner thread screw attached
No. of Pieces
2
0
2
2
2
2
2
2
9
30
µ
" Gold
30.81 (1.213)
24.99 (.984)
16.92 (.666)
Note: Replace X with number of Screw Option 1 to 8
15
µ
" Gold
39.14 (1.541)
33.32 (1.312)
25.25 (.994)
15
25
Gold Flash
53.04 (2.088)
47.04 (1.852)
38.96 (1.534)
MX01
N-165
I/O Connectors
N
