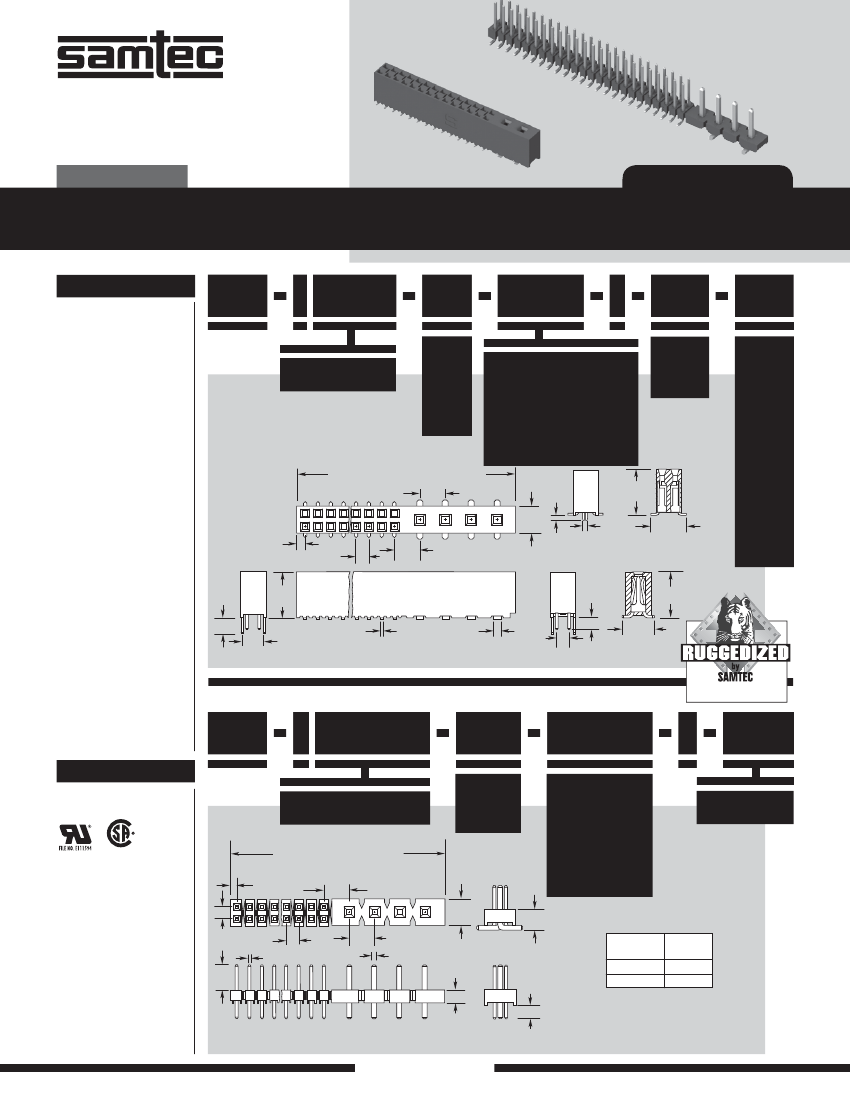

F-215 SUPPLEMENT
HPMC–124–04–L–D–04
HPFC–114–02–L–D–02
(2,54 mm) .100"
HPFC, HPMC SERIES
SIGNAL POWER COMBO SYSTEM
SPECIFICATIONS
For complete specifications and
recommended PCB layouts see
www.samtec.com?HPFC
or www.samtec.com?HPMC
Insulator Material:
Black Liquid Crystal Polymer
Signal Contact (HPFC):
Phosphor Bronze
Power Contact (HPFC):
BeCu
Terminal (HPMC):
Phosphor Bronze
(Signal & Power)
Plating:
Sn or Au over 50µ" (1,27 µm)
Ni on signal pins; Sn over 50µ"
(1,27 µm) Ni on power pins
Operating Temp Range:
-55°C to +105°C with Tin;
-55°C to +125°C with Gold
Contact Resistance:
10 mΩ
Insertion Depth:
(3,68 mm) .145" to
(8,26 mm) .325"
Wiping Distance:
(0,381 mm) .015"
Insertion Force:
(Single contact only)
5 oz (1,39 N) avg. (signal pins)
56 oz (15,57 N) avg. (power pins)
Withdrawal Force:
(Single contact only)
3 oz (0,83 N) avg. (signal pins)
52 oz (14,46 N) avg. (power pins)
Voltage Rating:
850 VAC/1201 VDC
RoHS Compliant:
Yes
HPFC
Mates with:
HPMC
1
SIGNAL PIN
PER ROW
LEAD
STYLE
SIGNAL PIN
PLATING
D
POWER
PINS
OPTION
–01
02 thru 24
= Through
-Hole
–L
= 10µ" (0,25 µm)
Gold on contact area,
Matte Tin on tail
(Power Pins = All Matte Tin)
02
thru
04
–LC
= Locking
Clip
(Manual
placement
required)
(Not
available
with –01
lead style)
–02
= Surface
Mount
–T
= Matte Tin
No. Signal positions x (2,54) .100 +
(No. Power positions x (5,08) .200 + (2,54) .100)
(5,08) .200
(5,08)
.200
(1,27)
.050
(2,54)
.100
(5,08)
.200
(2,26)
.089
(0,51) (0,25)
.020 x .010
(1,14) (0,46)
.045 x .018
(6,86)
.270
(1,12)
.044
(9,02)
.355
(1,42)
.056
(7,11)
.280
–K
= (6,50 mm)
.256" DIA
Polyimide
film Pick &
Place Pad
(5 positions
minimum)
Style –02
(Signal End)
(3,12)
.123
(8,89)
.350
(9,02)
.355
Style –01
(Signal End)
(4,14)
.163
(2,46)
.097
Style –01
(Power End)
Style –02
(Power End)
Processing:
• Locking clip option
Lead–Free Solderable:
Yes
SMT Lead Coplanarity:
(0,15 mm) .006" max (02-20)
(0,20 mm) .008" max (21-24)
HPMC
Mates with:
HPFC
1
SIGNAL PIN
PER ROW
LEAD
STYLE
Specify
LEAD
STYLE
from chart
SIGNAL PIN
PLATING
D
POWER
PINS
RECOGNITIONS
For complete scope
of recognitions see
www.samtec.com/quality
–L
= 10µ" (0,25 µm)
Gold on contact
area, Matte Tin on tail
(Power Pins =
All Matte Tin)
02 thru 24
No. Signal positions x (2,54) .100 +
(No. of Power positions x
(5,08) .200 + (1,27) .050)
(Add (0,76) .030 for –04 Power Pins)
(1,27) .050
(5,08) .200
02 thru 04
FILE NO: 090871_0_000
–T
= Matte Tin
(5,08)
.200
(3,81)
.150
(2,54)
.100
(2,54)
.100
(0,64) .025 SQ
(5,08)
.200
(1,14) .045 SQ
Style
–02 & –04
(2,54)
.100
LEAD
STYLE
–01, –02
–03, –04
A
(5,84) .230
(8,13) .320
A
Note:
Some lengths, styles and
options are non-standard,
non-returnable.
(2,54)
.100
Style
–01 & –03
WWW.SAMTEC.COM
Due to technical progress, all designs, specifications and components are subject to change without notice.
