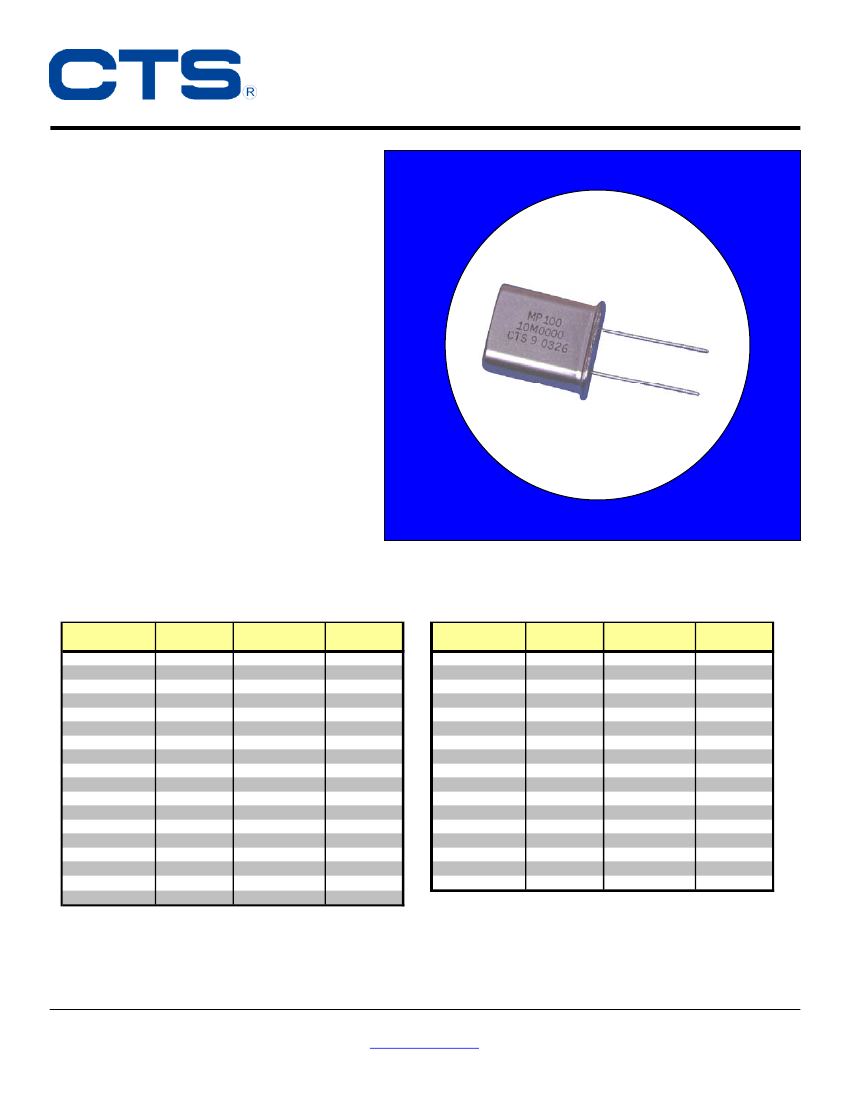

MP Series
Quartz Crystal
FEATURES
•
Standard HC-49/U Package, HC-49/U SM
Package Option Available
•
Stable Frequency Over Temperature and
Drive Level
•
Fundamental and 3
rd
Overtone Crystals
•
Frequency Range 1.8 – 48 MHz
•
Frequency Tolerance, ±45 ppm Standard
•
Frequency Stability, ±50 ppm Standard
•
Operating Temperature, –20°C to +70°C
•
Tape & Reel Packaging Available
•
RoHS/Green Compliant
DESCRIPTION
The MP crystal series offers excellent long-term
stability and reliability in a proven resistance-
weld metal package. The excellent shock
performance makes it suitable for
microprocessor, telecommunication, consumer
electronic and networking applications.
STANDARD PART NUMBERS AVAILABLE @ CTS DISTRIBUTORS
MP
PART NUMBER
MP018S
MP020S
MP024S
MPS036S
MP037
MP040
MP04A
MP041
MP042
MP05A
MP05B
MP060
MP061
MP073
MP080
MP080A
MP098
MP100
FREQUENCY
(MHz)
MP
LOAD
OPERATING
CAPACITANCE
MODE
Fundamental
13 pF
Fundamental
20 pF
Fundamental
32 pF
18 pF
Fundamental
20 pF
Fundamental
20 pF
Fundamental
Series
Fundamental
12 pF
Fundamental
20 pF
Fundamental
20 pF
Fundamental
Series
Fundamental
20 pF
Fundamental
20 pF
Fundamental
Series
Fundamental
Series
Fundamental
20 pF
Fundamental
20 pF
Fundamental
Series
Fundamental
PART NUMBER
MP101
MP107
MP110
MP111
MP120
MP122
MP143
MP147
MP150
MP160
MP184
MP196
MP200
MP221
MP240
MP245
MP250
FREQUENCY
(MHz)
1.843200
2.000000
2.457600
3.579545
3.686400
4.000000
4.000000
4.194304
4.915200
5.000000
5.000000
6.000000
6.144000
7.372800
8.000000
8.000000
9.830400
10.000000
10.000000
10.738635
11.000000
11.059200
12.000000
12.288000
14.318180
14.745600
15.000000
16.000000
18.432000
19.660800
20.000000
22.118400
24.000000
24.576000
25.000000
LOAD
OPERATING
CAPACITANCE
MODE
Fundamental
30 pF
Fundamental
32 pF
Fundamental
18 pF
Fundamental
Series
Fundamental
Series
Fundamental
32 pF
Series
Fundamental
Series
Fundamental
Series
Fundamental
Series
Fundamental
Series
Fundamental
Series
Fundamental
Series
Fundamental
Series
Fundamental
Series
Fundamental
Series
Fundamental
Series
Fundamental
Contact your authorized CTS Distributor for availability.
Document No. 008-0308-0
Page 1 - 5
Rev. C
٠ ٠ ٠
CTS Electronic Components, Inc.
٠
171 Covington Drive
٠
Bloomingdale, IL 60108
٠ ٠ ٠
٠ ٠ ٠
www.ctscorp.com
٠ ٠ ٠
Low Cost Quartz Crystal
MP Series
ADDITIONAL PART NUMBERS AVAILABLE FROM CTS
MP
PART NUMBER
MP043
MP050
MP051
MP057
MP057A
MP062
MP064
MP065
MP180
MP270
MP360
MP400
MP480
FREQUENCY
(MHz)
4.032000
5.068800
5.185000
5.714300
5.714300
6.250000
6.400000
6.553600
18.000000
27.000000
36.000000
40.000000
48.000000
LOAD
OPERATING
CAPACITANCE
MODE
Fundamental
22 pF
Series
Fundamental
20 pF
Fundamental
Series
Fundamental
20 pF
Fundamental
30 pF
Fundamental
20 pF
Fundamental
20 pF
Fundamental
Series
Fundamental
Series
3
RD
Overtone
Series
3
RD
Overtone
20 pF
3
RD
Overtone
Series
3
RD
Overtone
Contact your local CTS Representative or CTS Customer Service for availability.
ADDITIONAL ORDERING INFORMATION
Available Standard Product Options
MP
-
PRODUCT OPTIONS
INS - Insulation Spacer
SLV - Insulating Sleeve
TW - Hold Down Top Wire
SM - Surface Mount Lead Form
1 - Tape and Reel (SM Product Option Only) *
2 - Radial Taping (Ammopak) *
ADDITIONAL FREQUENCY CODE
This space be an 'A', 'B' or 'S' depending on
frequency code selected.
FREQUENCY
Product Frequency Code. Refer to
Product Part Number Tables.
* Standard packaging is bulk in a bag.
NON-Standard Ordering Options
Custom performance characteristics and lead trim requirements available upon request. Use form C052 to detail non-standard parameters.
Contact your local CTS Representative or CTS Customer Service for assistance.
Document No. 008-0308-0
Page 2 - 5
Rev. C
٠ ٠ ٠
CTS Electronic Components, Inc.
٠
171 Covington Drive
٠
Bloomingdale, IL 60108
٠٠٠
Low Cost Quartz Crystal
MP Series
ELECTRICAL CHARACTERISTICS
PARAMETER
Operating Mode
Crystal Cut
Frequency Range
Frequency Tolerance @ 25°C
Frequency Stability Tolerance
(Operating Temperature Range, Referenced to 25°C Reading)
Electrical Parameters
VALUE
Fundamental or 3
rd
Overtone
AT-Cut
1.8 MHz to 48.0 MHz
± 45 ppm Standard *
± 50 ppm Standard *
-20°C to +70°C *
-55°C to +125°C
See ESR Table
See Standard Part Number Tables *
7.0 pF Maximum
100 µW Maximum
+255°C ± 5°C, 10 Seconds Maximum
Operating Temperature Range
Storage Temperature Range
Equivalent Series Resistance
Load Capacitance or Resonance Mode
Shunt Capacitance (C
0
)
Drive Level
Reflow Condition, per JEDEC J-STD-020
* Custom requirements are available upon request. Use form C052 to communicate crystal parameters.
Contact your local CTS Representative or CTS Customer Service for assistance.
EQUIVALENT SERIES RESISTANCE TABLE
FREQUENCY RANGE
1.80 MHz - < 2.00 MHz
2.00 MHz - < 2.40 MHz
2.40 MHz - < 3.50 MHz
3.50 MHz - < 4.00 MHz
4.00 MHz - < 5.00 MHz
5.00 MHz - < 6.40 MHz
6.40 MHz - < 10.00 MHz
10.00 MHz - < 30.00 MHz
25.00 MHz - < 40.10 MHz
40.10 MHz - 48.00 MHz
MODE of OSCILLATION
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
3
RD
Overtone
3
RD
Overtone
ESR Maximum
750 Ohms
550 Ohms
300 Ohms
150 Ohms
75 Ohms
50 Ohms
45 Ohms
35 Ohms
55 Ohms
75 Ohms
Document No. 008-0308-0
Page 3 - 5
Rev. C
٠ ٠ ٠
CTS Electronic Components, Inc.
٠
171 Covington Drive
٠
Bloomingdale, IL 60108
٠٠٠
Low Cost Quartz Crystal
MP Series

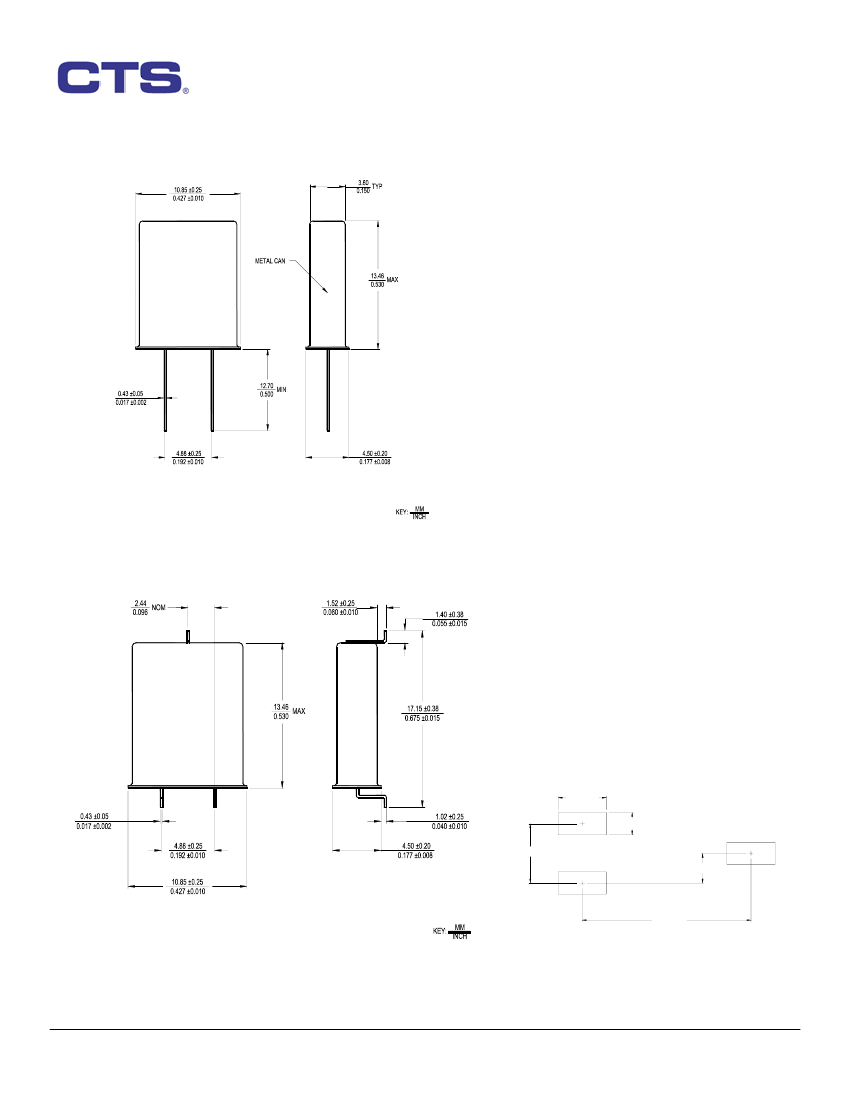

MECHANICAL SPECIFICATIONS
MP PACKAGE DRAWING
MARKING INFORMATION
1. CTS Part Number.
2. XXMXXXX – Frequency marked with 4 significant
digits after the ‘M’.
2. ** - Manufacturing Site Code.
3. YYWW – Date Code, YY – year, WW – week.
4. Complete CTS part number, frequency value and
date code information must appear on bag and
box labels.
NOTES
1. Lead finish (e1), SnAgCu.
MP-SM PACKAGE DRAWING
Document No. 008-0308-0
٠ ٠ ٠
CTS Electronic Components, Inc.
٠
MPXXXX
XXMXXXX
CTS** YYWW
MPXXXX
XXMXXXX
CTS** YYWW
Page 4 - 5
MARKING INFORMATION
1. CTS Part Number.
2. XXMXXXX – Frequency marked with 4 significant
digits after the ‘M’.
2. ** - Manufacturing Site Code.
3. YYWW – Date Code, YY – year, WW – week.
4. Complete CTS part number, frequency value and
date code information must appear on bag and
box labels.
NOTES
1. Lead finish (e1), SnAgCu.
SUGGESTED SOLDER PAD GEOMETRY
0.150 [3.81]
0.050 [1.27]
4.877 [123.87]
0.096 [2.44]
0.675 [17.15]
Key: Inch [mm]
Rev. C
171 Covington Drive
٠
Bloomingdale, IL 60108
٠٠٠
Low Cost Quartz Crystal
MP Series
PACKAGING INFORMATION
MP Taping (Ammopak)
DIMENSIONS IN MILLIMETERS
Ø4.00
32.50 Max
18.00
18.00
12.70
3.81
0.90 Max
ENVIRONMENTAL SPECIFICATIONS
Temperature Cycle:
Mechanical Shock:
Sinusoidal Vibration:
Gross Leak:
Fine Leak:
Resistance to Solder Heat:
High Temperature Operating Bias:
Frequency Aging:
Insulation Resistance:
Moisture Sensitivity Level:
400 cycles from –55°C to +125°C, 10 minute dwell at each temperature, 1
minute transfer time between temperatures.
1,500g’s, 0.5mS duration, ½ sinewave, 3 shocks each direction along 3
mutually perpendicular planes (18 total shocks).
0.06 inches double amplitude, 10 to 55 Hz and 20g’s, 55 to 2,000 Hz, 3 cycles
each in 3 mutually perpendicular planes (9 times total).
No leak shall appear while immersed in an FC40 or equivalent liquid at
+125°C for 20 seconds.
Mass spectrometer leak rates less than 2x10
-8
ATM cc/sec air equivalent.
Product must survive 3 reflows of +260°C peak, 10 seconds maximum.
2,000 hours at +125°C, disregarding frequency shift.
1,000 hours at +85°C, maximum ±5 ppm shift.
500M Ohms @ 100V
DC
±15V
DC
.
Level 1 per JEDEC J-STD-020.
QUALITY AND RELIABILITY
Quality systems meet or exceed the requirements of ISO 9000:2000 standards.
Document No. 008-0308-0
Page 5 - 5
Rev. C
٠ ٠ ٠
CTS Electronic Components, Inc.
٠
171 Covington Drive
٠
Bloomingdale, IL 60108
٠٠٠
