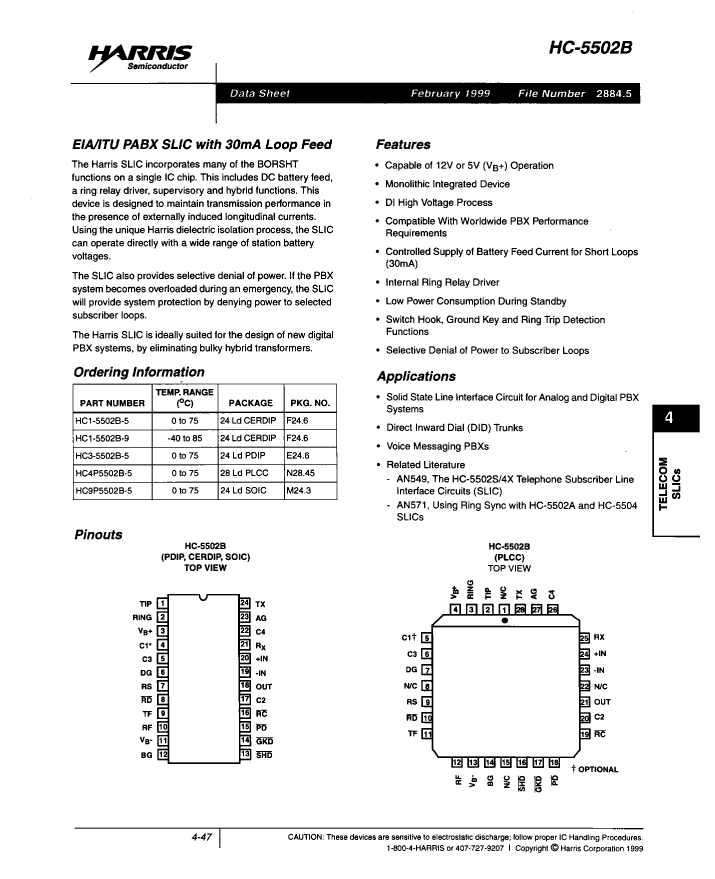

HC3-5502B-5: DescriptionSLIC, 2-4 Conversion, Bipolar, PDIP24,; CategoryWireless rf/communication Telecom circuit; File Size36KB，1 Pages; ManufacturerHarris; Websitehttp://www.harris.com/; Related ProductsFound4parts with similar functions to HC3-5502B-5

Download Datasheet Parametric Compare View All

HC3-5502B-5 Overview

SLIC, 2-4 Conversion, Bipolar, PDIP24,

HC3-5502B-5 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP24,.6
Reach Compliance Code	unknown
battery fed	CONSTANT CURRENT
Battery powered	-48 V
mix	2-4 CONVERSION
JESD-30 code	R-PDIP-T24
JESD-609 code	e0
Negative supply voltage rating	-48 V
Number of functions	1
Number of terminals	24
Maximum operating temperature	75 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5/12 V
Certification status	Not Qualified
Maximum slew rate	39 mA
Nominal supply voltage	12 V
surface mount	NO
technology	BIPOLAR
Telecom integrated circuit types	SLIC
Temperature level	COMMERCIAL EXTENDED
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

HC3-5502B-5 Related Products

	HC3-5502B-5	HC4P5502B-5	HC9P5502B-5	HC1-5502B-9	HC1-5502B-5
Description	SLIC, 2-4 Conversion, Bipolar, PDIP24,	SLIC, 2-4 Conversion, Bipolar, PQCC28,	SLIC, 2-4 Conversion, Bipolar, PDSO24,	SLIC, 2-4 Conversion, Bipolar, CDIP24,	SLIC, 2-4 Conversion, Bipolar, CDIP24,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP24,.6	QCCJ, LDCC28,.5SQ	SOP, SOP24,.4	DIP, DIP24,.6	DIP, DIP24,.6
Reach Compliance Code	unknown	unknown	unknown	unknown	unknow
battery fed	CONSTANT CURRENT	CONSTANT CURRENT	CONSTANT CURRENT	CONSTANT CURRENT	CONSTANT CURRENT
Battery powered	-48 V	-48 V	-48 V	-48 V	-48 V
mix	2-4 CONVERSION	2-4 CONVERSION	2-4 CONVERSION	2-4 CONVERSION	2-4 CONVERSION
JESD-30 code	R-PDIP-T24	S-PQCC-J28	R-PDSO-G24	R-GDIP-T24	R-GDIP-T24
JESD-609 code	e0	e0	e0	e0	e0
Negative supply voltage rating	-48 V	-48 V	-48 V	-48 V	-48 V
Number of functions	1	1	1	1	1
Number of terminals	24	28	24	24	24
Maximum operating temperature	75 °C	75 °C	75 °C	85 °C	75 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	QCCJ	SOP	DIP	DIP
Encapsulate equivalent code	DIP24,.6	LDCC28,.5SQ	SOP24,.4	DIP24,.6	DIP24,.6
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	CHIP CARRIER	SMALL OUTLINE	IN-LINE	IN-LINE
power supply	5/12 V	5/12 V	5/12 V	5/12 V	5/12 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum slew rate	39 mA	39 mA	39 mA	39 mA	39 mA
Nominal supply voltage	12 V	12 V	12 V	12 V	12 V
surface mount	NO	YES	YES	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Telecom integrated circuit types	SLIC	SLIC	SLIC	SLIC	SLIC
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	INDUSTRIAL	COMMERCIAL EXTENDED
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	J BEND	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	DUAL	QUAD	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	-	-
Maker	-	Harris	-	Harris	Harris
