36502AR82GTDG datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> 36502AR82GTDG

36502AR82GTDG: Description1 ELEMENT, 0.82uH, GENERAL PURPOSE INDUCTOR, SMD, CHIP, 0805; CategoryPassive components inductor; File Size51KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

36502AR82GTDG Overview

1 ELEMENT, 0.82uH, GENERAL PURPOSE INDUCTOR, SMD, CHIP, 0805

36502AR82GTDG Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	0907
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	0907
structure	Rectangular
DC Resistance	2.35 Ω
Nominal inductance(L)	0.82 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	1.52 mm
Package length	2.29 mm
Package form	SMT
Package width	1.73 mm
method of packing	TR
Minimum quality factor (at nominal inductance)	23
Maximum rated current	0.18 A
self resonant frequency	200 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	Q MEASURED AT 50 MHZ
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	250 MHz
Tolerance	2%
Base Number Matches	1

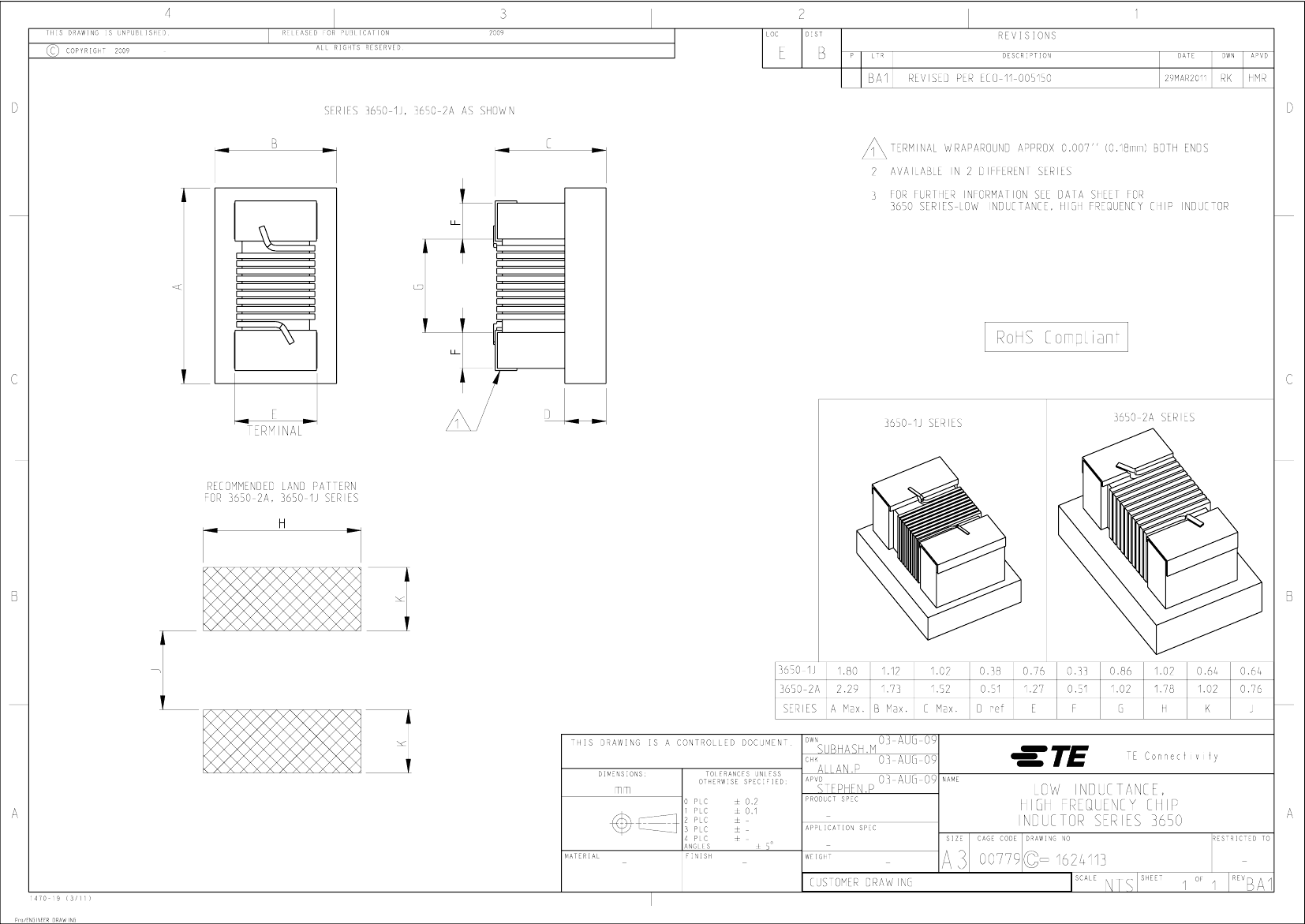

Preview

Download Datasheet

View All

36502AR82GTDG Related Products

	36502AR82GTDG	36502A1R2GTDG	36502A47NKTE	36502A2R2GTDG
Description	1 ELEMENT, 0.82uH, GENERAL PURPOSE INDUCTOR, SMD, CHIP, 0805	1 ELEMENT, 1.2uH, GENERAL PURPOSE INDUCTOR, SMD, CHIP, 0805	1 ELEMENT, 0.047uH, GENERAL PURPOSE INDUCTOR, SMD, CHIP, 0805, ROHS COMPLIANT	1 ELEMENT, 2.2uH, GENERAL PURPOSE INDUCTOR, SMD, CHIP, 0805
Is it Rohs certified?	conform to	conform to	conform to	conform to
package instruction	0907	0907	0805	0907
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
uppercase and lowercase codes	0907	0907	0805	0907
DC Resistance	2.35 Ω	2.5 Ω	0.31 Ω	2.7 Ω
Nominal inductance(L)	0.82 µH	1.2 µH	0.047 µH	2.2 µH
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Number of functions	1	1	1	1
Number of terminals	2	2	2	2
Minimum quality factor (at nominal inductance)	23	18	60	16
Maximum rated current	0.18 A	0.17 A	0.5 A	0.16 A
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	NO	NO	NO	NO
surface mount	YES	YES	YES	YES
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Tolerance	2%	2%	10%	2%
Base Number Matches	1	1	1	1
structure	Rectangular	Rectangular	-	Rectangular
Inductor Applications	RF INDUCTOR	RF INDUCTOR	-	RF INDUCTOR
Maximum operating temperature	125 °C	125 °C	-	125 °C
Minimum operating temperature	-40 °C	-40 °C	-	-40 °C
Package height	1.52 mm	1.52 mm	-	1.52 mm
Package length	2.29 mm	2.29 mm	-	2.29 mm
Package form	SMT	SMT	-	SMT
Package width	1.73 mm	1.73 mm	-	1.73 mm
method of packing	TR	TR	-	TR
self resonant frequency	200 MHz	100 MHz	-	60 MHz
special characteristics	Q MEASURED AT 50 MHZ	Q MEASURED AT 25 MHZ	-	Q MEASURED AT 7.9 MHZ
Test frequency	250 MHz	250 MHz	-	250 MHz
