BG065-42-A-0710-N-B datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> BG065-42-A-0710-N-B

Preview

BG065-42-A-0710-N-B: DescriptionBoard Connector, 42 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator,; CategoryThe connector The connector; File Size145KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric Compare View All

BG065-42-A-0710-N-B Overview

Board Connector, 42 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator,

BG065-42-A-0710-N-B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
body width	0.2 inch
subject depth	0.316 inch
body length	2.1 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	600VAC V
Durability	100 Cycles
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
Manufacturer's serial number	BG065
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.2926 mm
Plating thickness	FLASH inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	42
Base Number Matches	1

Preview

Download Datasheet

View All

5

3

4

1

2

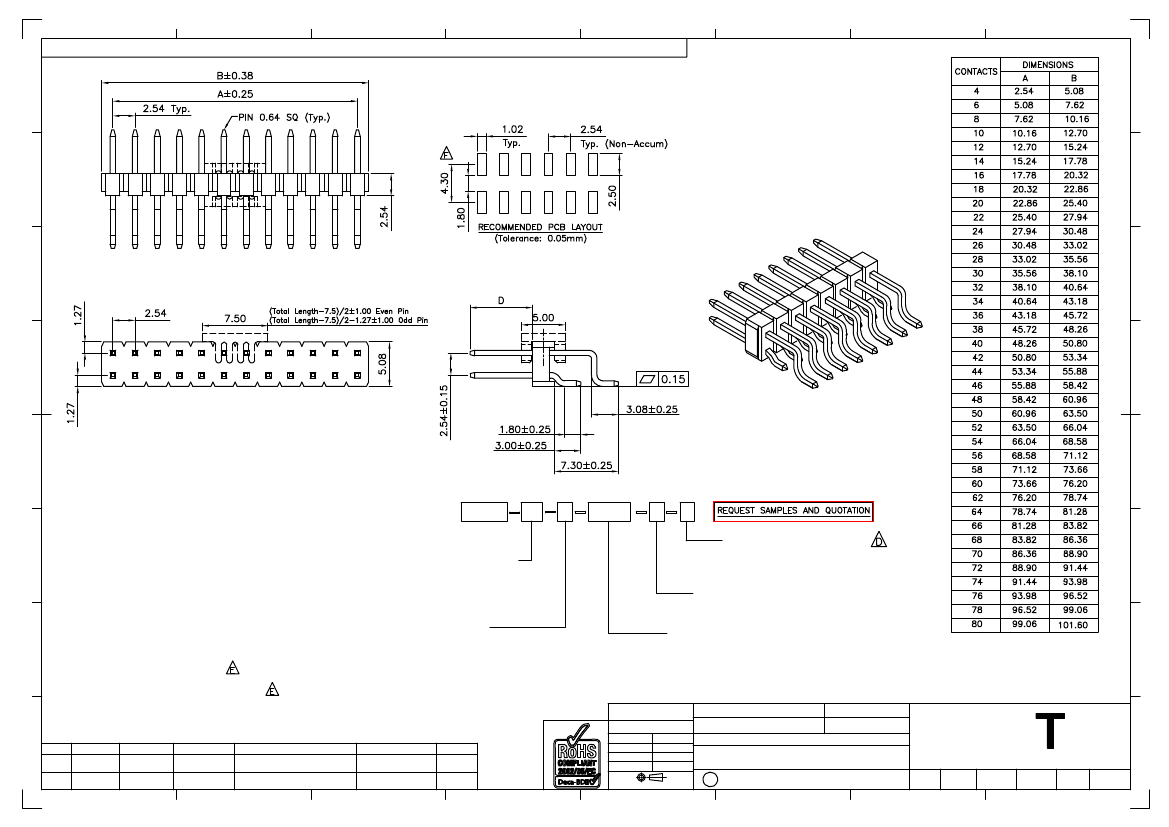

Global Connector Technology Ltd. - BG065: 2.54mm PITCH PIN HEADER, DUAL ROW, SURFACE MOUNT, HORIZONTAL, WITHOUT POST

A

6

7

8

A

B

C

D

E

SPECIFICATIONS

规格

CURRENT RATING

电流额定值

: 3.0 AMP

INSULATION RESISTANCE

绝缘电阻值

: 1000MΩ Min.

CONTACT RESISTANCE

接触电阻值

: 20mΩ Max.

DIELECTRIC WITHSTANDING

耐电压

: 600V AC

OPERATING TEMPERATURE

工½温度

: -40°C TO +105°C

F

CONTACT MATERIAL

端子物料

: COPPER ALLOY

INSULATION MATERIAL

绝缘½物料

:

STANDARD

标准物料

: POLYAMIDE

聚醯胺

, NYLON 6T, UL 94-V0

OPTIONS

可选物料

: POLYESTER

聚酯

, LCP, UL 94-V0

SOLDERING PROCESS

可焊性

:

NYLON 6T (STANDARD

标准物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 230°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

G

LCP (OPTION

可选物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 250°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

):

BG120

BG140

BG150

BG151

BG160

BG165

BG170

BG175

BG180

BG185

BG190

BG195

BG200

BG210

E

Ordering Grid

BG065

No. of Contacts

04 to 80

XX

X

XXXX

X

Packing Options

B = Tape and Reel with Cap (Standard)

D = Tube

E = Tube with Cap

Insulator Materials

N = Nylon 6T (Standard)

L = LCP

F

Contact Plating

A = Gold Flash All Over

B = Selective Gold Flash Contact Area/Tin On Tail

C = Tin All Over

G = 10µ" Gold Contact Area/Tin On Tail

I = 30µ" Gold Contact Area/Tin On Tail

Standard = Gold Flash All Over

Tolerances

(Except as noted)

Dimension D (1/100mm)

(Post Length)

Standard - 7.10mm = 0710

Or specify Dimension D

e.g. 2.50mm = 0250

TOL.: ±0.25mm

Part Number:-

Date:-

G

Dimensions in mm

DR

SA

X.°±5°

.X°±2°

X.X ± 0.20

X.XX ± 0.15 .XX°±1°

X.XXX ± 0.10 .XXX°±0.5°

X. ± 0.30

Third Angle Projection

BG065

Description:-

1 NOV 06

H

By

DETAIL

REV

DATE

LYH

DRAWING

RELEASE

A

01/11/06

PN

CB

PACKING OPTIONS CHANGED, NEW DRAWING

RELEASE-WITHOUT POST ONLY,

SEE BG066 FOR WITH POST VERSION

DIMENSION

AMENDMENT AMENDMENTS

B

C

09/03/09

16/03/09

1

2

D

15/06/09

CHANGE TO SOLDER ECN:

TEMP. INFORMATION BG065-001

E

F

05/08/09

13/06/11

2.54mm PITCH PIN HEADER, DUAL ROW,

SURFACE MOUNT, HORIZONTAL, WITHOUT POST

www.globalconnectortechnology.com

Scale

NTS

GC

Material

See Note

H

Sheet No.

E & OE

1/1

C

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

F

Drawn by

LYH

3

4

5

6

7

8

BG065-42-A-0710-N-B Related Products

	BG065-42-A-0710-N-B	BG065-12-A-0710-N-B
Description	Board Connector, 42 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator,	Board Connector, 12 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator,
Is it Rohs certified?	conform to	conform to
Reach Compliance Code	compliant	compliant
body width	0.2 inch	0.2 inch
subject depth	0.316 inch	0.316 inch
body length	2.1 inch	0.6 inch
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact point gender	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	600VAC V	600VAC V
Durability	100 Cycles	100 Cycles
Insulation resistance	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	BLACK
insulator material	NYLON	NYLON
Manufacturer's serial number	BG065	BG065
Plug contact pitch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch
Installation option 1	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
PCB row number	2	2
Number of rows loaded	2	2
Maximum operating temperature	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR
PCB contact row spacing	4.2926 mm	4.2926 mm
Plating thickness	FLASH inch	FLASH inch
Rated current (signal)	3 A	3 A
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Terminal pitch	2.54 mm	2.54 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	42	12
