BJ150FL datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> BJ150FL

Preview

BJ150FL: DescriptionRF Triaxial-BNC Connector, Female, Panel Mount, Solder Terminal, Jack,; CategoryThe connector The connector; File Size362KB，1 Pages; ManufacturerCinch Connectivity Solutions; Environmental Compliance

Download Datasheet Parametric View All

BJ150FL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BJ150FL	-	-	View	Buy Now

BJ150FL Overview

RF Triaxial-BNC Connector, Female, Panel Mount, Solder Terminal, Jack,

BJ150FL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Body/casing type	JACK
Connector type	RF TRIAXIAL-BNC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO
Manufacturer's serial number	150
Installation method	STRAIGHT
Maximum operating frequency	0.5 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

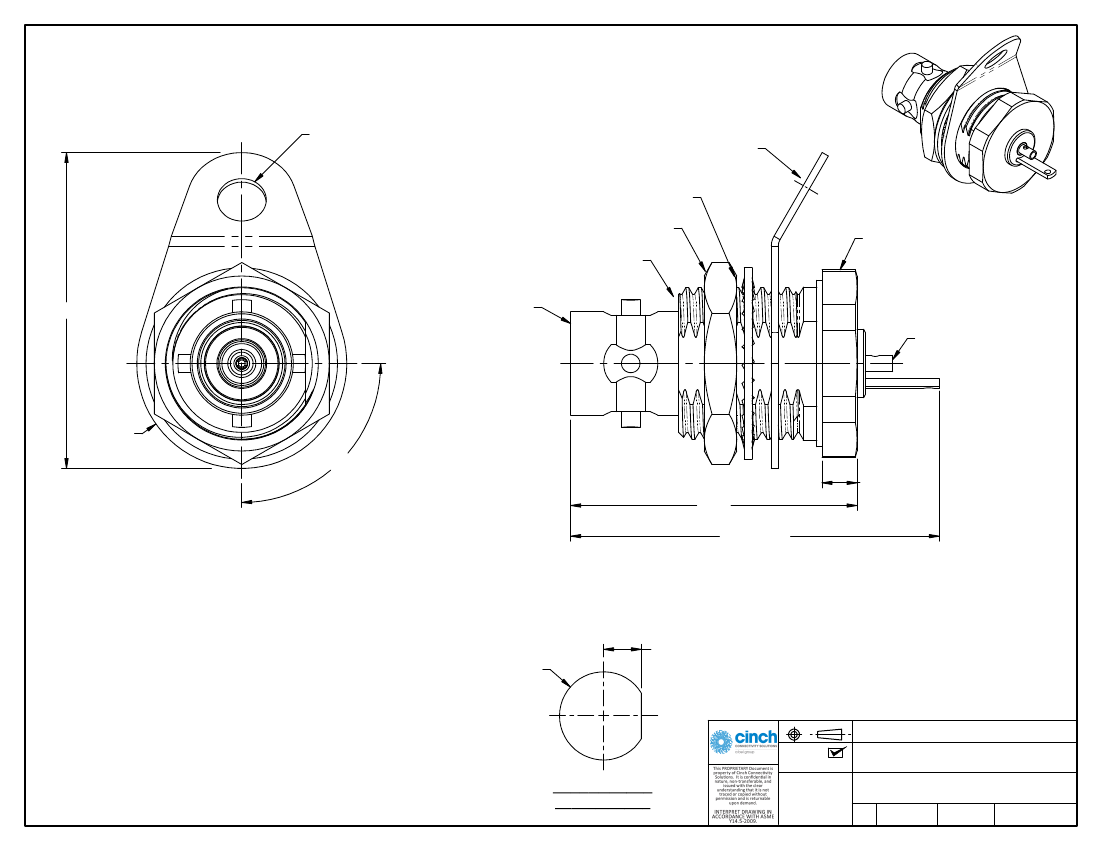

GROUND LUG

LOCKWASHER

1/2 HEX NUT

7/16-28 UNEF-2A

TRS INTERFACE PER

SPC-09500-43-20

O

.818

1.05

u

.030

3RD ANGLE PROJECTION

FL 14949 YY

.90

ED

C

SOLDER POT ACCEPTS

O

.034 CONDUCTOR

.100

.190

.187

4X 90°

NOTES: UNLESS OTHERWISE SPECIFIED.

U

N

1. MATERIAL & FINISH:

1.1 BODY & PANEL NUT: NICKEL PLATED BRASS

1.2 CENTER CONTACT AND INTERMEDIATE CONTACT:

GOLD PLATED BERYLLIUM COPPER

1.3 DIELECTRIC: PTFE (TEFLON)

1.4 GASKET: SILICON RUBBER

1.5 GROUND LUG & LOCKWASHER: NICKEL PLATED

COPPER ALLOY

2. ELECTRICAL

2.1 FREQUENCY (MAX): 500 MHz

2.2 IMPEDENCE: NON-CONSTANT

C

O

N

TR

O

.600

LL

O

.443

.439

PY

1/2 HEX

O

.140

u

.008

Trompeter

Title:

RoHS

3. PANEL NUT TORQUE (MAX): 35 INCH POUNDS

4. PANEL THICKNESS (MAX): .250

RECOMMENDED

PANEL CUTOUT

This PROPRIETARY Document

is property of Emerson Network

Power Connectivity Solutions.

It is confidential in nature,

non-transferable, and issued with

the clear understanding that it is

not traced or copied without

permission and is returnable

upon demand.

2002/95/EC

UNLESS OTHERWISE SPECIFIED

UNITS: INCH

TRS BULKHEAD

SOLDER POT JACK

Model No.

INTERPRET DRAWING IN

ACCORDANCE WITH ASME

Y14.5-2009.

.XX

u

.02

.XXX

u

.005

ANGLES

u

2

v

BJ150FL

Size

A

DO NOT SCALE

Date:

5/9/2014

DRAWING

Sheet 1 of 1
