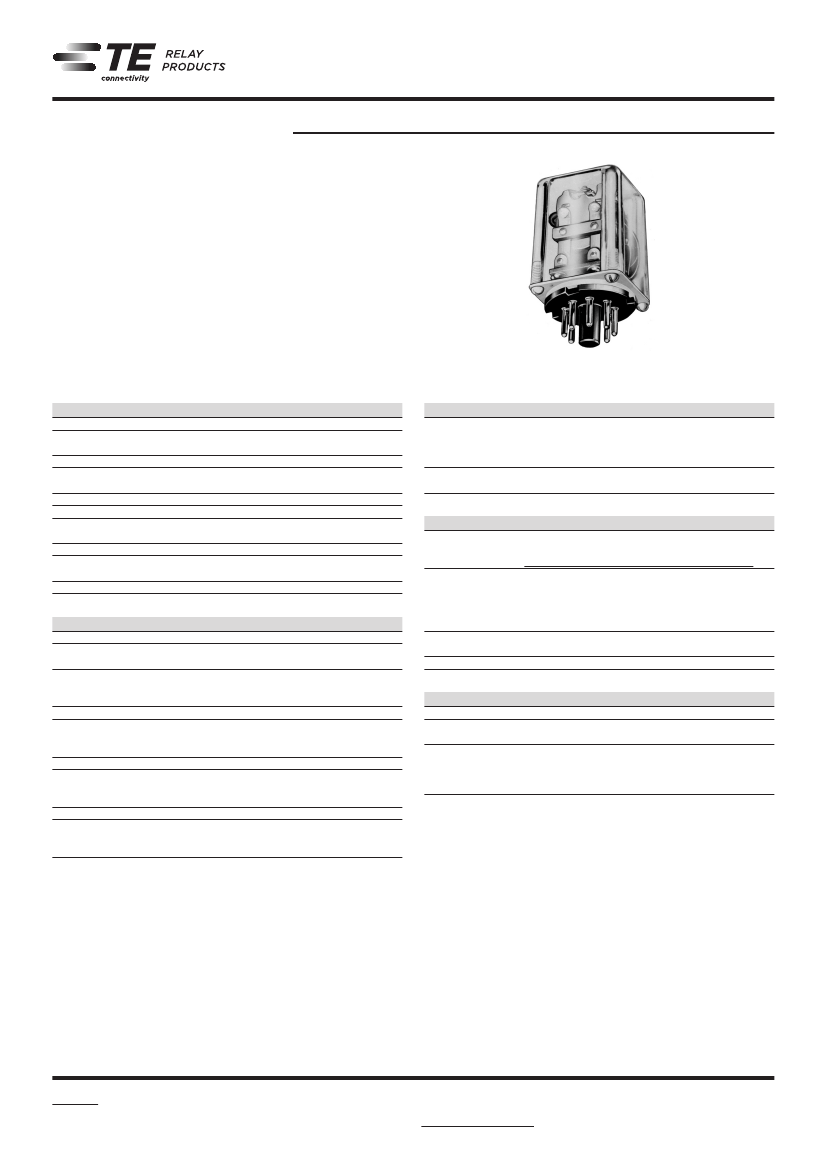

General Purpose Relays
Industrial Relays
KCP Series Plug-in Relay
n
n
n
n
n
Potter & Brumfield
Enclosed dust cover
DC current sensitive relay
1, 2, and 3 Form C (CO) contact arrangement
8 and 11 pin octal style plugs
Operates on 125mW per movable arm
Contact Data
Contact arrangement
1 form C (CO), 2 form C (CO), 3 form C (CO)
Rated voltage
120VAC
Rated current
2A
Contact material
Ag
Min. recommended contact load
100mA, 12VDC
Initial contact resistance
100mΩ
Frequency of operation
360 ops./hour
Operate/release time max.
20/10ms
Contact ratings
Type
Load
1, 2 and 3 pole, Ag
2A, 120VAC
Mechanical endurance
Cycles
15x10
6
ops.
100x10
3
ops.
Insulation Data
Initial dielectric strength
between open contacts
between contact and coil
between adjacent contacts
Initial insulation resistance
between insulated elements
500V
rms
500V
rms
500V
rms
1,000MΩ
Other Data
Coil Data
Coil current range
Coil versions, DC Coil
Coil
Operate
code
current
mADC
Coil versions, 1 pole
2,500
7.2
5,000
5
10,000
3.6
Coil versions, 2 pole
2,500
10
5,000
7.2
10,000
5
Coil versions, 3 pole
2,500
12.3
5,000
8.7
10,000
6.1
Coil
resistance
Ω±10%
2,500
5,000
10,000
2,500
5,000
10,000
2,500
5,000
10,000
3.6mA to 12.3mA (DC only)
Rated coil
power
mW
125
125
125
250
250
250
375
375
375
Material compliance: EU RoHS/ELV, China RoHS, REACH, Halogen content
refer to the Product Compliance Support Center at
www.te.com/customersupport/rohssupportcenter
Ambient temperature
DC coil
-45ºC to 70ºC
AC coil
-45ºC to 70ºC
Category of environmental protection
IEC 61810
RTI - dust protected
Terminal type
8- or 11-pin octal-style plug
Weight
82.2g
Packaging/unit
tray/25 pcs., box/200pcs.
Accessories
Product Code
27E891
27E892
27E122
27E123
For details see datasheet
Sockets and Accessories, KRP Relays
Description
8-pin DIN socket (use 20C318 clip)
11-pin DIN socket (use 20C318 clip)
8-pin track mount socket (use 20C318 clip)
11-pin track mount socket (use 20C318 clip)
All figures are given for coil without preenergization, at ambient temperature +23°C.
08-2011, Rev. 0811
www.te.com
© 2011 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
1
General Purpose Relays
Industrial Relays
KCP Series Plug-in Relay
(Continued)

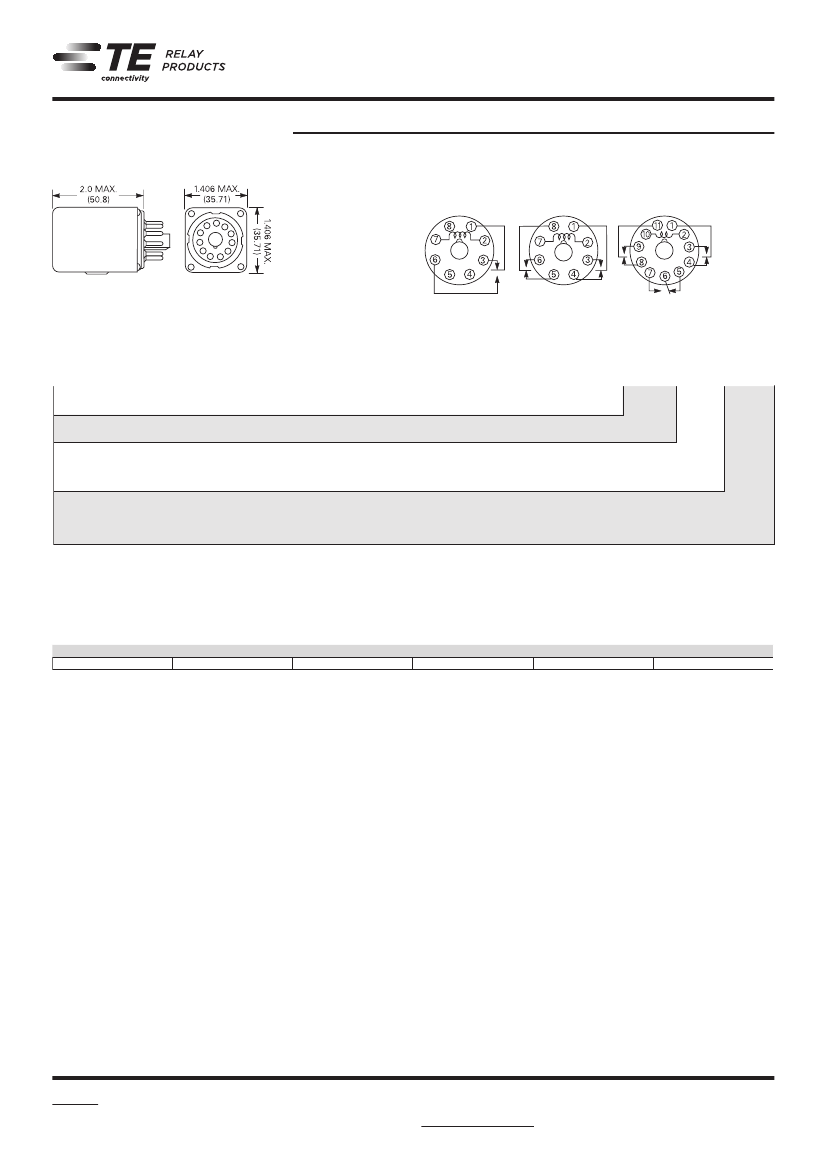

Dimensions
Terminal assignment
1 Form C
2 Form C
Potter & Brumfield
3 Form C
Note:
KCP-14 shown. KCP-5 and KCP-11 have 8-pin bases.
Product code structure
Type
Typical product code
KCP
-11
-10000
KCP
Enclosed, DC current sensitive relay with octal-type plug for socket mounting
Contact arrangement
5
1 form C (CO)
11
2 form C (CO)
14
3 form C (CO)
Coil Resistance
2500
2,500Ω
5000
5,000Ω
10000
10,000Ω
Product Code
KCP-11-10000
Arrangement
2 form C, 2 CO
Contact Material
Ag
Coil Resistance
10,000
8-pin Octal-style plug
Terminals
Part Number
3-1393100-8
2
08-2011, Rev. 0811
www.te.com
© 2011 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
