UTC MMBT1616/A
NPN EPITAXIAL SILICON TRANSISTOR
NPN EPITAXIAL SILICON
TRANSISTOR
DESCRIPTION
*Audio frequency power amplifier
*Medium speed switching
2
1
MARKING
3
MMBT1616
16
SOT-23
MMBT1616A
16A
1: EMITTER
2: BASE
3: COLLECTOR
ABSOLUTE MAXIMUM RATINGS
PARAMETER
Storage Temperature
Junction Temperature
Total Power Dissipation (Ta=25°C)
Collector to Base Voltage:
1616
1616A
Collector to Emitter Voltage: 1616
1616A
Emitter to Base Voltage
Collector Current (DC)
Collector Current (*Pulse)
Note: (*) Pulse width≤10ms, Duty cycle<50%
VEBO
Ic
Ic
VCEO
SYMBOL
Tstg
Tj
Pc
VCBO
VALUE
-55 ~+150
150
750
60
120
50
60
6
1
2
UNIT
°C
°C
mW
V
V
V
A
A
CHARACTERISTICS
(Ta=25°C)
CHARACTERISTIC
Collector Cut-Off Current
Emitter Cut-Off Current
Collector-Emitter Saturation Voltage
Base-Emitter Saturation Voltage
Base Emitter On Voltage
SYMBOL
ICBO
IEBO
VCE(SAT)
VBE(SAT)
VBE(ON)
TEST CONDITIONS
VCB=60V
VEB= 6V
IC=1A, IB=50mA
IC=1A, IB=50mA
VCE=2V, IC=50mA
MIN.
TYP.
MAX.
100
100
0.3
1.2
700
UNIT
nA
nA
V
V
mV
600
0.15
0.9
640
UTC
UNISONIC TECHNOLOGIES CO., LTD.
1
QW-R206-036,A
UTC MMBT1616/A

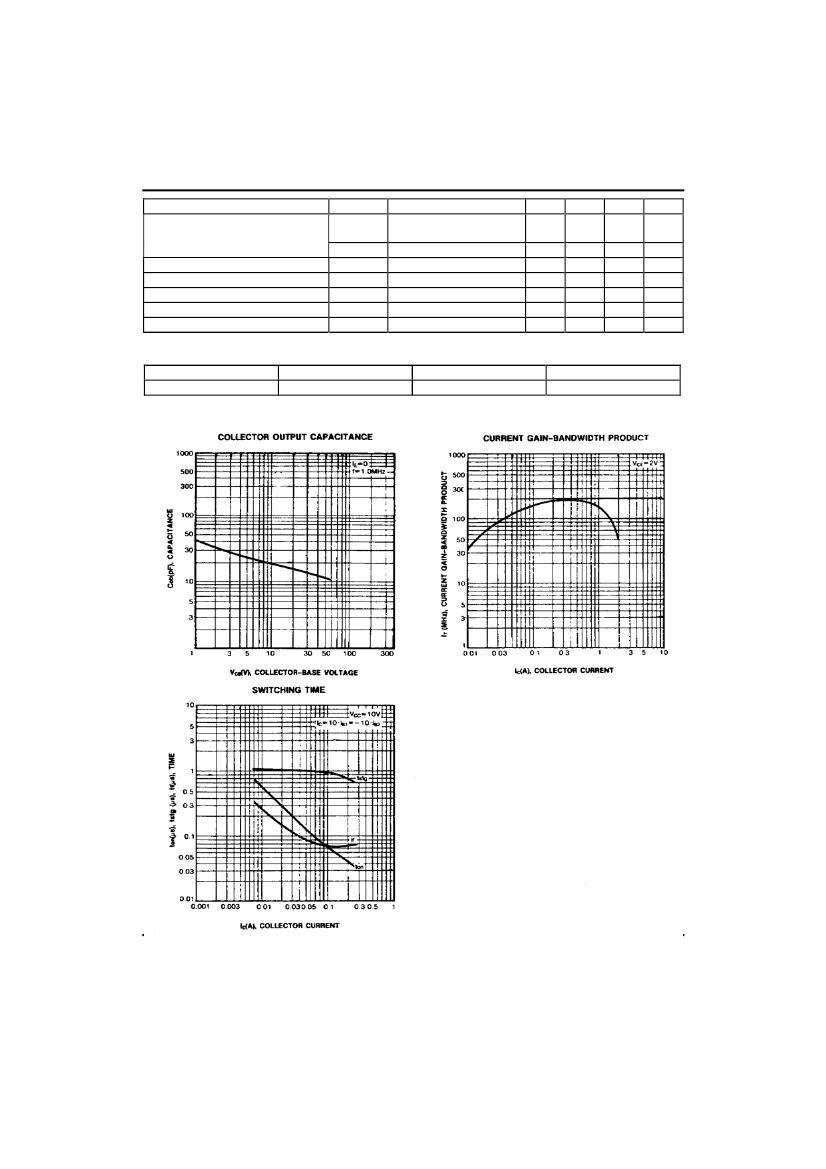

CHARACTERISTIC
DC Current Gain: 1616
1616A
Current Gain Bandwidth Product
Output Capacitance
Turn On Time
Storage Time
Fall Time
NPN EPITAXIAL SILICON TRANSISTOR
SYMBOL
hFE1
hFE2
fT
Cob
ton
ts
tf
TEST CONDITIONS
VCE=2V, IC=100mA
VCE=2V, IC=1A
VCE=2V, IC=100mA
VCB=10V, f=1MHz
VCE=10V, IC=100mA
IB1=-IB2=10mA
VBE(off)=-2〜-3V
MIN.
135
135
81
100
TYP.
MAX.
600
400
UNIT
160
19
0.07
0.95
0.07
MHz
pF
us
us
us
Classification of h
FE1
RANK
hFE1
Y
135-270
G
200-400
L
300-600
UTC
UNISONIC TECHNOLOGIES CO., LTD.
2
QW-R206-036,A

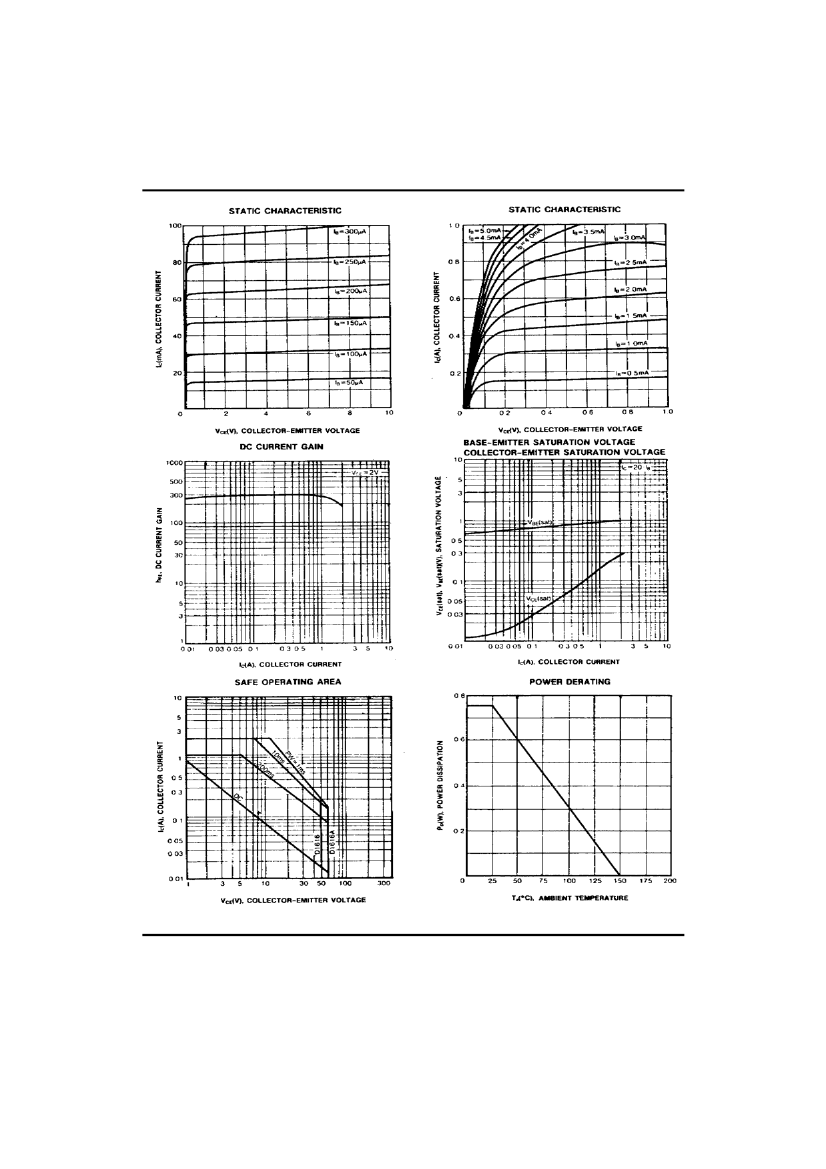

UTC MMBT1616/A
NPN EPITAXIAL SILICON TRANSISTOR
UTC
UNISONIC TECHNOLOGIES CO., LTD.
3
QW-R206-036,A
UTC MMBT1616/A
NPN EPITAXIAL SILICON TRANSISTOR
UTC assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or
other parameters) listed in products specifications of any and all UTC products described or contained
herein. UTC products are not designed for use in life support appliances, devices or systems where
malfunction of these products can be reasonably expected to result in personal injury. Reproduction in
whole or in part is prohibited without the prior written consent of the copyright owner. The information
presented in this document does not form part of any quotation or contract, is believed to be accurate
and reliable and may be changed without notice.
