3SMC50A Overview

SURFACE MOUNT UNI-DIRECTIONAL GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR 3000 WATTS, 5.0 THRU 170 VOLTS

3SMC5.0A
THRU
3SMC170A
SURFACE MOUNT UNI-DIRECTIONAL
GLASS PASSIVATED JUNCTION
TRANSIENT VOLTAGE SUPPRESSOR
3000 WATTS, 5.0 THRU 170 VOLTS
Central
TM
Semiconductor Corp.
DESCRIPTION
The CENTRAL SEMICONDUCTOR
3SMC5.0A Series types are Surface Mount
Uni-Directional Glass Passivated Junction
Transient Voltage Suppressors designed to
protect voltage sensitive components from
high voltage transients.
THIS DEVICE IS
MANUFACTURED WITH A GLASS PASSI-
VATED CHIP FOR OPTIMUM RELIABILITY.
Note: For Bi-directional devices, please refer
to the 3SMC5.0CA Series data sheet.
SMC CASE
MAXIMUM RATINGS (TA=25°C unless otherwise noted)
SYMBOL
Peak Power Dissipation
Peak Forward Surge Current (JEDEC Method)
Operating and Storage
Junction Temperature
PDM
IFSM
TJ,Tstg
3000
200
65 to +150
UNITS
W
A
°C

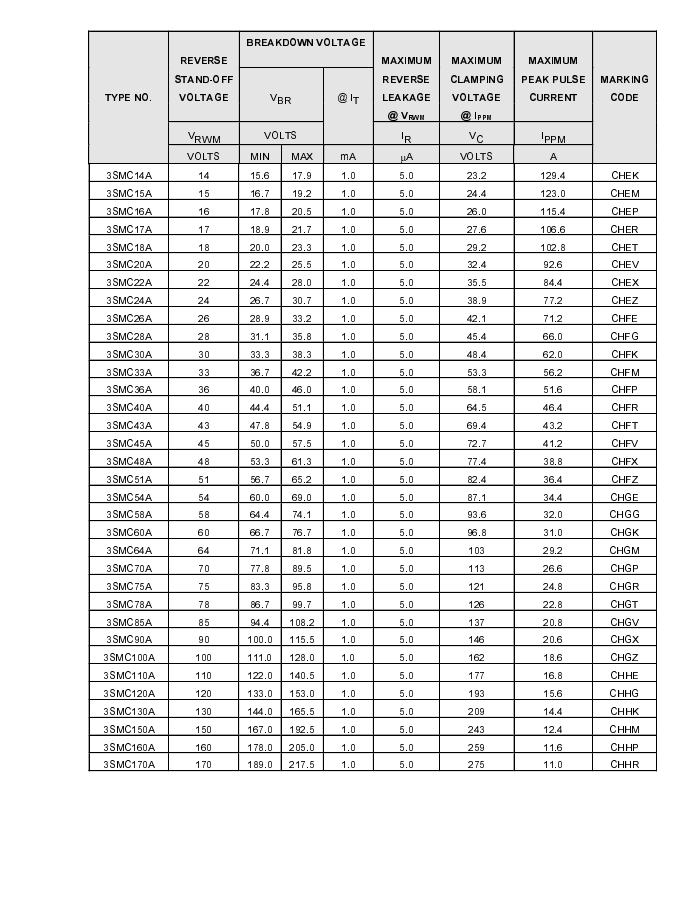

ELECTRICAL CHARACTERISTICS (TA=25°C unless otherwise noted)
BREAKDOWN
REVERSE
STAND-OFF
TYPE NO.
VOLTAGE
VOLTAGE
MAXIMUM
REVERSE
MAXIMUM
CLAMPING
VOLTAGE
@ I
PPM
MAXIMUM
PEAK PULSE
CURRENT
MARKING
CODE
VBR
VOLTS
MIN
6.40
6.67
7.22
7.78
8.33
8.89
9.44
10.0
11.1
12.2
13.3
14.4
MAX
7.25
7.67
8.30
8.95
9.58
10.23
10.82
11.5
12.8
14.0
15.3
16.5
@
IT
LEAKAGE
@ V
RWM
VRWM
VOLTS
3SMC5.0A
3SMC6.0A
3SMC6.5A
3SMC7.0A
3SMC7.5A
3SMC8.0A
3SMC8.5A
3SMC9.0A
3SMC10A
3SMC11A
3SMC12A
3SMC13A
5.0
6.0
6.5
7.0
7.5
8.0
8.5
9.0
10
11
12
13
IR
mA
10
10
10
10
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
?A
1000
1000
500
200
100
50
25
10
5.0
5.0
5.0
5.0
VC
VOLTS
9.2
10.3
11.2
12.0
12.9
13.6
14.4
15.4
17.0
18.2
19.9
21.5
IPPM
A
326.0
291.3
267.9
250.0
232.6
220.6
208.4
194.8
176.4
184.8
150.6
139.4
CHDE
CHDG
CHDK
CHDM
CHDP
CHDR
CHDT
CHDV
CHDX
CHDZ
CHEE
CHEG
