PRODUCTION DATA SHEET
EC-1089
DC - 2500 MHz
BROADBAND HIGH OIP3 AMPLIFIER
Features
DC to 2500 MHz
42 dBm Typical OIP3 at 1900 MHz
Highly Reliable InGaP HBT
15.5 dB Typical Gain at 900 MHz
23.5 dBm Typical P1dB at 1900 MHz
5.1 dB Typical Noise Figure at 900 MHz
Excellent Stability
Applications
Multi-carrier Systems
High Linearity Amplifiers
Cellular, PCS, WLL
Package Available
(-B) SOT-89
Package
Description
The EC-1089 is a high reliability, high OIP3 amplifier in a low
cost SOT-89 package, optimized for the commercial
communications market. The device is manufactured using
advanced Indium Gallium Phosphide Heterojunction Bipolar
Transistor (InGaP HBT) technology. The amplifier can be
matched to achieve low VSWR and high OIP3 over the DC to
2500 MHz range. Typical OIP3 at 1900 MHz is +42 dBm. The
EC-1089 operates from a single 5 volt power supply.
RF in
Gnd
RFout
Gnd

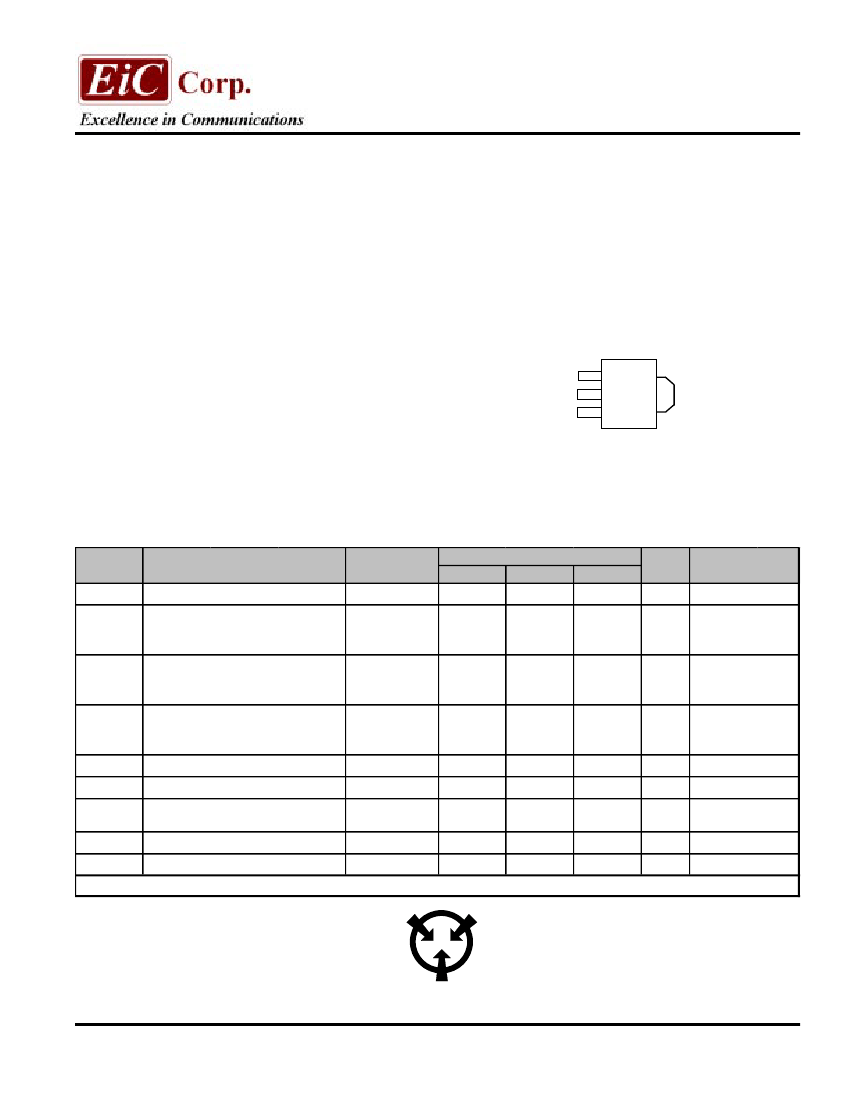

SOT-89 (Top View)
Electrical Specifications
Test Conditions: Ta = 25
o
C, V = 5.0 V
SYMBOL
F
G
Frequency
Gain (Small Signal)
Output Power @ 1 dB
Com pression
Output Third Order Intercept
Input Return Loss, 50 Ohm
Output Return Loss , 50 Ohm
Noise Figure
Supply Current
Output Mism atch without Spurs
f = 900 MHz
f = 1900 MHz
f = 2400 MHz
f = 900 MHz
f = 1900 MHz
f = 2400 MHz
f = 900 MHz
f = 1900 MHz
f = 2400 MHz
900 to 2400 MHz
900 to 2400 MHz
f = 900 MHz
f = 1900 MHz
PARAMETER
LIMITS
MIN.
DC
11.5
15.5
12.2
10
23.5
41
42
41
15.0
10.0
5.1
5.9
160
10:1
TYP.
MAX.
2500
UNIT
MHz
dB
TEST CONDITION
P
1dB
dBm
OIP3
RL
IN
40
dBm
dB
dB
dB
175
mA
Note 1
RL
OUT
NF
I
c
140
Note 1: OIP3 = Pout (by power m eter, total 2-tone power) + (IM3 (dBc)) / 2 - 3 dB
CAUTION!
SENSITIVE ELECTRONIC DEVICE
EiC
Corp.
A Subsidiary of
EiC
Enterprises, Ltd.
45738 Northport Loop West, Fremont, CA 94538
Phone: (510) 979-8999
www.eiccorp.com
Fax: (510) 979-8902
SS-000253-000 Rev L
1
PRODUCTION DATA SHEET
EC-1089
DC - 2500 MHz
BROADBAND HIGH OIP3 AMPLIFIER
Absolute Maximum Ratings
Device Voltage
Device Current
RF Power Input
Operating Temperature
Storage Temperature
Junction Temperature
6.0
220
18
-40 to +85
-65 to +150
200
V
mA
dBm
°C
°C
°C
Max. RF input and device voltage can be simultaneous.

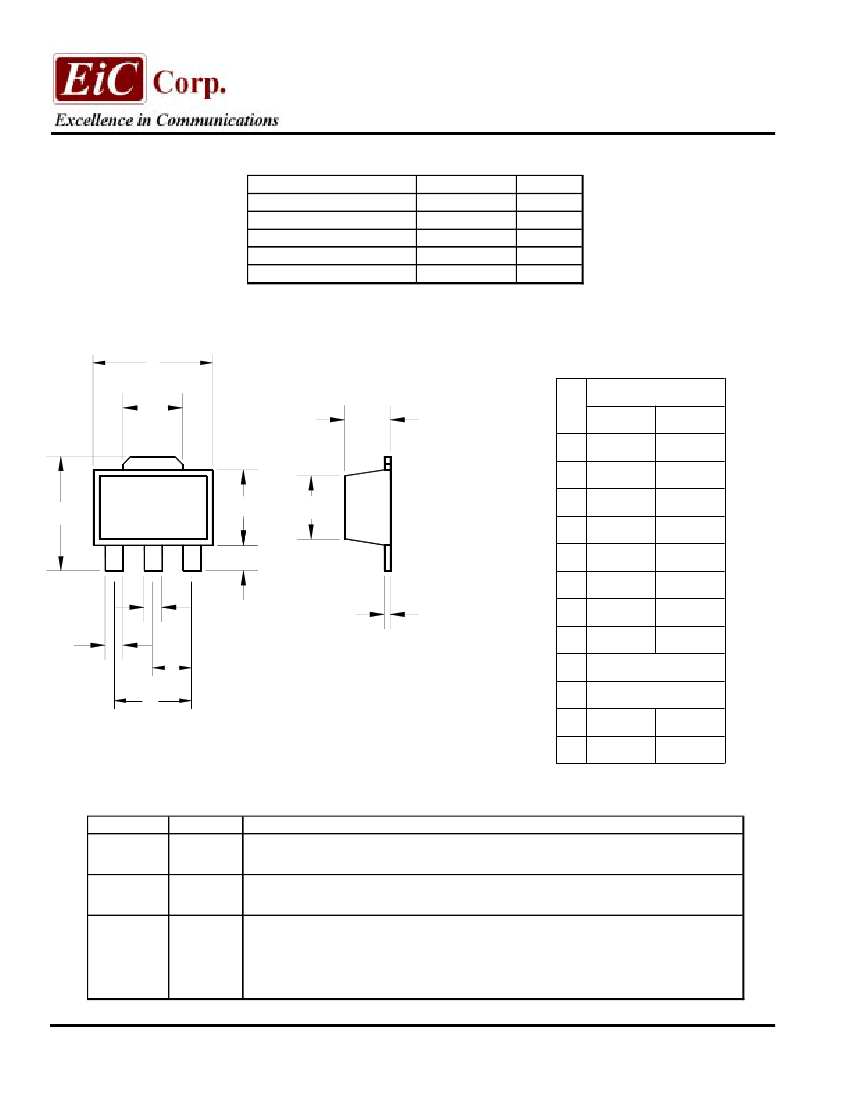

Package Outline
D
Symbol
Inches
MIN.
.055
.017
.014
.014
.173
.064
.090
.084
.059
.118
.035
.155
.047
.167
MAX.
.063
.022
.019
.017
.181
.072
.102
.090
D1
A
A
4
B
H
1
3XXX
2
3
E
E1
B1
C
F
D
D1
B
B1
e
e1
C
E
E1
e
e1
F
Device Marking
3: Part number
XXX: Lot number
Pin #
1
2, 4
Pin
RFin
Gnd
H
Pin Definitions
Definition
This pin has a non-zero DC potential, requiring a DC blocking capacitor. Input
matching is required to achieve a low VSWR.
The two ground connections should be directly connected together to the ground
plane on the PCB. The ground connection also serves as a heatsink.
DC bias is applied to this pin through a RF choke. A bypass capacitor (1.0 micro
farad) on the DC side of the choke is recommended for providing instantaneous
current during a modulated RF signal. Use a DC blocking capacitor on the output
with similar requirements as the input side.
3
RFout
EiC
Corp.
A Subsidiary of
EiC
Enterprises, Ltd.
45738 Northport Loop West, Fremont, CA 94538
Phone: (510) 979-8999
www.eiccorp.com
Fax: (510) 979-8902
SS-000253-000 Rev L
2
PRODUCTION DATA SHEET
EC-1089
DC - 2500 MHz
BROADBAND HIGH OIP3 AMPLIFIER
Reliability and Burn-In Test
EiC performs burn-in for selected lots on a regular basis to monitor and guarantee consistent product quality and reliabil-
ity. The burn-in process consists of pre-conditioning (JESD22-A113-B), pre and post RF tests, and bias life (JESD22-
A108-A).
The table is based on the following parameters and conditions:
Activation Energy: 1.85eV
Junction to Ambient Temperature Difference: +65
o
C
Confidence levels of 60% and 90% are used to calculate FIT (Failure In Time), for the nominal operating ambient tem-
perature at +60
o
C. The following table is a qualification by similarity from the ECG009B. (dies are identical: The
EC1089B has wire bond grounds and the ECG009B has via hole grounds.
Test Temp
Hours Completed
Quantity Tested
+145°C
1000
80
+125°C
1000
20
Cumulative FIT @ 60% Confidence Level (Tj=125°C)
Cumulative MTTF @ 60% Confidence Level (FIT 4)
Cumulative FIT @ 90% Confidence Level (Tj=125°C)
Cumulative MTTF @ 90% Confidence Level (FIT 6)
Quantity Failed
0
0
4
2.67E+08 Hours
6
1.75E+08 Hours
EiC will update the burn-in and cumulative FIT results periodically. Please check the website at
www.eiccorp.com
EiC
Corp.
A Subsidiary of
EiC
Enterprises, Ltd.
45738 Northport Loop West, Fremont, CA 94538
Phone: (510) 979-8999
www.eiccorp.com
Fax: (510) 979-8902
SS-000253-000 Rev L
3
PRODUCTION DATA SHEET
EC-1089
DC - 2500 MHz
BROADBAND HIGH OIP3 AMPLIFIER
Typical S-Parameters
Vc = 5V, Ic = 150mA
FREQ-GHZ
0.05
0.15
0.25
0.35
0.45
0.55
0.65
0.75
0.85
0.95
1.05
1.15
1.25
1.35
1.45
1.55
1.65
1.75
1.85
1.95
2.05
2.15
2.25
2.35
2.45
2.5
MAG[S11]
0.487
0.572
0.6
0.612
0.622
0.633
0.642
0.652
0.663
0.672
0.681
0.69
0.696
0.701
0.708
0.713
0.717
0.721
0.726
0.731
0.735
0.741
0.745
0.749
0.752
0.755
ANG[S11]
-149.304
-165.464
-173.025
-177.37
179.399
176.554
173.742
170.999
168.23
165.613
162.795
159.968
157.123
154.113
151.065
148.023
144.944
141.764
138.637
135.528
132.512
129.592
126.499
123.543
120.522
118.933
MAG[S21]
9.06
6.158
5.246
4.853
4.629
4.437
4.255
4.07
3.918
3.757
3.601
3.458
3.315
3.186
3.072
2.954
2.812
2.707
2.6
2.499
2.413
2.325
2.261
2.171
2.102
2.063
ANG[S21]
147.964
144.904
143.436
140.437
136.026
130.982
125.751
120.404
114.935
109.86
104.666
99.902
94.682
90.031
85.447
81.158
76.461
72.275
68.121
64.016
59.976
55.902
52.157
48.604
44.767
42.858
MAG[S12]
0.073
0.083
0.086
0.088
0.089
0.09
0.091
0.092
0.093
0.095
0.096
0.097
0.098
0.099
0.101
0.101
0.102
0.103
0.104
0.104
0.105
0.106
0.107
0.108
0.109
0.109
ANG[S12]
17.688
8.25
5.386
3.214
1.539
0.295
-0.684
-1.918
-3.315
-4.539
-5.77
-7.168
-8.619
-10.215
-11.635
-13.001
-14.502
-16.215
-17.789
-19.429
-21.228
-22.977
-24.685
-26.368
-28.172
-29.221
MAG[S22]
0.393
0.429
0.442
0.451
0.46
0.468
0.478
0.486
0.494
0.502
0.512
0.519
0.527
0.534
0.542
0.548
0.553
0.558
0.563
0.567
0.571
0.574
0.578
0.583
0.585
0.582
ANG[S22]
-111.873
-146.667
-161.071
-167.981
-172.69
-176.322
-179.377
177.708
174.839
172.19
169.481
166.738
163.963
161.202
158.677
155.944
153.143
150.287
147.521
144.806
141.915
139.124
136.329
133.483
130.451
129.04
EiC
Corp.
A Subsidiary of
EiC
Enterprises, Ltd.
45738 Northport Loop West, Fremont, CA 94538
Phone: (510) 979-8999
www.eiccorp.com
Fax: (510) 979-8902
SS-000253-000 Rev L
4
PRODUCTION DATA SHEET
EC-1089
DC - 2500 MHz
BROADBAND HIGH OIP3 AMPLIFIER

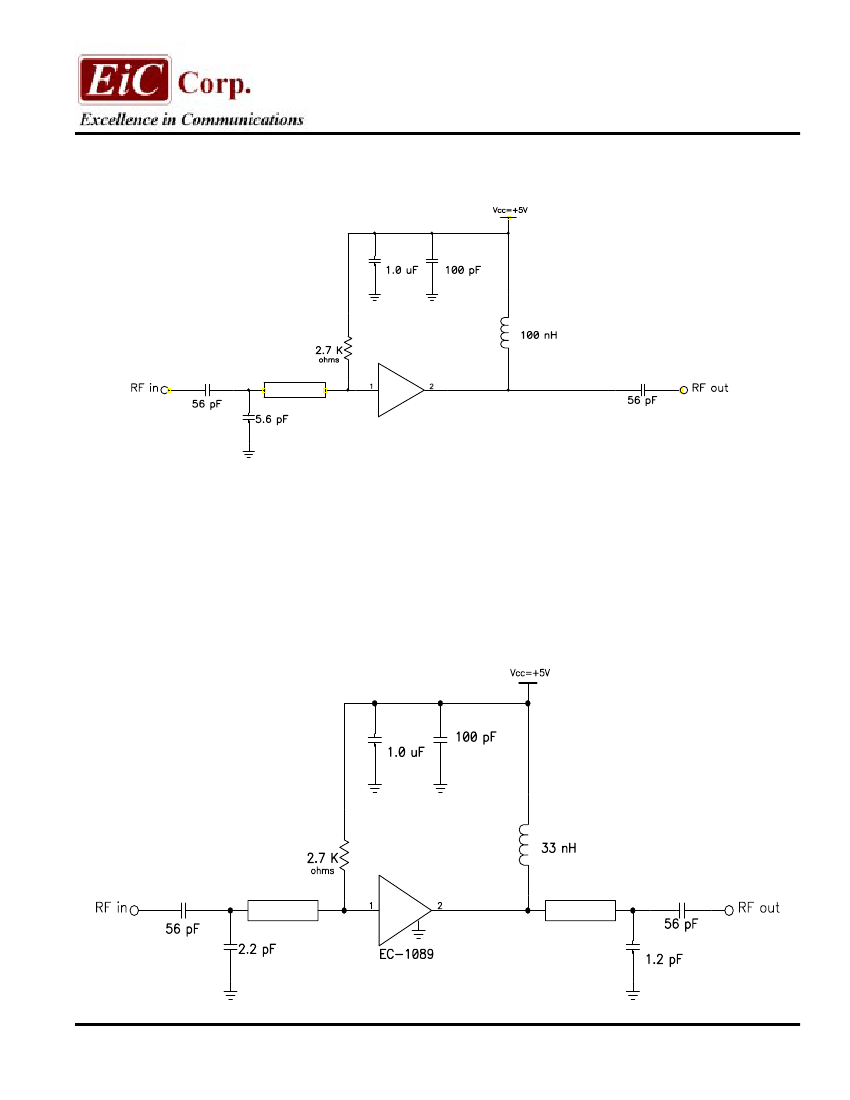

900 MHz Application Circuit
