87427-1663 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 87427-1663

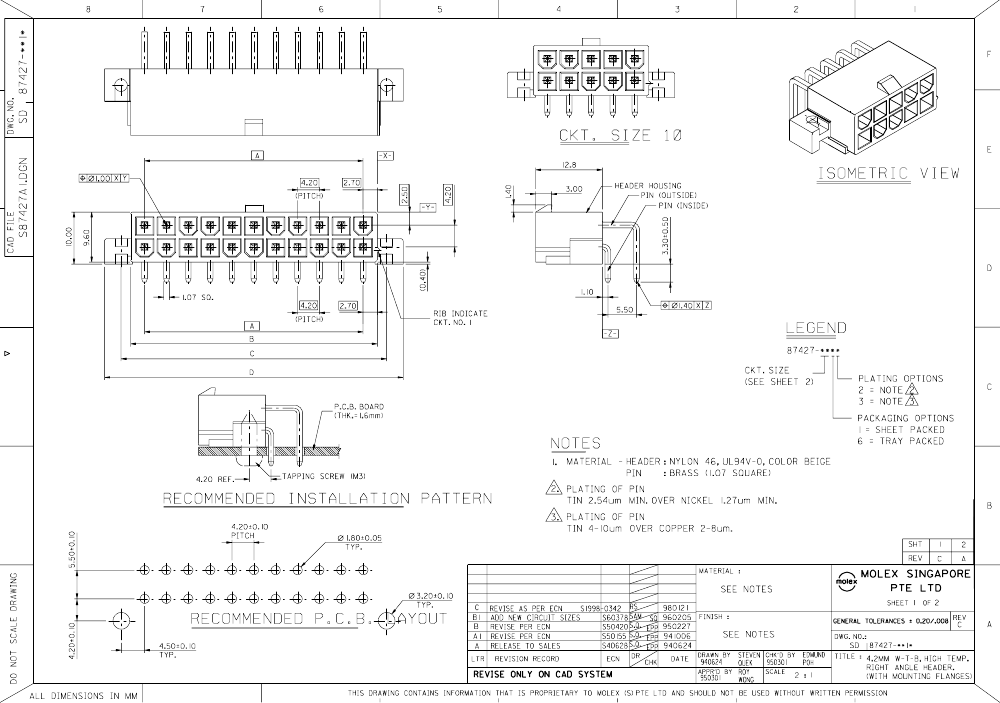

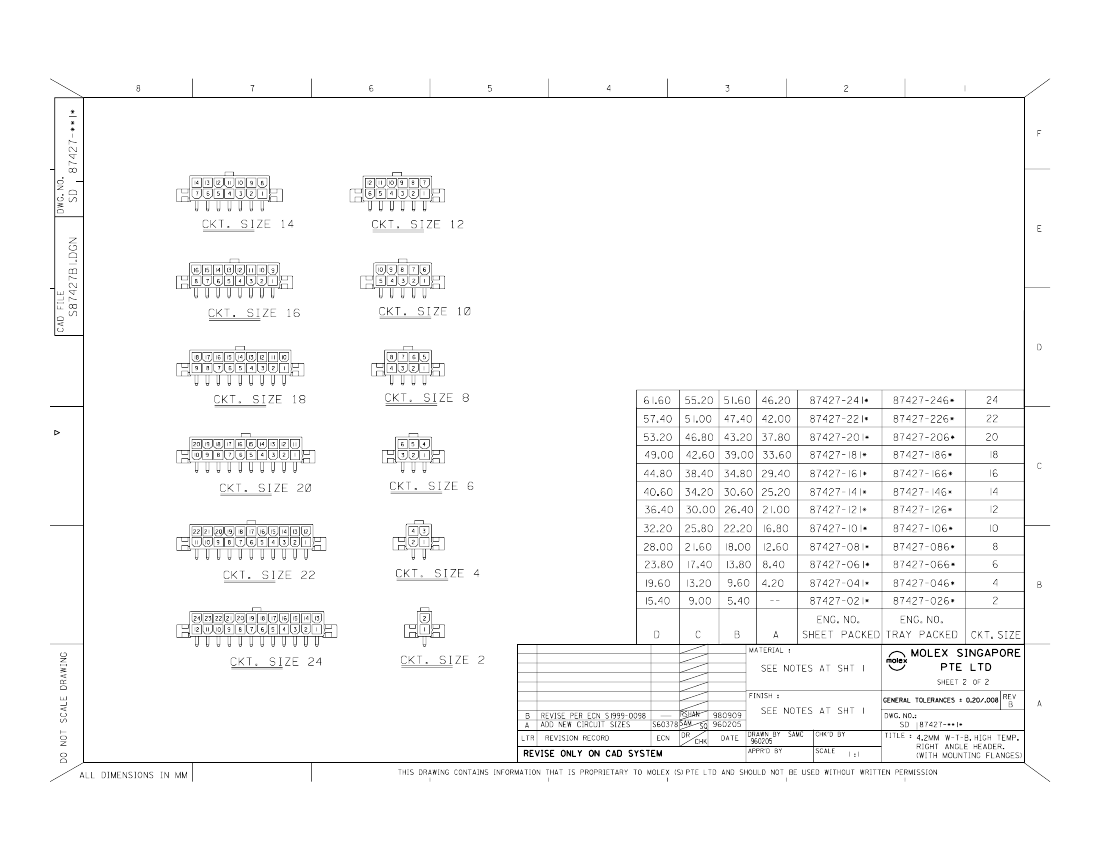

87427-1663: DescriptionBoard Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, 0.165 inch Pitch, Solder Terminal, Polarized Lck, Beige Insulator, Receptacle; CategoryThe connector The connector; File Size117KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

87427-1663 Overview

Board Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, 0.165 inch Pitch, Solder Terminal, Polarized Lck, Beige Insulator, Receptacle

87427-1663 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
Other features	TRAY PACKAGING
Board mount options	MOUNTING FLANGE
body width	0.449 inch
subject depth	0.72 inch
body length	1.764 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN ON CU
Contact completed and terminated	TIN OVER COPPER
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Durability	30 Cycles
maximum insertion force	6.672 N
Insulation resistance	1000000000 Ω
Insulator color	BEIGE
insulator material	NYLON
Manufacturer's serial number	87427
Plug contact pitch	0.165 inch
Match contact row spacing	0.165 inch
Installation option 1	POLARIZED LCK
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.5118 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	9 A
Guideline	UL,VDE,CSA
reliability	COMMERCIAL
Terminal length	0.13 inch
Terminal pitch	4.191 mm
Termination type	SOLDER
Total number of contacts	16
Evacuation force-minimum value	3.0024 N

Preview

Download Datasheet

View All

87427-1663 Related Products

	87427-1663	87427-2062	87427-0663	87427-0862	87427-0863	87427-0262
Description	Board Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, 0.165 inch Pitch, Solder Terminal, Polarized Lck, Beige Insulator, Receptacle	Board Connector, 20 Contact(s), 2 Row(s), Male, Right Angle, 0.165 inch Pitch, Solder Terminal, Polarized Lck, Beige Insulator, Receptacle	Board Connector, 6 Contact(s), 2 Row(s), Male, Right Angle, 0.165 inch Pitch, Solder Terminal, Polarized Lck, Beige Insulator, Receptacle	Board Connector, 8 Contact(s), 2 Row(s), Male, Right Angle, 0.165 inch Pitch, Solder Terminal, Polarized Lck, Beige Insulator, Receptacle	Board Connector, 8 Contact(s), 2 Row(s), Male, Right Angle, 0.165 inch Pitch, Solder Terminal, Polarized Lck, Beige Insulator, Receptacle	Board Connector, 2 Contact(s), 2 Row(s), Male, Right Angle, 0.165 inch Pitch, Solder Terminal, Polarized Lck, Beige Insulator, Receptacle
Reach Compliance Code	compliant	unknow	unknown	unknow	unknow	unknown
Other features	TRAY PACKAGING	TRAY PACKAGING	TRAY PACKAGING	TRAY PACKAGING	TRAY PACKAGING	TRAY PACKAGING
Board mount options	MOUNTING FLANGE	MOUNTING FLANGE	MOUNTING FLANGE	MOUNTING FLANGE	MOUNTING FLANGE	MOUNTING FLANGE
body width	0.449 inch	0.449 inch	0.449 inch	0.449 inch	0.449 inch	0.449 inch
subject depth	0.72 inch	0.72 inch	0.72 inch	0.72 inch	0.72 inch	0.72 inch
body length	1.764 inch	2.094 inch	0.937 inch	1.102 inch	1.102 inch	0.606 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN ON CU	SN ON NI	SN ON CU	SN ON NI	SN ON CU	SN ON NI
Contact completed and terminated	TIN OVER COPPER	TIN OVER NICKEL	TIN OVER COPPER	TIN OVER NICKEL	TIN OVER COPPER	TIN OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V
Durability	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles
maximum insertion force	6.672 N	6.672 N	6.672 N	6.672 N	6.672 N	6.672 N
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BEIGE	BEIGE	BEIGE	BEIGE	BEIGE	BEIGE
insulator material	NYLON	NYLON	NYLON	NYLON	NYLON	POLYAMIDE
Manufacturer's serial number	87427	87427	87427	87427	87427	87427
Plug contact pitch	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch
Match contact row spacing	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch
Installation option 1	POLARIZED LCK	POLARIZED LCK	POLARIZED LCK	POLARIZED LCK	POLARIZED LCK	POLARIZED LCK
Installation option 2	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	5.5118 mm	5.5118 mm	5.5118 mm	5.5118 mm	5.5118 mm	5.5118 mm
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	9 A	9 A	9 A	9 A	9 A	9 A
Guideline	UL,VDE,CSA	UL,VDE,CSA	UL,VDE,CSA	UL,VDE,CSA	UL,VDE,CSA	UL,VDE,CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.13 inch	0.13 inch	0.13 inch	0.13 inch	0.13 inch	0.13 inch
Terminal pitch	4.191 mm	4.191 mm	4.191 mm	4.191 mm	4.191 mm	4.191 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	16	20	6	8	8	2
Evacuation force-minimum value	3.0024 N	3.0024 N	3.0024 N	3.0024 N	3.0024 N	3.0024 N
Maker	Molex	-	Molex	Molex	Molex	-
