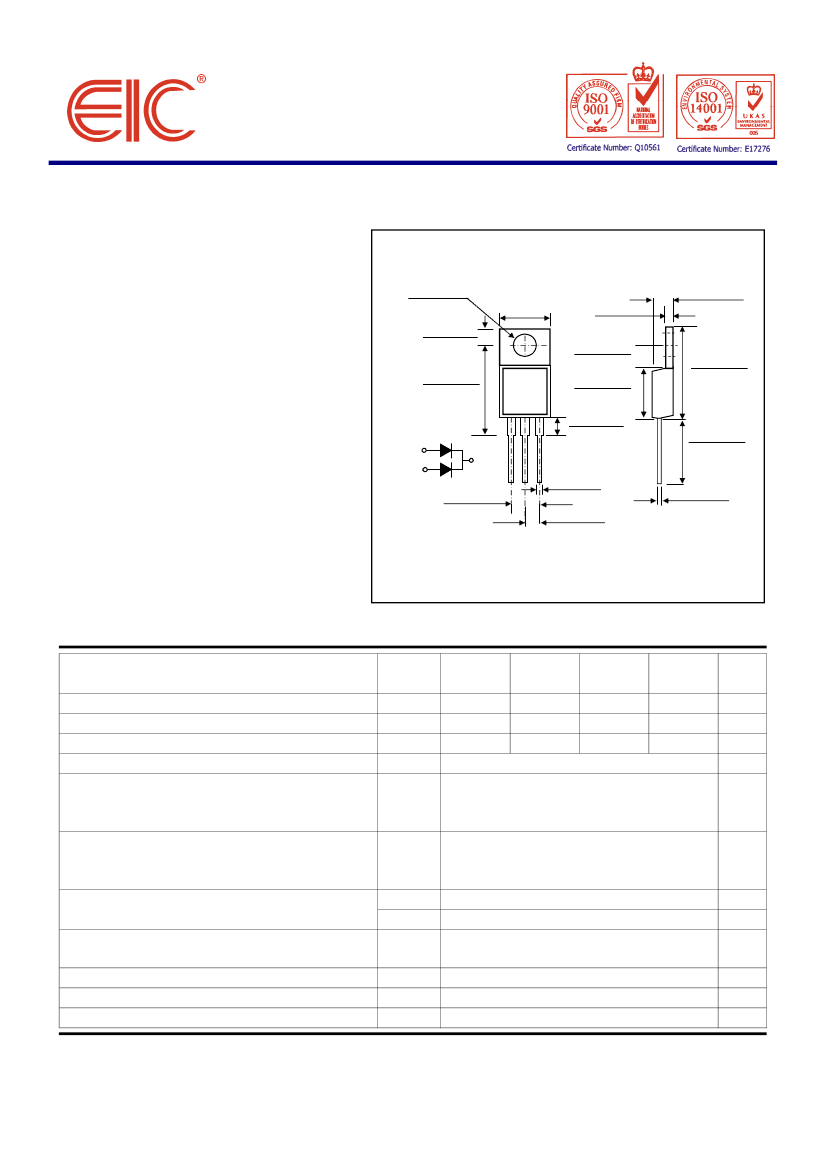

BYV32 Series
PRV : 50 - 200 Volts
Io : 18 Ampere
FEATURES :
*
*
*
*
*
*
Glass passivated chip junction
High current capability
High surge current capability
Low leakage, high voltage
High reliability
Pb / RoHS Free
Dual Ultra Fast Rectifiers
TO-220AB
0.154(3.91)DIA.
0.148(3.74)
0.113(2.87)
0.103(2.62)
0.415(10.54)MAX.
0.055(1.39)
0.045(1.14)
0.145(3.68)
0.135(3.43)
0.350(8.89)
0.330(8.39)
1 2 3
PIN 1
PIN 2
CASE
PIN 3
0.205(520)
0.195(4.95)
0.037(0.94)
0.027(0.68)
0.105(2.67)
0.095(2.41)
0.160(4.06)
0.140(3.56)
0.560(14.22)
0.530(13.46)
0.185(4.70)
0.175(4.44)
0.635(16.13)
0.625(15.87)
0.603(15.32)
0.573(14.55)
MECHANICAL DATA :
*
*
*
*
Case : TO-220AB Molded plastic
Polarity : As marked on the body
Mounting position : Any
Weight : 2.24 grams
0.022(0.56)
0.014(0.36)
Dimensions in inches and ( millimeters )
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(Ta =25°C unless otherwise specified.)
RATING
Maximum Repetitive Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Current, Tc = 125°C
Maximum Peak Forward Surge Current
8.3ms single half sine-wave superimposed on
rated load (JEDEC Method) at Tc = 100°C
Maximum Instantaneous Forward Voltage per Leg
( 1 )
at I
F
= 20A
I
F
= 5.0A, Tj = 100°C
Maximum Reverse Current per Leg
at Rated DC Blocking Voltage
Maximum Reverse Recovery Time per Leg
(I
F
= 1A, V
R
= 30V , di/dt = 100A/µs, Irr = 10%I
RM
)
Typical junction capacitance at 4V, 1MHz
Maximum Thermal Resistance, Junction to Case
Operating storage and temperature range
I
R
I
R(H)
Trr
Cj
RθJC
T
J
, T
STG
V
F
1.15
0.85
10 (Tc = 25°C)
600 (Tc = 100°C)
25
45
1.6
- 65 to + 150
µA
µA
ns
pF
°C/W
°C
V
I
FSM
150
A
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
BYV
32-50
50
35
50
BYV
32-100
100
70
100
18
BYV
32-150
150
105
150
BYV
32-200
200
140
200
UNIT
V
V
V
A
Note :
(1) Pulse test: 300µs pulse width, 1% duty cycle
Page 1 of 2
Rev. 01 : July 9, 2005

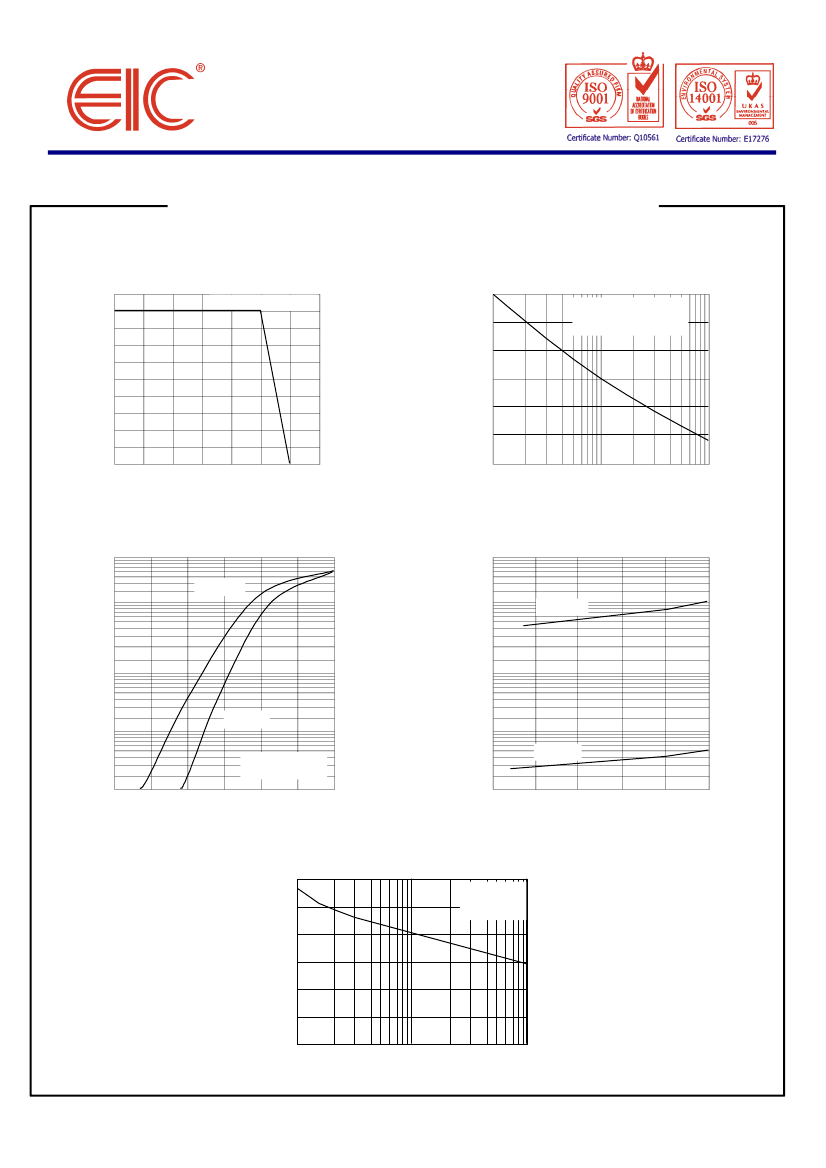

RATING AND CHARACTERISTIC CURVES ( BYV32 SERIES )
FIG.1 - FORWARD CURRENT DERATING CURVE
20
FIG.2 - MAXIMUM NON-REPETITIVE PEAK
FORWARD SURGE CURRENT
PEAK FORWARD SURGE CURRENT,
AMPERES
150
TJ = 150C
10ms Single Half Sine-Wave
(JEDEC Method)
AVERAGE FORWARD OUTPUT
CURRENT, AMPERES
Resistive or Inductive Load
16
125
100
12
75
50
8.0
4.0
25
0
1
10
100
0
0
25
50
75
100
125
150
175
CASE TEMPERATURE, (
°
C)
FIG.3 - TYPICAL INSTANTANEOUS
FORWARD CHARACTERISTICS PER LEG
100
T
J
= 125
°C
10
1000
NUMBER OF CYCLES AT 50Hz
FIG.4 - TYPICAL REVERSE LEAKAGE
CHARACTERISTICS PER LEG
REVERSE CURRENT, MILLIAMPERES
INSTANTANEOUS FORWARD
CURRENT, AMPERES
100
Tc = 100
°C
1
10
T
J
= 25
°C
0.1
Pulse Width = 300µs
1% Duty Cycle
0.01
0.1
0.3
0.5
0.7
0.9
1.1
1.3
1
Tc = 25
°C
0.1
0
20
40
60
80
100
INSTANTANEOUS FORWARD VOLTAGE, VOLTS
PERCENT OF RATE REVERSE VOLTAGE, (%)
FIG. 5 – TYPICAL JUNCTION CAPACITANCE PER LEG
JUNCTION CAPACITANCE, pF
60
50
40
30
20
10
0
TJ = 25 ºC
f = 1.0 MHz
Vsig = 5 mVp-p
1
10
100
REVERSE VOLTAGE, VOLTS
Rev. 01 : July 9, 2005
