H3006CB: DescriptionSafety Door Switch, SPST, On-off, Momentary, Quick Connect Terminal, Panel Mount, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size244KB，1 Pages; ManufacturerBULGIN; Websitehttp://www.bulgin.co.uk/; Environmental Compliance

Download Datasheet Parametric View All

H3006CB Overview

Safety Door Switch, SPST, On-off, Momentary, Quick Connect Terminal, Panel Mount, ROHS COMPLIANT

H3006CB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Executor completed	GLOSS
Actuator length	0.512 inch
Actuator stroke	2.9972 mm
body width	14 mm
body height	27 mm
Body length or diameter	30.2 mm
Contact (AC) maximum rated R load	0.3A@250VAC
Maximum contact current (AC)	0.3 A
Contact function	ON-OFF
Maximum contact voltage (AC)	250 V
Electrical life	50000 Cycle(s)
Manufacturer's serial number	3005
Installation features	PANEL MOUNT
seal	SPLASH PROOF
surface mount	NO
Switch action	MOMENTARY
switch function	SPST
Switch type	SAFETY DOOR SWITCH
Terminal length	0.358 inch
Termination type	QUICK CONNECT
Base Number Matches	1

Preview

Download Datasheet

View All

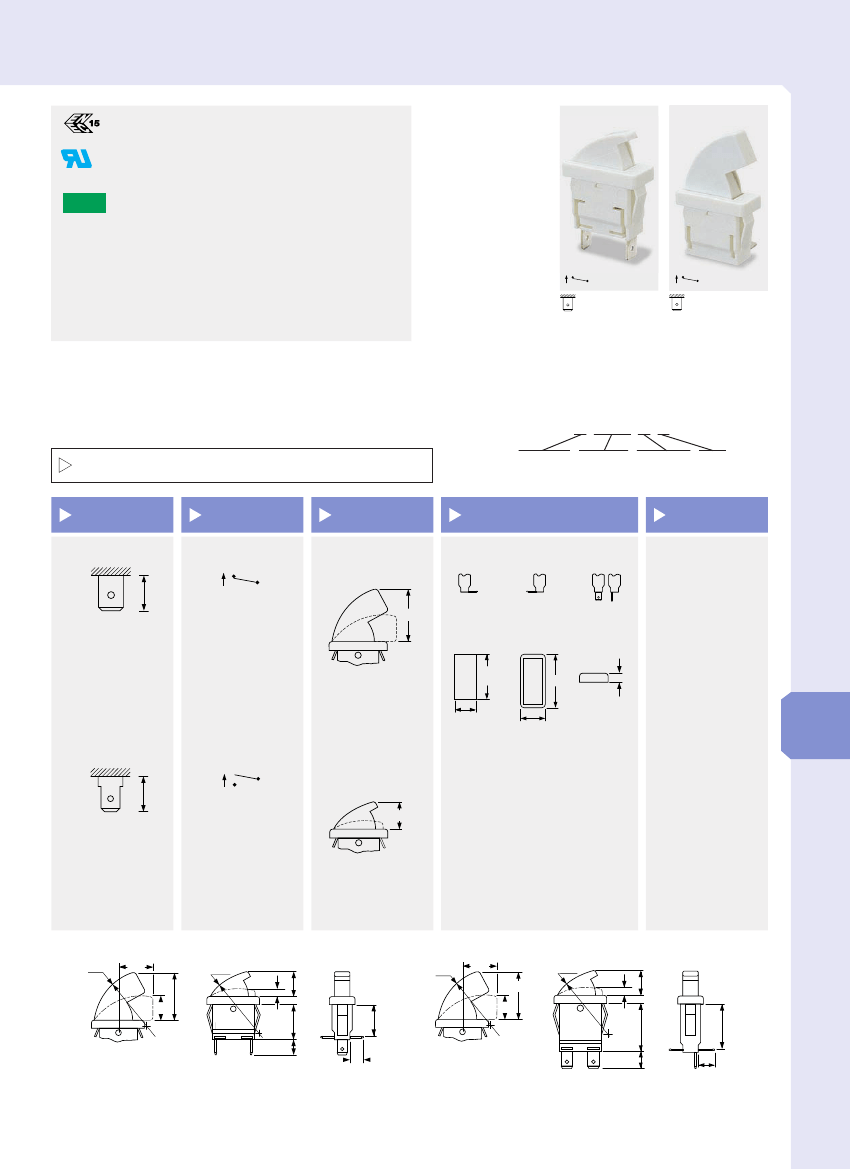

3005 Refrigerator Door Switches

Splashproof

3005 25W 25T85 5E4 (50,000 Operations) 250Vac

3006 65W 25T85 5E4 (50,000 Operations) 250Vac

UL 0.3A 250Vac

UL 0.2A 125Vac

Door switches

Momentary on and

momentary off

switching

Splash Resistant

Choice of terminal

orientation

Choice of actuators

RoHS

RoHS compliant

These products require 3mm minimum actuator stroke to ensure

switch action and rating above.

µ contact gap.

Technical data on pages 4 & 5.

*Only the black variant is approved

C3005CB

C3005BL

C 3005 C B

ORDER FORMAT

TERMINAL

C

3005

FUNCTION

B

R

9.1

TERMINAL

CODE

ACTUATOR

FUNCTION

CODE

ACTUATOR BODY

CODE

OPTIONS

Finish

BEZEL / TERM ORIENTATION

L

3005

B

3006

Gloss finish only

Color

White is standard

Call factory for

custom colors

A full range is available for

large orders

6.3 x 0.8

ON - OFF

(momentary OFF)

1mm max travel

to OFF position

26.0

Terminal direction (viewed from hinge end)

Panel cut-out

Bezel

5

Bezel Profile

25.4

25.5

30.2

5.0

refrigerator

switches

H

3006

C

12.1/12.2

14.0

9.1

4.8 x 0.8

ON - OFF

(momentary ON)

3mm min travel

to ON position

13.0

Dimensions

(mm) (C terminals shown)

3005

R31.0

20.3

R31.0

26.0

13.8

4.2

13.0

5.0

19.8

17.8

3006

R31.0

20.3

26.0

13.8

R31.0

4.2

13.0

5.0

27.0

25.0

Panel thickness 1.0 - 2.5mm

B Actuator

9.1max

9.1

max

Panel thickness 1.0 - 2.5mm

B Actuator

9.1max

C Actuator

R, L & B terminals

C Actuator

R, L & B terminals

Phone: 760-343-3650 •

Arcolectric

• Email: americas@elektron-technology.com

59
