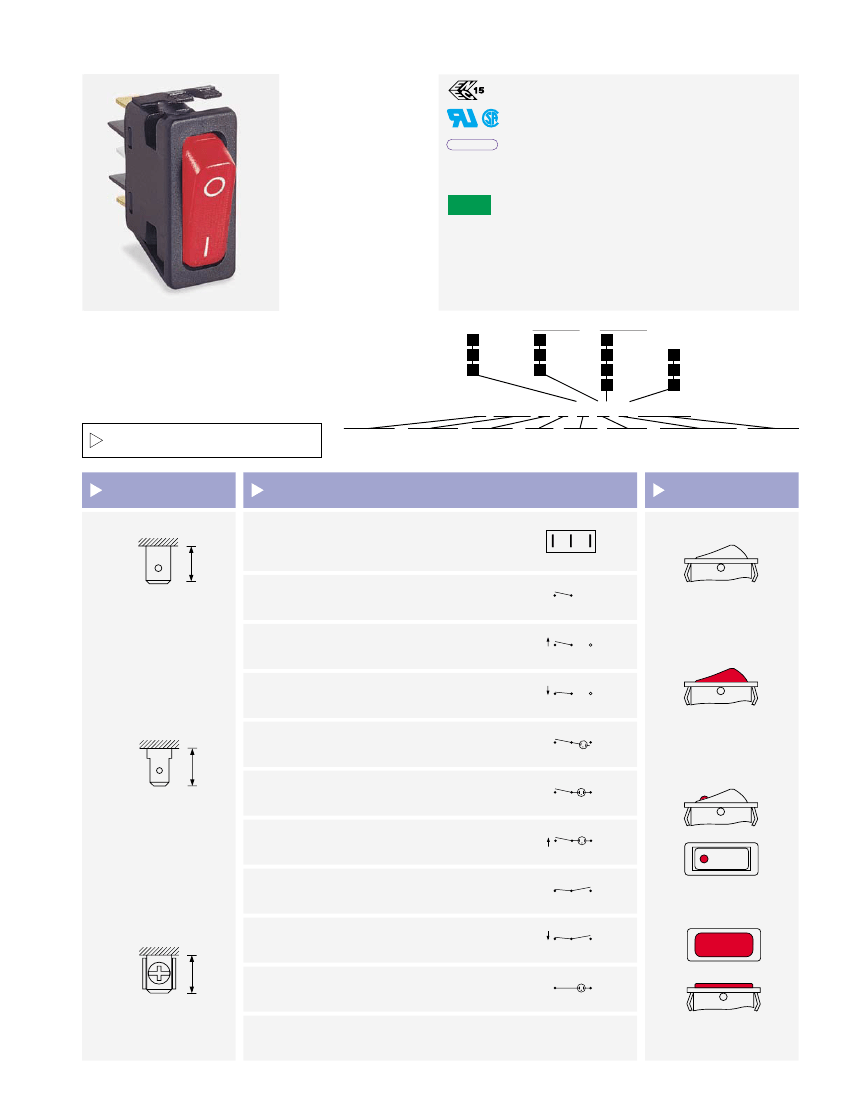

6000 SP Splashproof Rocker Switches
16A 250Vac
Single pole
Ratings up to 20A,
277Vac
High in-rush (ON-OFF
types)
Positive switch action
Distinctive styling
Illuminated & non-
illuminated
Matching indicator
Bezel size:
31.5 x 14mm
European 16(4)A 250Vac T125, 10A 400Vac T125
UL CSA 20A 277Vac, 250Vac 11/2hp, 125Vac 1hp
UL 100˚C, file E45221, CSA file LR10990
In house test
Inrush 150A* to EN61058-1 (ON - OFF only)
*
applies to non-momentary types
RoHS compliant
RoHS
3mm contact gap with Positive Break switching.
Call factory for IP details.
Technical data on pages 4 & 5 (switches), 66 (indicators).
B
BLACK
R
RED
W
WHITE
NON-LIT
B
BLACK
R
RED
W
WHITE
A
C
G
R
LIT
AMBER
CLEAR
GREEN
RED
2
125V NEON
3
250V NEON
7
12V INCANDESCENT
C 6003 A L B R 2 1197W
ORDER FORMAT
TERMINAL
C
Approvals & ratings vary with function
ON OFF Switches - ON when pressed over terminal 3
9.7
1
2
3
TERMINAL
CODE
FUNCTION
CODE
FUNCTION
ROCKER
CODE
BODY BODY
CODE COLOR
ROCKER
COLOR
LAMP VOLTAGE
IF REQUIRED
ROCKER
A
Softline
Matt
LEGEND &
OPTIONS
6.3 x 0.8
6000
ON - OFF
6001
ON - OFF (momentary ON)
A
Softline
Matt
6002
H
6003
9.7
ON - OFF (momentary OFF)
Lit
ON - OFF Lit
P
Lit window
Matt
6008
4.8 x 0.8
ON - OFF Lit (Unswitched neutral)
6009
ON - OFF (momentary ON) Lit
(Unswitched neutral)
6010
ON - ON
A
Lens
Matt (6030 indicator only)
S
9.7
6011
ON - ON (momentary 1 side)
6030
Screw & Clamp
N/A for assemblies
with 3 terminals
Indicator
For twin switches and double pole circuits see pages 18 & 19
16
ARCOLECTRIC CORPORATION
31-315 Plantation Drive, Thousand Palms, CA 92276 Tel: 760-343-3650 Fax: 760-343-3651 email: info@arcolectric.com
For IP65 see “options” below
C6000AL
C6000AL
C6010AL
Integral Splashproofing
Current carrying parts are protected from moisture.
Droplets which may enter the switch are channelled out
through ports in the switch body.
C6003AL
C6003PL
C6030AL
BODY
L
Panel cut-out **
Bezel
R2.0
30.1/
30.0
OPTIONS
Finish
Matt is standard
Color
Call factory for custom colors.
A full range is available for large orders
31.5
DIMENSIONS
(mm)
2.0
30.0
8.0
1A
Panel thickness
0.75 to 2.5mm
L
10.0
Legend printing
Select from the examples or
call factory for custom legends
** For cut-out details
on momentary switches
call the factory
11.1/11.0
Lamp voltage
Call factory for details
14.0
Protective cover
(designed to IP65 #)
The 6000 series is a water thru design.
For a higher level of sealing, a snap on cover is
available (add suffix G74). This reduces panel
thickness by 1mm.
Panel sealing washer W46 is available but reduces
panel thickness by a further 0.8mm.
Covers are not suitable for momentary types.
For all options call the factory
Examples of our range of legend printing
( ) is legend color B-Black, W-White, R-Red
Cut-outs must be punched in the direction of insertion
2A
1224(W)
ARCOLECTRIC CORPORATION
31-315 Plantation Drive, Thousand Palms, CA 92276 Tel: 760-343-3650 Fax: 760-343-3651 email: info@arcolectric.com
1223(W)
17
