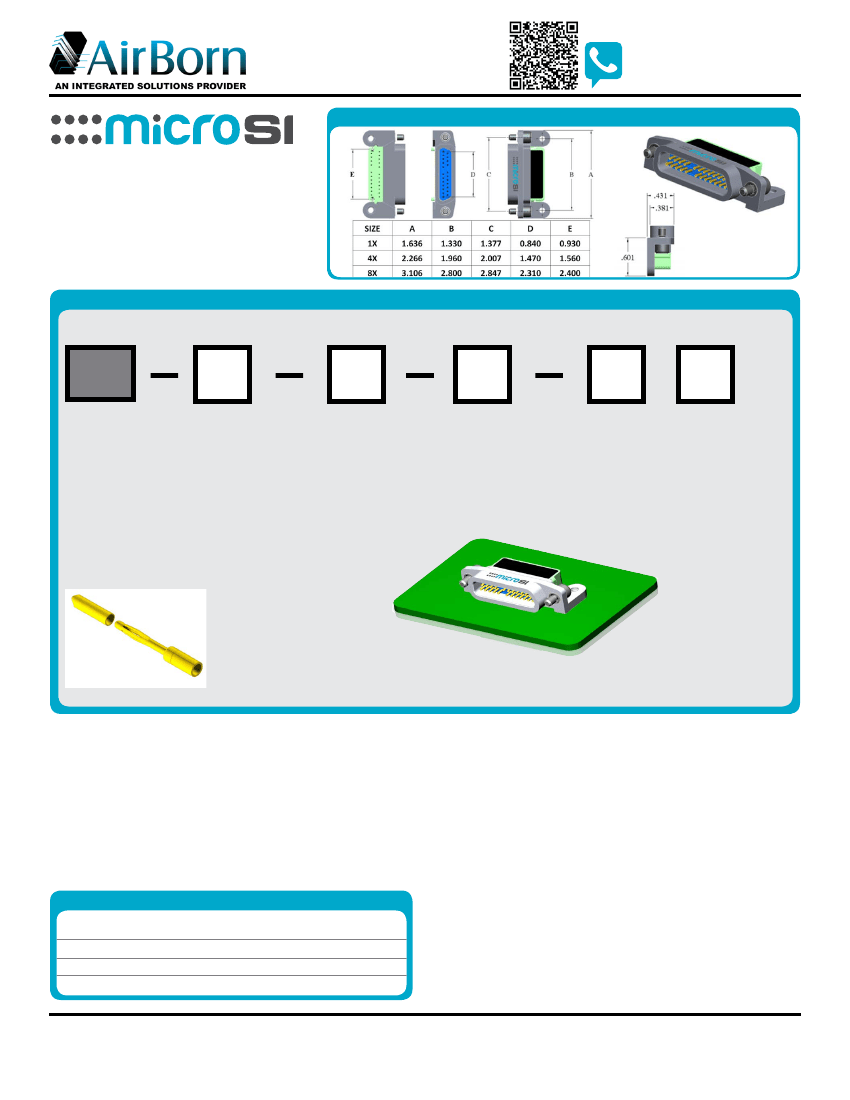

GENERAL DIMENSIONS
MKSI – Right Angle (Female)
CONTACT CUSTOMER SERVICE
MKSI right angle board surface mount connectors
are used in applications where signal integrity
is desired. The connector interface controls
the polarization of the connector. Comes with a
variety of hardware options.
ORDER FORM
ENTER
CODE
ENTER
CODE
Sample Part Number Format: MKSI-XXX-XXXX-XXX-XXXX
ENTER
CODE
ENTER
CODE
ENTER
CODE
MKSI
SERIES
Right Angle
(Female)
1.78 mm
STYLE
SIZE & INTERFACE
2000 – Female
POLARIZATION*
01L – 1X Left (23 pins, 4 DP +9SB)
01R – 1X Right (23 pins, 4 DP +9SB)
04L – 4X Left (41 pins, 10 DP +9SB)
04R – 4X Right (41 pins, 10 DP +9SB)
08L – 8X Left (65 pins, 18 DP +9SB)
08R – 8X Right (65 pins, 18 DP +9SB)
SOCKET TERMINATION
(50 μ” Au Contact)
275 – Sn/Pb alloy
S
278 – SAC305
BODY PLATING
2 – Electroless Nickel
6 – Gold
HARDWARE
620 – Fixed Jacknuts
810 – Turning Jackscrews
Captivated**
NXX – Keying Jacknuts***
JXX – Keying Jackscrews***
High-Reliability
Contact
MIL-DTL-83513
PLEASE CONSULT THE AIRBORN WEBSITE FOR THE LATEST REVISION OF THIS DOCUMENT PRIOR TO BEGINNING ANY DESIGN WORK.
NOTES
1.
S
*
All microSI females have fluorosilicone interfacial seals installed.
Option not RoHS compliant.
Left or right polarization is determined by looking at the male interface with the
LONG SIDE downward. Polarization matches the angled side. Sidebands are on
the non-angled side.
Captivated hardware is factory-installed and non-removable.
Factory-installed and non-removable. Refer to Keying Options page.
MATERIALS and FINISHES
**
***
Socket Contact: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Brass
Pin Contacts: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .BeCu alloy strip
Contact Finish: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Gold plate, 50 µ” minimum
Shells: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Aluminum alloy 6061-T6
Shell Finishes: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Electroless nickel or gold
Molded Insulators: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Glass-filled liquid crystal polymer (LCP)
Embedment: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Frey Eng. Co. compound CF3003-80 & L-II-49
Hardware: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Corrosion-resistant steel
Interfacial Seal Gaskets: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fluorosilicone
EMI Gaskets: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Corrosion-resistant steel
NOTE: AirBorn can manufacture special configurations to your exact specifications.
SIGNAL INTEGRITY PERFORMANCE (Connectors Only)
1
2
3
4
Diff. Impedance, filtered to 79 ps (20-80%)
Diff. Insertion Loss
Diff. Return Loss
Intra-Pair
100 ohm
10 GHz @ -3 dB
7.5 GHz @ -10 dB
< 2 ps
PERFORMANCE
Contact Rating: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 amperes maximum
Operating Temperature:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
-55° C to 125° C
Maximum Working Voltage: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200V, RMS, 60Hz
Insulation Resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5,000 megohms minimum @ 500 VDC
Durability:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500 connector mating cycles
Contact Engaging Force: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.0 ounces maximum/contact
Contact Separating Force:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 ounces minimum/contact
Mating and Unmating Force: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 ounces maximum/contact
NOTE: Performance values are estimates at this time. Actual values will be determined
when final product testing is complete.
PATENT PENDING
www.airborn.com
(512 ) 863-5585
MKSIF-PNB-1B
