DDR-2-240-B-1-SG15-N datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> DDR-2-240-B-1-SG15-N

Preview

DDR-2-240-B-1-SG15-N: DescriptionBoard Connector, 240 Contact(s), 2 Row(s), Straight, Solder Terminal, Latch & Eject, Natural Insulator, Receptacle; CategoryThe connector The connector; File Size117KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

DDR-2-240-B-1-SG15-N Overview

Board Connector, 240 Contact(s), 2 Row(s), Straight, Solder Terminal, Latch & Eject, Natural Insulator, Receptacle

DDR-2-240-B-1-SG15-N Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
Board mount options	SPLIT BOARD LOCK
body width	0.305 inch
body length	5.547 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact material	BRASS
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	1000VAC V
Durability	25 Cycles
maximum insertion force	.834 N
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	THERMOPLASTIC
JESD-609 code	e3
Manufacturer's serial number	DDR
Installation option 1	LATCH & EJECT
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	0.075 mm
Plating thickness	15u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.104 inch
Terminal pitch	0.079 mm
Termination type	SOLDER
Total number of contacts	240
Base Number Matches	1

Preview

Download Datasheet

View All

1

2

3

4

5

6

7

8

9

A

SPECIFICATIONS

Current rating:

Voltage rating:

Contact material:

Contact plating:

Contact resistance:

Insulator material:

Ejector material:

Insulation resist.:

Withstanding:

Board lock material:

Board lock plating:

Retention force:

Insertion force:

Durability:

Temperature range:

B

C

1 amp

250VAC/DC

Phosphor bronze or brass

Mating area: gold

Solder area: tin over nickel

30 milliohms max.

Thermoplastic, UL94V-0

1,000 megohms min.

1,000VAC RMS

Steel-K7

Tin over nickel

0.75lbs min. per contact

3oz. Max. per contact

25 cycles

-55°C to +105°C

A

B

C

D

E

F

RoHS compliant

Rev.

Description

Date

Series

Type

Positions

Contacts

Tail/Board Lock Length

Plating

Color

DDR

2

240

X

SGXX

X

DDR connector 2=Type II 240 positions B=Brass

1: A=2.65, B=3.38mm SG=Selective gold

V=Ivory

P=Phosphor bronze 2: A=2.65, B=3.78mm XX=Blank if flash, 10, B=Black

3: A=3.15, B=3.78mm 15, 20µ” (tin tails)

N=Natural

4: A=3.18, B=3.78mm

Approved

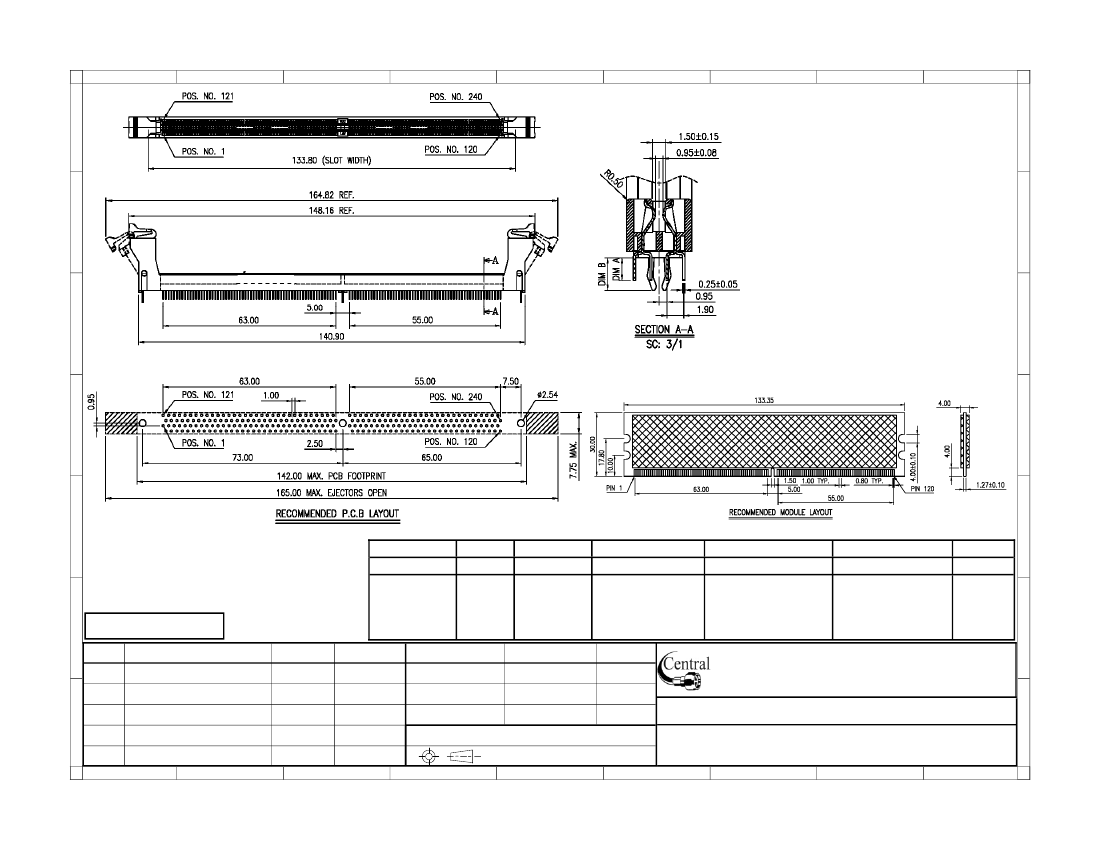

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Date

07/12/07

07/12/07 Part No.:

F

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

G

DDR-2-240-X-X-SGX-X

7

8

9

0.00 ± 0.20 Angles ± 3’

UNIT: mm

5

6

Description: DDR connector, type 2, 240 position
