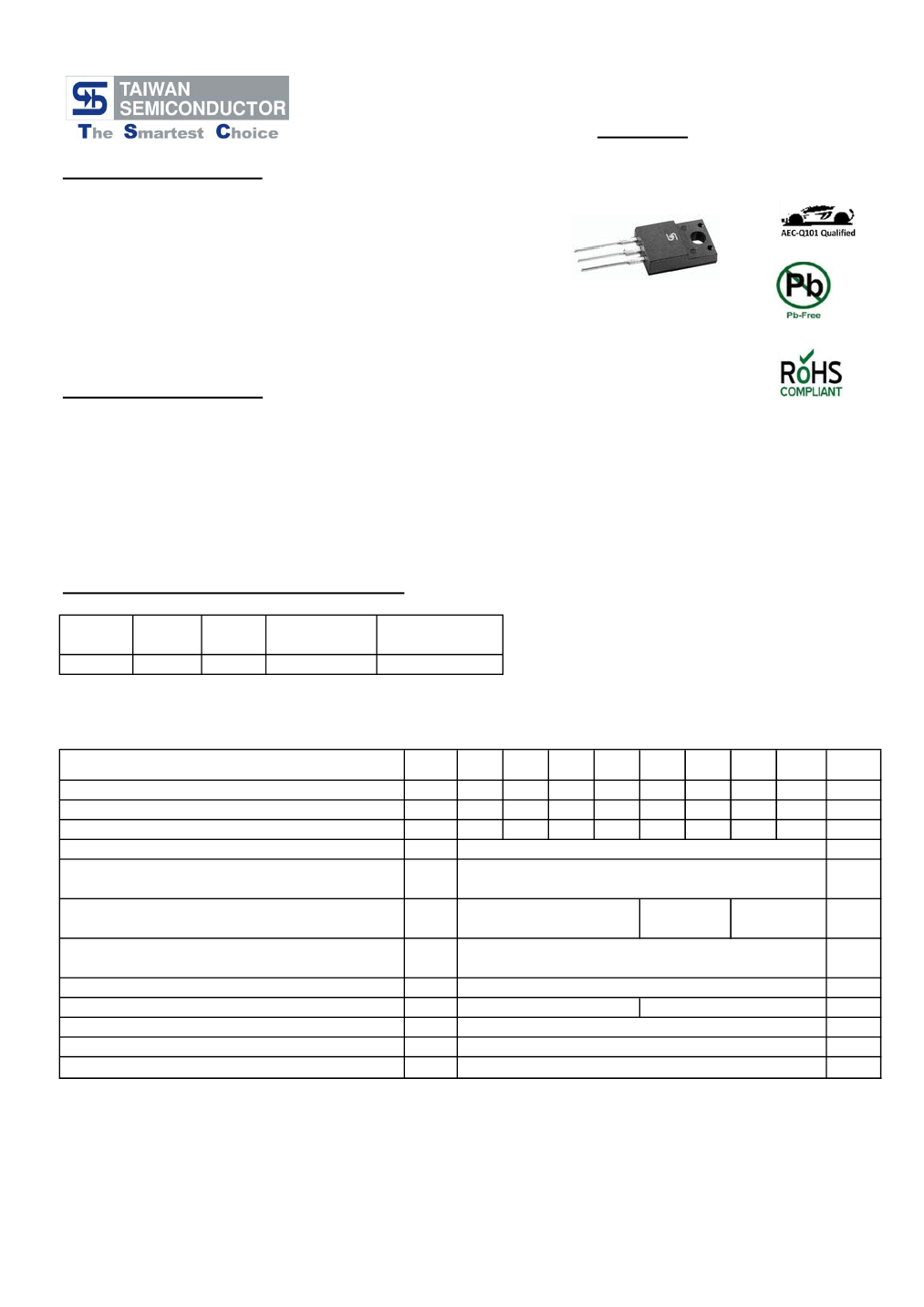

SFF1601G - SFF1608G
16.0AMPS Isolated Glass Passivated Super Fast Rectifier

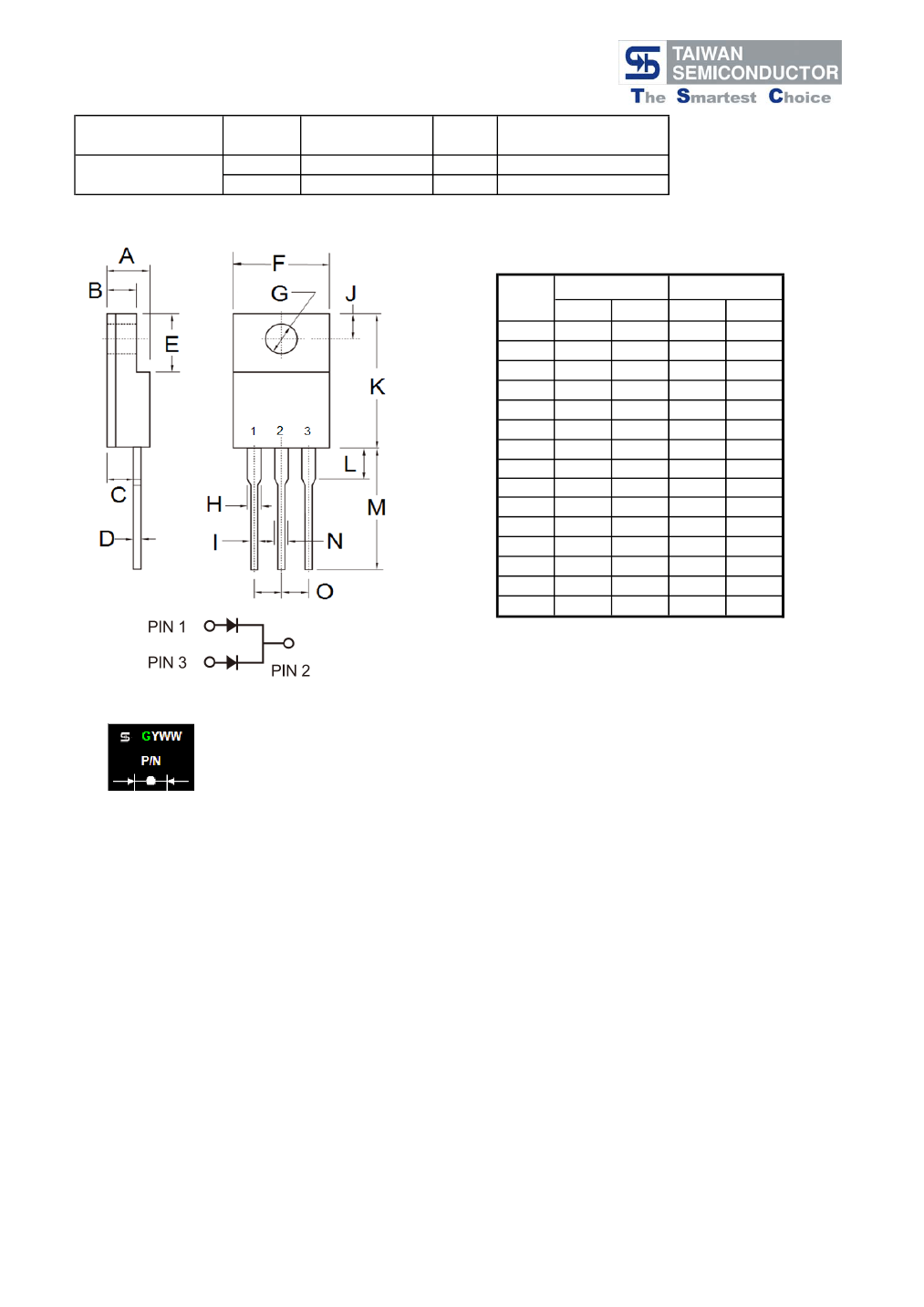

ITO-220AB
Features
UL Recognized File # E-326243
High efficiency, low VF
High current capability
High reliability
High surge current capability
Low power loss
For use in low voltage, high frequency inverter,
Free wheeling, and polarity protection application
Green compound with suffix "G" on packing
code & prefix "G" on datecode
Mechanical Data
Case: ITO-220AB Molded plastic
Epoxy: UL 94V-0 rate flame retardant
Terminals: Pure tin plated, lead free, solderable
per MIL-STD-202, Method 208 guaranteed
Polarity: As marked
High temperature soldering:
260℃/10 seconds/.25",(6.35mm) from case
Weight: 1.7 grams
Mounting torque: 5 in - lbs. max.
Ordering Information (example)
Part No.
Package
Packing
Packing
code
D0
Green Compound
Packing code
D0G
SFF1601G ITO-220AB 50 / TUBE
Maximum Ratings and Electrical Characteristics
Rating at 25
℃
ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
Type Number
Maximum Repetitive Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
Peak Forward Surge Current, 8.3 ms Single Half Sine-wave
Superimposed on Rated Load (JEDEC method)
Maximum Instantaneous Forward Voltage (Note 1)
@ 8A
Maximum Reverse Current @ Rated VR
T
A
=25
℃
T
A
=100
℃
Symbol
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
Trr
Cj
R
θjC
T
J
T
STG
SFF
SFF
SFF
SFF
SFF
SFF
SFF
SFF
1601G 1602G 1603G 1604G 1605G 1606G 1607G 1608G
50
100
150
200
300
400
500
600
35
50
70
100
105
150
140
200
16
125
0.975
10
400
35
80
1.5
- 65 to + 150
- 65 to + 150
60
1.3
1.7
210
300
280
400
350
500
420
600
Unit
V
V
V
A
A
V
uA
nS
pF
O
Maximum Reverse Recovery Time (Note 2)
Typical Junction Capacitance (Note 3)
Typical Thermal Resistance
Operating Temperature Range
Storage Temperature Range
Note 1: Pulse Test with PW=300 usec, 1% Duty Cycle
C/W
O
O
C
C
Note 2: Reverse Recovery Test Conditions: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
Note 3: Measured at 1 MHz and Applied Reverse Voltage of 4.0V D.C.
Version:F12

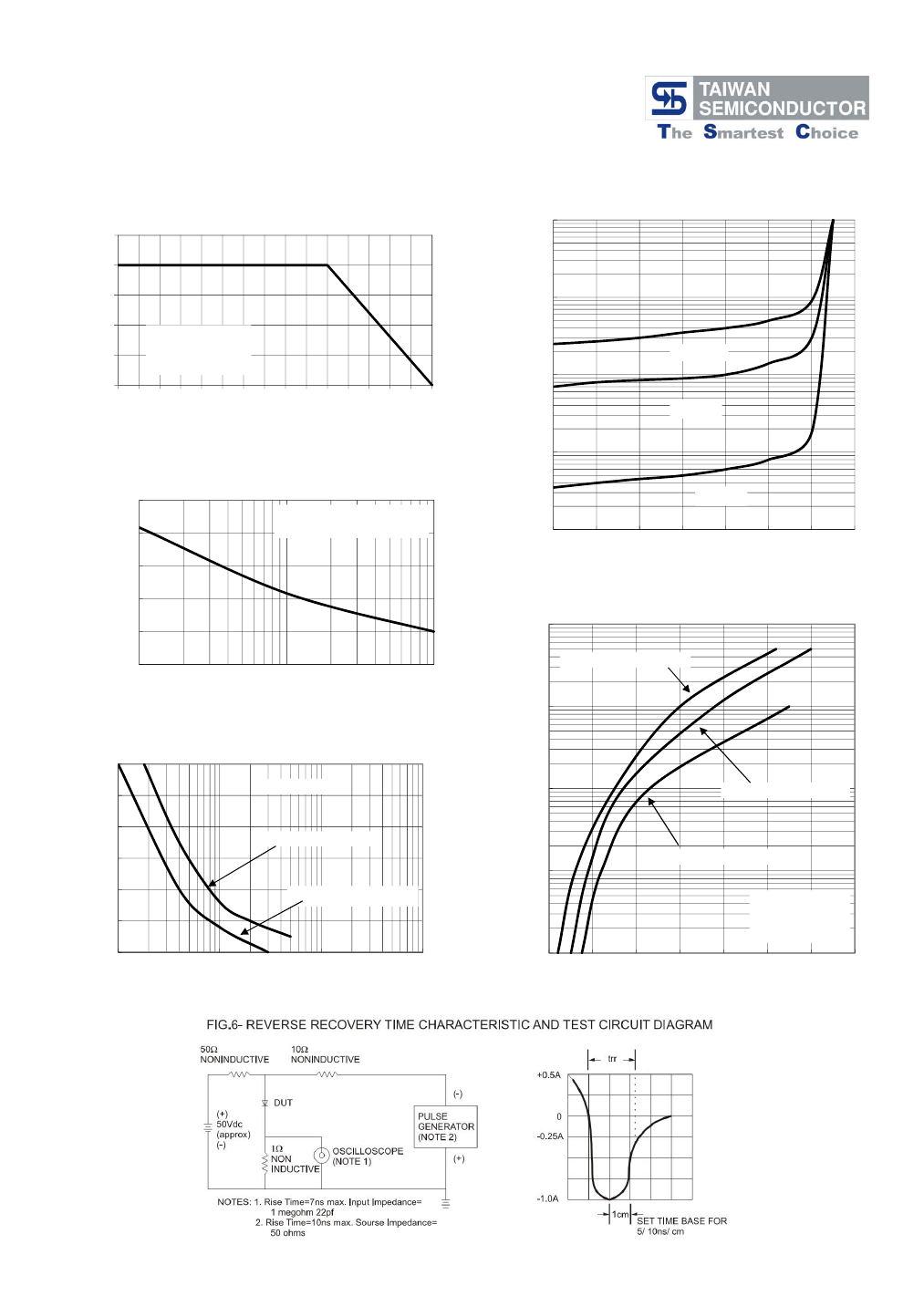

RATINGS AND CHARACTERISTIC CURVES (SFF1601G THRU SFF1608G)
FIG.1 FORWARD CURRENT DERATING CURVE
20
AVERAGE FORWARD
A
CURRENT (A)
16
12
8
4
0
0
10 20 30 40 50 60 70 80 90 100 110 120 130 140 150
CASE TEMPERATURE (
o
C)
INSTANTANEOUS REVERSE CURRENT(uA)
100
FIG. 2 TYPICAL REVERSE CHARACTERISTICS
1000
RESISTER OR
INDUCTIVE LOAD
WITH HEATSINK
TA=100℃
10
TA=75℃
1
PEAK FORWARD SURGE CURRENT
(A)
FIG. 3 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
150
120
90
60
30
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
TA=25℃
0.1
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
8.3mS Single Half Sine Wave
JEDEC Method
FIG. 5 TYPICAL FORWARD CHARACTERISTICS
100
SFF1601G-SFF1604G
INSTANTANEOUS FORWARD CURRENT (A)
10
FIG. 4 TYPICAL JUNCTION CAPACITANCE
100
90
CAPACITANCE (pF)
80
TA=25℃
1
SFF1605G-SFF1606G
SFF1601G-SFF1604G
70
60
50
40
1
10
100
1000
REVERSE VOLTAGE (V)
0.1
SFF1607G-SFF1608G
SFF1605G-SFF1608G
TA=25℃
Pulse Width=300us
1% Duty Cycle
0.01
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
FORWARD VOLTAGE (V)
Version:F12
