SFT16GAMP: DescriptionRectifier Diode, 1 Element, 1A, 400V V(RRM), Silicon, DO-41,; CategoryDiscrete semiconductor diode; File Size287KB，4 Pages; ManufacturerFagor Electrónica; Environmental Compliance

Download Datasheet Parametric Compare View All

SFT16GAMP Overview

Rectifier Diode, 1 Element, 1A, 400V V(RRM), Silicon, DO-41,

SFT16GAMP Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	FREE WHEELING DIODE, LOW POWER LOSS
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	DO-41
JESD-30 code	O-PALF-W2
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	260
Guideline	AEC-Q101
Maximum repetitive peak reverse voltage	400 V
Maximum reverse recovery time	0.035 µs
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

SFT14G ........ SFT18G

1.0 Amp. Glass Passivated Ultrafast Recovery Rectifier

Voltage

200V to 600V

Current

1.0 A

DO-41 Mini

FEATURES

Ultrafast recovery time for high efficiency

Low power losses

Low forward voltage drop

High forward surge current capability

Solder dip 260ºC, 10s

AEC-Q101 qualified

Component in accordance to RoHS 2011/65/EU

and WEEE 2002/96/EC

Meets MSL level 1, per J-STD-020, LF maximum

peak of 260º C

MECHANICAL DATA

Case

DO-41 Mini. Epoxy meets UL 94V-0

flammability rating.

Polarity

Color band denotes cathode end.

Terminals

Matte tin plated leads, solderable per

MIL-STD-750 Method 2026, J-STD-002 and JESD22-B102.

Consumer grade, meets JESD 201 class 1A whisker test.

TYPICAL APPLICATIONS

Used in high frequency rectifier of switching mode power

supplies, inverters, freewheeling diodes, dc-to-dc converters,

and other power switching application.

Maximun Ratings and Electrical Characteristics at 25 °C

Marking Code

RRM

RMS

Maximum Recurrent Peak Reverse Voltage (V)

Maximum RMS Voltage (V)

Maximum DC Blocking Voltage (V)

Maximum Average Forward Rectified Current

9.5mm Lead Length @ T

= 55 °C

Peak Forward Surge Current, 8.3 ms Single

Half Sine-wave Superimposed on Rated Load

(JEDEC Method)

SFT14G

200

140

200

SFT16G

400

280

400

1.0 A

SFT18G

600

420

600

F(AV)

FSM

stg

30 A

35 ns

20 pF

-65 to +150 °C

10 pF

Maximum Reverse Recovery Time from

= 0.5A; I

= 1A; I

= 0.25A

Typical Junction Capacitance at 1 MHz

and reverse voltage of 4V

Operating Temperature Range

Storage Temperature Range

Electrical Characteristics at Tamb = 25 °C

th (j-a)

Maximum Instantaneous Forward Voltage @ I

= 1.0 A

Maximum DC Reverse Current @ Ta = 25 °C

at Rated DC Blocking Voltage @ Ta =125°C

Typical Thermal Resistance

(See note)

0.95 V

1.3 V

5 µA

100 µA

100 °C/W

1.7 V

NOTE: Mount on Cu-Pad size 5mm x 5mm on PCB.

www.fagorelectronica.com

Document Name: sft1g

Revision: 1

Version: Jun-16

Page Number: 1/4

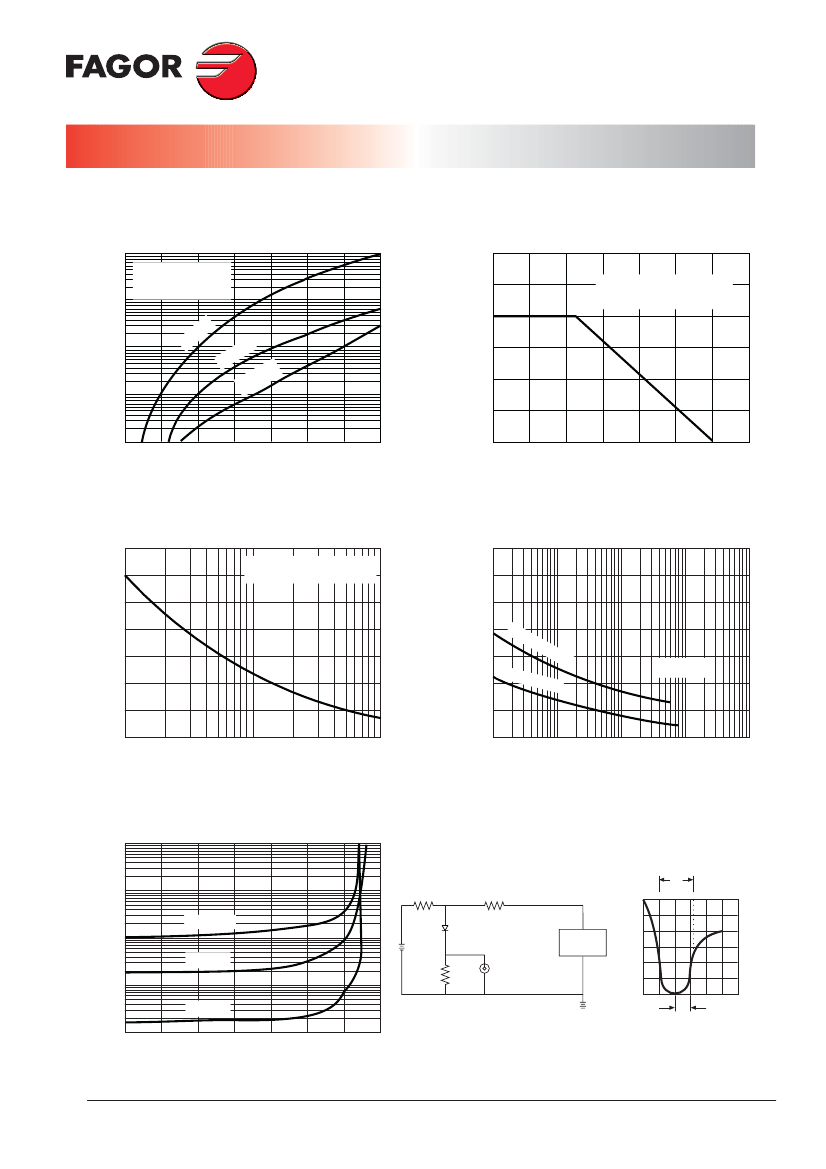

SFT14G ........ SFT18G

1.0 Amp. Glass Passivated Ultrafast Recovery Rectifier

Revision History

Date

15-May-2008

28-Jun-2016

Revision

Original Data Sheet

Format update

Description of Changes

Disclaimer

All product, product specifications and data are subject to change without notice to improve reliability,

function or design or otherwise.

Fagor Electrónica, S.Coop., its affiliates, agents, and employees, and all persons acting on its or their

behalf (collectively, "Fagor"), disclaim any and all liability for any errors, inaccuracies or incompleteness contained

in any datasheet or in any other disclosure relating to any product.

Fagor makes no warranty, representation or guarantee regarding the suitability of the products for any particular

purpose or the continuing production of any product. To the maximum extent permitted by applicable law,

Fagor disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and all

liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied

warranties, including warranties of fitness for particular purpose, non-infringement and merchantability.

Statements regarding the suitability of products for certain types of applications are based on Fagor's knowledge

of typical requirements that are often placed on Fagor products in generic applications. Such statements are not

binding statements about the suitability of products for a particular application. It is the customer's responsibility

to validate that a particular product with the properties described in the product specification is suitable for use in a

particular application. Parameters provided in datasheets and/or specifications may vary in different applications

and performance may vary over time. All operating parameters, including typical parameters, must be validated

for each customer application by the customer's technical experts. Product specifications do not expand or

otherwise modify Fagor's terms and conditions of purchase, including but nos limited to the warranty expressed

therein.

Except as expressly indicated in writing. Fagor products are not designed for use in medical, life-saving, or

life-sustaining applications or for any other application in which the failure of the Fagor product could result in

personal injury or death. Customers using or selling Fagor products not expressly indicated for use in such

applications do so at their own risk and agree to fully indemnify and hold Fagor and its distributors harmless from

and against any and all claims, liabilities, expenses and damages arising or resulting in connection with such use

or sale, including attomeys fees, even if such claim alleges that Fagor or its distributor was negligent regarding

the design or manufacture of the part. Please contact authorized Fagor personnel to obtain written terms and

conditions regarding products designed for such applications.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this

document or by any conduct of Fagor, Product names and markings noted herein may be trademarks of their

respective owners.

www.fagorelectronica.com

Document Name: sft1g

Revision: 1

Version: Jun-16

Page Number: 4/4
