FX5545G2052V9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> FX5545G2052V9

FX5545G2052V9: DescriptionDC-DC Regulated Power Supply Module, 1 Output, 8W, Hybrid, LOW PROFILE, BGA-20; CategoryPower/power management The power supply circuit; File Size99KB，3 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

FX5545G2052V9 Overview

DC-DC Regulated Power Supply Module, 1 Output, 8W, Hybrid, LOW PROFILE, BGA-20

FX5545G2052V9 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	MODULE
package instruction	BGA,
Contacts	20
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	6 V
Minimum input voltage	2.7 V
JESD-30 code	R-PBGA-B20
JESD-609 code	e0
length	14.7 mm
Number of functions	1
Output times	1
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Nominal output voltage	2.9 V
Package body material	PLASTIC/EPOXY
encapsulated code	BGA
Package shape	RECTANGULAR
Package form	GRID ARRAY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	3 mm
surface mount	YES
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	BALL
Terminal pitch	2.54 mm
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	8 W
Fine-tuning/adjustable output	NO
width	12.2 mm
Base Number Matches	1

Preview

Download Datasheet

View All

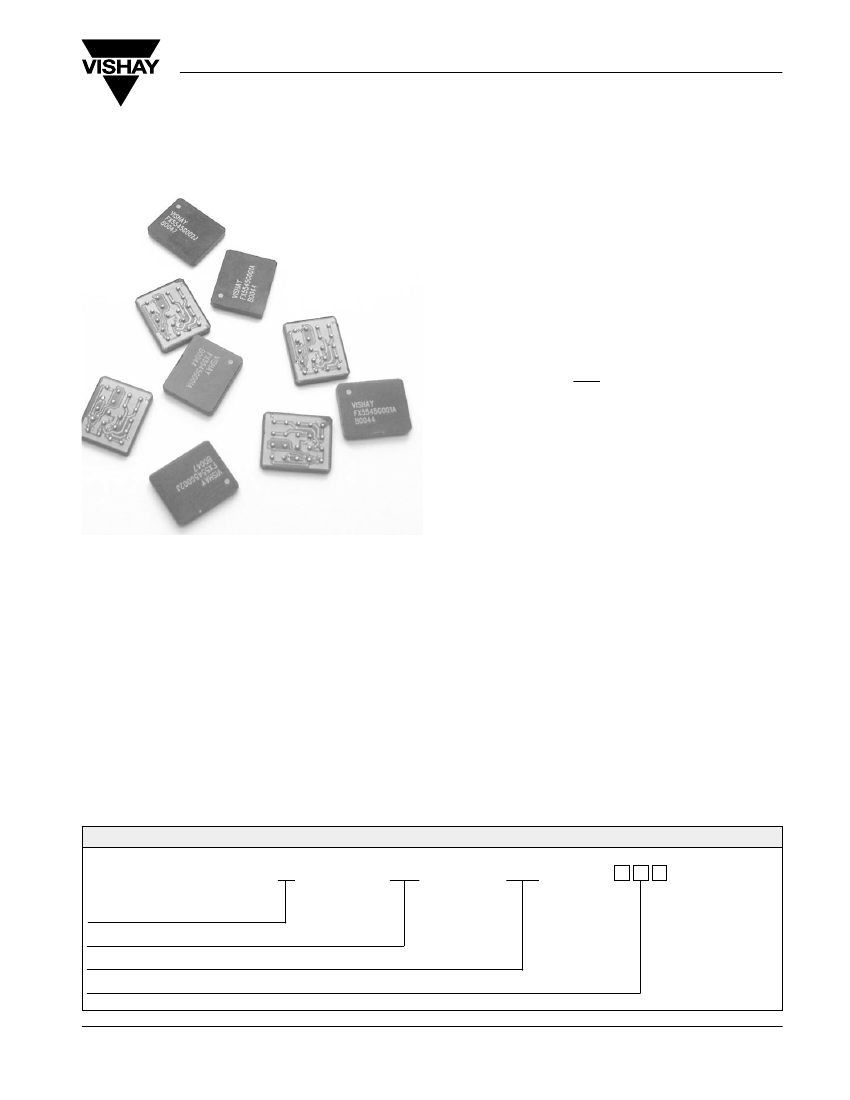

FX5545G205

Vishay

Industry Smallest and Low Profile

8W 2.5A DC/DC Buck Converter

with High Output Density Power

FEATURES

• Fully integrated DC/DC converter

• High efficiency over large load range

• 100% duty cycle

• Power density - more than 300W/inch

• 1uA shutdown current

• 2.7V to 6V input range (1Li+ and 3-cell NiCd or NiMH cells)

• 1.8V to 3.3V output voltage

• Programmable PWM/PSM controls

• Low output ripple

• BGA/LGA construction

• Temperature range: - 40°C to + 85°C

• No external components needed

• Output power 8W

• Maximum current 2.5A

• Low profile

The DC/DC converter is a programmable topology

synchronized Buck converter for today’s continuous changing

portable electronic market. The DC/DC converter provides

flexibility of utilizing various battery configurations and

chemistries such as NiCd, NiMH, or Li+ with an input voltage

range of 2.7V to 6V. An additional flexibility is provided with

topology programmability to power multiple loads such as

power amplifiers, microcontrollers, or baseband logic IC’s. For

ultra-high efficiency, converters are designed to operate in

sychronous rectified PWM mode under full load while

transforming into externally controlled pulse-skipping mode

(PSM) under light load.

The DC/DC converter is available in 20-ports BGA package.

In order to satisfy the stringent ambient temperature

requirements, the DC/DC converter is designed to handle the

industrial temperature range of - 40°C to + 85°C.

APPLICATION

•

Cordless phones, PDAs and others

Supply voltage source for low-voltage chip sets

Portable computers

Battery back-up supplies

Cameras

ORDERING INFORMATION

FUNCTION

SIZE

SERIAL NUMBER

OUTPUT VOLTAGE-Example: 2.7V should be written as 2V7 as the V indicates the decimal point.

5545

G205

Document Number: 10113

Revision 28-Jan-02

For technical questions, contact FunctionPAK@vishay.com

For marketing questions, contact FunctionPAK.marketing@vishay.com

www.vishay.com

FX5545G2052V9 Related Products

	FX5545G2052V9	FX5545G2053V0	FX5545G2053V2	FX5545G2052V4	FX5545G2052V0	FX5545G2052V1	FX5545G2053V1	FX5545G2052V5
Description	DC-DC Regulated Power Supply Module, 1 Output, 8W, Hybrid, LOW PROFILE, BGA-20	DC-DC Regulated Power Supply Module, 1 Output, 8W, Hybrid, LOW PROFILE, BGA-20	DC-DC Regulated Power Supply Module, 1 Output, 8W, Hybrid, LOW PROFILE, BGA-20	DC-DC Regulated Power Supply Module, 1 Output, 8W, Hybrid, LOW PROFILE, BGA-20	DC-DC Regulated Power Supply Module, 1 Output, 8W, Hybrid, LOW PROFILE, BGA-20	DC-DC Regulated Power Supply Module, 1 Output, 8W, Hybrid, LOW PROFILE, BGA-20	DC-DC Regulated Power Supply Module, 1 Output, 8W, Hybrid, LOW PROFILE, BGA-20	DC-DC Regulated Power Supply Module, 1 Output, 8W, Hybrid, LOW PROFILE, BGA-20
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE
package instruction	BGA,	BGA,	BGA,	BGA,	BGA,	BGA,	BGA,	BGA,
Contacts	20	20	20	20	20	20	20	20
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	6 V	6 V	6 V	6 V	6 V	6 V	6 V	6 V
Minimum input voltage	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V
JESD-30 code	R-PBGA-B20	R-PBGA-B20	R-PBGA-B20	R-PBGA-B20	R-PBGA-B20	R-PBGA-B20	R-PBGA-B20	R-PBGA-B20
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
length	14.7 mm	14.7 mm	14.7 mm	14.7 mm	14.7 mm	14.7 mm	14.7 mm	14.7 mm
Number of functions	1	1	1	1	1	1	1	1
Output times	1	1	1	1	1	1	1	1
Number of terminals	20	20	20	20	20	20	20	20
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Nominal output voltage	2.9 V	3 V	3.2 V	2.4 V	2 V	2.1 V	3.1 V	2.5 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	BGA	BGA	BGA	BGA	BGA	BGA	BGA	BGA
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	BALL	BALL	BALL	BALL	BALL	BALL	BALL	BALL
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum total power output	8 W	8 W	8 W	8 W	8 W	8 W	8 W	8 W
Fine-tuning/adjustable output	NO	NO	NO	NO	NO	NO	NO	NO
width	12.2 mm	12.2 mm	12.2 mm	12.2 mm	12.2 mm	12.2 mm	12.2 mm	12.2 mm
Maker	-	Vishay	-	Vishay	Vishay	Vishay	Vishay	Vishay
