MHO+34TCGFREQ2 datasheet, PDF - EEWORLD Datasheet

MHO+34TCGFREQ2: DescriptionCRYSTAL OSCILLATOR, CLOCK, 3 MHz - 67 MHz, CMOS OUTPUT; CategoryPassive components oscillator; File Size59KB，1 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com

Download Datasheet Parametric View All

MHO+34TCGFREQ2 Overview

CRYSTAL OSCILLATOR, CLOCK, 3 MHz - 67 MHz, CMOS OUTPUT

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Manufacturer's serial number	MHO+
Installation features	SURFACE MOUNT
Maximum operating frequency	67 MHz
Minimum operating frequency	3 MHz
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Oscillator type	CMOS
Output load	10 TTL, 50 PF
physical size	20.8mm x 13.2mm x 5.1mm
longest rise time	10 ns
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	45/55 %
Terminal surface	NOT SPECIFIED
Base Number Matches	1

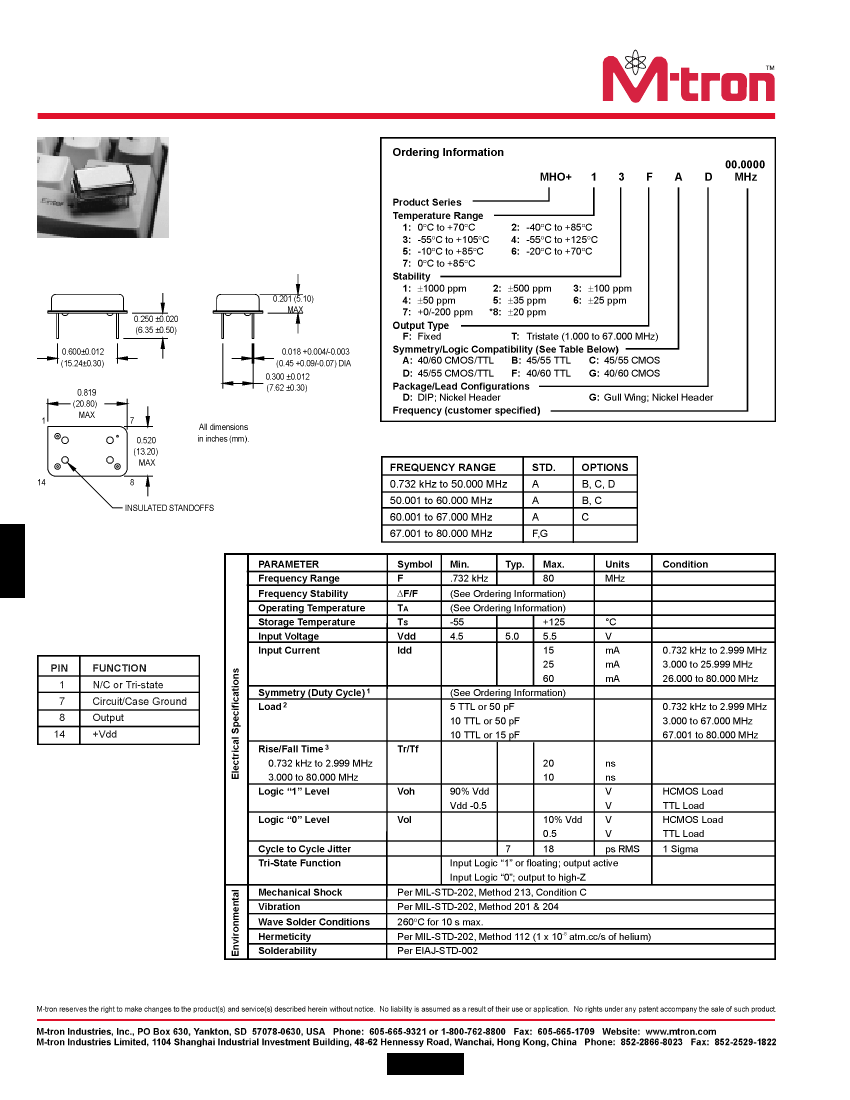

MHO+ Series 5.0 Volt HCMOS/TTL

Compatible Oscillators

Available Symmetry

* Contact factory for availability.

See page 90 for gull wing

configuration.

Pin Connections

1. Symmetry is measured at 1.4 V with TTL load, and at 50% Vdd with HCMOS load.

2. TTL load - See load circuit diagram #1 on page 92. HCMOS load - See load circuit diagram #2 on page 92.

3. Rise/Fall times are measured between 0.5 V and 2.4 V with TTL load, and between 10% Vdd and 90% Vdd with HCMOS load.
