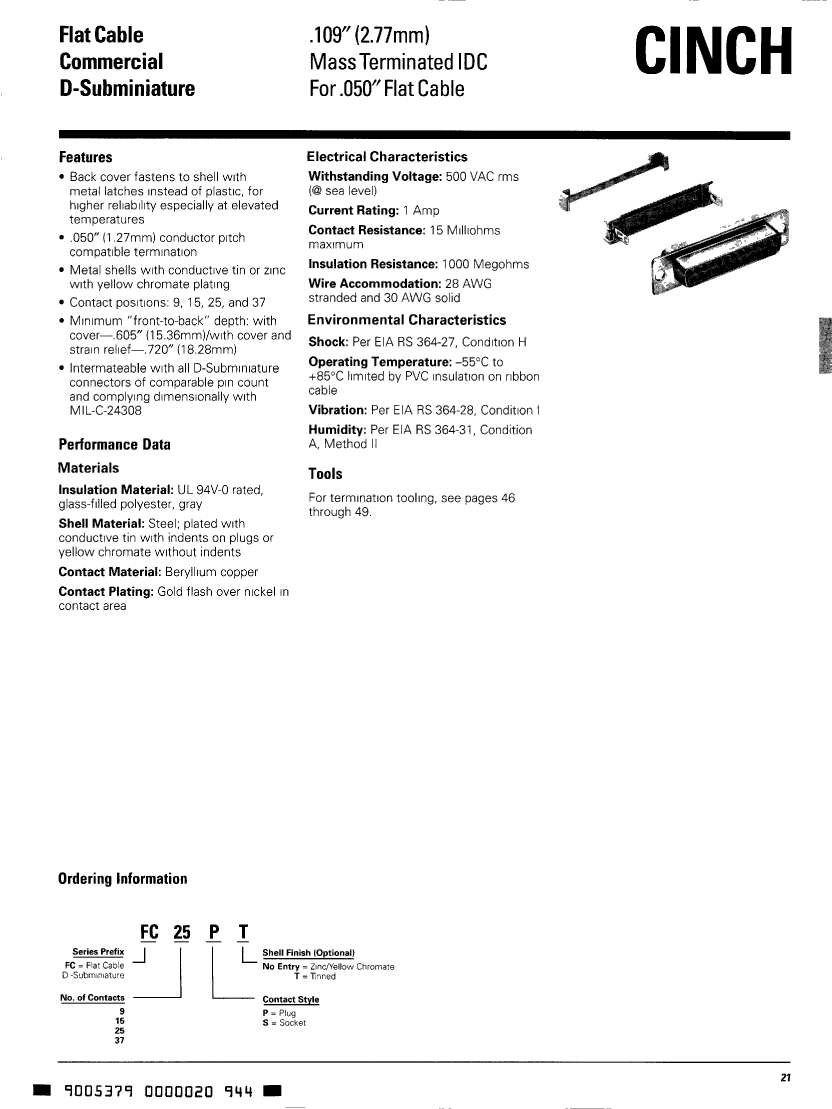

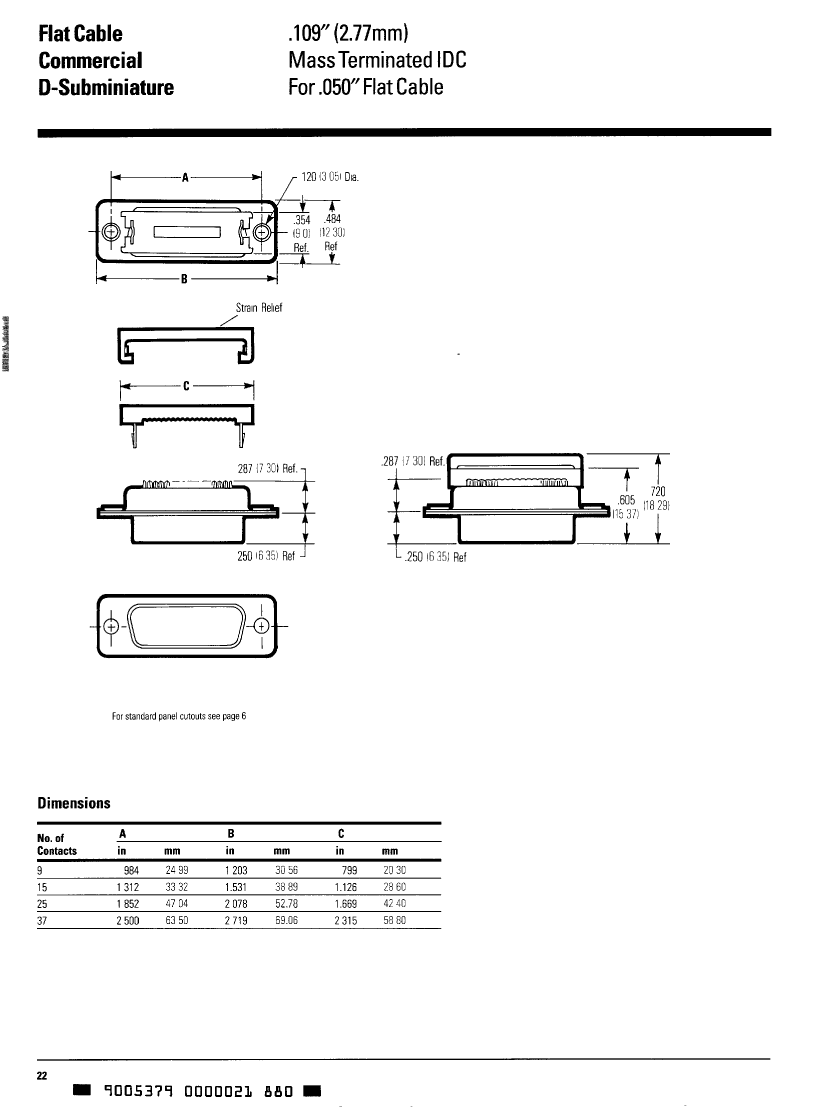

FC25S

Description
D Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, Hole .112-.124, Plug
CategoryThe connector    The connector
File Size97KB，2 Pages
ManufacturerBel Fuse
Download Datasheet Parametric Compare View All

FC25S Overview

D Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, Hole .112-.124, Plug

FC25S Parametric

Parameter NameAttribute value
Reach Compliance Codecompliant
body width0.484 inch
subject depth0.25 inch
body length1.852 inch
Body/casing typePLUG
Contactor designPREASSEM CONN
Contact to complete cooperationAU ON NI
Contact completed and terminatedGOLD
Contact point genderFEMALE
Contact materialBERYLLIUM COPPER
contact modeSTAGGERED
Contact resistance15 mΩ
Contact styleRND PIN-SKT
Dielectric withstand voltage500VAC V
Insulation resistance1000000000 Ω
Insulator colorGRAY
insulator materialGLASS FILLED POLYESTER
MIL complianceYES
Manufacturer's serial numberFC
Plug contact pitch0.109 inch
Match contact row spacing0.112 inch
Installation option 1HOLE .112-.124
Installation option 2NON-THREADED
Installation typeCABLE
Number of rows loaded2
Maximum operating temperature85 °C
Minimum operating temperature-55 °C
Plating thicknessFLASH inch
Rated current (signal)1 A
reliabilityMIL-C-24308
Shell surfaceZINC/YELLOW CHROMATE
Shell materialSTEEL
Termination typeIDC
Total number of contacts25
Maximum wire diameter28 AWG
Minimum wire diameter30 AWG
Base Number Matches1

Preview

Download Datasheet

FC25S Related Products

FC25S FC25ST FC15PT FC15ST FC37ST FC9PT FC9ST FC25P FC15P
Description D Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, Hole .112-.124, Plug D Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, Hole .112-.124, Plug D Type Connector, 15 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, Hole .112-.124, Receptacle D Type Connector, 15 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, Hole .112-.124, Plug D Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, Hole .112-.124, Plug D Type Connector, 9 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, Hole .112-.124, Receptacle D Type Connector, 9 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, Hole .112-.124, Plug D Type Connector, 25 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, Hole .112-.124, Receptacle D Type Connector, 15 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, Hole .112-.124, Receptacle
Reach Compliance Code compliant not_compliant compliant compliant compliant compliant compliant compliant compliant
body width 0.484 inch 0.484 inch 0.484 inch 0.484 inch 0.484 inch 0.484 inch 0.484 inch 0.484 inch 0.484 inch
subject depth 0.25 inch 0.25 inch 0.25 inch 0.25 inch 0.25 inch 0.25 inch 0.25 inch 0.25 inch 0.25 inch
body length 1.852 inch 1.852 inch 1.312 inch 1.312 inch 2.5 inch 0.984 inch 0.984 inch 1.852 inch 1.312 inch
Body/casing type PLUG PLUG RECEPTACLE PLUG PLUG RECEPTACLE PLUG RECEPTACLE RECEPTACLE
Contactor design PREASSEM CONN PREASSEM CONN PREASSEM CONN PREASSEM CONN PREASSEM CONN PREASSEM CONN PREASSEM CONN PREASSEM CONN PREASSEM CONN
Contact to complete cooperation AU ON NI NOT SPECIFIED AU ON NI AU ON NI AU ON NI AU ON NI AU ON NI AU ON NI AU ON NI
Contact point gender FEMALE FEMALE MALE FEMALE FEMALE MALE FEMALE MALE MALE
Contact material BERYLLIUM COPPER NOT SPECIFIED BERYLLIUM COPPER BERYLLIUM COPPER BERYLLIUM COPPER BERYLLIUM COPPER BERYLLIUM COPPER BERYLLIUM COPPER BERYLLIUM COPPER
contact mode STAGGERED STAGGERED STAGGERED STAGGERED STAGGERED STAGGERED STAGGERED STAGGERED STAGGERED
Contact resistance 15 mΩ 15 mΩ 15 mΩ 15 mΩ 15 mΩ 15 mΩ 15 mΩ 15 mΩ 15 mΩ
Contact style RND PIN-SKT RND PIN-SKT RND PIN-SKT RND PIN-SKT RND PIN-SKT RND PIN-SKT RND PIN-SKT RND PIN-SKT RND PIN-SKT
Dielectric withstand voltage 500VAC V 500VAC V 500VAC V 500VAC V 500VAC V 500VAC V 500VAC V 500VAC V 500VAC V
Insulation resistance 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω
Insulator color GRAY GRAY GRAY GRAY GRAY GRAY GRAY GRAY GRAY
insulator material GLASS FILLED POLYESTER GLASS FILLED POLYESTER GLASS FILLED POLYESTER GLASS FILLED POLYESTER GLASS FILLED POLYESTER GLASS FILLED POLYESTER GLASS FILLED POLYESTER GLASS FILLED POLYESTER GLASS FILLED POLYESTER
MIL compliance YES YES YES YES YES YES YES YES YES
Manufacturer's serial number FC FC FC FC FC FC FC FC FC
Plug contact pitch 0.109 inch 0.109 inch 0.109 inch 0.109 inch 0.109 inch 0.109 inch 0.109 inch 0.109 inch 0.109 inch
Match contact row spacing 0.112 inch 0.112 inch 0.112 inch 0.112 inch 0.112 inch 0.112 inch 0.112 inch 0.112 inch 0.112 inch
Installation option 1 HOLE .112-.124 HOLE .112-.124 HOLE .112-.124 HOLE .112-.124 HOLE .112-.124 HOLE .112-.124 HOLE .112-.124 HOLE .112-.124 HOLE .112-.124
Installation option 2 NON-THREADED NON-THREADED NON-THREADED NON-THREADED NON-THREADED NON-THREADED NON-THREADED NON-THREADED NON-THREADED
Installation type CABLE CABLE CABLE CABLE CABLE CABLE CABLE CABLE CABLE
Number of rows loaded 2 2 2 2 2 2 2 2 2
Maximum operating temperature 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C
Minimum operating temperature -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C
Plating thickness FLASH inch FLASH inch FLASH inch FLASH inch FLASH inch FLASH inch FLASH inch FLASH inch FLASH inch
Rated current (signal) 1 A 1 A 1 A 1 A 1 A 1 A 1 A 1 A 1 A
reliability MIL-C-24308 MIL-C-24308 MIL-C-24308 MIL-C-24308 MIL-C-24308 MIL-C-24308 MIL-C-24308 MIL-C-24308 MIL-C-24308
Shell surface ZINC/YELLOW CHROMATE TIN TIN TIN TIN TIN TIN ZINC/YELLOW CHROMATE ZINC/YELLOW CHROMATE
Shell material STEEL STEEL STEEL STEEL STEEL STEEL STEEL STEEL STEEL
Termination type IDC IDC IDC IDC IDC IDC IDC IDC IDC
Total number of contacts 25 25 15 15 37 9 9 25 15
Maximum wire diameter 28 AWG 28 AWG 28 AWG 28 AWG 28 AWG 28 AWG 28 AWG 28 AWG 28 AWG
Minimum wire diameter 30 AWG 30 AWG 30 AWG 30 AWG 30 AWG 30 AWG 30 AWG 30 AWG 30 AWG
Contact completed and terminated GOLD - GOLD GOLD GOLD GOLD GOLD GOLD GOLD
Maker - - Bel Fuse Bel Fuse Bel Fuse Bel Fuse Bel Fuse Bel Fuse -
