FXP1000-24 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> FXP1000-24

Preview

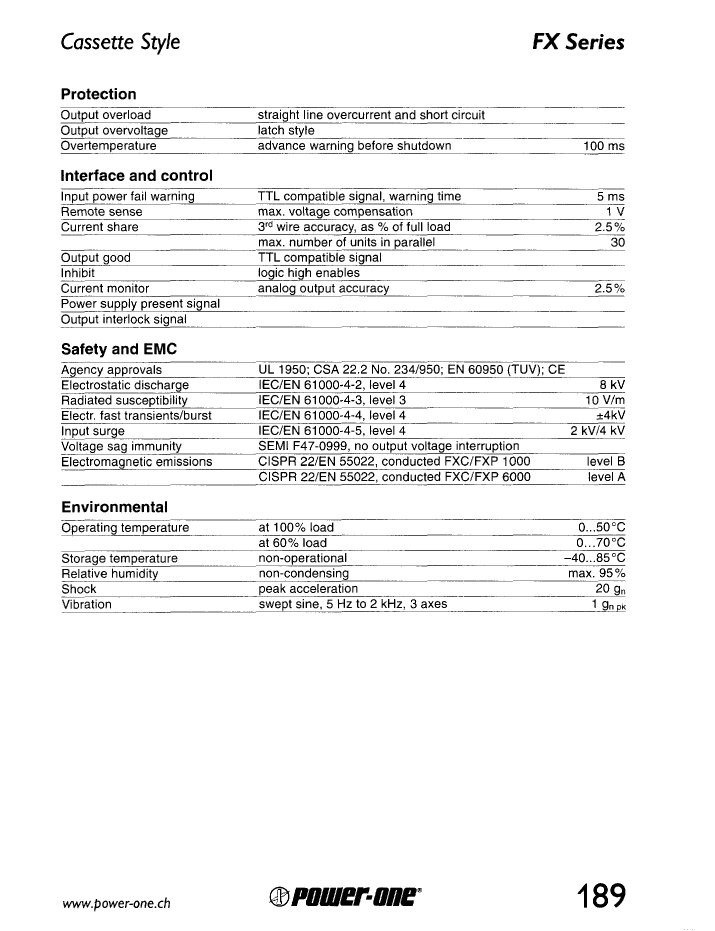

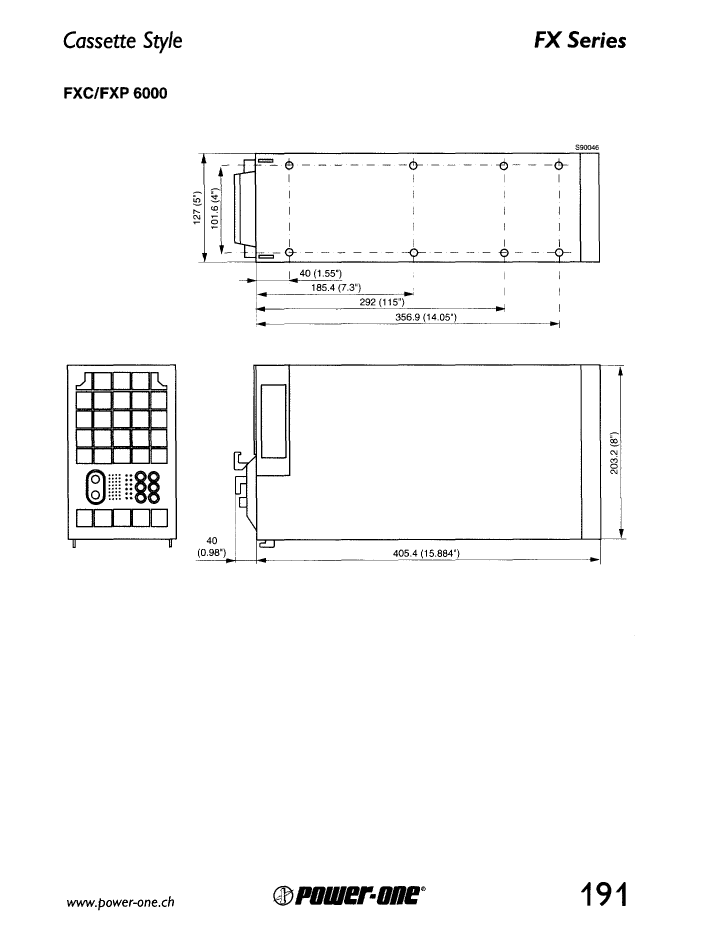

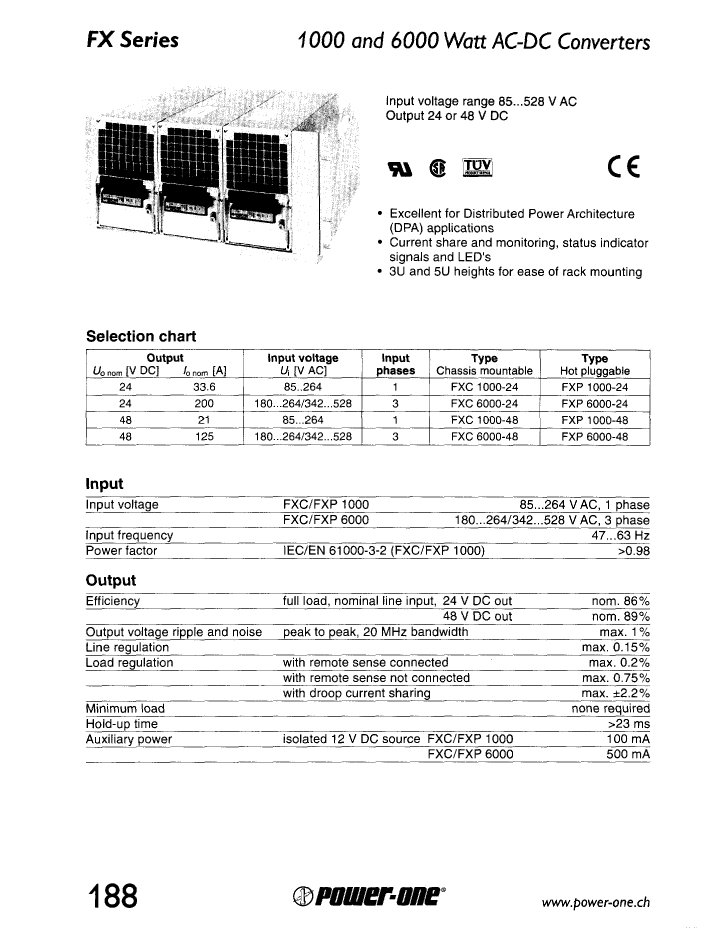

FXP1000-24: DescriptionAC-DC Regulated Power Supply Module, 1 Output, 1000W, Hybrid; CategoryPower/power management The power supply circuit; File Size141KB，4 Pages; ManufacturerBel Fuse

Download Datasheet Parametric Compare View All

FXP1000-24 Overview

AC-DC Regulated Power Supply Module, 1 Output, 1000W, Hybrid

FXP1000-24 Parametric

Parameter Name	Attribute value
Brand Name	Power-One
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	AC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	264 V
Minimum input voltage	85 V
JESD-30 code	R-XXMA-X
Number of functions	1
Output times	1
Maximum operating temperature	50 °C
Minimum operating temperature
Nominal output voltage	24 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	COMMERCIAL
Terminal form	UNSPECIFIED
Terminal location	UNSPECIFIED
Maximum total power output	1000 W
Fine-tuning/adjustable output	NO
Base Number Matches	1

Preview

Download Datasheet

View All

FXP1000-24 Related Products

	FXP1000-24	FXP6000-48	FXC6000-48	FXC6000-24	FXP6000-24
Description	AC-DC Regulated Power Supply Module, 1 Output, 1000W, Hybrid	AC-DC Regulated Power Supply Module, 1 Output, 6000W, Hybrid	AC-DC Regulated Power Supply Module, 1 Output, 6000W, Hybrid	AC-DC Regulated Power Supply Module, 1 Output, 6000W, Hybrid	AC-DC Regulated Power Supply Module, 1 Output, 6000W, Hybrid
Brand Name	Power-One	Power-One	Power-One	Power-One	Power-One
Reach Compliance Code	unknown	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	264 V	264 V	264 V	264 V	264 V
Minimum input voltage	85 V	180 V	180 V	180 V	180 V
JESD-30 code	R-XXMA-X	R-XXMA-X	R-XXMA-X	R-XXMA-X	R-XXMA-X
Number of functions	1	1	1	1	1
Output times	1	1	1	1	1
Maximum operating temperature	50 °C	50 °C	50 °C	50 °C	50 °C
Nominal output voltage	24 V	48 V	48 V	24 V	24 V
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Maximum total power output	1000 W	6000 W	6000 W	6000 W	6000 W
Fine-tuning/adjustable output	NO	NO	NO	NO	NO
Base Number Matches	1	1	1	1	1
Is it lead-free?	-	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	-	incompatible	incompatible	incompatible	incompatible
Maker	-	Bel Fuse	Bel Fuse	Bel Fuse	Bel Fuse
Other features	-	IT CAN ALSO OPERATE FROM A 342VAC TO 528VAC	IT CAN ALSO OPERATE FROM A 342VAC TO 528VAC	IT CAN ALSO OPERATE FROM A 342VAC TO 528VAC	IT CAN ALSO OPERATE FROM A 342VAC TO 528VAC
JESD-609 code	-	e0	e0	e0	e0
Peak Reflow Temperature (Celsius)	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Terminal surface	-	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
