F200-0PB-006B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> F200-0PB-006B

F200-0PB-006B: DescriptionSingle Color LED, Super Blue, T-1 3/4, 5mm,; CategoryLED optoelectronic/LED photoelectric; File Size163KB，1 Pages; ManufacturerLEDtronics; Websitehttp://ledtronics.com.my

Download Datasheet Parametric Compare View All

F200-0PB-006B Overview

Single Color LED, Super Blue, T-1 3/4, 5mm,

F200-0PB-006B Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
color	SUPER BLUE
Configuration	SINGLE
Nominal luminous intensity	125 mcd
Installation features	PANEL MOUNT
Number of functions	1
Number of terminals	2
Optoelectronic device types	SINGLE COLOR LED
method of packing	BULK
peak wavelength	470 nm
shape	ROUND
size	5 mm
surface mount	NO
T code	T-1 3/4
perspective	120 deg
Base Number Matches	1

Preview

Download Datasheet

View All

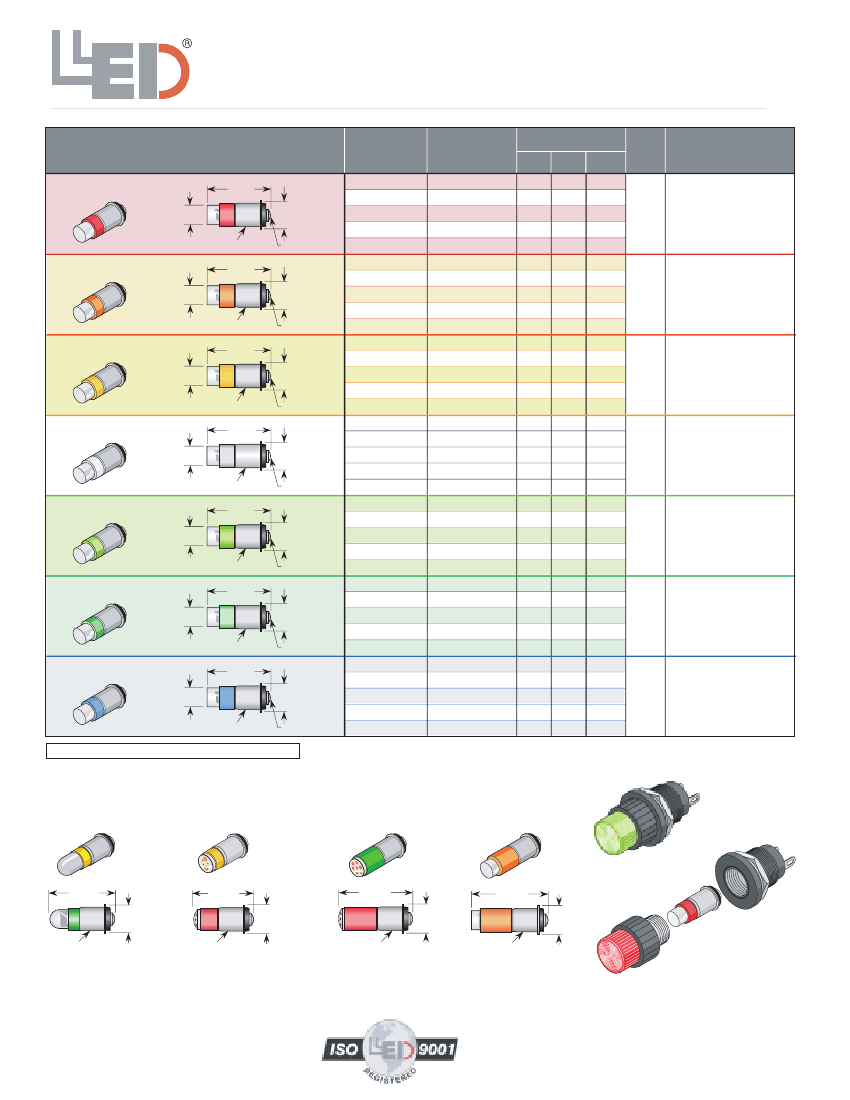

T1-3/4 (5mm) Midget Flange Based LEDs

Subminiature Packages

660nm Ultra Red

GaAIAs/GaAIAs

.20

Replaces

Incandescent

328,345,350

.65 MAX

Part Number

FF200-0UR-006B

FF200-0UR-014B

FF200-0UR-024B

FF200-0UR-028B

FF200-0UO-006B

FF200-0UO-014B

FF200-0UO-024B

FF200-0UO-028B

FF200-0UY-006B

FF200-0UY-014B

FF200-0UY-024B

FF200-0UY-028B

FF200-0CW-006B

FF200-0CW-014B

FF200-0CW-024B

FF200-0CW-028B

FF200-0UG-006B

FF200-0UG-014B

FF200-0UG-024B

FF200-0UG-028B

FF200-0AG-006B

FF200-0AG-014B

FF200-0AG-024B

FF200-0AG-028B

Electrical-Optical

Characteristics (Ta = 25ºC)

Voltage Current Intensity

V typ mA typ

mcd

Angle

Illumi-

nation

Special Features

Center Contact Polarity

B = BiPolar AC/DC

5/6V

12/14V

24V

28V

5/6V

12/14V

24V

28V

5/6V

12/14V

24V

28V

12/14V

24V

28V

5/6V

12/14V

24V

28V

5/6V

12/14V

24V

28V

115

130

116

160

400

120º

330,382,394

.28

327,376,387

FF200

.240 Dia

Center Contact

Replace FF200 With F200

Narrow Beam (15º)

Intensity 1.6K mcd/52

Ft.Cd @20 mA

Center Contact Polarity

B = BiPolar AC/DC

Replace FF200 With F200

Narrow (15º) Beam

Intensity 3.5K mcd@20 mA

Center Contact Polarity

B = BiPolar AC/DC

Replace FF200 With F200

Narrow (15º) Beam

Intensity 3.2K mcd@20 mA

Center Contact Polarity

B = BiPolar AC/DC

Replace FF200 With F200

Std. (50º) Beam Intensity

750 mcd/75 Ft. cd

Center Contact Polarity

B = BiPolar AC/DC

Replace FF200 With F200

Narrow (12-15º) Beam

Intensity 1K mcd@ 20 mA

Center Contact Polarity

B = BiPolar AC/DC

Replace FF200 With F200

Narrow (15º) Beam

Intensity 7K mcd/250 Ft.Cd

Center Contact Polarity

B = BiPolar AC/DC

612nm Super Orange

InGaAIP

.20

328,345,350

.65 MAX

330,382,394

.28

327,376,387

FF200

.240 Dia

Center Contact

595nm Super Yellow

InGaAIP

.20

328,345,350

.65 MAX

330,382,394

.28

327,376,387

FF200

.240 Dia

Center Contact

8000K Cool White

SiC/GaN

.20

328,345,350

.65 MAX

330,382,394

.28

327,376,387

FF200

.240 Dia

Center Contact

570nm Lime Green

InGaAIP

.20

.65 MAX

328,345,350

330,382,394

.28

327,376,387

FF200

.240 Dia

Center Contact

525nm Aqua Green

SiC/GaN

.20

.65 MAX

328,345,350

330,382,394

.28

327,376,387

FF200

.240 Dia

Center Contact

470nm Super Blue

SiC/GaN

.20

.65 MAX

328,345,350

330,382,394

.28

FF200-0PB-006B

FF200-0PB-014B

FF200-0PB-024B

FF200-0PB-028B

5/6V

12/14V

24V

28V

125

120º

327,376,387

FF200

.240 Dia

Center Contact

Replace FF200 With F200

Std. (15º) Beam Intensity

2K mcd/60 Ft.Cd

All dimensions in inches. For millimeters multiply by 25.4

Options

(2-Chip)

.67 Max

.60 Max

.28

.240 Dia

.28

.240 Dia

.28

.240 Dia

Series:

F200

PN Example:

F200-0AG-006B

Series:

F202

PN Example:

F202-0UR-006B

Series:

FL206

PN Example:

FL206-0UR-006B

Series:

FFL200

PN Example:

FFL200-0UO-006B

LEDTRONICS,

INC.

THE FUTURE OF LIGHT

23105 Kashiwa Court, Torrance, CA 90505

Phone: (800) 579-4875 or (310) 534-1505

Fax: (310) 534-1424

E-mail: webmaster@ledtronics.com

Website: www.ledtronics.com

Log # 122Dd Rev 09-2000

.73 Max

.77 Max
