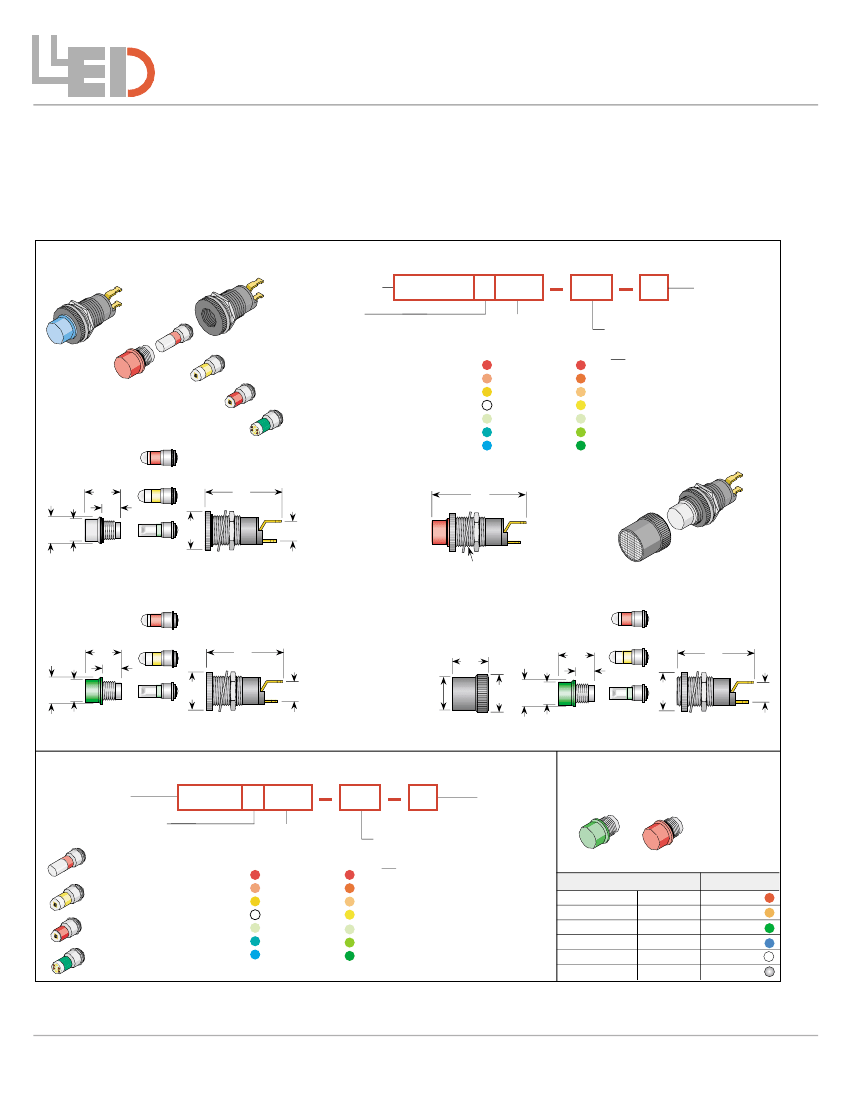

5/16" Relampable Panel LED Lamps
Features
Options
•
Panel Mounting Diameter
5/16 in. (8.0mm)
•
Long Life 100,000+ hrs (10 years)
•
Solid-State, High Shock/Vibration
Resistant
•
Maintenance Free, Easy Installation
•
Low Power, High Intensity
•
Major Power Savings
•
Major Reduction in Heat
Generation
•
Built-in Current Limiting Resistor
•
Special Voltages
•
Sunlight-Visible Super Bright or High-
Efficiency LEDs
•
Bi-Colors, Tri-Colors, RGB, IR
•
Flashing / Blinking
5/16" (8mm) Mtg. Dia. Front & Rear Mount
Series
with T1 Sub-Midget Flange LED
FF120
F121
(1 Chip)
HLC310 = Front Mount
HLD310 = Rear Mount
HLD312 = 2 Chip
HLD314 = 4 Chip
Lens
C = Tinted Clear
CW = Water Clear
TW = Milky White
HLC310 C R3K
LED Color
1 Chip
(Super Intensity)
R3K = SP Red
O3K = SP Orange
Y3K = SP Yellow
W900 = C. White
G1K = UL. Green
AG6K = A. Green
B1K = SP. Blue
2/4 Chip
(Std Intensity)
R6 = UL Red
R5 = HE Red
O5 = Orange
Y5 = Yellow
LY5 = L. Yellow
G5 = HE Green
PG5 = P. Green
5V
P
Options
P = Center Pos
(Black Bezel)
F122
(2 Chip)
F124
(4 Chip)
Watertight Front Mount
F122/F124
23/64
[9.2]
3/16
[4.8]
17/64 7/32
[6.8] [5.6]
23/32
[18.3]
Std. Operating
Voltage
DC
2Vf (Ext. Res. Rqd.)
3.5Vf (Ext. Res. Rqd.)
3.6V
5/6V
12/14V
24V
28V
.93
[23.6]
F121
3/8
[9.6]
3/16
[4.8]
Lens Cap
HL430
Lamp
FF120
Holder
HLC2220
Watertight Black Nickel
RFI EMI Shielded
.312 Mounting Dia
[8.0]
Standard Front Mount
F122/F124
23/64
[9.2]
3/16
[4.8]
17/64 7/32
[6.8] [5.6]
23/32
[18.3]
Standard Rear Mount
F122/F124
.36
[9.2]
3/16
[4.8]
.33
[8.4]
.375
[9.6]
17/64 7/32
[6.8] [5.6]
23/64
[9.2]
3/16
[4.8]
23/32
[18.3]
F121
3/8
[9.6]
F121
3/8
[9.6]
3/16
[4.8]
Lens Cap
HL230
Lamp
FF120
Holder
HLC2020
Standard Black Nickel
RFI EMI Shielded
HL852-WC
Lens Cap
HL230
Lamp
FF120
Holder
HLD2020
Adjustable Black Nickel
T1 LED Lamps
Series
FF120 = 1 Chip
F121 = 1 Chip
F122 = 2 Chip
F124 = 4 Chip
Lens Cap
FF120 C R3K
Lens
C = Clear
1 Chip
(Super Intensity)
R3K = SP Red
O3K = SP Orange
Y3K = SP Yellow
W900 = C. White
G1K = UL. Green
AG6K = A. Green
B1K = SP. Blue
LED Color
2/4 Chip
(Std Intensity)
R6 = UL Red
R5 = HE Red
O5 = Orange
Y5 = Yellow
LY5 = L. Yellow
G5 = HE Green
PG5 = P. Green
5V
P
Options
P = Positive Center
N = Negative Center
FF120
HL230-RT
HL230-AT
HL230-GT
HL230-BT
HL230-WT
HL230-WC
HL430-RT
HL430-AT
HL430-GT
HL430-BT
HL430-WT
HL430-WC
Diff Red
Diff Orange
Diff Green
Diff Blue
Diff. White
Water Clear
F121
F122
F124
Super Intensity 2 & 4 Chip LEDs Available
in This Package for Special Applications
LEDTRONICS,
INC.
THE FUTURE OF LIGHT
ISO 9001
REGISTERED
Phone: (310) 534-1505
Fax: (310) 534-1424
Website: http://www.ledtronics.com
Log # 119A Rev 07-2000
Std. Operating
Voltage
DC
2Vf (Ext. Res. Rqd.)
3.5Vf (Ext. Res. Rqd.)
3.6V
5/6V
12/14V
24V
28V
Standard
Watertight
Lens Type/Color
Lens Cap Part Number
