FC22-007-05 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> FC22-007-05

FC22-007-05: DescriptionDC-DC Regulated Power Supply Module, 2 Output, 0.8W, Hybrid,; CategoryPower/power management The power supply circuit; File Size163KB，2 Pages; ManufacturerSemiconductor Circuits Inc

Download Datasheet Parametric View All

FC22-007-05 Overview

DC-DC Regulated Power Supply Module, 2 Output, 0.8W, Hybrid,

FC22-007-05 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ADDITIONAL -12V OUTPUT AVAILABLE
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	5.5 V
Minimum input voltage	4.5 V
Nominal input voltage	5 V
JESD-30 code	R-XDMA-P6
Maximum grid adjustment rate	0.02%
Maximum load regulation	0.02%
Number of functions	1
Output times	2
Number of terminals	6
Maximum operating temperature	71 °C
Minimum operating temperature	-25 °C
Maximum output voltage	12.12 V
Minimum output voltage	11.88 V
Nominal output voltage	12 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Protect	CURRENT
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	COMMERCIAL EXTENDED
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	0.8 W
Fine-tuning/adjustable output	NO
Base Number Matches	1

Preview

Download Datasheet

View All

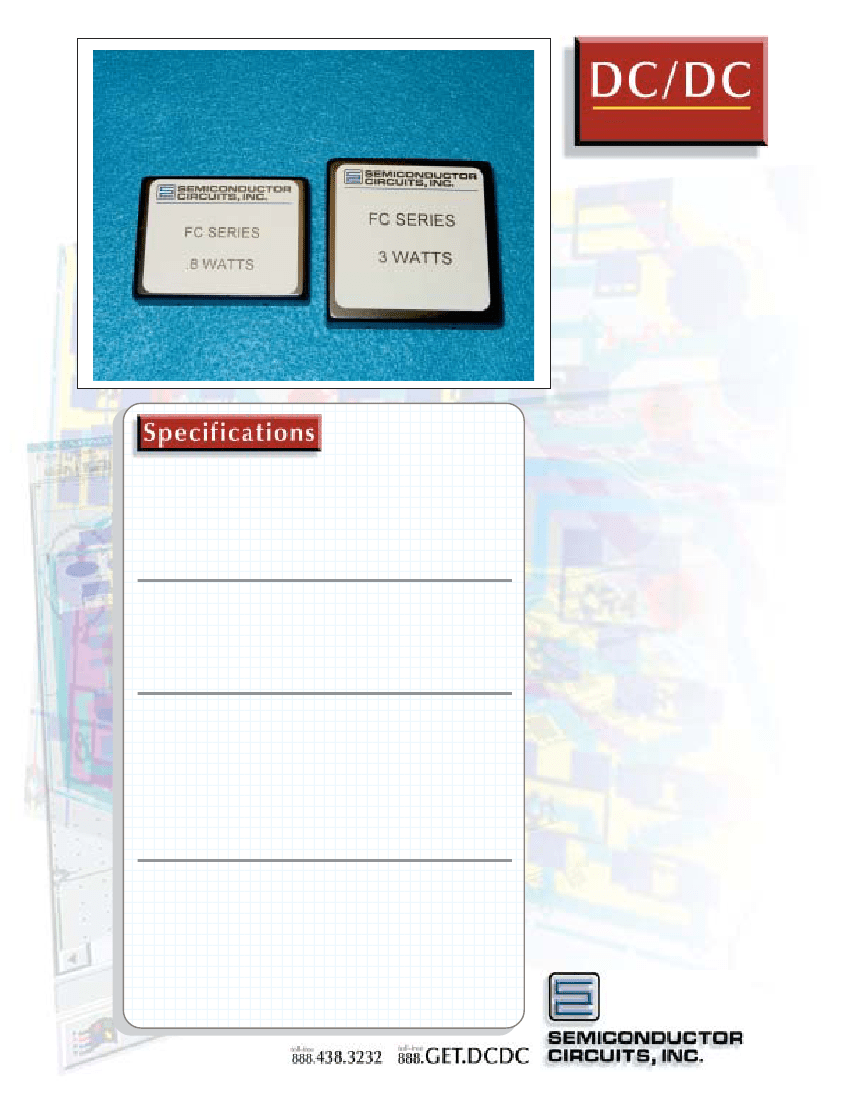

765432121098765432109876543210987654321

ENVIRONMENTAL

GENERAL

INPUT

OUTPUT

All specifications are typical at nominal line and full load at 25°C unless

otherwise noted and are subject to change without notice.

Operating Temperature

Storage Temperature

Cooling

Regulation:

Line

Load

Efficiency

I/O Isolation

Switching Frequency

Reflected Ripple

Voltage Tolerance

Ripple and Noise

Short Circuit Protection

Temperature Coefficient

Voltage Range

FC Series

-25°C to +71°C No Derating

-25°C to +105°C

Free-air Convection

0.02%

65% (typ)

300 Vdc

6 to 20khz

4.5 - 5.5 Vdc

10.8 - 15 Vdc

21.6 - 30 Vdc

42 - 56 Vdc

Less than 1% Vin (max)

± 1%

5mV pk-pk

Current Limit

0.02% / °C

Ultra low noise

Pi input filter

Continuous short circuit

protection with auto restart

Regulated outputs

The FC Series converters are ideal for

noise-sensitive analog and digital

applications having high component

density and stringent performance

requirements. For ease of use and

system reliability, all FC Series models

feature I/O isolated outputs which are

overcurrent protected by a self-reset-

ting current limit circuit.

Applications

he FC Series are ultra-low noise,

high performance DC/DC

converters that are packaged in

low profile (0.4 inch high) cases.

Essential quality performance features

are designed and built-in. A high

performance Pi input filter minimizes

input reflected ripple, while 5-sided

electrostatic shielding and tape-wound

toroids, rather than pot cores, minimize

radiated EMI. Advanced circuit design

techniques reduce conducted output

noise in the form of current spikes, to

an extremely low level.

Dual Outputs

.8 to 3 Watts

Recommended Resources

220V direct device contactor closing circuit

JJW2 series AC purification stabilized power supply circuit

ACK circuit

LA4550 power amplifier circuit

Self-extinguishing touch dimming circuit composed of CS7237
