FA1104B: DescriptionSingle Color LED, Orange, Water Clear, 2.4mm, 3.50 X 2.80 MM, 1.90 MM HEIGHT, ROHS COMPLIANT, PLCC-2; CategoryLED optoelectronic/LED photoelectric; File Size86KB，1 Pages; ManufacturerStanley Electric Co; Environmental Compliance

Download Datasheet Parametric Compare View All

FA1104B Overview

Single Color LED, Orange, Water Clear, 2.4mm, 3.50 X 2.80 MM, 1.90 MM HEIGHT, ROHS COMPLIANT, PLCC-2

FA1104B Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	3.50 X 2.80 MM, 1.90 MM HEIGHT, ROHS COMPLIANT, PLCC-2
Reach Compliance Code	unknown
color	ORANGE
color@wavelength	Amber
Configuration	SINGLE
Maximum forward current	0.03 A
Maximum forward voltage	2.5 V
Lens type	WATER CLEAR
Nominal luminous intensity	70.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.9 mm
method of packing	TAPE AND REEL
peak wavelength	609 nm
Maximum reverse voltage	5 V
shape	ROUND
size	2.4 mm
surface mount	YES
Terminal pitch	3 mm
perspective	120 deg
Base Number Matches	1

Preview

Download Datasheet

View All

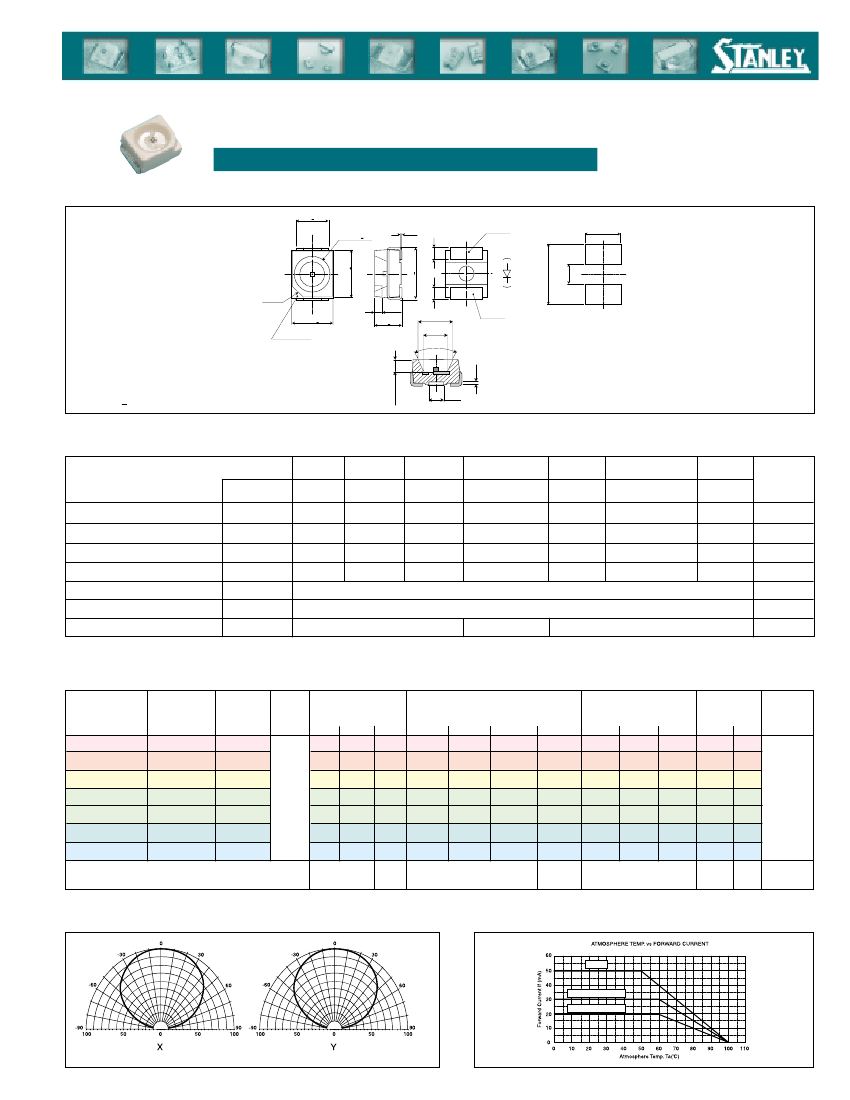

SINGLE COLOR LED

1 1 0 4 B B a th T ub (PL CC-2) T y p e

S TA N D A R D & H I G H B R I G H T N E S S C O L O R

s

Outline Dimensions

2.2 +0.1

φ

2.4 +0.1

0.1

(Anode)

0.8

(2.6)

3.2+0.2

3.5+0.2

(4.5)

(C0.8)

(0.5)

2.8+0.2

(Cathode Mark)

1.9+0.2

φ

2.4

φ

1.65

45°

0.8

(Cathode)

s

Recommended Solder Pad

Unit: mm

Tolerances + 0.2

s

Absolute Maximum Ratings

Red

Item

Power Dissipation

Forward Current

Peak Forward Current

Reverse Voltage

Operating Temperature

Storage Temperature

Derating

Symbol

FR

81

30

100

5

Orange

FA

81

30

100

5

Yellow

FY

81

30

100

5

Pure Green

BG

125

50

125

4

-40 to +100

-40 to +110

1.0

(50°C ~ 100°C)

0.85

φ

1.0

0.2

(1.5)

(Ta=25°C)

Green

DG

80

20

50

5

Bluish-Green

DC

80

20

50

5

Blue

DB

80

20

50

5

mW

mA

V

°C

mA/°C

Units

Pd

I

F

I

FM

V

R

Topr

Tstg

∆I

F

0.75 (60°C ~ 100°C)

0.5 (60°C ~ 100°C)

* Ta=25°C, I

FM

applies for the pulse width

≤

1msec. and duty cycle

≤1/20.

s

Electro-Optical Characteristics

Part No.

FR1104B

FA1104B

FY1104B

BG1104B

DG1104B

DC1104B

DB1104B

Material

AlInGaP

GaP

InGaN/SIC

Units

Emitted Lens

Color Color

Red

Orange

Yellow

Pure Green

Green

Bluish-Green

Blue

*The viewing angle is an average and will vary by color

(Ta=25°C)

Luminous

Intensity

IV

MIN.

TYP.

I

F

Wavelength

Peak

λp

TYP.

Dominant Spectral Line

Half Width

λd

∆λ

TYP.

I

F

TYP

.

Forward

Voltage

V

F

MAX.

I

F

Reverse Viewing

Current

IR

Angle

MAX.

V

R

(2

θ

1/2)

35

Water

5

Clear

60

25

70

10

120

50

20

mA

645

609

588

555

518

502

468

632

605

587

557

525

505

470

nm

15

30

20

mA

2.0

2.1

3.5

V

2.5

4.0

20

mA

100

µA

5

4

5

V

120°

mcd

Deg.

s

Spatial Distribution

s

Operation Current Derating Chart

BG

FR, FA, FY

DG, DC, DB,

*Spatial distribution is viewed as a typical illustration and will vary by color

27

FA1104B Related Products

	FA1104B	DB1104B	DG1104B
Description	Single Color LED, Orange, Water Clear, 2.4mm, 3.50 X 2.80 MM, 1.90 MM HEIGHT, ROHS COMPLIANT, PLCC-2	Single Color LED, Blue, Water Clear, 2.4mm, SURFACE MOUNT PACKAGE-2	Single Color LED, Green, Water Clear, 2.4mm, SURFACE MOUNT PACKAGE-2
package instruction	3.50 X 2.80 MM, 1.90 MM HEIGHT, ROHS COMPLIANT, PLCC-2	SURFACE MOUNT PACKAGE-2	SURFACE MOUNT PACKAGE-2
Reach Compliance Code	unknown	unknown	unknown
color	ORANGE	BLUE	GREEN
color@wavelength	Amber	Blue	Blue-Green
Configuration	SINGLE	SINGLE	SINGLE
Maximum forward current	0.03 A	0.02 A	0.02 A
Maximum forward voltage	2.5 V	4 V	4 V
Lens type	WATER CLEAR	WATER CLEAR	WATER CLEAR
Nominal luminous intensity	70.0 mcd	25.0 mcd	60.0 mcd
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1
Number of terminals	2	2	2
Maximum operating temperature	100 °C	100 °C	100 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	1.9 mm	1.9 mm	1.9 mm
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
peak wavelength	609 nm	467 nm	522 nm
Maximum reverse voltage	5 V	5 V	5 V
shape	ROUND	ROUND	ROUND
size	2.4 mm	2.4 mm	2.4 mm
surface mount	YES	YES	YES
Terminal pitch	3 mm	3 mm	3 mm
perspective	120 deg	120 deg	120 deg
Base Number Matches	1	1	1
