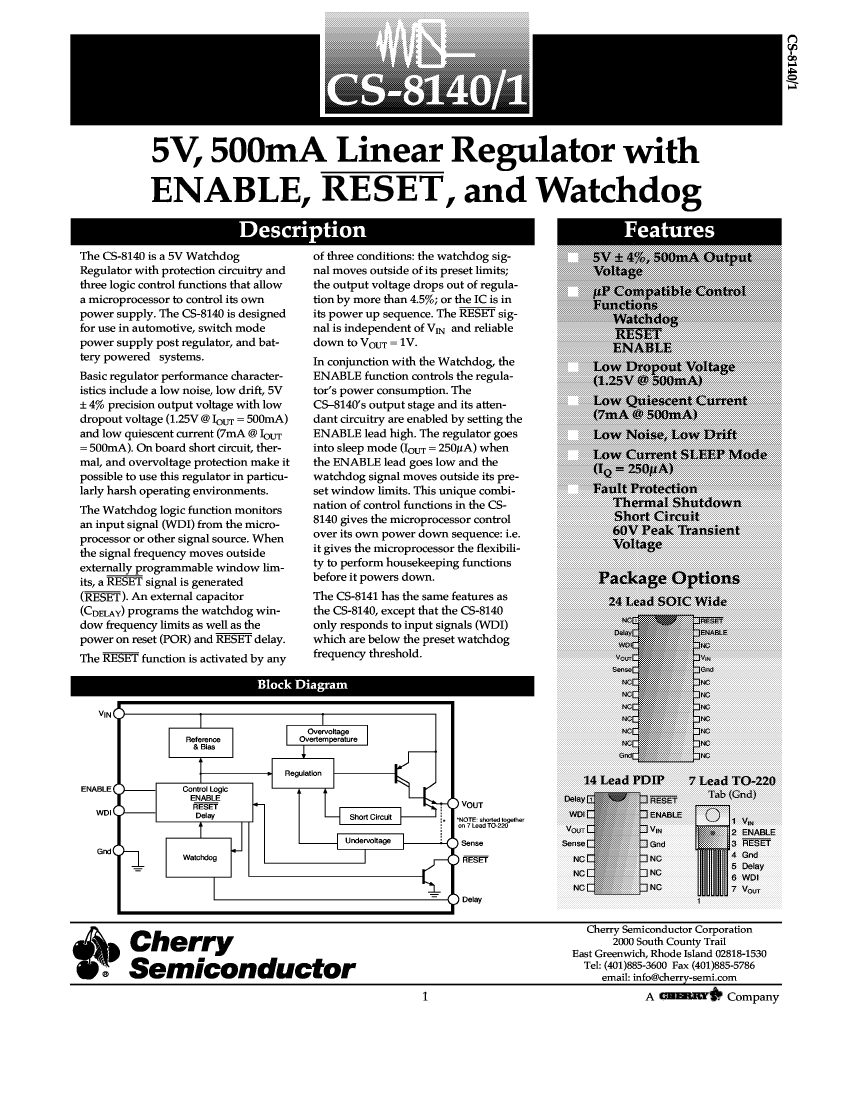

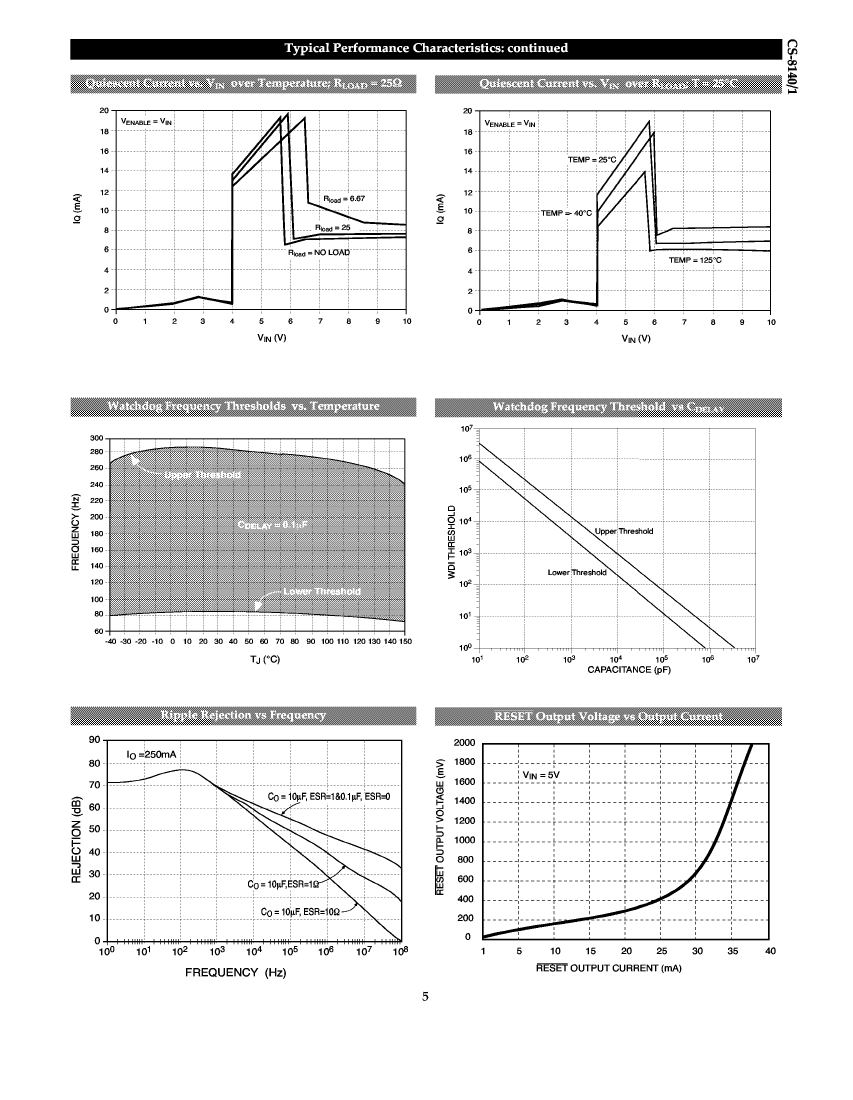

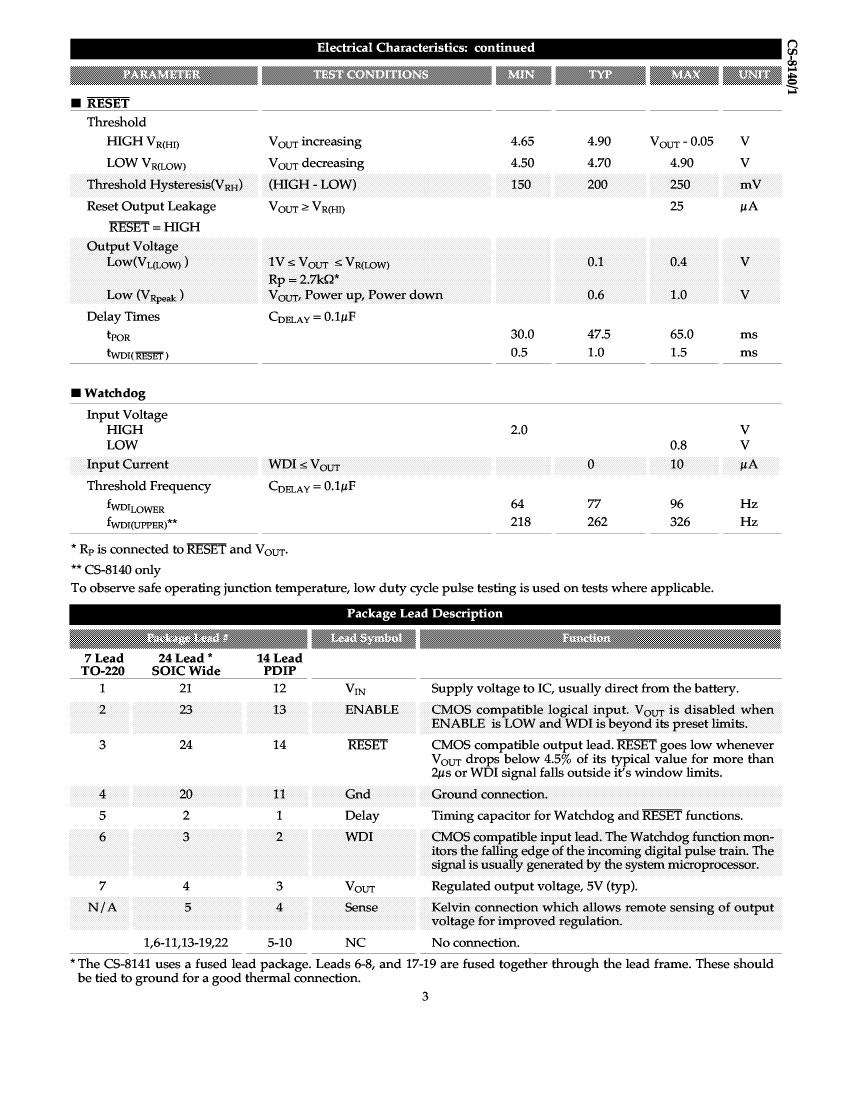

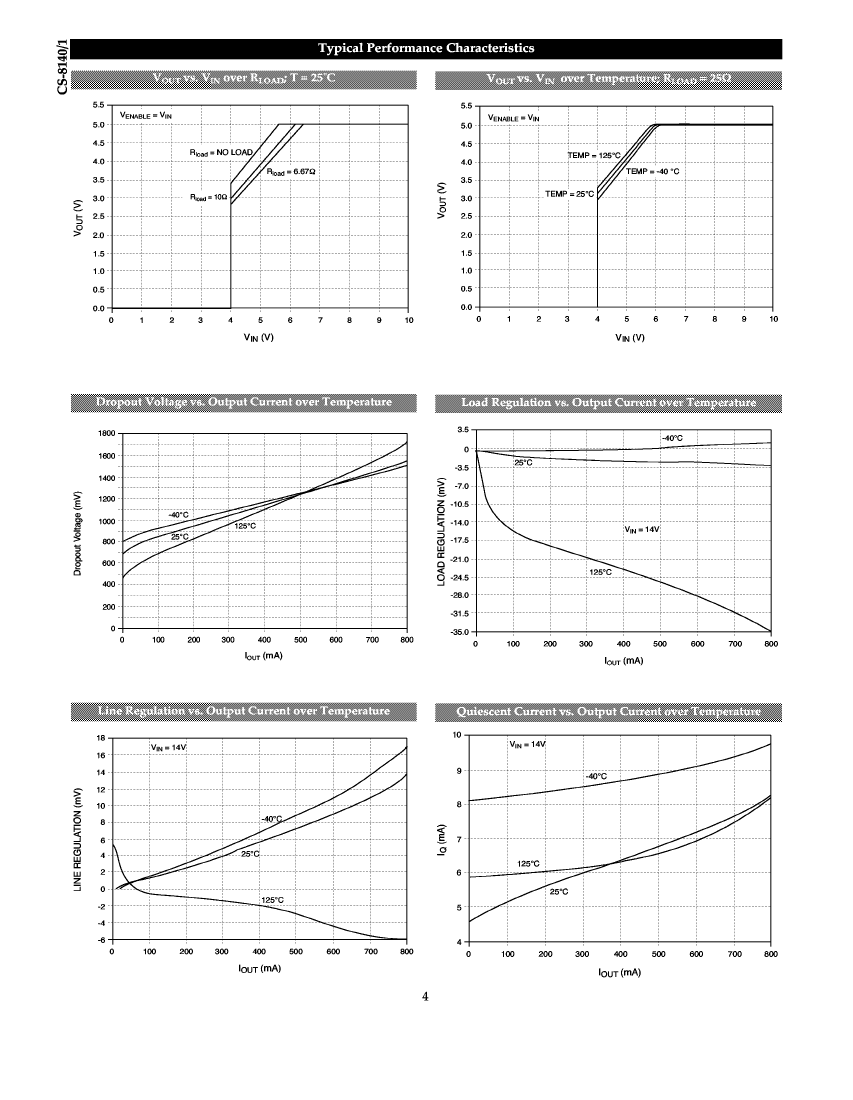

Fixed Positive LDO Regulator, 5V, 1.5V Dropout, BIPolar, PDIP14, PLASTIC, DIP-14

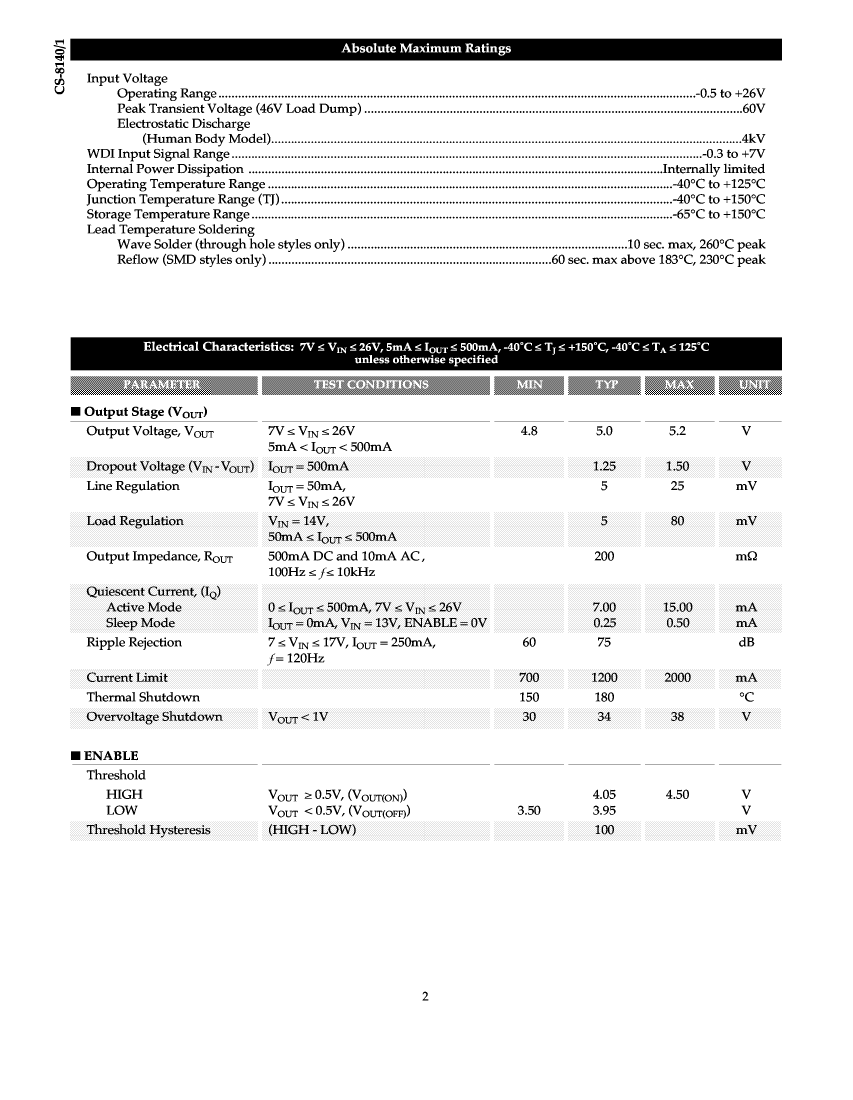

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| package instruction | PLASTIC, DIP-14 |
| Reach Compliance Code | unknown |
| Adjustability | FIXED |
| Maximum drop-back voltage 1 | 1.5 V |
| Nominal dropback voltage 1 | 1.25 V |
| Maximum absolute input voltage | 26 V |
| Maximum input voltage | 26 V |
| Minimum input voltage | 7 V |
| JESD-30 code | R-PDIP-T14 |
| JESD-609 code | e0 |
| Maximum grid adjustment rate | 0.025% |
| Maximum load regulation | 0.08% |
| Number of functions | 1 |
| Output times | 1 |
| Number of terminals | 14 |
| Working temperatureTJ-Max | 150 °C |
| Working temperature TJ-Min | -40 °C |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -40 °C |
| Maximum output current 1 | 0.5 A |
| Maximum output voltage 1 | 5.2 V |
| Minimum output voltage 1 | 4.8 V |
| Nominal output voltage 1 | 5 V |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP14,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Certification status | Not Qualified |
| Regulator type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR |
| surface mount | NO |
| technology | BIPOLAR |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum voltage tolerance | 4% |
| Base Number Matches | 1 |
| CS-8141N14 | CS-8140THA7 | CS-8141DW24 | CS-8141TV7 | CS-8140DWR24 | CS-8140N14 | CS-8140T7 | CS-8141DWR24 | |
|---|---|---|---|---|---|---|---|---|
| Description | Fixed Positive LDO Regulator, 5V, 1.5V Dropout, BIPolar, PDIP14, PLASTIC, DIP-14 | Fixed Positive LDO Regulator, 5V, 1.5V Dropout, BIPolar, PSFM7, TO-220, 7 PIN | Fixed Positive LDO Regulator, 5V, 1.5V Dropout, BIPolar, PDSO24, SO-24 | Fixed Positive LDO Regulator, 5V, 1.5V Dropout, BIPolar, PSFM7, VERTICAL, TO-220, 7 PIN | Fixed Positive LDO Regulator, 5V, 1.5V Dropout, PDSO24, SO-24 | Fixed Positive LDO Regulator, 5V, 1.5V Dropout, BIPolar, PDIP14, PLASTIC, DIP-14 | Fixed Positive LDO Regulator, 5V, 1.5V Dropout, BIPolar, PSFM7, STRAIGHT, TO-220, 7 PIN | Fixed Positive LDO Regulator, 5V, 1.5V Dropout, PDSO24, SO-24 |
| package instruction | PLASTIC, DIP-14 | TO-220, 7 PIN | SO-24 | VERTICAL, TO-220, 7 PIN | SO-24 | PLASTIC, DIP-14 | STRAIGHT, TO-220, 7 PIN | SO-24 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| Maximum drop-back voltage 1 | 1.5 V | 1.5 V | 1.5 V | 1.5 V | 1.5 V | 1.5 V | 1.5 V | 1.5 V |
| Maximum input voltage | 26 V | 26 V | 26 V | 26 V | 26 V | 26 V | 26 V | 26 V |
| Minimum input voltage | 7 V | 7 V | 7 V | 7 V | 7 V | 7 V | 7 V | 7 V |
| JESD-30 code | R-PDIP-T14 | R-PSFM-T7 | R-PDSO-G24 | R-PSFM-T7 | R-PDSO-G24 | R-PDIP-T14 | R-PSFM-T7 | R-PDSO-G24 |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 14 | 7 | 24 | 7 | 24 | 14 | 7 | 24 |
| Working temperatureTJ-Max | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C |
| Working temperature TJ-Min | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C |
| Maximum output current 1 | 0.5 A | 0.5 A | 0.5 A | 0.5 A | 0.5 A | 0.5 A | 0.5 A | 0.5 A |
| Maximum output voltage 1 | 5.2 V | 5.2 V | 5.2 V | 5.2 V | 5.2 V | 5.2 V | 5.2 V | 5.2 V |
| Minimum output voltage 1 | 4.8 V | 4.8 V | 4.8 V | 4.8 V | 4.8 V | 4.8 V | 4.8 V | 4.8 V |
| Nominal output voltage 1 | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | FLANGE MOUNT | SMALL OUTLINE | FLANGE MOUNT | SMALL OUTLINE | IN-LINE | FLANGE MOUNT | SMALL OUTLINE |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Regulator type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR |
| surface mount | NO | NO | YES | NO | YES | NO | NO | YES |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | GULL WING | THROUGH-HOLE | GULL WING | THROUGH-HOLE | THROUGH-HOLE | GULL WING |
| Terminal location | DUAL | SINGLE | DUAL | SINGLE | DUAL | DUAL | SINGLE | DUAL |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | - | incompatible | incompatible | - |
| Adjustability | FIXED | FIXED | FIXED | FIXED | - | FIXED | FIXED | - |
| Nominal dropback voltage 1 | 1.25 V | 1.25 V | 1.25 V | 1.25 V | - | 1.25 V | 1.25 V | - |
| Maximum absolute input voltage | 26 V | 26 V | 26 V | 26 V | - | 26 V | 26 V | - |
| JESD-609 code | e0 | e0 | e0 | e0 | - | e0 | e0 | - |
| Maximum grid adjustment rate | 0.025% | 0.025% | 0.025% | 0.025% | - | 0.025% | 0.025% | - |
| Maximum load regulation | 0.08% | 0.08% | 0.08% | 0.08% | - | 0.08% | 0.08% | - |
| Output times | 1 | 1 | 1 | 1 | - | 1 | 1 | - |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | - | 125 °C | 125 °C | - |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C | - | -40 °C | -40 °C | - |
| encapsulated code | DIP | ZIP | SOP | ZIP | - | DIP | - | - |
| Encapsulate equivalent code | DIP14,.3 | ZIP7H,.2,.7TB | SOP24,.4 | ZIP7,.15,.2TB | - | DIP14,.3 | SIP7,.1,50TB | - |
| technology | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | - | BIPOLAR | BIPOLAR | - |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | - | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | - |
| Terminal pitch | 2.54 mm | 1.27 mm | 1.27 mm | 1.27 mm | - | 2.54 mm | 1.27 mm | - |
| Maximum voltage tolerance | 4% | 4% | 4% | 4% | - | 4% | 4% | - |
