DH1C-B3AA: DescriptionSnap Acting/Limit Switch, SPDT, On-(on), Momentary, 0.5A, 30VDC, 0.4064mm, 5 PCB Hole Cnt, Solder Terminal, Button Type Actuator, Panel Mount; CategoryMechanical and electronic products switch; File Size163KB，3 Pages; ManufacturerThe Cherry Corporation; Environmental Compliance

Download Datasheet Parametric Compare View All

DH1C-B3AA Overview

Snap Acting/Limit Switch, SPDT, On-(on), Momentary, 0.5A, 30VDC, 0.4064mm, 5 PCB Hole Cnt, Solder Terminal, Button Type Actuator, Panel Mount

DH1C-B3AA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator angle
Actuator material	THERMOPLASTIC
Actuator stroke	0.4064 mm
Actuator type	BUTTON TYPE
Other features	LIGHT WEIGHT
body width	2.69 mm
Body color	BLACK
body height	6.02 mm
Body length or diameter	8.2 mm
center contact material	BERYLLIUM COPPER
Center contact plating	SILVER
Maximum contact current (DC)	0.5 A
Contact (DC) maximum rated R load	.5A@30VDC
Contact function	ON-(ON)
contact time	SNAP ACTION
Maximum contact voltage (DC)	30 V
Electrical life	30000 Cycle(s)
End contact material	BERYLLIUM COPPER
End contact plating	SILVER
Shell material	POLYESTER
insulator material	POLYESTER
JESD-609 code	e4
Manufacturer's serial number	DH
Installation features	PANEL MOUNT
Maximum operating force	0.8813 N
work location	0.213 inch
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
PCB hole count	5
surface mount	NO
Switch action	MOMENTARY
switch function	SPDT
Switch type	SNAP ACTING/LIMIT SWITCH
Terminal surface	Silver (Ag)
Terminal length	0.122 inch
Terminal material	BRASS
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

GO TO TABLE OF CONTENTS

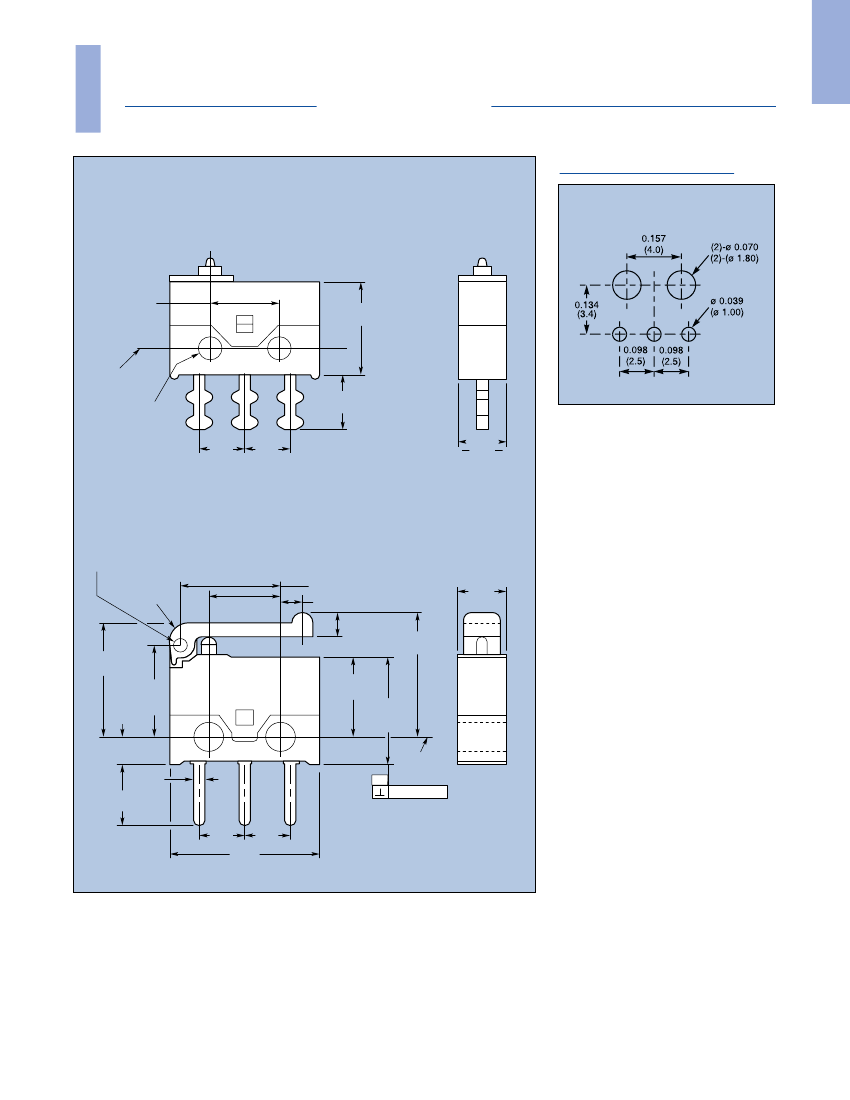

DH Series

DH1

DH2

50-500 mA

5-50 mA

Ultra-Subminiature

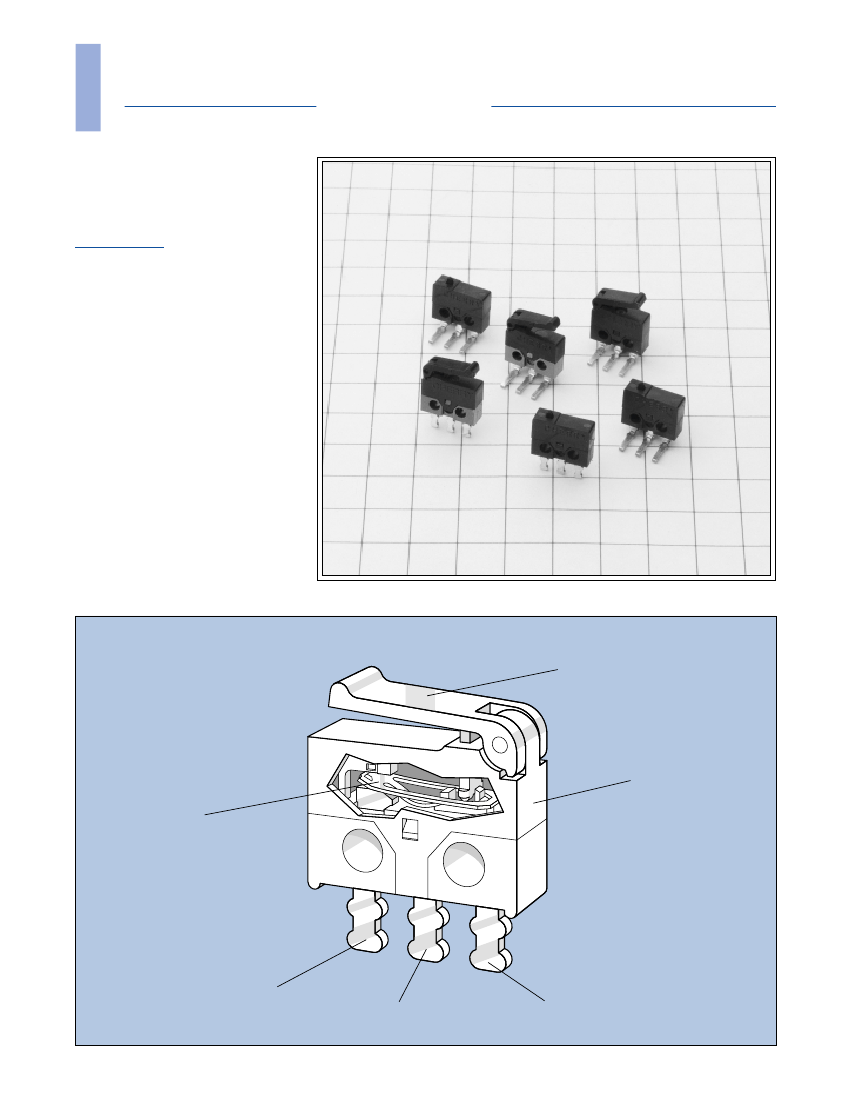

Features

Ultra subminiature for dramatic

space savings

Just 0.322''L x 0.106''W

x 0.238''H

Light weight: 0.3 grams

Designed for low energy

applications

Choice of button or lever

actuator

Insertion molded terminals

Automatic assembly insures

consistent quality

Vertical and horizontal printed

circuit board mounting

Thermoplastic Lever

Thermoplastic

Case and Cover

Silver or Gold

Contacts

NC Terminal

NO Terminal

Common Terminal

1-10

DH1C-B3AA Related Products

	DH1C-B3AA	DH1C-C5AA	DH1C-B3PA	DH1C-C5PA	DH1C-B2AA	DH1C-B2PA	DH1C-C4AA	DH1C-C6AA	DH1C-C4PA	DH1C-C6PA
Description	Snap Acting/Limit Switch, SPDT, On-(on), Momentary, 0.5A, 30VDC, 0.4064mm, 5 PCB Hole Cnt, Solder Terminal, Button Type Actuator, Panel Mount	Snap Acting/Limit Switch, SPDT, On-(on), Momentary, 0.5A, 30VDC, 0.4064mm, 5 PCB Hole Cnt, Solder Terminal, Button Type Actuator, Panel Mount	Snap Acting/Limit Switch, SPDT, On-(on), Momentary, 0.5A, 30VDC, 1.5748mm, 5 PCB Hole Cnt, Solder Terminal, Lever Actuator, Panel Mount	Snap Acting/Limit Switch, SPDT, On-(on), Momentary, 0.5A, 30VDC, 1.5748mm, 5 PCB Hole Cnt, Solder Terminal, Lever Actuator, Panel Mount	Snap Acting/Limit Switch, SPDT, On-(on), Momentary, 0.5A, 30VDC, 0.4064mm, 5 PCB Hole Cnt, Solder Terminal, Button Type Actuator, Panel Mount	Snap Acting/Limit Switch, SPDT, On-(on), Momentary, 0.5A, 30VDC, 1.5748mm, 5 PCB Hole Cnt, Solder Terminal, Lever Actuator, Panel Mount	Snap Acting/Limit Switch, SPDT, On-(on), Momentary, 0.5A, 30VDC, 0.4064mm, 5 PCB Hole Cnt, Solder Terminal, Button Type Actuator, Panel Mount	Snap Acting/Limit Switch, SPDT, On-(on), Momentary, 0.5A, 30VDC, 0.4064mm, 5 PCB Hole Cnt, Solder Terminal, Button Type Actuator, Panel Mount	Snap Acting/Limit Switch, SPDT, On-(on), Momentary, 0.5A, 30VDC, 1.5748mm, 5 PCB Hole Cnt, Solder Terminal, Lever Actuator, Panel Mount	Snap Acting/Limit Switch, SPDT, On-(on), Momentary, 0.5A, 30VDC, 1.5748mm, 5 PCB Hole Cnt, Solder Terminal, Lever Actuator, Panel Mount
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Actuator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Actuator stroke	0.4064 mm	0.4064 mm	1.5748 mm	1.5748 mm	0.4064 mm	1.5748 mm	0.4064 mm	0.4064 mm	1.5748 mm	1.5748 mm
Actuator type	BUTTON TYPE	BUTTON TYPE	LEVER	LEVER	BUTTON TYPE	LEVER	BUTTON TYPE	BUTTON TYPE	LEVER	LEVER
Other features	LIGHT WEIGHT	LIGHT WEIGHT	LIGHT WEIGHT	LIGHT WEIGHT	LIGHT WEIGHT	LIGHT WEIGHT	LIGHT WEIGHT	LIGHT WEIGHT	LIGHT WEIGHT	LIGHT WEIGHT
body width	2.69 mm	2.69 mm	2.69 mm	2.69 mm	2.69 mm	2.69 mm	2.69 mm	2.69 mm	2.69 mm	2.69 mm
Body color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
body height	6.02 mm	6.02 mm	6.02 mm	6.02 mm	6.02 mm	6.02 mm	6.02 mm	6.02 mm	6.02 mm	6.02 mm
Body length or diameter	8.2 mm	8.2 mm	8.2 mm	8.2 mm	8.2 mm	8.2 mm	8.2 mm	8.2 mm	8.2 mm	8.2 mm
center contact material	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER
Center contact plating	SILVER	SILVER	SILVER	SILVER	SILVER	SILVER	SILVER	SILVER	SILVER	SILVER
Maximum contact current (DC)	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Contact (DC) maximum rated R load	.5A@30VDC	.5A@30VDC	.5A@30VDC	.5A@30VDC	.5A@30VDC	.5A@30VDC	.5A@30VDC	.5A@30VDC	.5A@30VDC	.5A@30VDC
Contact function	ON-(ON)	ON-(ON)	ON-(ON)	ON-(ON)	ON-(ON)	ON-(ON)	ON-(ON)	ON-(ON)	ON-(ON)	ON-(ON)
contact time	SNAP ACTION	SNAP ACTION	SNAP ACTION	SNAP ACTION	SNAP ACTION	SNAP ACTION	SNAP ACTION	SNAP ACTION	SNAP ACTION	SNAP ACTION
Maximum contact voltage (DC)	30 V	30 V	30 V	30 V	30 V	30 V	30 V	30 V	30 V	30 V
Electrical life	30000 Cycle(s)	30000 Cycle(s)	30000 Cycle(s)	30000 Cycle(s)	30000 Cycle(s)	30000 Cycle(s)	30000 Cycle(s)	30000 Cycle(s)	30000 Cycle(s)	30000 Cycle(s)
End contact material	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER
End contact plating	SILVER	SILVER	SILVER	SILVER	SILVER	SILVER	SILVER	SILVER	SILVER	SILVER
Shell material	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER
insulator material	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4	e4	e4
Manufacturer's serial number	DH	DH	DH	DH	DH	DH	DH	DH	DH	DH
Installation features	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
Maximum operating force	0.8813 N	0.8813 N	0.4893 N	0.4893 N	0.8813 N	0.4893 N	0.8813 N	0.8813 N	0.4893 N	0.4893 N
work location	0.213 inch	0.213 inch	0.263 inch	0.263 inch	0.213 inch	0.263 inch	0.213 inch	0.213 inch	0.263 inch	0.263 inch
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
PCB hole count	5	5	5	5	5	5	5	5	5	5
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Switch action	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY
switch function	SPDT	SPDT	SPDT	SPDT	SPDT	SPDT	SPDT	SPDT	SPDT	SPDT
Switch type	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH
Terminal surface	Silver (Ag)	Silver (Ag)	Silver (Ag)	Silver (Ag)	Silver (Ag)	Silver (Ag)	Silver (Ag)	Silver (Ag)	Silver (Ag)	Silver (Ag)
Terminal length	0.122 inch	0.122 inch	0.122 inch	0.122 inch	0.122 inch	0.122 inch	0.122 inch	0.122 inch	0.122 inch	0.122 inch
Terminal material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Maker	-	-	-	-	The Cherry Corporation	The Cherry Corporation	The Cherry Corporation	The Cherry Corporation	The Cherry Corporation	The Cherry Corporation
