DM08TR: DescriptionSlide Dip Switch, 8 Switches, SPST, Latched, 0.025A, 24VDC, Solder Terminal, Surface Mount-straight; CategoryMechanical and electronic products switch; File Size75KB，2 Pages; ManufacturerAPEM; Environmental Compliance

Download Datasheet Parametric View All

DM08TR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DM08TR	-	-	View	Buy Now

DM08TR Overview

Slide Dip Switch, 8 Switches, SPST, Latched, 0.025A, 24VDC, Solder Terminal, Surface Mount-straight

DM08TR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
body width	6.2 mm
body height	3.7 mm
Body length or diameter	21.26 mm
Maximum contact current (DC)	0.025 A
Contact (DC) maximum rated R load	.025A@24VDC
Maximum contact voltage (DC)	24 V
Electrical life	2000 Cycle(s)
JESD-609 code	e4
Installation features	SURFACE MOUNT-STRAIGHT
Number of switching segments	8
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
method of packing	TAPE AND REEL; TUBE
surface mount	NO
Switch action	LATCHED
switch function	SPST
Switch type	SLIDE DIP SWITCH
Terminal surface	Gold (Au)
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

NDI & DM SERIES

SPST STANDARD DIP SWITCHES

GENERAL SPECIFICATIONS

ELECTRICALS

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.

FEATURES

High reliability.

Self-cleaning contacts.

Multi- positions.

Process compatible with tape seal.

Dual in-line .100" x .300" term. spacing.

Electrical life

Contact rating, non-switching

Contact rating, switching

Contact resistance at current 100 mA

Insulation resistance at 100 VDC

Dielectric strength

Capacitance

MECHANICALS, THERMALS

Mechanical life

Operating force

Vibration

Shock

Operating temperature range

2000 cycles min. per switch @ 24 VDC, 25 mA

100 mA at 50 VDC

25 mA at 24 VDC

50 milliohms max. initial - 100 milliohms max. after life test

100 milliohms minimum

500 VAC for 1 minute

5 pf. max. between adjacent terminals

2000 cycles min. per switch

1000 grams max.

10-55 Hz.per MIL-STD-202F METHOD 201A

50 G (peak value) for 11 msec. per MIL-STD-202F, METHOD 213B

-20°C to 85°C

SOLDERING & CLEANING RECOMMENDATIONS*

Hand soldering

350°C max. for 2 seconds max.(30 watt iron max.)

Wave soldering

260°C max. for 5 seconds max.

Cleaning (with tape seal)

Spray wash from top side only.

Note: keep switches in “OFF” position during soldering and cleaning for best results

MATERIALS

Base & Cover

Actuators

Contacts

Terminals

Term. Sealing

Tape seal

NDI: UL94V-O, glass fiber filled PBT, black

DM: UL94V-O, glass fiber filled PPS, black

UL94V-O, Nylon, white

Gold over nickel plated copper alloy

Gold plated brass.

Molded-in

Kapton

PACKAGING

DIP switches are shipped in standard IC tubes with all actuators in the "OFF" position.

Tape & reel packaging per EIA available for DMR models (see next page).

SWITCH

CROSS

SECTIONS

Double

contact system

SCHEMATIC (TYPICAL)

DI & DM

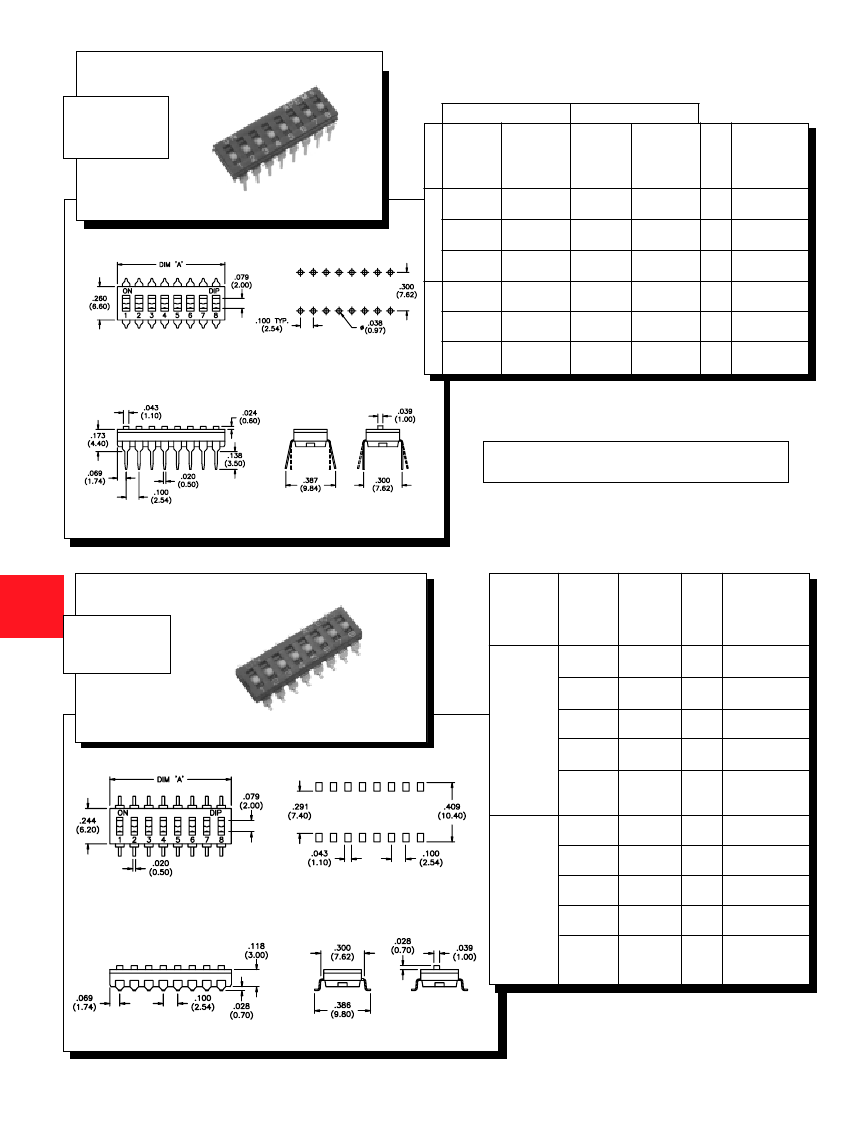

See tabulations on following pages for

number of positions available (10 shown)

APEM

, 63 NECK ROAD, HAVERHILL, MA USA 01835-0788 TOLL FREE: (877) 246-7890 FAX: (781) 245-4531 E-mail: info@apem.com
